NISSAN X-TRAIL 2005 Service Repair Manual FUEL TRANSPORT PUMP
EC-1685
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

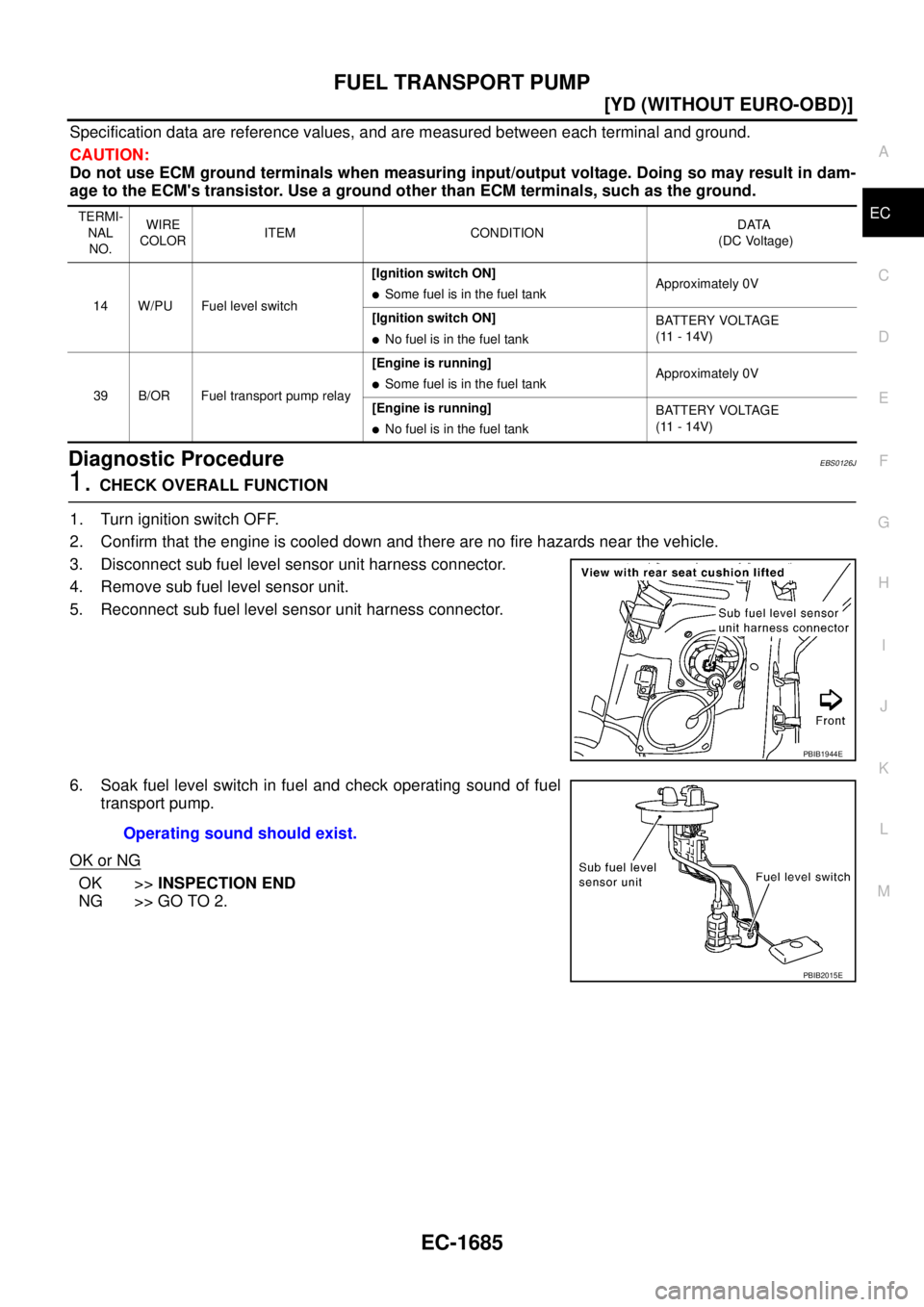

Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM grou

Page 2090 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1686
[YD (WITHOUT EURO-OBD)]
FUEL TRANSPORT PUMP

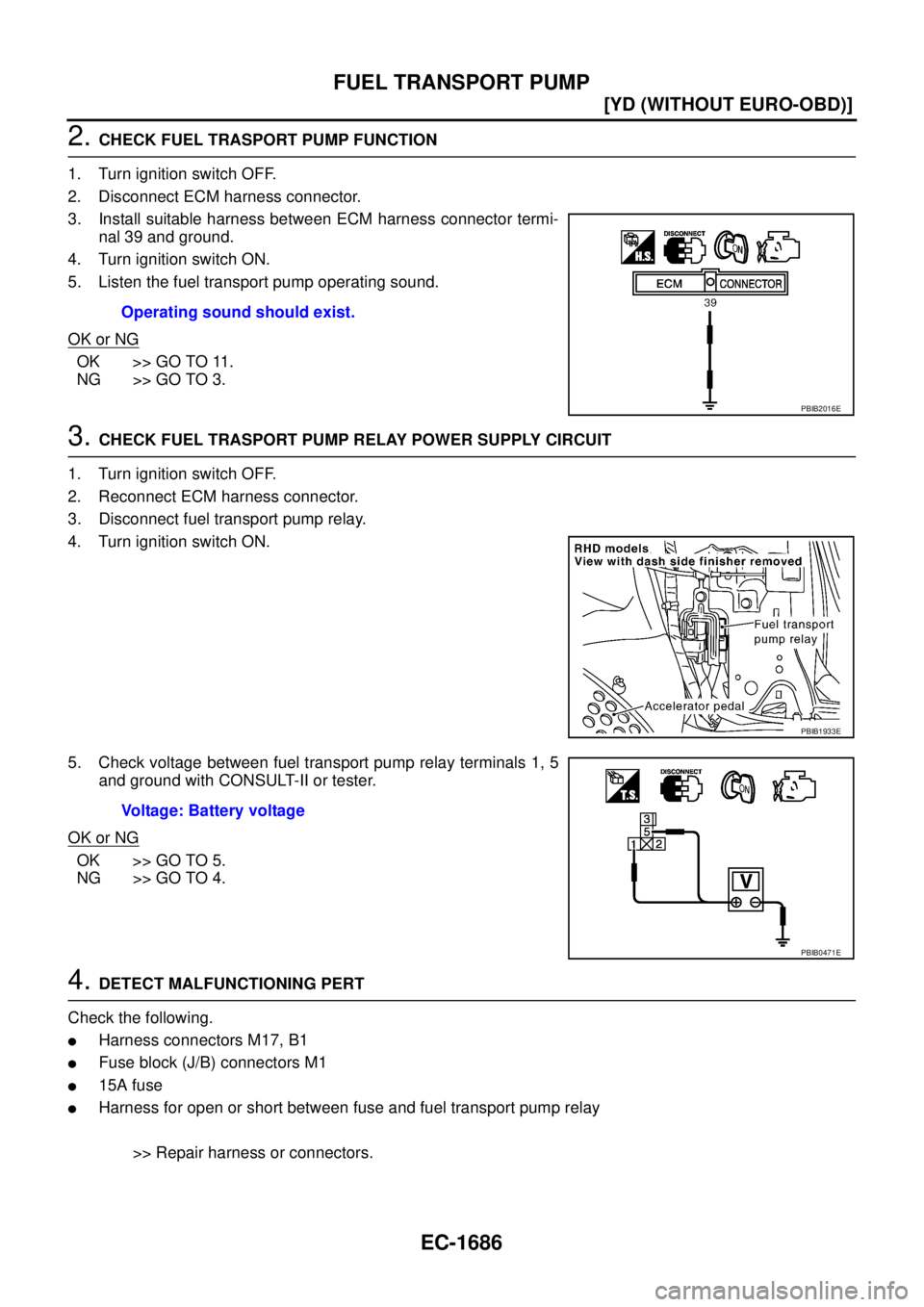

2. CHECK FUEL TRASPORT PUMP FUNCTION
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Install suitable harness between ECM har

Page 2091 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FUEL TRANSPORT PUMP
EC-1687
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK FUEL TRANSPORT PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconn

Page 2092 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1688
[YD (WITHOUT EURO-OBD)]
FUEL TRANSPORT PUMP

10. CHECK TRANSPORT PUMP
Refer to EC-1689, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace fuel transport pump.
11 . CHECK FUEL

Page 2093 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual FUEL TRANSPORT PUMP
EC-1689
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

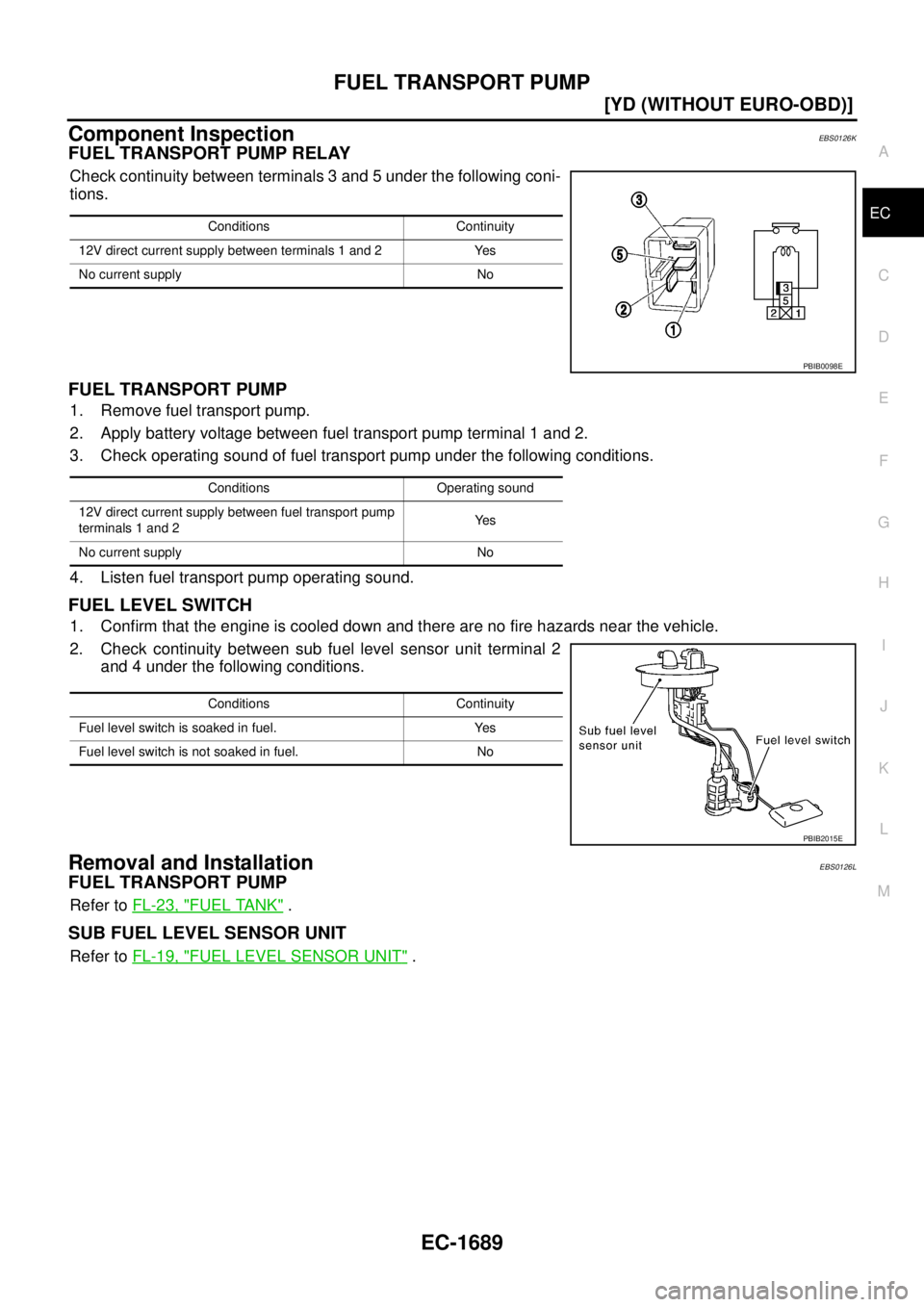

Component InspectionEBS0126K
FUEL TRANSPORT PUMP RELAY
Check continuity between terminals 3 and 5 under the following co

Page 2094 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1690
[YD (WITHOUT EURO-OBD)]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionEBS01FEB
INPUT/OUTPUT SIGNAL CHART
BASIC ASCD SYSTEM
Refer to O

EC-1690
[YD (WITHOUT EURO-OBD)]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionEBS01FEB
INPUT/OUTPUT SIGNAL CHART
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 185 km/h (115 MPH).
ECM controls fuel injection value to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
SET OPERATION
Press ASCD MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 185 km/h (115
MPH), press SET switch. (Then SET indicator in combination meter illuminates.)
ACCEL OPERATION
If the RESUME/ACCELERATE switch is depressed during cruise control driving, increase the vehicle speed
until the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
CANCEL switch is depressed
More than 2 switches at ASCD steering switch are depressed at the same time (Set speed will be
cleared.).
Brake pedal is depressed
Clutch pedal is depressed or gear position is changed to the neutral position
Vehicle speed increased to 13 km/h higher than the set speed
Vehicle speed decreased to 13 km/h lower than the set speed
ESP system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.
Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
COAST OPERATION
When the SET/COAST switch is depressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is depressed after cancel operation other than depressing MAIN
switch is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition
must meet following conditions.
Brake pedal is released
Clutch pedal is released
Vehicle speed is greater than 40 km/h (25 MPH) and less than 185 km/h (115 MPH)
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed control Fuel injector and Fuel pump Stop lamp switch Brake pedal operation
ASCD clutch switch Clutch pedal operation
ASCD steering switch ASCD steering switch operation
Combination meter Vehicle speed

Page 2095 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-1691
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component DescriptionEBS01FEC
ASCD STEERING SWITCH
Refer to EC-1557 .
ASCD BRAKE SWITCH
Refer to EC-15

Page 2096 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1692
[YD (WITHOUT EURO-OBD)]
ASCD INDICATOR

ASCD INDICATORPFP:24814
Component DescriptionEBS01FED
ASCD indicator lamp illuminates to indicate ASCD operation status. The Lamp has two indicators, C
