ELECTRICAL LOAD SIGNAL
EC-925
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

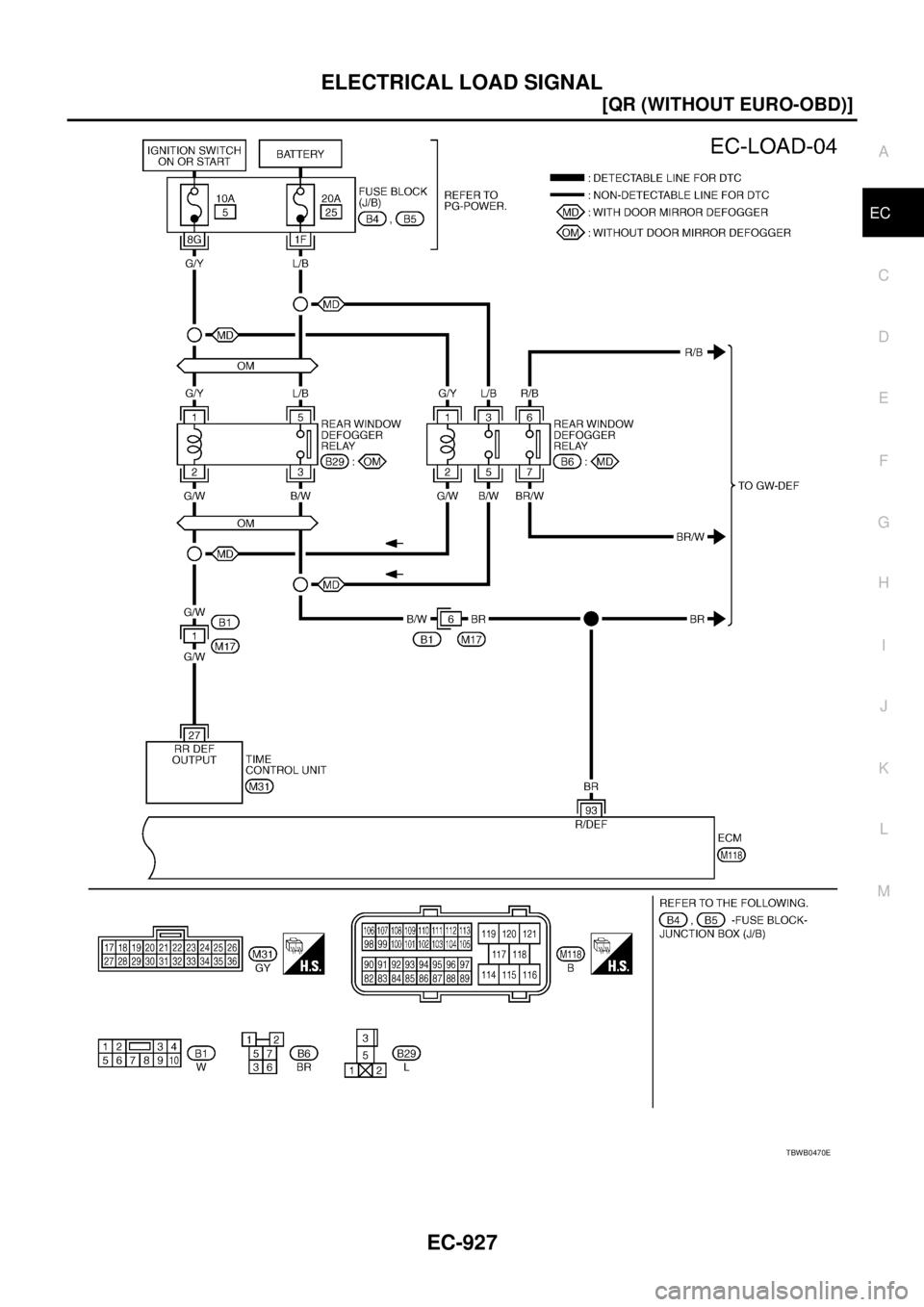

LHD MODELS WITH XENON HEADLAMP
TBWB0469E
Page 1330 of 4555
EC-926
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 L/YElectrical load signal
(Headlamp signal)[Ignition switch: ON]
Lighting switch: 2nd position and placed in
LOW positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]
Lighting switch: OFFApproximately 0V
96 LG/B Heater fan switch[Engine is running]
Heater fan switch: ONApproximately 0V
[Engine is running]
Heater fan switch: OFFBATTERY VOLTAGE
(11 - 14V)
Page 1331 of 4555
ELECTRICAL LOAD SIGNAL
EC-927
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

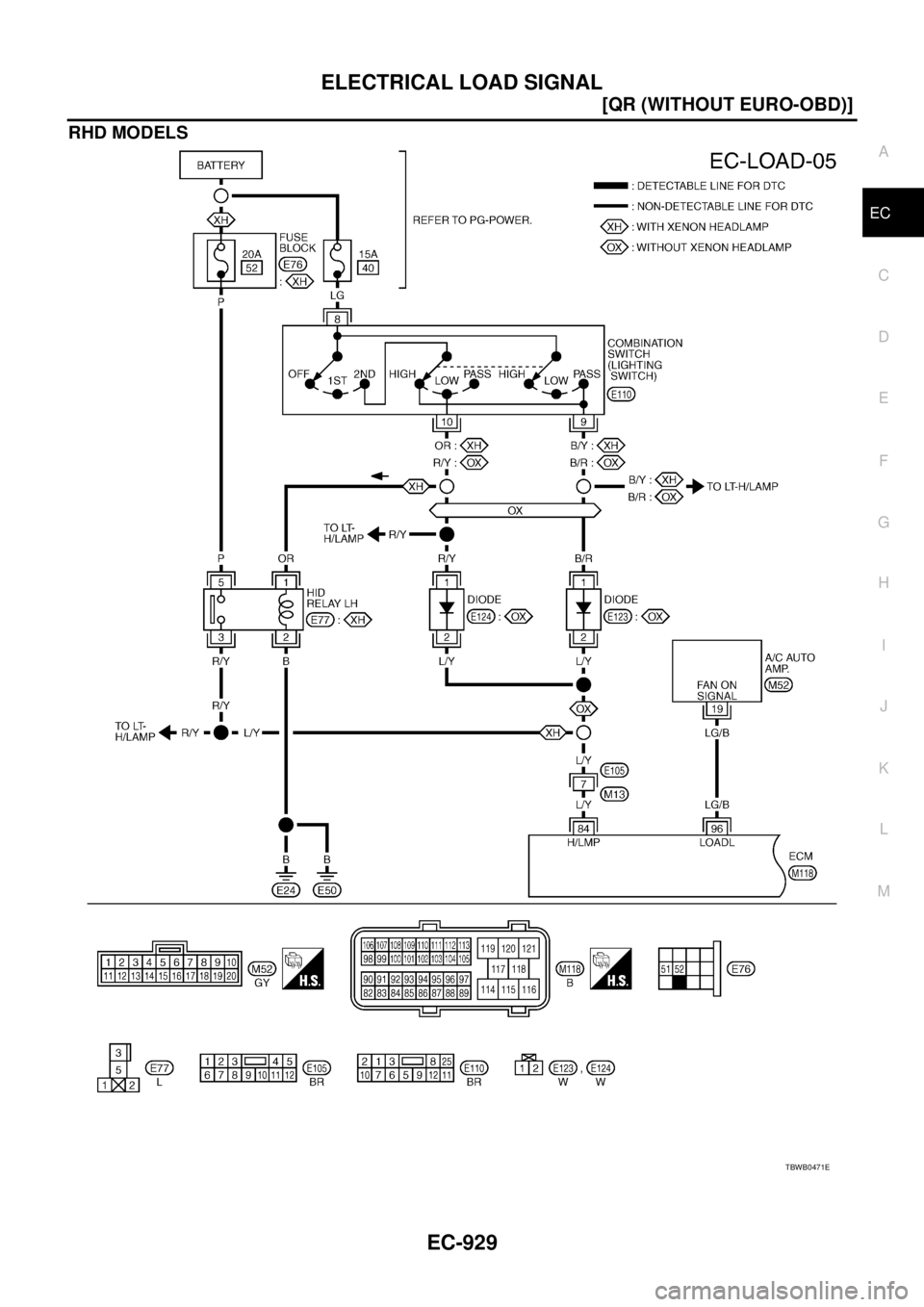

TBWB0470E
Page 1332 of 4555
EC-928
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
93 BRElectrical load signal
(Rear window defogger
signal)[Ignition switch: ON]
Rear window defogger switch: ONBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]
Rear window defogger switch: OFFApproximately 0V
Page 1333 of 4555
ELECTRICAL LOAD SIGNAL
EC-929
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

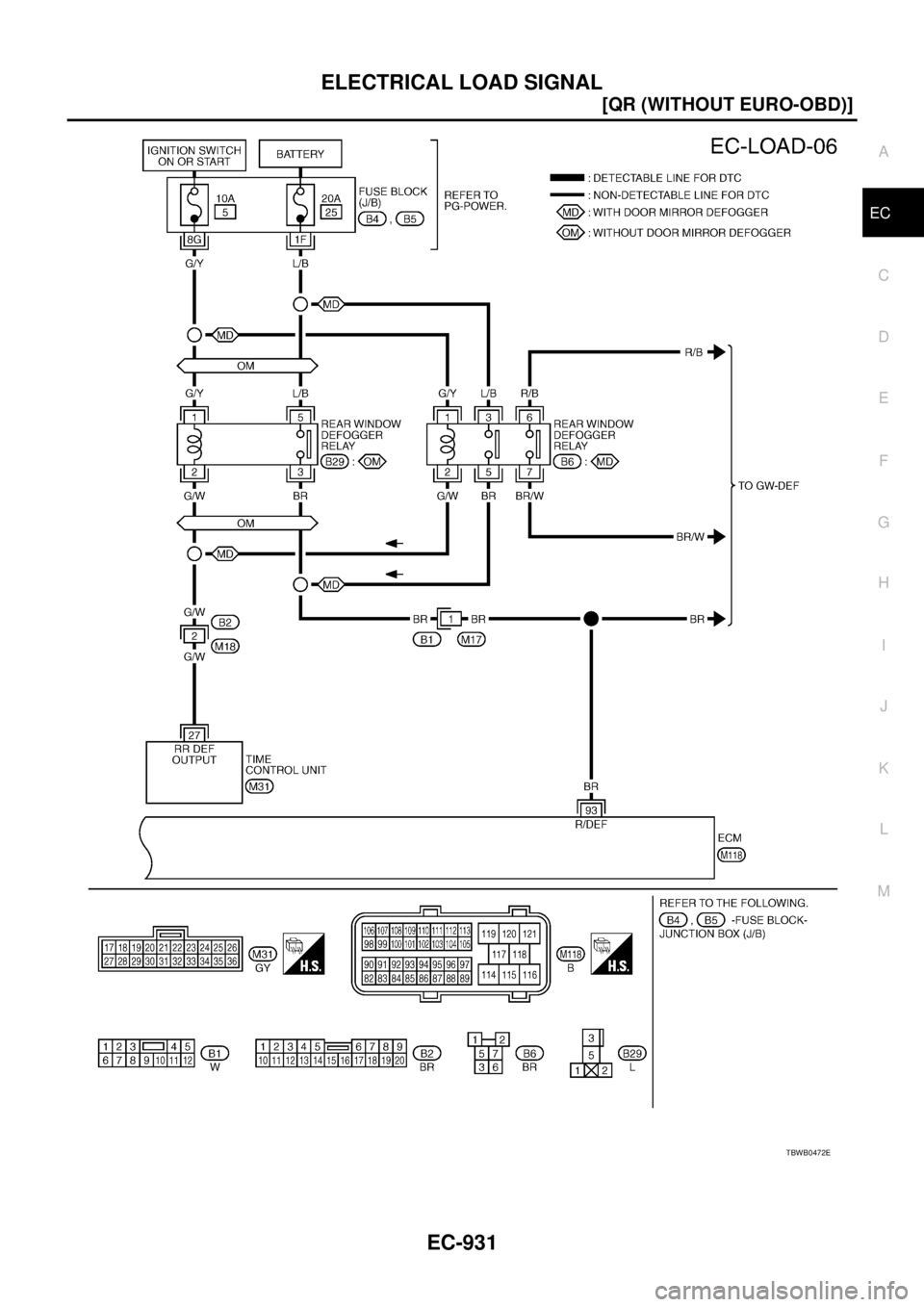

RHD MODELS
TBWB0471E
Page 1334 of 4555
EC-930
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 L/YElectrical load signal
(Headlamp signal)[Ignition switch: ON]
Lighting switch: 2nd position (placed in LOW
position for models with Xenon headlamp)BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]
Lighting switch: OFFApproximately 0V
96 LG/B Heater fan switch[Engine is running]
Heater fan switch: ONApproximately 0V
[Engine is running]
Heater fan switch: OFFBATTERY VOLTAGE
(11 - 14V)
Page 1335 of 4555
ELECTRICAL LOAD SIGNAL
EC-931
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TBWB0472E
Page 1336 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EC-932
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuri NISSAN X-TRAIL 2005 Service Repair Manual EC-932
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuri](/manual-img/5/57403/w960_57403-1335.png)
EC-932
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01FFI
LHD MODELS WITHOUT XENON HEADLAMP
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCITION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 4.
NG >> GO TO 8.
3. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 84 and ground under the
following conditions.
OK or NG
OK >> GO TO 5.
NG >> GO TO 8.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
93 BRElectrical load signal
(Rear window defogger
signal)[Ignition switch: ON]
Rear window defogger switch: ONBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]
Rear window defogger switch: OFFApproximately 0V
Condition LOAD SIGNAL
Lighting switch: ON at 2nd position ON
Lighting switch: OFF OFF
PBIB0103E
Condition Voltage
Lighting switch: ON at 2nd position BATTERY VOLTAGE
Lighting switch: OFF 0V
MBIB0158E
