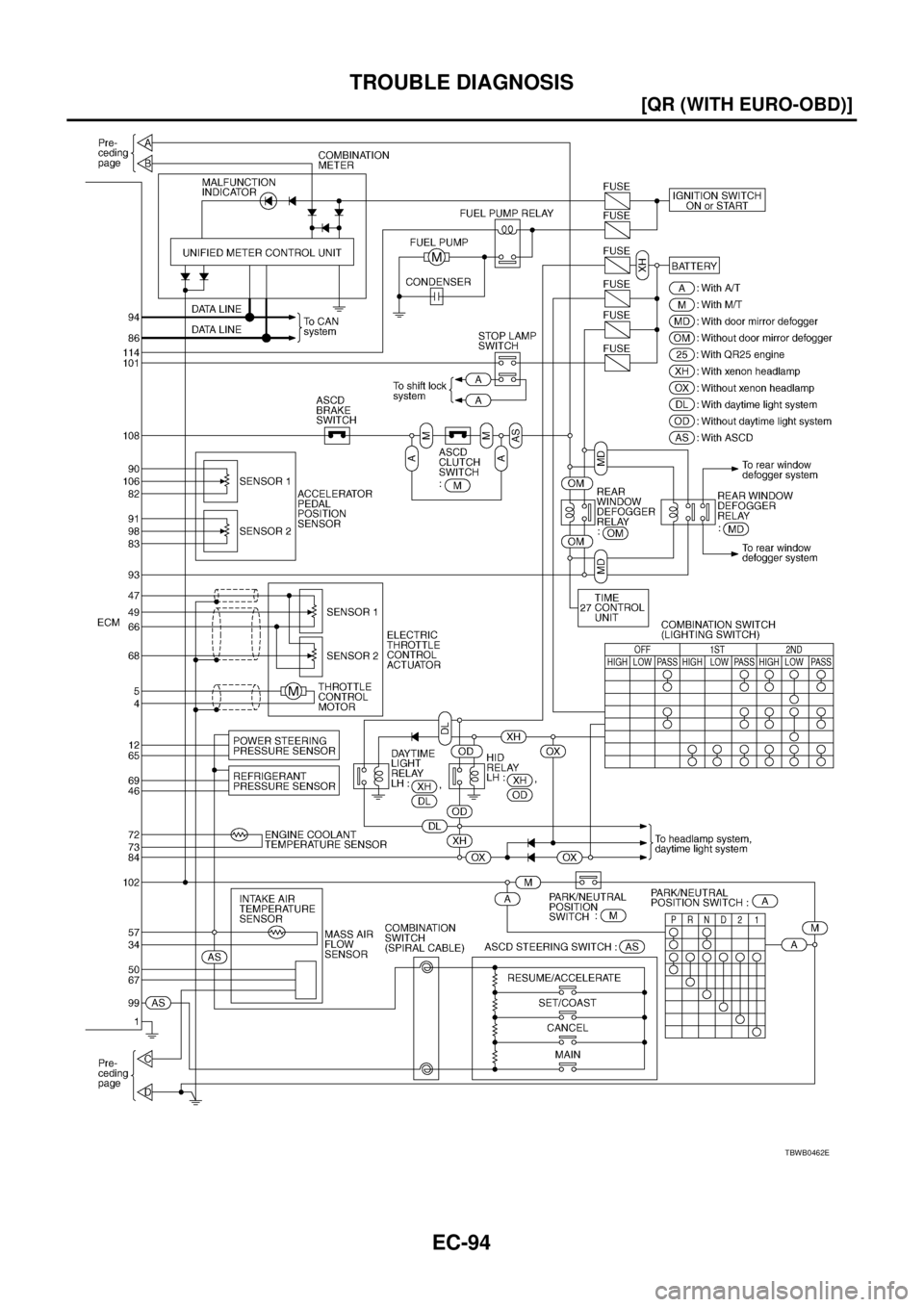

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-93 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Circuit DiagramEBS010LV TBWB0691E

Page 498 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-94 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS TBWB0462E

Page 499 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-95 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC ECM Harness Connector Terminal LayoutEBS010LW ECM Terminals and Reference ValueEBS010LX PREPARATION 1. ECM is located behind th

Page 500 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-96 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 2PU/RHeated oxygen sensor 2 heater[Engine is running] Warm-up condition Engine speed is below 3,600 rpm after the fol- lowing conditions are met –Ke

Page 501 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-97 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 13 L/WCamshaft position sensor (PHASE)[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes dependi

Page 502 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-98 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 19 PEVAP canister purge vol- ume control solenoid valve[Engine is running] Idle speedBATTERY VOLTAGE (11 - 14V) [Engine is running] Engine speed is abo

Page 503 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-99 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 35 P/L Heated oxygen sensor 1[Engine is running]Warm-up condition Engine speed is 2,000 rpm0 - Approximately 1.0V (Periodicall

Page 504 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-100 [QR (WITH EURO-OBD)] TROUBLE DIAGNOSIS 62 YIntake valve timing control solenoid valve[Engine is running] Warm-up condition Idle speedBATTERY VOLTAGE (11 - 14V) [Engine is running] Warm-up
