2005 NISSAN X-TRAIL Service Repair Manual

fuses adblue reset refrigerant type change wheel fold seats check engine light

Load previous 8 pages

Page 4025 of 4555

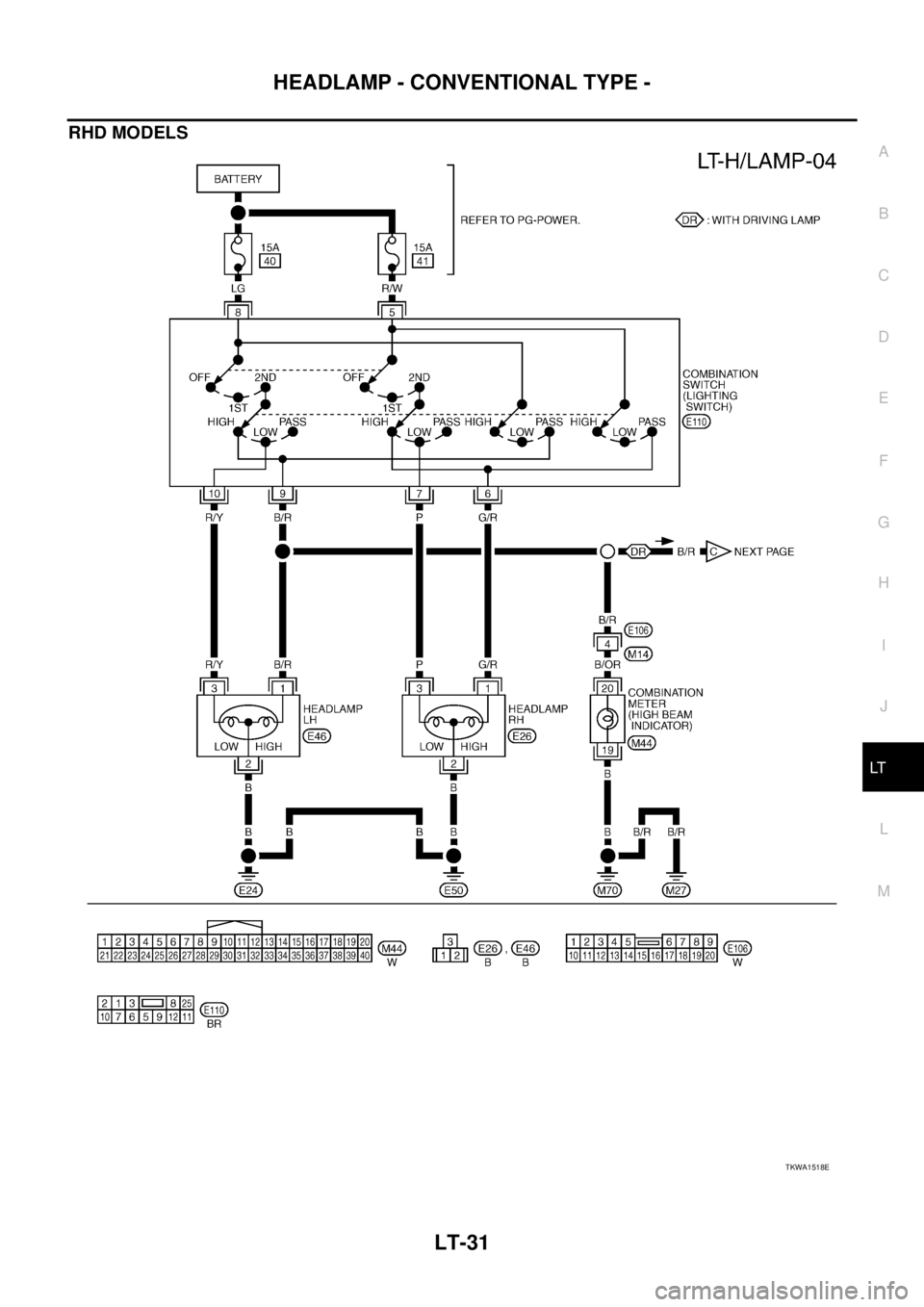

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP - CONVENTIONAL TYPE -
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1517E

Page 4026 of 4555

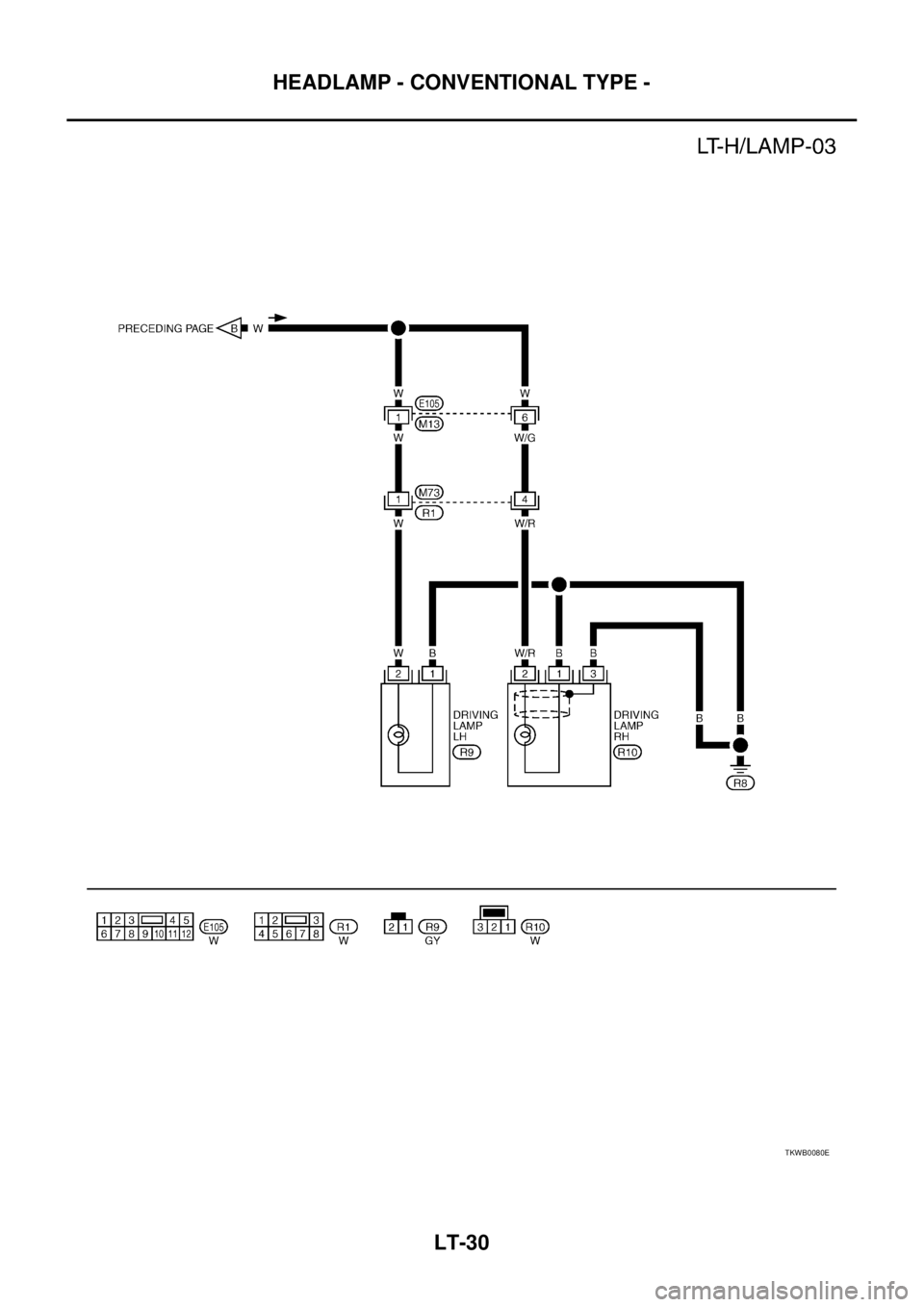

NISSAN X-TRAIL 2005 Service Repair Manual LT-30
HEADLAMP - CONVENTIONAL TYPE -

TKWB0080E

Page 4027 of 4555

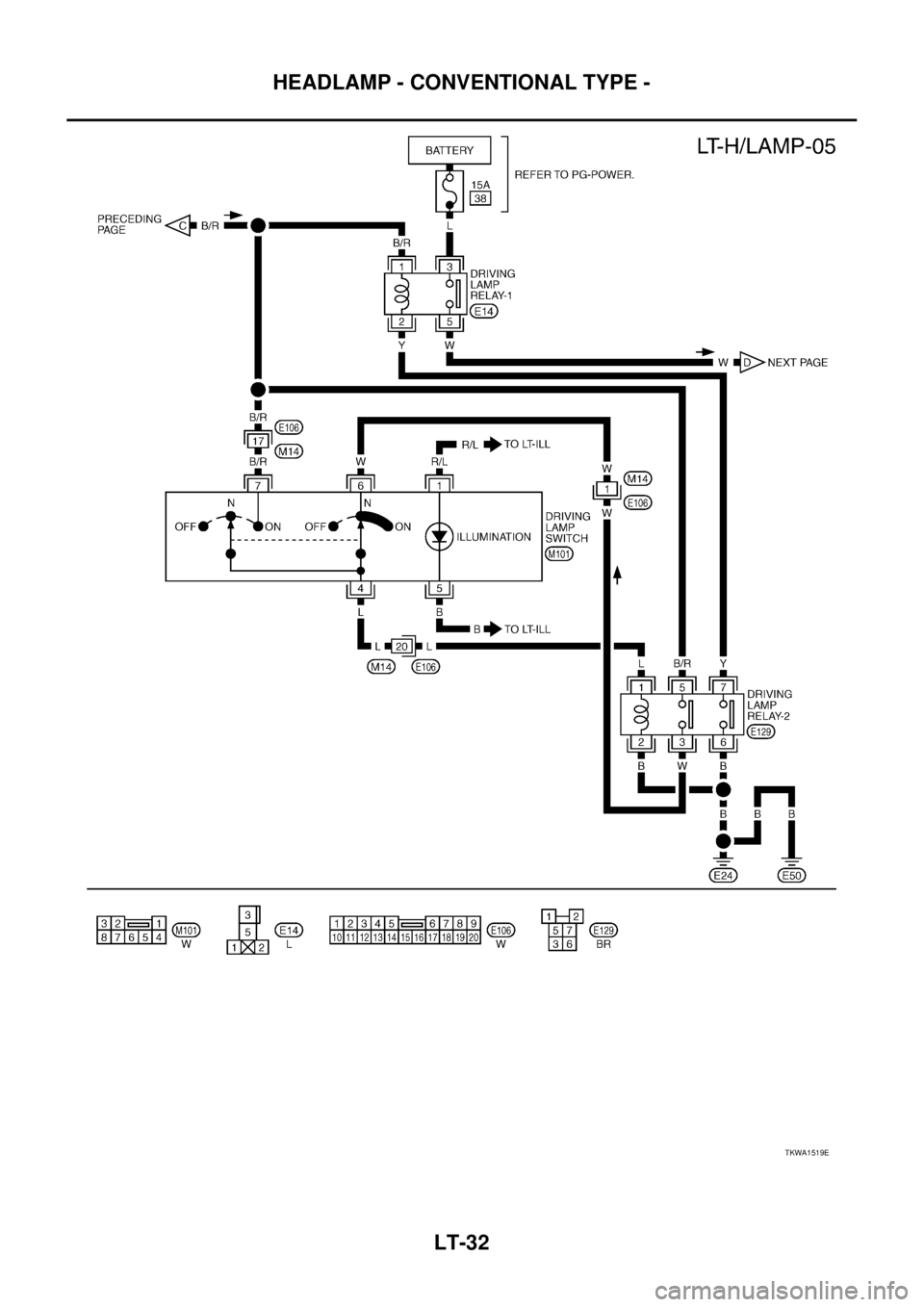

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP - CONVENTIONAL TYPE -
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT

RHD MODELS
TKWA1518E

Page 4028 of 4555

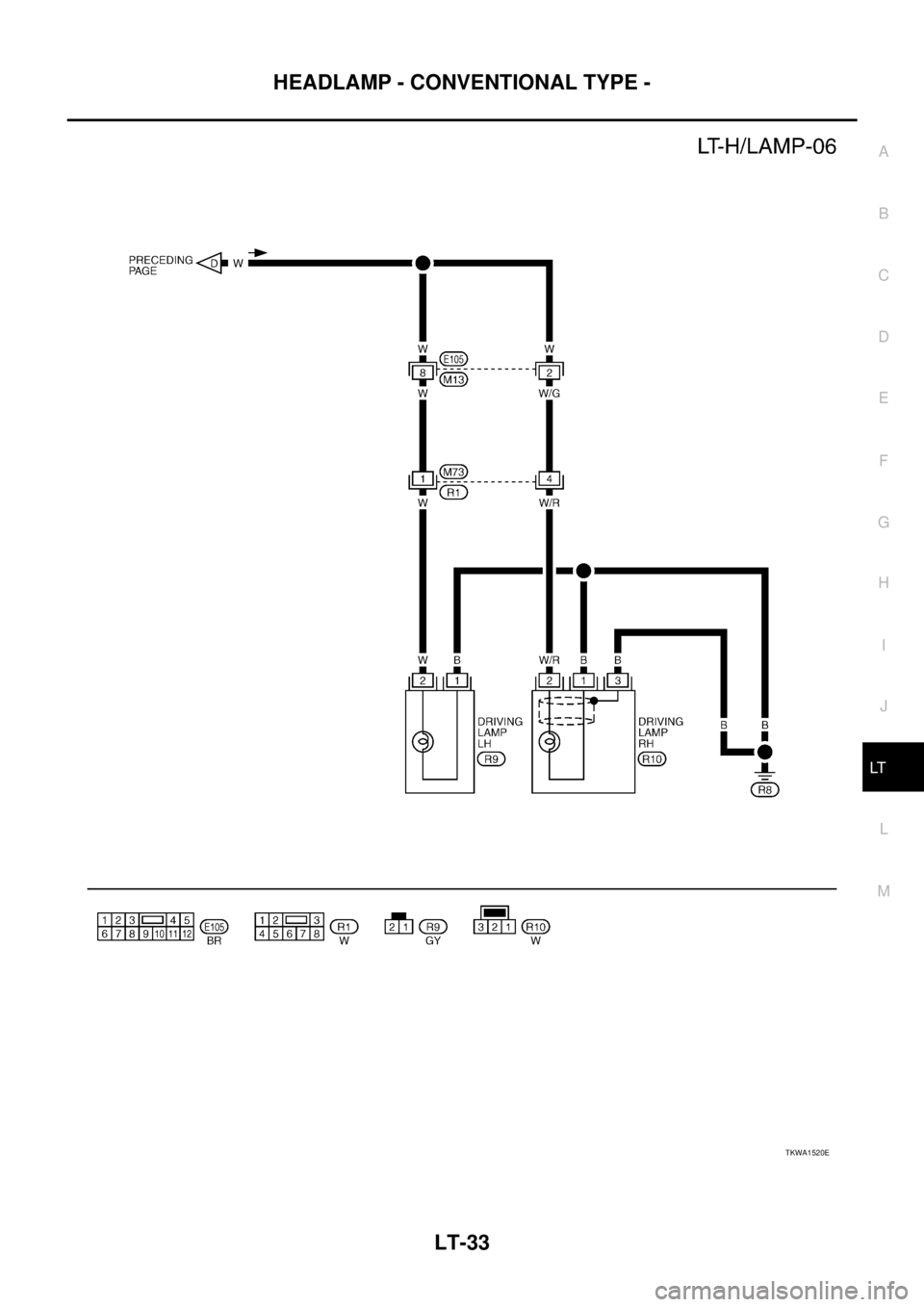

NISSAN X-TRAIL 2005 Service Repair Manual LT-32
HEADLAMP - CONVENTIONAL TYPE -

TKWA1519E

Page 4029 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP - CONVENTIONAL TYPE -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1520E

Page 4030 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-34
HEADLAMP - CONVENTIONAL TYPE -

Trouble Diagnoses EKS00N5A
Symptom Possible cause Repair order
Headlamp LH do not operate.1. Bulb
2. Grounds E24 and E50
3. 15A fuse
4. Lighting switch1. Check b

Page 4031 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP - CONVENTIONAL TYPE -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT

Aiming Adjustment of HeadlampEKS00N5B
PREPARATION BEFORE ADJUSTING
For Details, Refer To The Regulations In Your Own Country.
Before pe

HEADLAMP - CONVENTIONAL TYPE -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT

Aiming Adjustment of HeadlampEKS00N5B
PREPARATION BEFORE ADJUSTING
For Details, Refer To The Regulations In Your Own Country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on flat surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
2. Use adjusting screws to perform aiming adjustment.
High beam indicator does not
work.1. Bulb
2. Grounds M27 and M70
3. Open in high beam circuit1. Check bulb in combination meter.
2. Check grounds M27 and M70.
3. Check the wire between lighting switch terminal 9 and
combination meter terminal 20 for an open circuit.
Driving lamp does not operate,
but high beam LH operates.1. 15A fuse
2. Open in driving lamp switch
3. Driving lamp switch circuit
4. Driving lamp relay-2
5. Open in driving lamp relay-2 circuit
6. Grounds E24 and E50
7. Driving lamp relay-1
8. Open in driving lamp relay-1 circuit
9. Open driving lamp circuit
10.Ground R8
11 . B u l b1. Check 15A fuse (No. 38, located in fuse and fusible
link box). Verify battery positive voltage is present at
terminal 3 of driving lamp relay-1.
2. Check the wire between lighting switch terminal 9 and
driving lamp switch terminal 7 for an open circuit.
3. Check driving lamp switch.
4. Check driving lamp relay-2.
5. Check the wire between driving switch terminal 4 and
driving lamp relay-2 terminal 1 for an open circuit.
Check the wire between driving switch terminal 6 and
driving lamp relay-2 terminal 3 for an open circuit.
Check the wire between lighting switch terminal 9 and
driving lamp relay-2 terminal 5 for an open circuit.
Check the wire between driving lamp relay-1 terminal
2 and driving lamp relay-2 terminal 7 for an open cir-
cuit.
6. Check grounds E24 and E50.
7. Check driving lamp relay-1.
8. Check the wire between lighting switch terminal 9 and
driving lamp relay-1 terminal 1 for an open circuit.
9. Check the wire between driving lamp relay-1 terminal
5 and driving lamp terminal 2 for an open circuit.
10.Check ground R8.
11.Check bulbs. Symptom Possible cause Repair order
PKIC0978E

Page 4032 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-36
HEADLAMP - CONVENTIONAL TYPE -

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check a
