Page 3401 of 4555

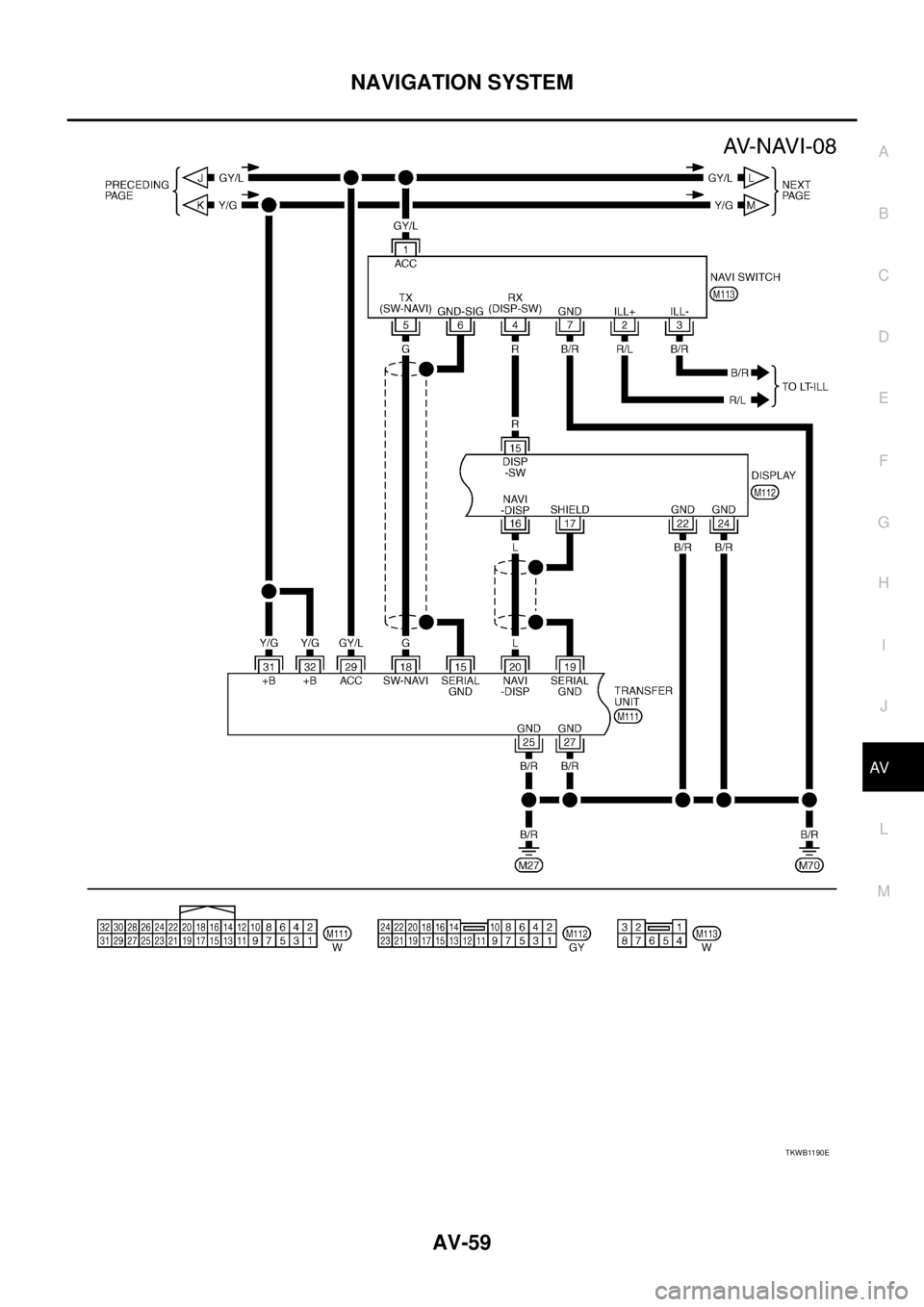

NISSAN X-TRAIL 2005 Service Repair Manual NAVIGATION SYSTEM AV-59 C D E F G H I J L MA B AV TKWB1190E

Page 3402 of 4555

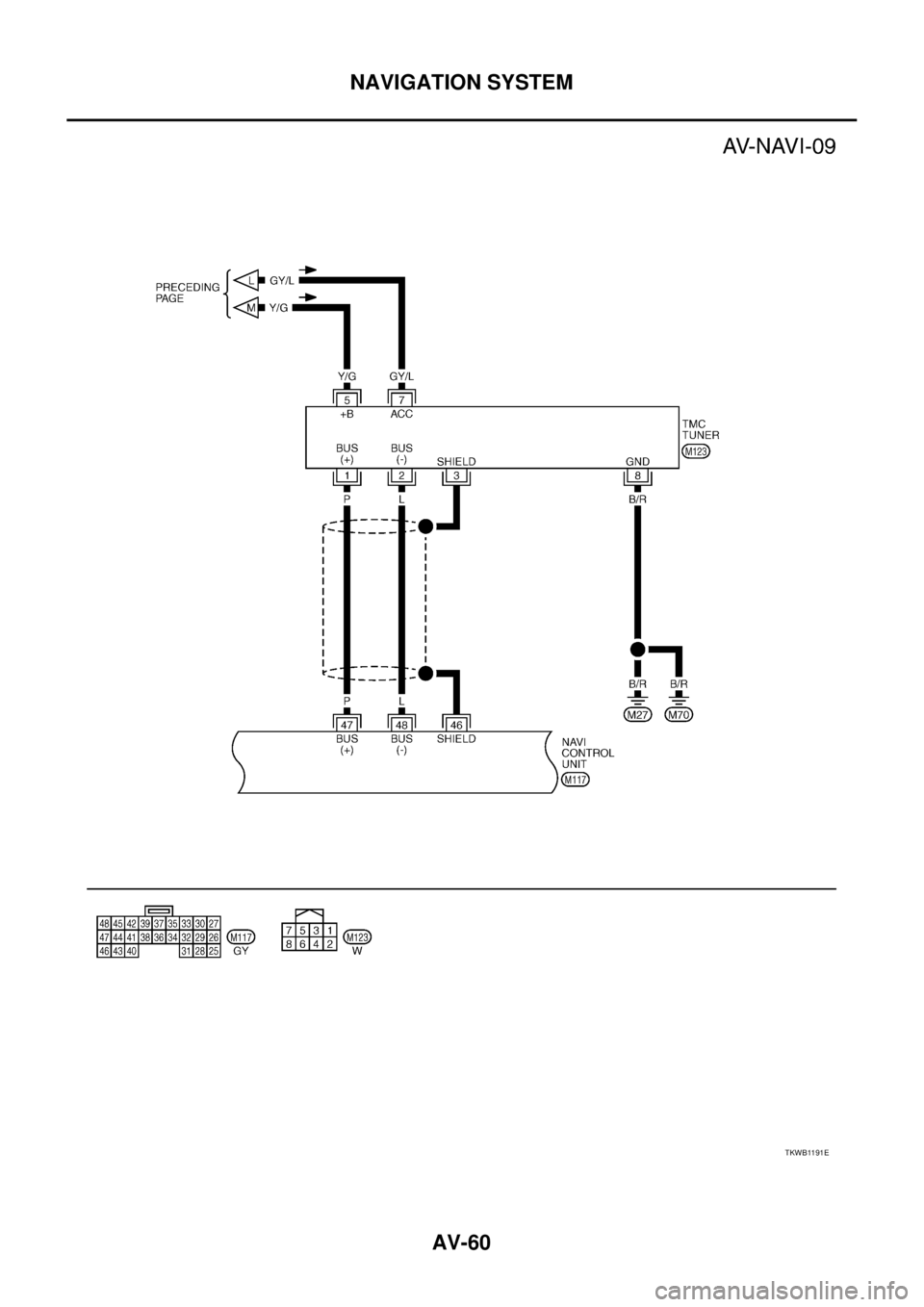

NISSAN X-TRAIL 2005 Service Repair Manual AV-60 NAVIGATION SYSTEM TKWB1191E

Page 3403 of 4555

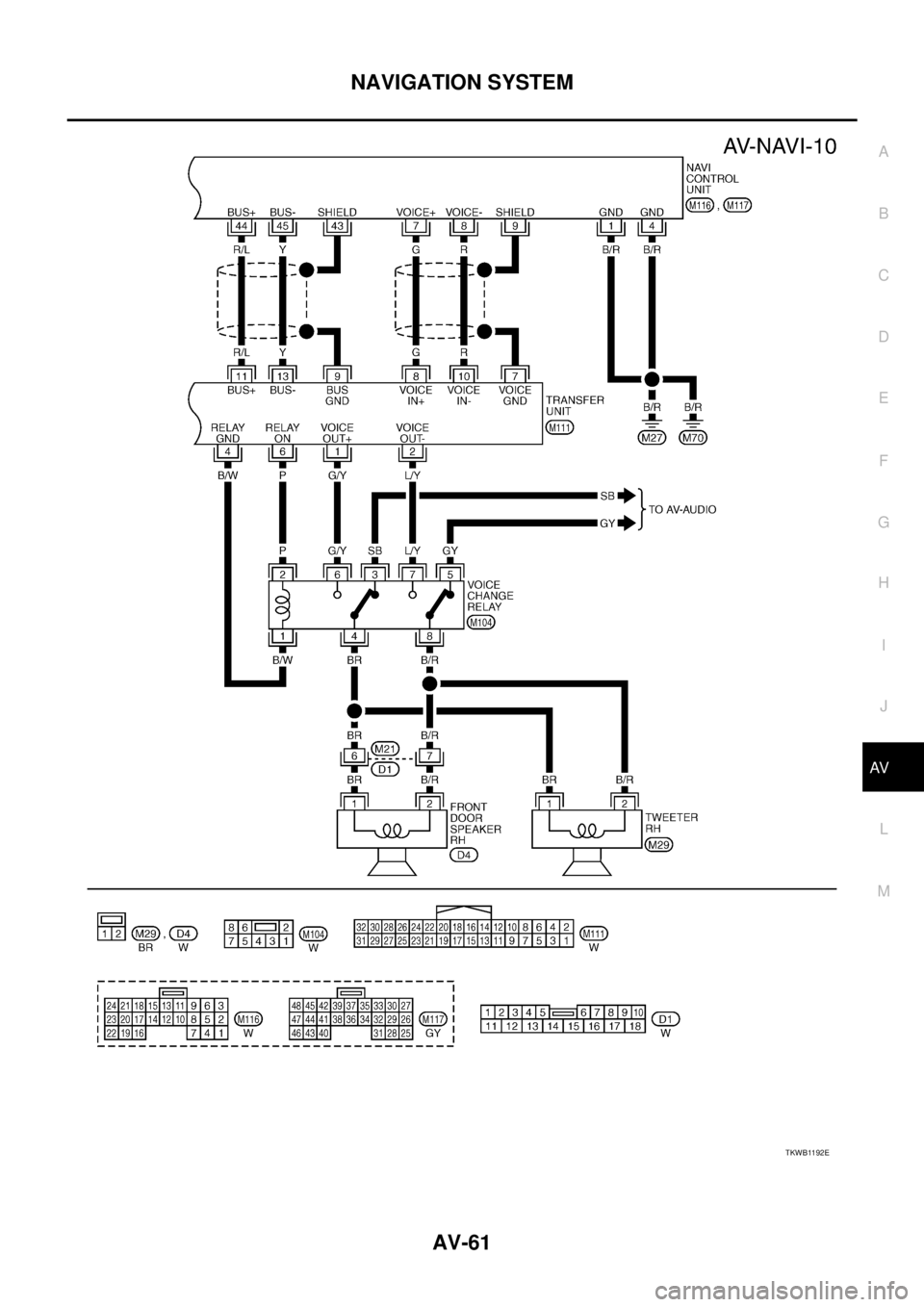

NISSAN X-TRAIL 2005 Service Repair Manual NAVIGATION SYSTEM AV-61 C D E F G H I J L MA B AV TKWB1192E

Page 3404 of 4555

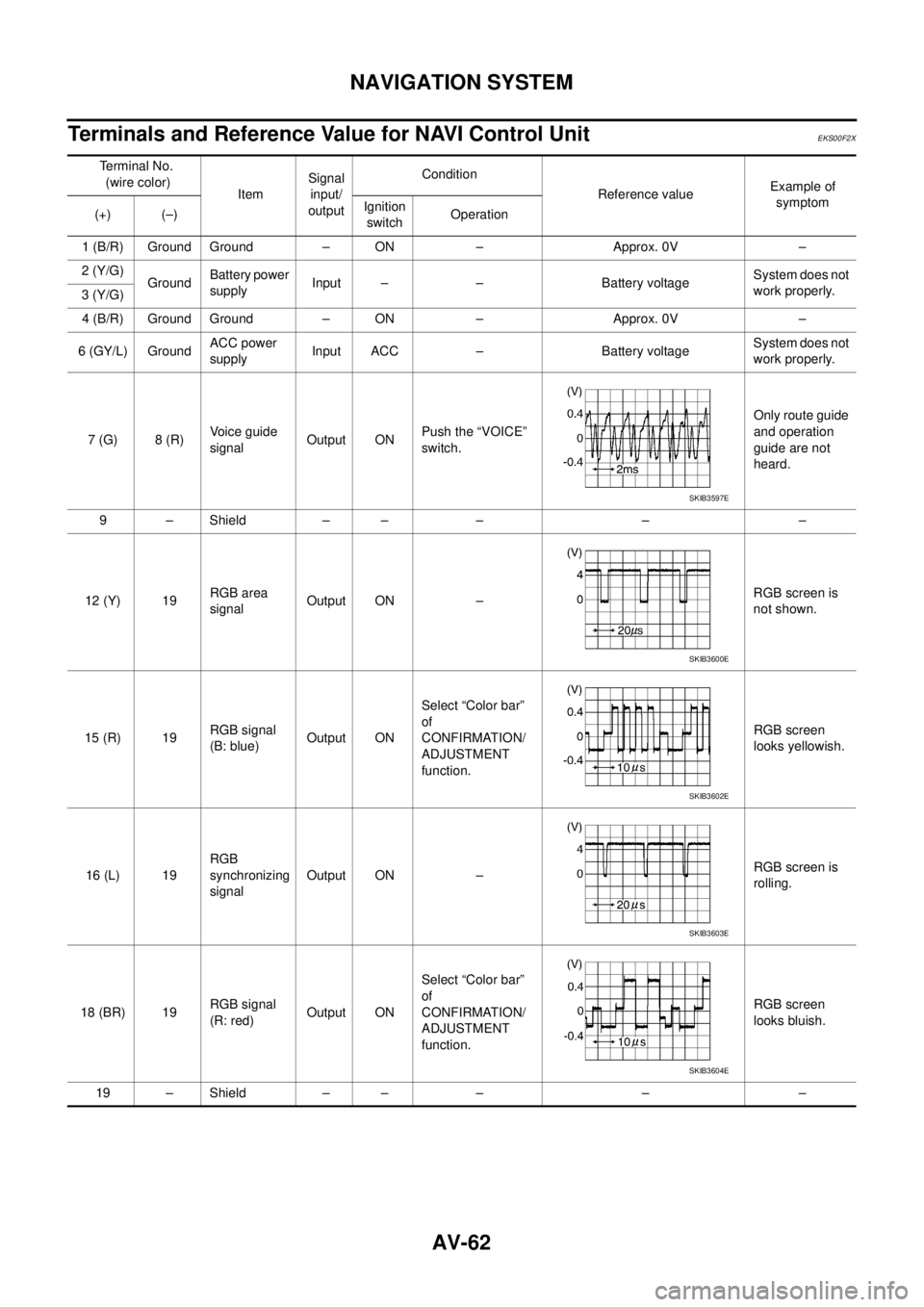

NISSAN X-TRAIL 2005 Service Repair Manual AV-62 NAVIGATION SYSTEM Terminals and Reference Value for NAVI Control UnitEKS00F2X Terminal No. (wire color) ItemSignal input/ outputCondition Reference valueExample of symptom (+) (–)Ignition

Page 3405 of 4555

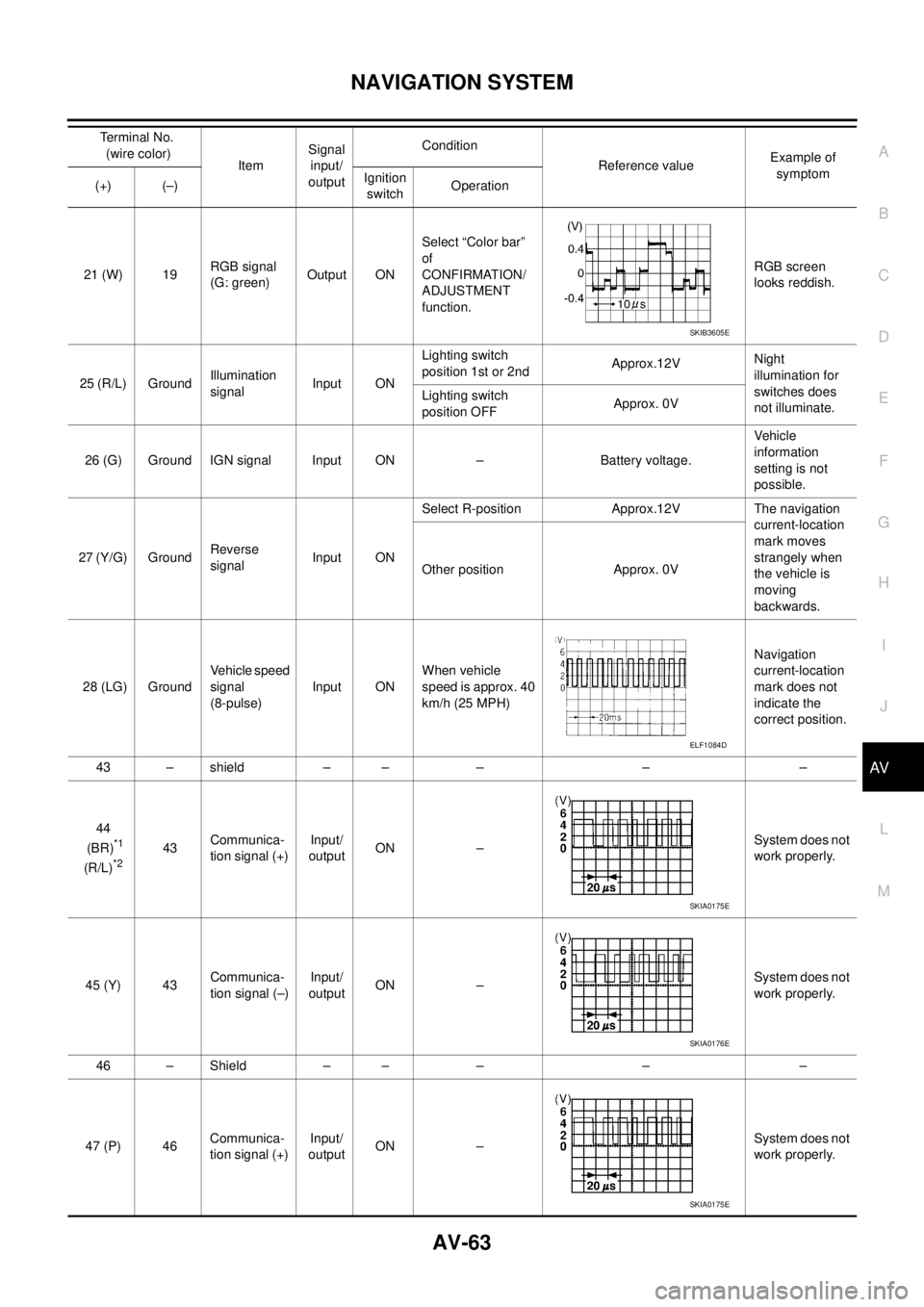

NISSAN X-TRAIL 2005 Service Repair Manual NAVIGATION SYSTEM AV-63 C D E F G H I J L MA B AV 21 (W) 19RGB signal (G: green)Output ONSelect “Color bar” of CONFIRMATION/ ADJUSTMENT function.RGB screen looks reddish. 25 (R/L) GroundIll

Page 3406 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AV-64 NAVIGATION SYSTEM *1: LHD models *2: RHD models Terminals and Reference Value for DisplayEKS00F2Y 48 (L) 46Communica- tion signal (–)Input/ outputON –System does not work properly. 49 G

Page 3407 of 4555

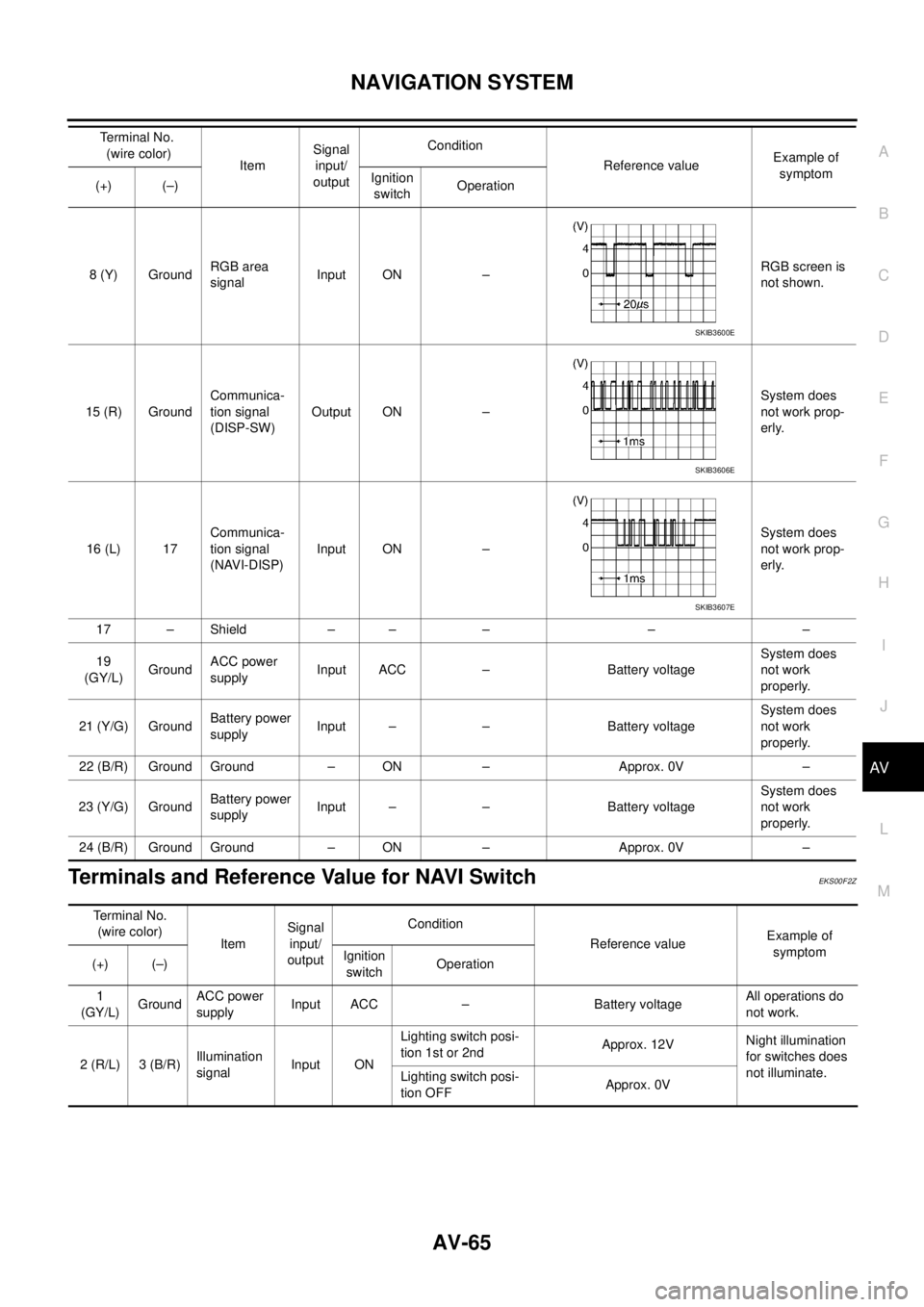

NISSAN X-TRAIL 2005 Service Repair Manual NAVIGATION SYSTEM AV-65 C D E F G H I J L MA B AV Terminals and Reference Value for NAVI SwitchEKS00F2Z 8 (Y) GroundRGB area signalInput ON –RGB screen is not shown. 15 (R) GroundCommunica- tion

Page 3408 of 4555

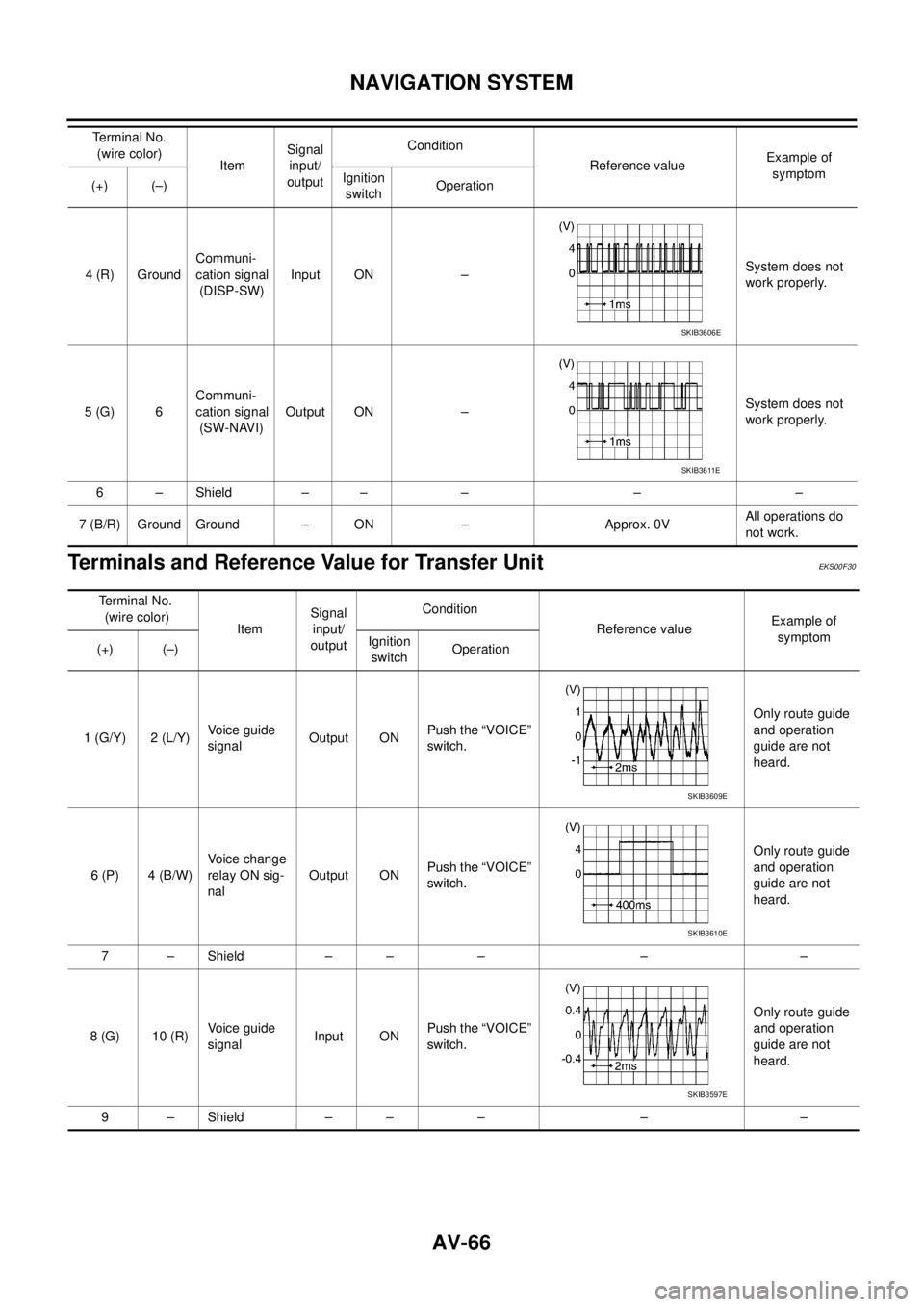

NISSAN X-TRAIL 2005 Service Repair Manual AV-66 NAVIGATION SYSTEM Terminals and Reference Value for Transfer UnitEKS00F30 4 (R) GroundCommuni- cation signal (DISP-SW)Input ON –System does not work properly. 5 (G) 6Communi- cation signal
