Page 2865 of 4555
TRANSFER ASSEMBLY
TF-61
C
E
F
G
H
I
J
K
L
MA
B
TF
6. If tooth contact is poorly adjusted, adjust pinion height (dimen-
sion X) in the following manner.
SDIA0520E
SDIA0517E
Page 2866 of 4555
TF-62
TRANSFER ASSEMBLY
If the tooth contact is near the face (face contact), or near the
heal (heel contact), thin the pinion sleeve shims to move the
drive pinion closer to the drive gear.
Refer to TF-77, "
Pinion Sleeve Shim" .
If the tooth contact is near the flank (flank contact), or near the
toe (toe contact), thicken the pinion sleeve shims to move the
drive pinion farther from the drive gear.
Refer to TF-77, "
Pinion Sleeve Shim" .
Pinion Bearing Preload Torque
1. Remove the pinion sleeve assembly. Refer to TF-64, "Pinion Sleeve Assembly" .
2. Rotate the companion flange back and forth 2 to 3 times. Check for unusual noise, rotation malfunction,
and other malfunctions.
3. Rotate the companion flange at least 20 times to check for smooth operation of the bearing.
SDIA0518E
SDIA0519E
Page 2867 of 4555

TRANSFER ASSEMBLY
TF-63
C
E
F
G
H
I
J
K
L
MA
B
TF
4. Using the preload gauge, measure the preload torque of the pin-
ion bearing.
CAUTION:
Every rotational part shall rotate smoothly with the speci-
fied gear oil.
If measured value is out of the specification, disassemble the
pinion sleeve assembly to check and adjust each part.
Total Preload Torque
1. Measure pinion bearing preload torque (P1 ). Refer to TF-62, "Pinion Bearing Preload Torque" .
2. Install the pinion sleeve shims and pinion sleeve assembly.
3. Rotate the companion flange at least 20 times to check for smooth operation of the bearing.
4. Using the preload gauge, measure the total preload torque.
If measured value is out of the specification, disassemble it to
check and adjust each part. If measuring the total preload
torque after the disassembly, measure it with the transfer case oil seals and gear ring oil seals
removed, then install the oil seals.
Companion Flange Runout
1. Fit a dial indicator onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).
2. Rotate the companion flange to check for runout.
3. Fit a test indicator to the inner side of the companion flange
(socket diameter).
4. Rotate the companion flange to check for runout.
5. If the runout value is outside the repair limit, follow the procedure
below to adjust.
a. While changing the phase between companion flange and drive pinion gear by 90° at a time, check runout
and determine which phase angle minimizes the runout.
b. If the runout value is still outside of the limit after the phase has been changed, replace the companion
flange.
c. If the runout is out of the specification after replacement of companion flange, adjust the assembly status
of the pinion bearings and drive pinion gear, or replace the pinion bearings.Tool number : ST3127S000
Preload torque
: 0.10 - 0.39 N·m (0.01 - 0.04 kg-m, 1 - 3 in-lb)
SDIA2076E
Pinion bearing preload torque (P1)
: 0.10 - 0.39 N·m (0.01 - 0.04 kg-m, 1 - 3 in-lb)
Tool number : ST3127S000
Total preload torque
With all oil seals
: P
1 + 0.16 - 0.22 N·m (0.016 - 0.023 kg-m, 1.4 - 1.9 in-lb)
Without transfer case oil seal and adapter case oil seal
: P
1 + 0.06 - 0.12 N·m (0.006 - 0.013 kg-m, 0.6 - 1.1 in-lb)
SDIA2077E
Runout limit : 0.1 mm (0.004 in)
Runout limit : 0.1 mm (0.004 in)
SDIA2078E
Page 2868 of 4555
TF-64
TRANSFER ASSEMBLY
DISASSEMBLY
Pinion Sleeve Assembly
1. Remove pinion sleeve mounting bolts.
2. Using a plastic hammer, tap companion flange to remove pinion
sleeve assembly.
3. Remove the pinion sleeve shim.
4. Remove the pinion lock nut.
5. Using the drift, remove drive pinion assembly from pinion sleeve
with a press.
6. Remove companion flange.
7. Remove the O-ring from pinion sleeve.
8. Using a flat-bladed screwdriver, remove the pinion sleeve oil
seal.
CAUTION:
Be careful not to damage the pinion sleeve.
9. Remove the pinion rear bearing inner race.
SDIA1803J
SDIA1861J
Tool number : ST33220000
SDIA1806E
TFB0286D
Page 2869 of 4555
TRANSFER ASSEMBLY
TF-65
C
E
F
G
H
I
J
K
L
MA
B
TF
10. Using the puller, remove the pinion rear bearing outer race.
11. Using the puller, remove the pinion front bearing outer race.
12. Remove dust cover.
13. Remove the collapsible spacer from the drive pinion.
14. Using the replacer, press the pinion front bearing inner race out
of the drive pinion.
Adapter Case
1. Remove the adapter case mounting bolts.Tool number : KV381054S0
SDIA2079E
Tool number : KV381054S0
SDIA1558E
Tool number : ST30031000
SDIA1559E
SDIA1862J
Page 2870 of 4555
TF-66
TRANSFER ASSEMBLY
2. Using a plastic hammer, tap the adapter case to remove.
3. Remove the O-ring.
4. Using a flat-bladed screwdriver, remove the adapter case oil
seal.
CAUTION:
Be careful not to damage the adapter case.
5. Using a brass rod, tap the gear ring bearing adjusting shim from
the cutout on the adapter case to remove the gear ring bearing
adjusting shim and gear ring bearing outer race.
6. Remove the oil gutter.
7. Remove the drain plug.
Drive Gear Assembly
1. Remove the adapter case. Refer to TF-65, "Adapter Case" .
2. Remove the drive gear assembly from the transfer case.
TFB0290D
TFB0291D
SDIA0529E
SDIA0530E
Page 2871 of 4555
TRANSFER ASSEMBLY
TF-67
C
E
F
G
H
I
J
K
L
MA
B
TF

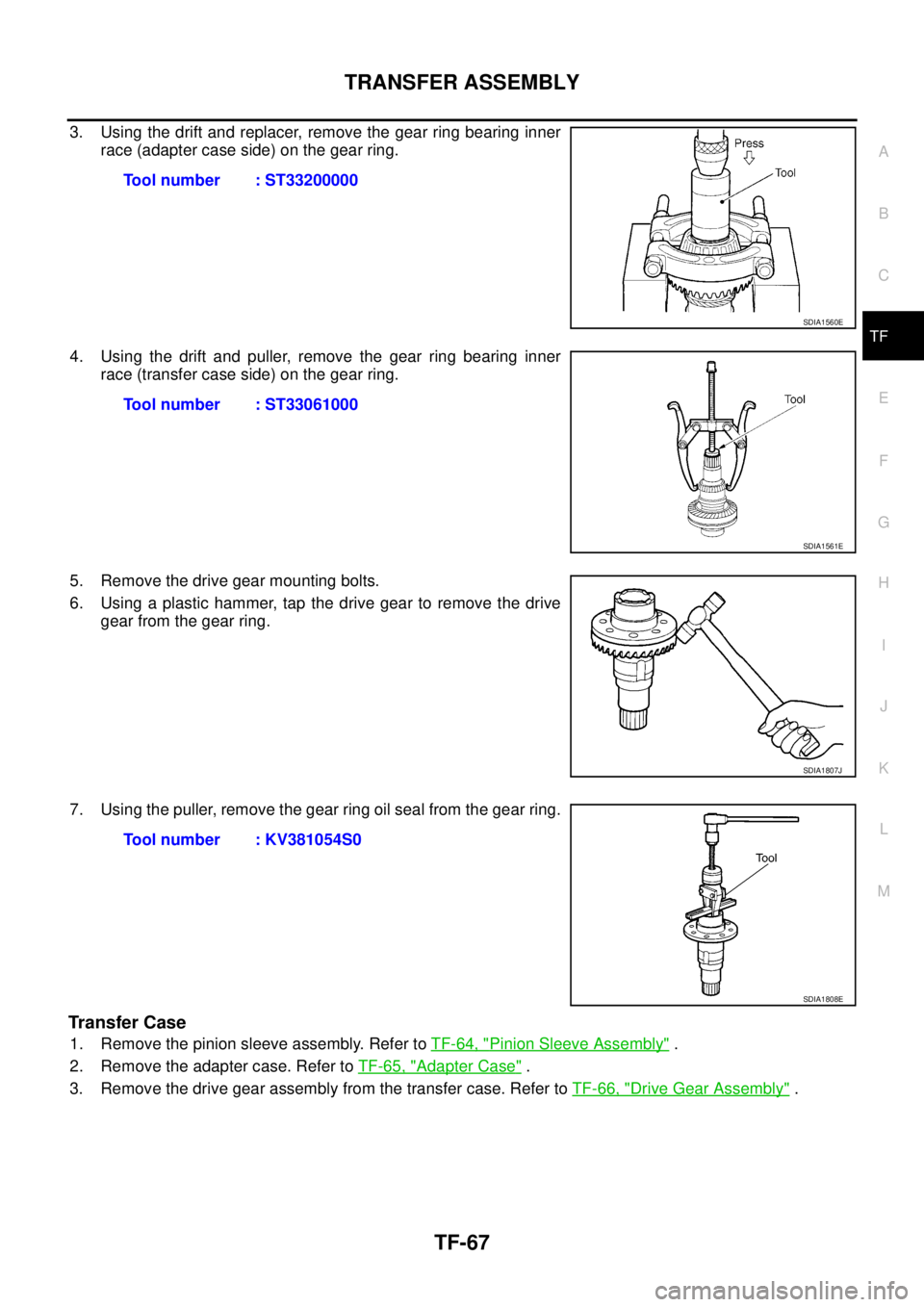

3. Using the drift and replacer, remove the gear ring bearing inner
race (adapter case side) on the gear ring.
4. Using the drift and puller, remove the gear ring bearing inner
race (transfer case side) on the gear ring.
5. Remove the drive gear mounting bolts.
6. Using a plastic hammer, tap the drive gear to remove the drive
gear from the gear ring.
7. Using the puller, remove the gear ring oil seal from the gear ring.
Transfer Case
1. Remove the pinion sleeve assembly. Refer to TF-64, "Pinion Sleeve Assembly" .
2. Remove the adapter case. Refer to TF-65, "
Adapter Case" .
3. Remove the drive gear assembly from the transfer case. Refer to TF-66, "
Drive Gear Assembly" . Tool number : ST33200000
SDIA1560E
Tool number : ST33061000
SDIA1561E
SDIA1807J
Tool number : KV381054S0
SDIA1808E
Page 2872 of 4555

TF-68
TRANSFER ASSEMBLY
4. Using a flat-bladed screwdriver, remove the transfer case oil
seal.
CAUTION:
Be careful not to damage the transfer case.
5. Remove the oil defense.
6. Using a brass rod, tap the gear ring bearing adjusting shim
evenly from the 2 cutouts on the transfer case to remove the
gear ring bearing adjusting shim and gear ring bearing outer
race.
7. Remove the filler plug, plug and breather tube.
INSPECTION AFTER DISASSEMBLY
Gears
Check the gear faces and shaft for wear, cracks, damage, and seizure.
CAUTION:
If a malfunction is detected on the drive gear or drive pinion, replace the drive gear and drive pinion as
a set.
Bearings
Check for seizure, peeling, wear, corrosion, sticking/abnormal noise/roughness in hand turning, and other
damage.
CAUTION:
When replacing the bearing, always replace the inner race and outer race as a pair.
Washers and Shims
Check for seizure, damage, and unusual wear.
Oil Seals
Discard old oil seals, replace with new ones.
If wear, deterioration of adherence (sealing force of lips), or damage is detected on the lips, replace them.
TFB0297D
SDIA1533E
SDIA0536E
