NISSAN X-TRAIL 2005 Service Repair Manual DTC P0237, P0238 TC BOOST SENSOR
EC-1509
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not

Page 1914 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1510
[YD (WITHOUT EURO-OBD)]
DTC P0237, P0238 TC BOOST SENSOR

2. CHECK TURBOCHARGER BOOST SENSOR POWER SUPPLY CIRCUIT

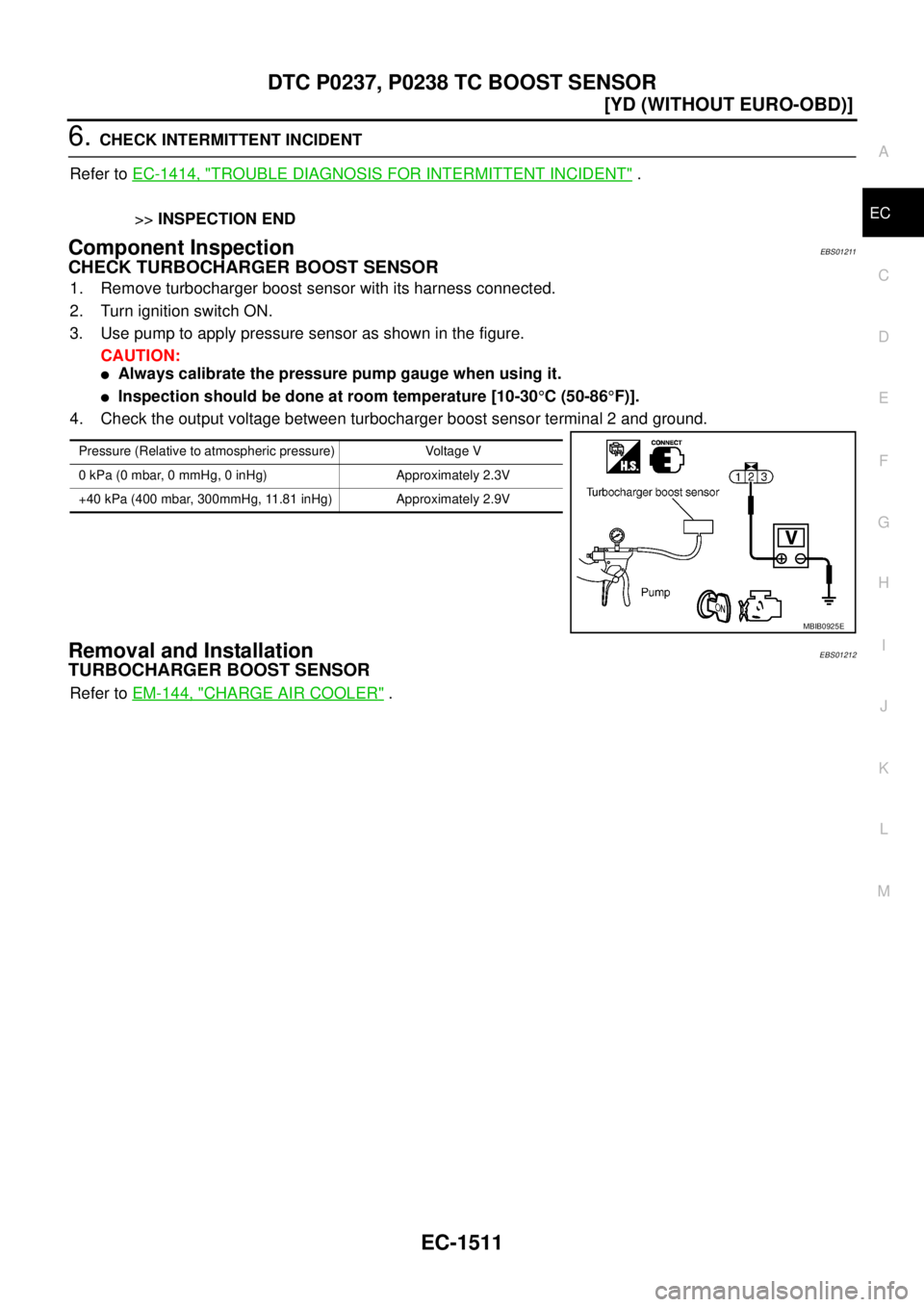

1. Disconnect turbocharge boost sensor harness connector.
2. Turn ignition sw

Page 1915 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0237, P0238 TC BOOST SENSOR
EC-1511
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPEC

Page 1916 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1512
[YD (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR

DTC P0335 CKP SENSORPFP:23731
DescriptionEBS01213
The crankshaft position sensor monitors engine speed by means of
signals from the sensing plate

EC-1512
[YD (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR

DTC P0335 CKP SENSORPFP:23731
DescriptionEBS01213
The crankshaft position sensor monitors engine speed by means of
signals from the sensing plate (with 56 protrusions) installed to the
fly wheel. The datum signal output is detected 6° signal and sent to
the ECM. The sensor signal is used for fuel injection control and fuel
injection timing control.
CONSULT-II Reference Value in Data Monitor ModeEBS01214
Specification data are reference values.
On Board Diagnosis LogicEBS01216
NOTE:
If DTC P0335 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1579, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS01217
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position
for 5 seconds.
4. If DTC is detected, go to EC-1515, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position for 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1515, "
Diagnostic Procedure" .
MBIB0619E
MONITOR ITEM CONDITION SPECIFICATION
CKPS-RPM (TDC)
Run engine and compare CONSULT-II value with the tachometer
indication.Almost the same speed as the
tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335Crankshaft position sen-
sor circuitCrankshaft position sensor signal is not detect
by the ECM when engine is running.
Harness or connectors
(The sensor circuit is open or
shorted.)
Crankshaft position sensor
SEF817Y

Page 1917 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0335 CKP SENSOR
EC-1513
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS01218
TBWA0570E

Page 1918 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1514
[YD (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do no

Page 1919 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0335 CKP SENSOR
EC-1515
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS01219
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

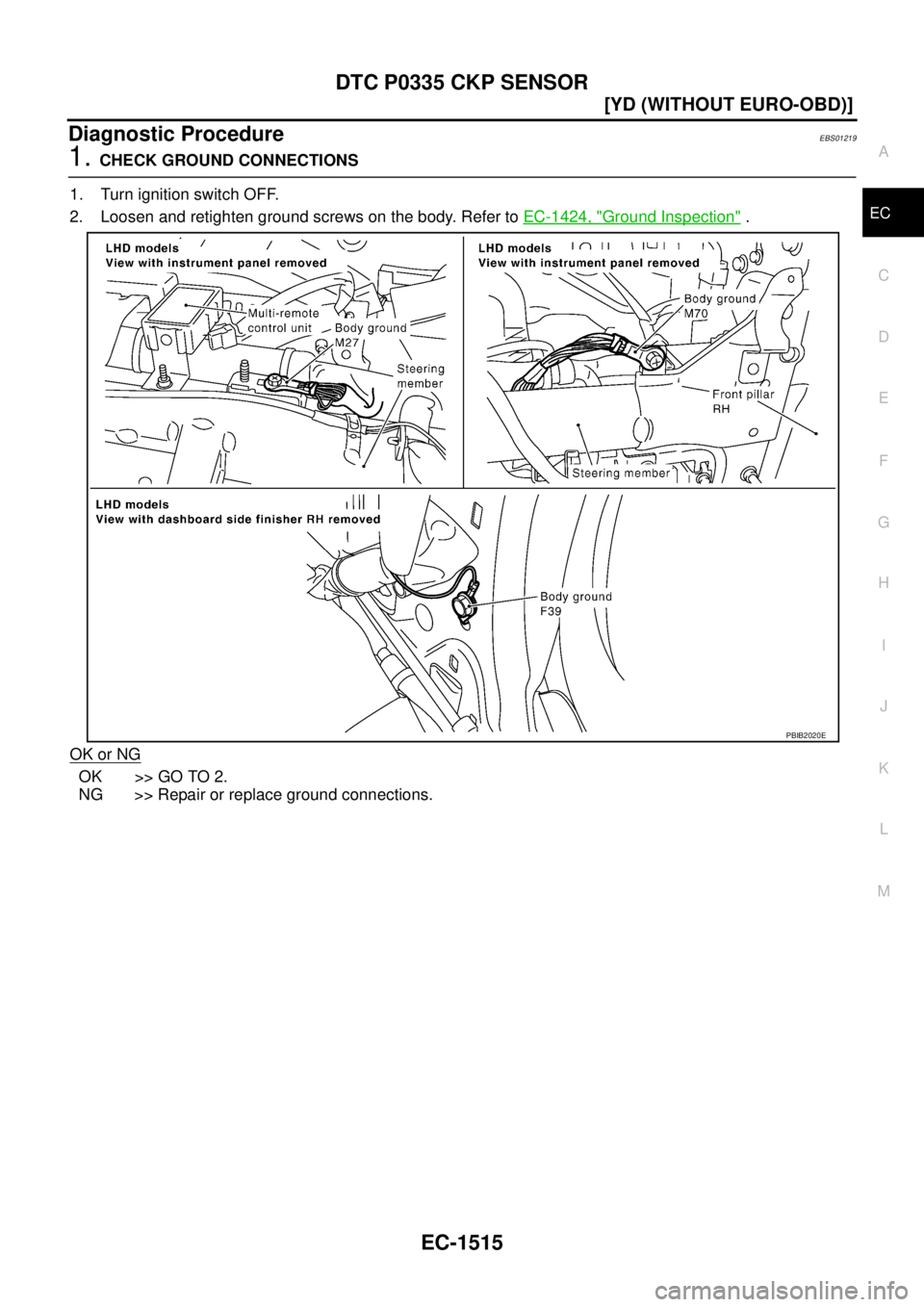

2. Loosen and retighten ground sc

Page 1920 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1516
[YD (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR

2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor harness connec-
tor.
2. Turn ignition switch ON.
3. Check
