PB-2

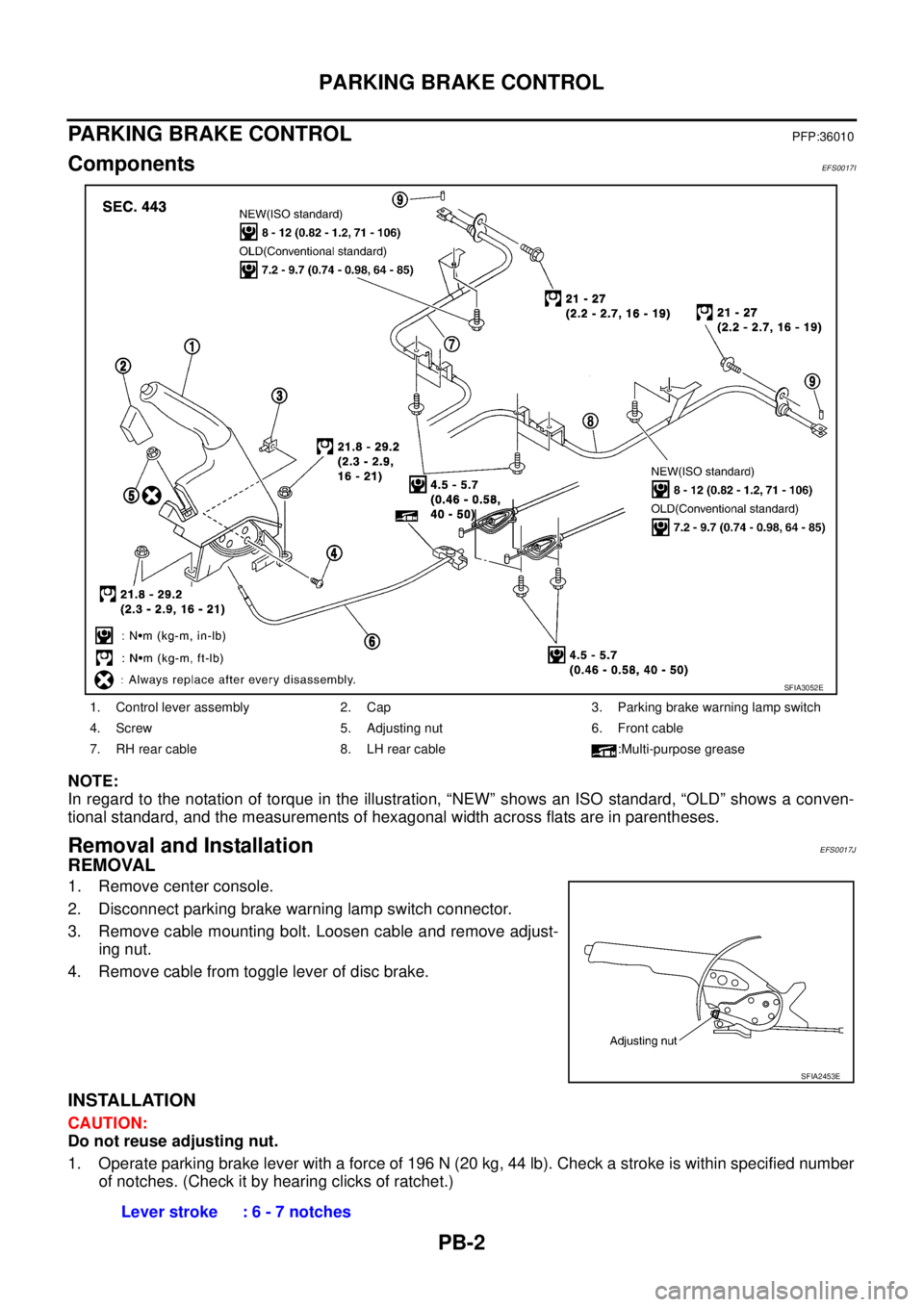

PARKING BRAKE CONTROL

PARKING BRAKE CONTROLPFP:36010
Components EFS0017I
NOTE:
In regard to the notation of torque in the illustration, “NEW” shows an ISO standard, “OLD” shows a conven-
tional standard, and the measurements of hexagonal width across flats are in parentheses.
Removal and InstallationEFS0017J
REMOVAL
1. Remove center console.
2. Disconnect parking brake warning lamp switch connector.
3. Remove cable mounting bolt. Loosen cable and remove adjust-
ing nut.
4. Remove cable from toggle lever of disc brake.
INSTALLATION
CAUTION:
Do not reuse adjusting nut.
1. Operate parking brake lever with a force of 196 N (20 kg, 44 lb). Check a stroke is within specified number
of notches. (Check it by hearing clicks of ratchet.)
1. Control lever assembly 2. Cap 3. Parking brake warning lamp switch
4. Screw 5. Adjusting nut 6. Front cable
7. RH rear cable 8. LH rear cable :Multi-purpose grease
SFIA3052E
SFIA2453E
Lever stroke : 6 - 7 notches

G SENSOR
BRC-47
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

G SENSORPFP:47930
Removal and InstallationEFS004GY
CAUTION:

Do not drop or strike the G sensor, because it is sensitive to impact.

Do not use power tool, etc. Because G sensor is weak for the impact.
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" .
2. Disconnect G sensor connector.
3. Remove mounting nuts and remove G sensor.
NOTE:
There is not need to detach the G sensor main body from a bracket.
INSTALLATION
Install in the reverse order of removal observing the precautions above.
SFIA0065E

DIAGNOSIS SENSOR UNIT
SRS-41
C
D
E
F
G
I
J
K
L
MA
B
SRS

DIAGNOSIS SENSOR UNITPFP:28556
Removal and InstallationEHS000DD
REMOVAL
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
1. Disconnect each harness connector for the air bag module and seat belt pre-tensioner.
2. Remove center console. Refer to IP-11, "
Removal and Installation" .
3. Disconnect diagnosis sensor unit connector.
4. Remove ground bolt and diagnosis sensor unit fixing bolts.
CAUTION:

Do not use old bolts. Replace with new ones.

Check diagnosis sensor unit brackets to ensure it is free of
deformities, dents, cracks or rust. If it shows any visible
signs of damage, replace it with new one.

Replace diagnosis sensor unit if it has been dropped or sustained an impact.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

Check the diagnosis sensor unit for proper installation.

After replacement of diagnosis sensor unit, perform self-diagnosis to check that no malfunction is
detected. Refer to SRS-17, "
SRS Operation Check" .
ECU DISCRIMINATED NO.
After replacing air bag sensor unit, confirm control unit discriminated number.Ground bolt:
: 6.9 N·m (0.7 kg-m, 61 in-lb)
Diagnosis sensor unit fixing bolt:
: 24.5 N·m (2.5 kg-m, 18.1 ft-lb)
PHIA0735E
Specification ECU discriminated No.
Model with driver and passenger air bags and seat belt pre-tensioner AA12
Model with driver and passenger air bags, seat belt pre-tensioner and front side air bag AA01

BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION BL
A
B
BL

BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions for Work ................................................ 4
Wiring Diagnosis and Trouble Diagnosis ................. 4
PREPARATION ........................................................... 5
Commercial Service Tools ........................................ 5
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 6
Work Flow ................................................................ 6
CUSTOMER INTERVIEW ..................................... 6
DUPLICATE THE NOISE AND TEST DRIVE ....... 7
CHECK RELATED SERVICE BULLETINS ........... 7
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 7
REPAIR THE CAUSE ........................................... 7
CONFIRM THE REPAIR ....................................... 8
Generic Squeak and Rattle Troubleshooting ........... 8
INSTRUMENT PANEL .......................................... 8
CENTER CONSOLE ............................................. 8
DOORS ................................................................. 8
TRUNK .................................................................. 9
SUNROOF/HEADLINING ..................................... 9
SEATS ................................................................... 9
UNDERHOOD ....................................................... 9
Diagnostic Worksheet ............................................ 10
HOOD ....................................................................... 12
Fitting Adjustment .................................................. 12
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT .................................................... 12
FRONT END HEIGHT ADJUSTMENT ............... 12
SURFACE HEIGHT ADJUSTMENT ................... 14
Removal and Installation of Hood Assembly .......... 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 15
Removal and Installation of Hood Lock Control ..... 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 16
Hood Lock Control Inspection ................................ 17
DOOR ....................................................................... 18Fitting Adjustment ................................................... 18
FRONT DOOR .................................................... 18
REAR DOOR ....................................................... 18
STRIKER ADJUSTMENT .................................... 18
Removal and Installation of Front Door .................. 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 19
Removal and Installation of Rear Door ................... 19
REMOVAL ........................................................... 20
INSTALLATION ................................................... 20
Door Weatherstrip .................................................. 21
REMOVAL ........................................................... 21
INSTALLATION ................................................... 21
POWER DOOR LOCK SYSTEM .............................. 22
System Description ................................................. 22
OPERATION ........................................................ 22
Component Parts and Harness Connector Location ... 22
Schematic ............................................................... 23
Wiring Diagram — D/LOCK — ............................... 24
Terminal and Reference Value for Time Control Unit ... 28
Symptom Chart ....................................................... 29
Power Supply and Ground Circuit Check ............... 29
Door Lock/Unlock Switch Check ............................ 30
Door Key Cylinder Switch Check ............................ 32
Front Door Lock Actuator (Driver Side) Check ....... 34
Front Door Lock Actuator (Passenger Side) Check ... 35
Rear Door Lock Actuator LH Check ....................... 36
Rear Door Lock Actuator RH Check ....................... 37
Back Door Lock Actuator Check ............................. 38
Door Switch Check ................................................. 39
Door Unlock Sensor Check .................................... 40
Key Switch Check ................................................... 41
POWER DOOR LOCK — SUPER LOCK — ............ 42
System Description ................................................. 42
OUTLINE ............................................................. 42
OPERATION ........................................................ 42
Schematic ............................................................... 44
Wiring Diagram — S/LOCK — ............................... 45
Terminal and Reference Value for Time Control Unit ... 51
Trouble Diagnoses ................................................. 53

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES

FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingEIS008PS
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks to
repair the noise.

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW

GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions .............................................................. 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
WINDSHIELD GLASS AND MOLDING ....................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION ................................................... 12
SIDE WINDOW GLASS ............................................ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
REPAIRING WATER LEAKS .............................. 14
BACK DOOR WINDOW GLASS .............................. 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 16
REAR WINDOW DEFOGGER .................................. 17
Component Parts and Harness Connector Location ... 17System Description / LHD Models .......................... 17
System Description / RHD Models ......................... 18
Wiring Diagram — DEF — / For LHD models ........ 19
Wiring Diagram — DEF — / For RHD models ........ 21
Terminals and Reference Value for Time Control
Unit (RHD models) ................................................. 23
Trouble Diagnoses ................................................. 23
Rear Window Defogger Relay Power Supply Check
1 .............................................................................. 24
Time Control Unit Power Supply and Ground Check ... 25
Rear Window Defogger Switch Circuit Check ........ 26
Rear Window Defogger Relay Power Supply Check
2 .............................................................................. 28
Rear Window Defogger Circuit Check 1 ................. 30
Rear Window Defogger Circuit Check 2 ................. 31
Door Mirror Defogger Circuit Check ....................... 32
Rear Window Defogger Indicator Lamp Check 1 ... 34
Rear Window Defogger Indicator Lamp Check 2 ... 36
Filament Check ....................................................... 38
Filament Repair ...................................................... 38
REPAIR EQUIPMENT ......................................... 38
REPAIRING PROCEDURE ................................. 39
POWER WINDOW SYSTEM .................................... 40
Component Parts and Harness Connector Location ... 40
System Description ................................................. 40
MANUAL OPERATION ........................................ 41
AUTO OPERATION ............................................. 44
POWER WINDOW LOCK ................................... 44
TIMER FUNCTION .............................................. 44
DRIVER WINDOW ANTI–PINCH FUNCTION .... 44
Schematic / For LHD models .................................. 45
Wiring Diagram – WINDOW – / For LHD models ... 46
Terminal and Reference Value for Power Window
Main Switch / For LHD models ............................... 50
Schematic / For RHD models ................................. 52
Wiring Diagram – WINDOW – / For RHD models ... 53
Terminal and Reference Value for Power Window
Main Switch / For RHD models .............................. 57
Trouble Diagnoses Symptom Chart ....................... 58
Power Window Relay Power Supply and Ground

SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-7
C
D
E
F
G
H
J
K
L
MA
B
GW

FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingEIS008NQ
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks to
repair the noise.

RF-1
ROOF
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION RF
A
B
RF

ROOF
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions .............................................................. 2
PREPARATION ........................................................... 3
Commercial Service Tools ........................................ 3
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 4
Work Flow ................................................................ 4
CUSTOMER INTERVIEW ..................................... 4
DUPLICATE THE NOISE AND TEST DRIVE ....... 5
CHECK RELATED SERVICE BULLETINS ........... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 5
REPAIR THE CAUSE ........................................... 5
CONFIRM THE REPAIR ....................................... 6
Generic Squeak and Rattle Troubleshooting ........... 6
INSTRUMENT PANEL .......................................... 6
CENTER CONSOLE ............................................. 6
DOORS ................................................................. 6
TRUNK .................................................................. 7
SUNROOF/HEADLINER ....................................... 7SEATS ................................................................... 7
UNDERHOOD ....................................................... 7
Diagnostic Worksheet ............................................... 8
SUNROOF ................................................................. 10
System Description ................................................. 10
RESUMING OPERATION ................................... 10
Component Parts Location ..................................... 10
Wiring Diagram — SROOF — ................................ 11
Terminal and Reference Value for Sunroof Switch ... 13
Wind Deflector Inspection ....................................... 13
Glass Lid Weatherstrip Inspection .......................... 13
Link and Wire Assembly Inspection ........................ 13
Fitting Adjustment ................................................... 14
LONGITUDINAL/LATERAL CLEARANCE
ADJUSTMENT .................................................... 14
SURFACE MISMATCH ADJUSTMENT .............. 14
Removal and Installation ........................................ 15
SUNROOF UNIT ................................................. 16
GLASS LID .......................................................... 17
SUNSHADE ........................................................ 17
WIND DEFLECTOR ............................................ 18
SUNROOF MOTOR ............................................ 18
