NISSAN X-TRAIL 2005 Service Repair Manual DISASSEMBLY AT-425 [ALL] D E F G H I J K L MA B AT 4. Set manual shaft to position P. 5. Remove park/neutral position (PNP) switch. 6. Remove bracket from transaxle case. 7. Remove revolution sensor

Page 2690 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-426 [ALL] DISASSEMBLY c. Remove control valve assembly mounting bolts A, B and C . Bolt length, number and location: d. Remove control valve assembly from transaxle case. 13. Remove manual valve

Page 2691 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DISASSEMBLY AT-427 [ALL] D E F G H I J K L MA B AT 16. Remove servo release accumulator piston with compressed air. CAUTION: Strong flow of air will push the accumulator piston out along with a spl

Page 2692 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-428 [ALL] DISASSEMBLY 24. Remove converter housing according to the following proce- dures. a. Remove converter housing mounting bolts. b. Remove converter housing by tapping it lightly. c. Remov

Page 2693 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DISASSEMBLY AT-429 [ALL] D E F G H I J K L MA B AT 28. Remove differential side bearing outer race from converter housing. 29. Remove RH differential side oil seal with flat-bladed screwdriver from

Page 2694 of 4555

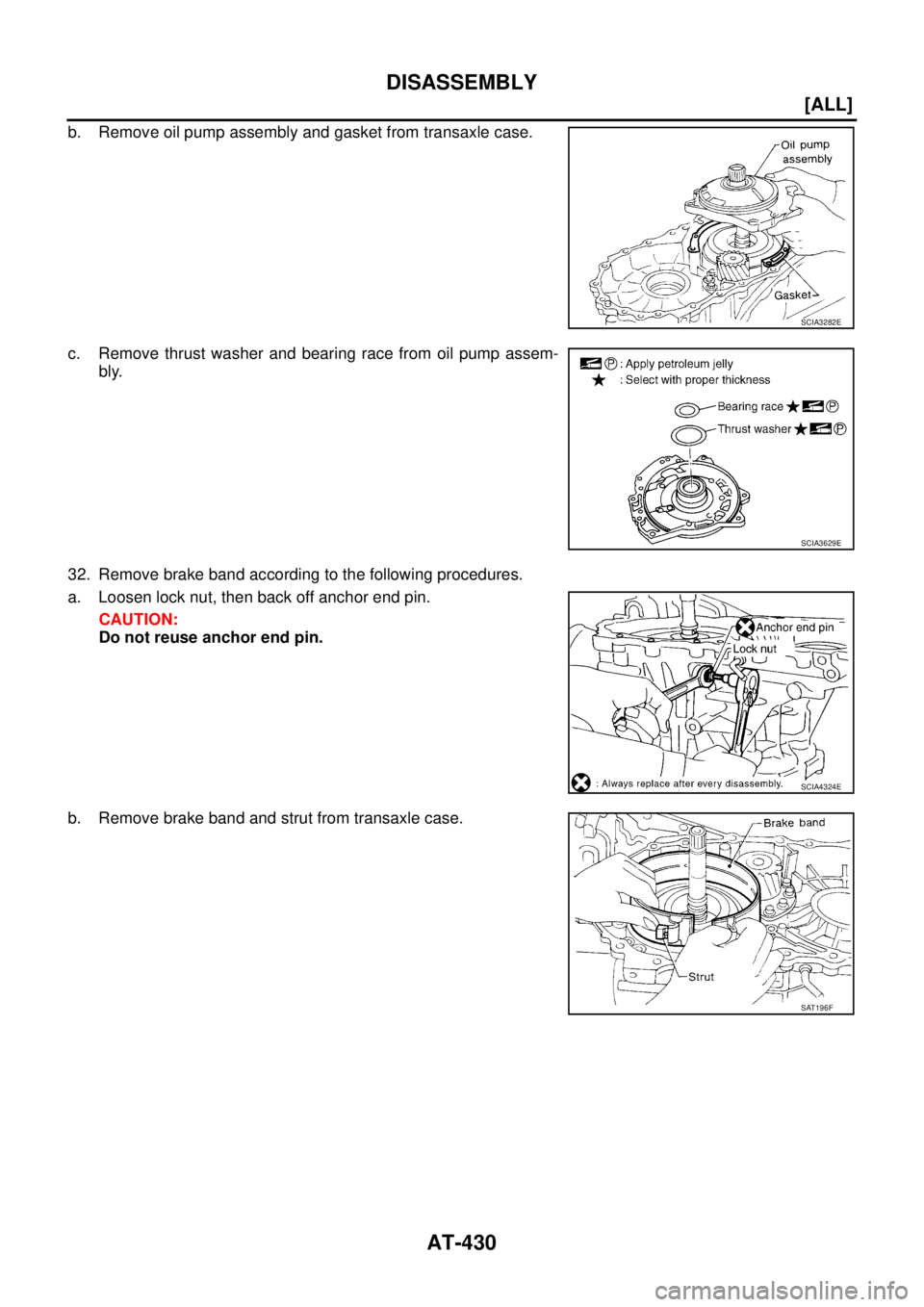

NISSAN X-TRAIL 2005 Service Repair Manual AT-430 [ALL] DISASSEMBLY b. Remove oil pump assembly and gasket from transaxle case. c. Remove thrust washer and bearing race from oil pump assem- bly. 32. Remove brake band according to the followi

Page 2695 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DISASSEMBLY AT-431 [ALL] D E F G H I J K L MA B AT To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it

Page 2696 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-432 [ALL] DISASSEMBLY c. Remove needle bearing from input shaft assembly (high clutch drum) and check for damage or wear. d. Remove high clutch hub (with front sun gear) and needle bear- ing from
