TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS004QO
The TCM receives a signal from the vehicle speed sensor NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-57
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS004QO
The TCM receives a signal from the vehicle speed sensor](/manual-img/5/57403/w960_57403-2320.png)
TROUBLE DIAGNOSIS — INTRODUCTION
AT-57
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionECS004QO
The TCM receives a signal from the vehicle speed sensor, throttle
position sensor or PNP switch and provides shift control or lock-up
control via A/T solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the EURO-OBD related parts
of the A/T system for malfunction-diagnostic purposes. The TCM is
capable of diagnosing malfunctioning parts while the ECM can store
malfunctions in its memory.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only, may not find the cause of the problems. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the “Work Flow”. Refer to AT- 6 1 , "
Work Flow" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a drive ability complaint. The cus-
tomer can supply good information about such problems, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple (AT- 5 8 , "
DIAGNOSTIC WORKSHEET" ) should be used.
Start your diagnosis by looking for “conventional” problems first. This
will help troubleshoot drive ability problems on an electronically con-
trolled engine vehicle.
Also check related Service bulletins for information.
SAT631IA
SAT632I
SEF234G
Page 2322 of 4555
AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
WHAT..... Vehicle & A/T model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Customer name MR/MS Model & Year VIN
Trans. model Engine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous❏ Intermittent ( times a day)
Symptoms❏ Vehicle does not move. (❏ Any position❏ Particular position)
❏ No up-shift (❏ 1st → 2nd❏ 2nd → 3rd❏ 3rd → O/D)
❏ No down-shift (❏ O/D → 3rd❏ 3rd → 2nd❏ 2nd → 1st)
❏ Lockup malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip (❏ N → D❏ Lockup❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
O/D OFF indicator lamp❏ Continuously lit❏ Not lit
Malfunction indicator (MI)❏ Continuously lit❏ Not lit
Page 2323 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 5 8
2.❏ Check A/T fluidAT- 6 4
❏ NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 5 8
2.❏ Check A/T fluidAT- 6 4
❏](/manual-img/5/57403/w960_57403-2322.png)
TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 5 8
2.❏ Check A/T fluidAT- 6 4
❏ Leakage (Follow specified procedure)
❏ Fluid condition
❏ Fluid level
3.❏ Perform Stall Test and Line Pressure Test.AT- 6 5
, AT- 6 8
❏ Stall test — Mark possible damaged components/others.
❏ Torque converter one-way clutch
❏ Reverse clutch
❏ Forward clutch
❏ Overrun clutch
❏ Forward one-way clutch❏ Low & reverse brake
❏ Low one-way clutch
❏ Engine
❏ Line pressure is low
❏ Clutches and brakes except high clutch and
brake band are OK
❏ Line Pressure test — Suspected parts:
4.❏ Perform all Road Test and mark required procedures.AT- 7 0
4-1. Check before engine is started.AT- 7 1
❏ O/D OFF Indicator Lamp Does Not Come On, AT-204 .
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PRO-
CEDURE. — Mark detected items.
❏ PNP switch, AT- 1 0 0
.
❏ A/T fluid temperature sensor, AT- 1 0 6
.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 11 2
.
❏ Engine speed signal, AT- 11 9
.
❏ Torque converter clutch solenoid valve, AT-148
.
❏ Line pressure solenoid valve, AT-154
.
❏ Shift solenoid valve A, AT- 1 6 1
.
❏ Shift solenoid valve B, AT- 1 6 7
.
❏ Accelerator pedal position (App) sensor, AT- 1 7 3
.
❏ Overrun clutch solenoid valve, AT- 1 7 8
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 2 3 7
.
❏ Batt/fluid temp sen (A/T fluid temperature sensor and TCM power source), AT- 1 8 4
.
❏ Vehicle speed sensor·MTR, AT-192
.
❏ CAN communication line, AT- 9 7
.
❏ Control unit (RAM), control unit (ROM), AT-198
.
❏ Control unit (EEP ROM), AT-200
.
❏ Battery
❏ Others
4-2. Check at idleAT- 7 2
❏ Engine Cannot Be Started In “P” And “N” Position, AT-206 .
❏ In “P” Position, Vehicle Moves Forward Or Backward When Pushed, AT-207
.
❏ In “N” Position, Vehicle Moves, AT- 2 0 8
.
❏ Large Shock. “N” → “R” Position, AT-209
.
❏ Vehicle Does Not Creep Backward In “R” Position, AT-210
.
❏ Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position, AT- 2 1 2
.
Page 2324 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
4. 4-3. Cruise testAT- 7 4
AT- 7 8Part-1
❏ Vehicle Cannot Be Started From D
1 , AT-214 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdo NISSAN X-TRAIL 2005 Service Repair Manual AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
4. 4-3. Cruise testAT- 7 4
AT- 7 8Part-1
❏ Vehicle Cannot Be Started From D
1 , AT-214 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdo](/manual-img/5/57403/w960_57403-2323.png)
AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
4. 4-3. Cruise testAT- 7 4
AT- 7 8Part-1
❏ Vehicle Cannot Be Started From D
1 , AT-214 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT- 2 1 7 .
❏ A/T Does Not Shift: D
2 → D3 , AT-220 .
❏ A/T Does Not Shift: D
3 → D4 , AT-222 .
❏ A/T Does Not Perform Lock-up, AT- 2 2 4
.
❏ A/T Does Not Hold Lock-up Condition, AT- 2 2 5
.
❏ Lock-up Is Not Released, AT- 2 2 7
.
❏ Engine Speed Does Not Return To Idle (Light Braking D
4 → D3 ), AT- 2 2 8 .
Part-2AT- 8 1
❏ Vehicle Does Not Start From D1 , AT-230 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT- 2 1 7 .
❏ A/T Does Not Shift: D
2 → D3 , AT-220 .
❏ A/T Does Not Shift: D
3 → D4 , AT-222 .
Part-3AT- 8 2
❏ A/T Does Not Shift: D4 → D3 When Overdrive Control Switch “ON” → “OFF”, AT- 2 3 1 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In D
3 ), AT-228 .
❏ A/T Does Not Shift: D
3 → 22 , When Selector Lever “D” → “2” Position, AT-232 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In 2
2 ), AT- 2 2 8 .
❏ A/T Does Not Shift: 2
2 → 11 , When Selector Lever “2” → “1” Position, AT- 2 3 3 .
❏ Vehicle Does Not Decelerate By Engine Brake, AT-235
.
❏ TCM Self-diagnosis Does Not Activate (PNP & Overdrive control switches, and throttle position sensor
circuit checks), AT-237
.
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PRO-
CEDURE — Mark detected items.
❏ PNP switch, AT-100
.
❏ A/T fluid temperature sensor, AT-106
.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 11 2
.
❏ Engine speed signal, AT- 11 9
.
❏ Torque converter clutch solenoid valve, AT- 1 4 8
.
❏ Line pressure solenoid valve, AT-154
.
❏ Shift solenoid valve A, AT-161
.
❏ Shift solenoid valve B, AT-167
.
❏ Accelerator pedal position (App) sensor, AT-173
.
❏ Overrun clutch solenoid valve, AT-178
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 2 3 7
.
❏ A/T fluid temperature sensor and TCM power source, AT-184
.
❏ Vehicle speed sensor·MTR, AT- 1 9 2
.
❏ CAN communication line, AT- 9 7
.
❏ Control unit (RAM), control unit (ROM), AT- 1 9 8
.
❏ Control unit (EEP ROM), AT- 2 0 0
.
❏ Battery
❏ Others
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.AT- 5 2
6.❏ Perform all Road Test and re-mark required procedures.AT- 7 0
7.❏ Perform DTC Confirmation Procedure for following MI indicating items and check out NG items.EC-53
❏ DTC (P0731) A/T 1st gear function, AT-125 .
❏ DTC (P0732) A/T 2nd gear function, AT- 1 3 0
.
❏ DTC (P0733) A/T 3rd gear function, AT-135
.
❏ DTC (P0734) A/T 4th gear function, AT-140
.
8.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT- 8 5
9.❏ Erase DTC from TCM and ECM memories.AT- 4 2
Page 2325 of 4555
TROUBLE DIAGNOSIS — INTRODUCTION
AT-61
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Work FlowECS004QP
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In
general, each customer feels differently about a problem. It is important to fully understand the symptoms or
conditions for a customer complaint.
Make good use of the two sheets provided, “INFORMATION FROM CUSTOMER” (AT- 5 8 , "
Information from
Customer" ) and “DIAGNOSTIC WORKSHEET” (AT- 5 9 , "Diagnostic Worksheet" ), to perform the best trouble-
shooting possible.
Page 2326 of 4555
AT-62
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
WORK FLOW CHART

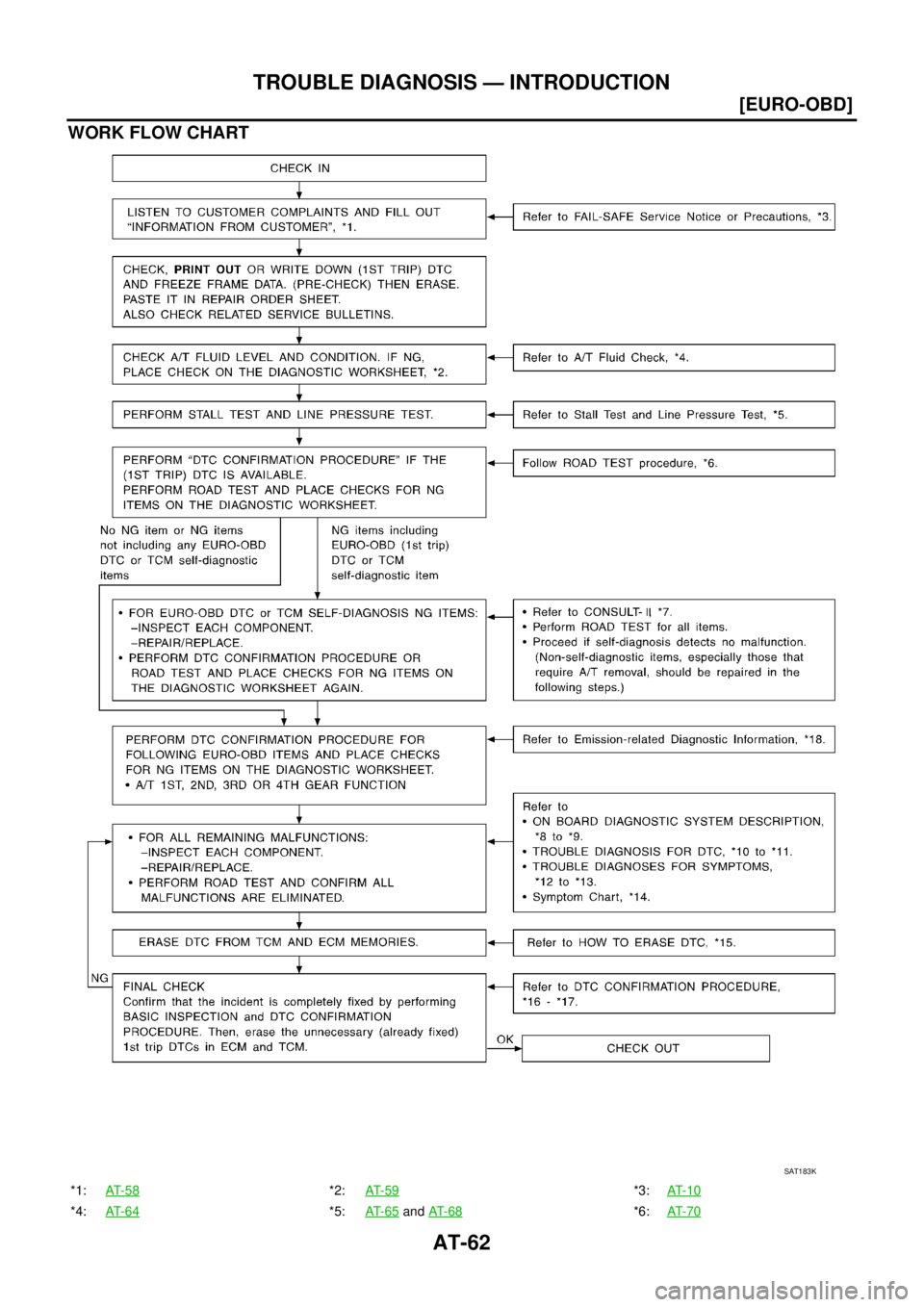

SAT183K
*1:AT- 5 8*2:AT- 5 9*3:AT- 1 0
*4:AT- 6 4*5:AT- 6 5 and AT- 6 8*6:AT- 7 0
Page 2327 of 4555
TROUBLE DIAGNOSIS — INTRODUCTION
AT-63
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
*7:AT- 4 4*8:AT- 4 0*9:AT- 5 2
*10:AT-100*11:AT- 1 9 2 and AT- 1 9 8 to AT- 2 0 0*12:AT- 2 0 4
*13:AT-235*14:AT- 8 5*15:AT- 4 2
*16:AT-100*17:AT- 1 9 2 and AT- 1 9 8 to AT- 2 0 0*18:EC-53
Page 2328 of 4555
AT-64
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
TROUBLE DIAGNOSIS — BASIC INSPECTIONPFP:00000
A/T Fluid CheckECS004QQ
FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. — for example, mating surface
of converter housing and transaxle case.
2. Start engine, apply foot brake, place selector lever in D position
and wait a few minutes.
3. Stop engine.
4. Check for fresh leakage.
FLUID CONDITION CHECK
FLUID LEVEL CHECK
Refer to AT- 1 6 , "Checking A/T Fluid" .
SAT767B
SAT288G
Fluid color Suspected problem
Dark or black with burned odor Wear of frictional material
Milky pink Water contamination — Road water
entering through filler tube or breather
Varnished fluid, light to dark brown and
tackyOxidation — Over or under filling, —
Overheating
SAT638A
