NISSAN X-TRAIL 2005 Service Repair Manual TOW TRUCK TOWING
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI

TOW TRUCK TOWINGPFP:00000
Tow Truck TowingEAS001JB
CAUTION:
All applicable state or Provincial (in Canada) laws and local laws regarding the towing

Page 42 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual GI-40
TOW TRUCK TOWING

When towing two wheel drive automatic transmission model with the rear wheels on the ground (if
you do not use towing dollies): Always release the parking brake.
4WD MODELS

Page 43 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TIGHTENING TORQUE OF STANDARD BOLTS
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI

TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
DescriptionEAS001HU
This vehicle has both new standard based on ISO* and previous sta

TIGHTENING TORQUE OF STANDARD BOLTS
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI

TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
DescriptionEAS001HU
This vehicle has both new standard based on ISO* and previous standard bolts/nuts. There are some differ-
ences between these two types of bolts/nuts; shape of the head, grade of strength, hexagonal width across
flats and the standard tightening torque.
For guidance in discriminating, refer to GI-41, "Tightening Torque Table (New Standard Included)" .
The new standard machine screws and tapping screws have a head of ISO standard torx recess.
If the tightening torque is not described in the description or figure, refer to GI-41, "Tightening Torque
Table (New Standard Included)" .
*ISO: International Organization for Standardization
Tightening Torque Table (New Standard Included)EAS001HV
CAUTION:
The special parts are excluded.
The bolts/nuts in these tables have a strength (discrimination) number/symbol assigned to the
head or the like. As to the relation between the strength grade in these tables and the strength
(discrimination) number/symbol, refer to “DISCRIMINATION OF BOLTS AND NUTS”.
PREVIOUS STANDARD
CAUTION:
The parts with aluminum or the cast iron washer surface/screw surface are excluded.
Grade
(Strength
grade)Bolt
sizeBolt
diame-
ter
mmHexagonal
width
across flats
mmPitch
mmTightening torque (Without lubricant)
Hexagon head bolt Hexagon flange bolt
N·m kg-m ft-lb in-lb N·m kg-m ft-lb in-lb
4TM6 6.0 10 1.0 5.5 0.56 4 49 7 0.71 5 62
M8 8.0 121.25 13.5 1.4 10 — 17 1.7 13 —
1.0 13.5 1.4 10 — 17 1.7 13 —
M10 10.0 141.5 28 2.9 21 — 35 3.6 26 —
1.25 28 2.9 21 — 35 3.6 26 —
M12 12.0 171.75 45 4.6 33 — 55 5.6 41 —
1.25 45 4.6 33 — 65 6.6 48 —
M14 14.0 19 1.5 80 8.2 59 — 100 10 74 —
7TM6 6.0 10 1.0 9 0.92 7 80 11 1.1 8 97
M8 8.0 121.25 22 2.2 16 — 28 2.9 21 —
1.0 22 2.2 16 — 28 2.9 21 —
M10 10.0 141.5 45 4.6 33 — 55 5.6 41 —
1.25 45 4.6 33 — 55 5.6 41 —
M12 12.0 171.75 80 8.2 59 — 100 10 74 —
1.25 80 8.2 59 — 100 10 74 —
M14 14.0 19 1.5 130 13 96 — 170 17 125 —
9TM6 6.0 10 1.0 11 1.1 8 — 13.5 1.4 10 —
M8 8.0 121.25 28 2.9 21 — 35 3.6 26 —
1.0 28 2.9 21 — 35 3.6 26 —
M10 10.0 141.5 55 5.6 41 — 80 8.2 59 —
1.25 55 5.6 41 — 80 8.2 59 —
M12 12.0 171.75 100 10 74 — 130 13 96 —
1.25 100 10 74 — 130 13 96 —
M14 14.0 19 1.5 170 17 125 — 210 21 155 —

Page 44 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual GI-42
TIGHTENING TORQUE OF STANDARD BOLTS

NEW STANDARD BASED ON ISO
CAUTION:
1. Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coeffi-
cient stabilizer i

GI-42
TIGHTENING TORQUE OF STANDARD BOLTS

NEW STANDARD BASED ON ISO
CAUTION:
1. Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coeffi-
cient stabilizer is applied to the new standard bolts/nuts.
2. However, use tightening torque without lubricant for the following cases. Friction coefficient stabi-
lizer is not applied to the following bolts/nuts.
–Grade 4.8, M6 size bolt, Conical spring washer installed
–Paint removing nut (Size M6 and M8) for fixing with weld bolt
Grade
(Strength
grade)Bolt
sizeBolt
diame-
ter
mmHexagonal
width
across flats
mmPitch
mmTightening torque
Hexagon head bolt Hexagon flange bolt
N·m kg-m ft-lb in-lb N·m kg-m ft-lb in-lb
4.8
(Without
lubricant)M6 6.0 10 1.0 5.5 0.56 4 49 7 0.71 5 62
M8 8.0 131.25 13.5 1.4 10 — 17 1.7 13 —
1.0 13.5 1.4 10 — 17 1.7 13 —
M10 10.0 161.5 28 2.9 21 — 35 3.6 26 —
1.25 28 2.9 21 — 35 3.6 26 —
M12 12.0 181.75 45 4.6 33 — 55 5.6 41 —
1.25 45 4.6 33 — 65 6.6 48 —
M14 14.0 21 1.5 80 8.2 59 — 100 10 74 —
4.8
(With
lubricant)M6 6.0 10 1.0 4 0.41 3 35 5.5 0.56 4 49
M8 8.0 131.25 11 1.1 8 — 13.5 1.4 10 —
1.0 11 1.1 8 — 13.5 1.4 10 —
M10 10.0 161.5 22 2.2 16 — 28 2.9 21 —
1.25 22 2.2 16 — 28 2.9 21 —
M12 12.0 181.75 35 3.6 26 — 45 4.6 33 —
1.25 35 3.6 26 — 45 4.6 33 —
M14 14.0 21 1.5 65 6.6 48 — 80 8.2 59 —
8.8
(With
lubricant)M6 6.0 10 1.0 8 0.82 6 71 10 1.0 7 89
M8 8.0 131.25 21 2.1 15 — 25 2.6 18 —
1.0 21 2.1 15 — 25 2.6 18 —
M10 10.0 161.5 40 4.1 30 — 50 5.1 37 —
1.25 40 4.1 30 — 50 5.1 37 —
M12 12.0 181.75 70 7.1 52 — 85 8.7 63 —
1.25 70 7.1 52 — 85 8.7 63 —
M14 14.0 21 1.5 120 12 89 — 140 14 103 —
10.9
(With
lubricant)M6 6.0 10 1.0 10 1.0 7 89 12 1.2 9 106
M8 8.0 131.25 27 2.8 20 — 32 3.3 24 —
1.0 27 2.8 20 — 32 3.3 24 —
M10 10.0 161.5 55 5.6 41 — 62 6.3 46 —
1.25 55 5.6 41 — 62 6.3 46 —
M12 12.0 181.75 95 9.7 70 — 105 11 77 —
1.25 95 9.7 70 — 105 11 77 —
M14 14.0 21 1.5 160 16 118 — 180 18 133 —

Page 45 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TIGHTENING TORQUE OF STANDARD BOLTS
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI

DISCRIMINATION OF BOLTS AND NUTS
SAIA0453E

Page 46 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual GI-44
IDENTIFICATION INFORMATION

IDENTIFICATION INFORMATIONPFP:00010
Model Variation EAS000GE
Prefix and suffix designations:
Body Axle Engine Transaxle GradeDestination
RHDSouthern/Central
EuropeN

Page 47 of 4555

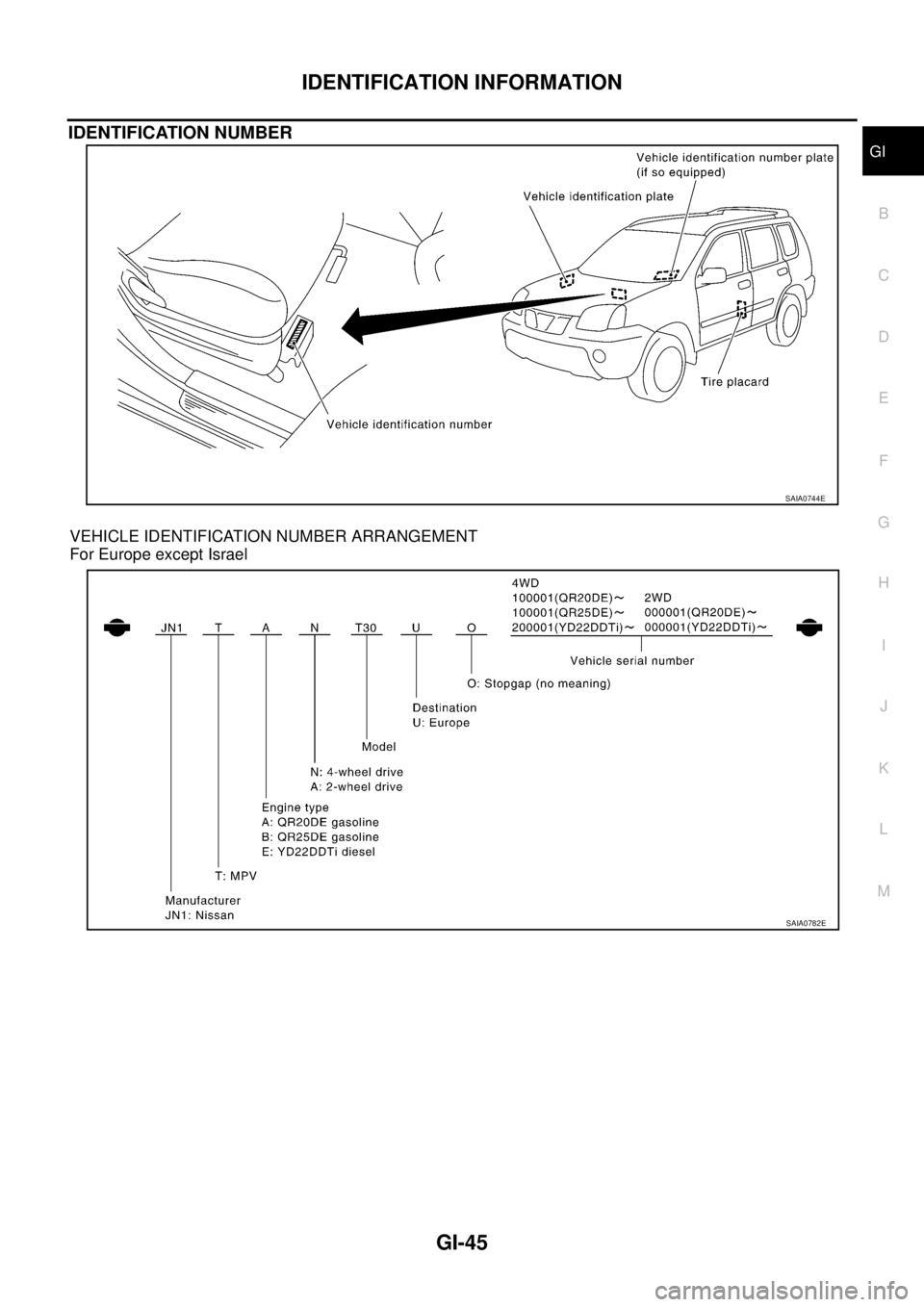

NISSAN X-TRAIL 2005 Service Repair Manual IDENTIFICATION INFORMATION
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI

IDENTIFICATION NUMBER
VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
For Europe except Israel
SAIA0744E
SAIA0782E

Page 48 of 4555

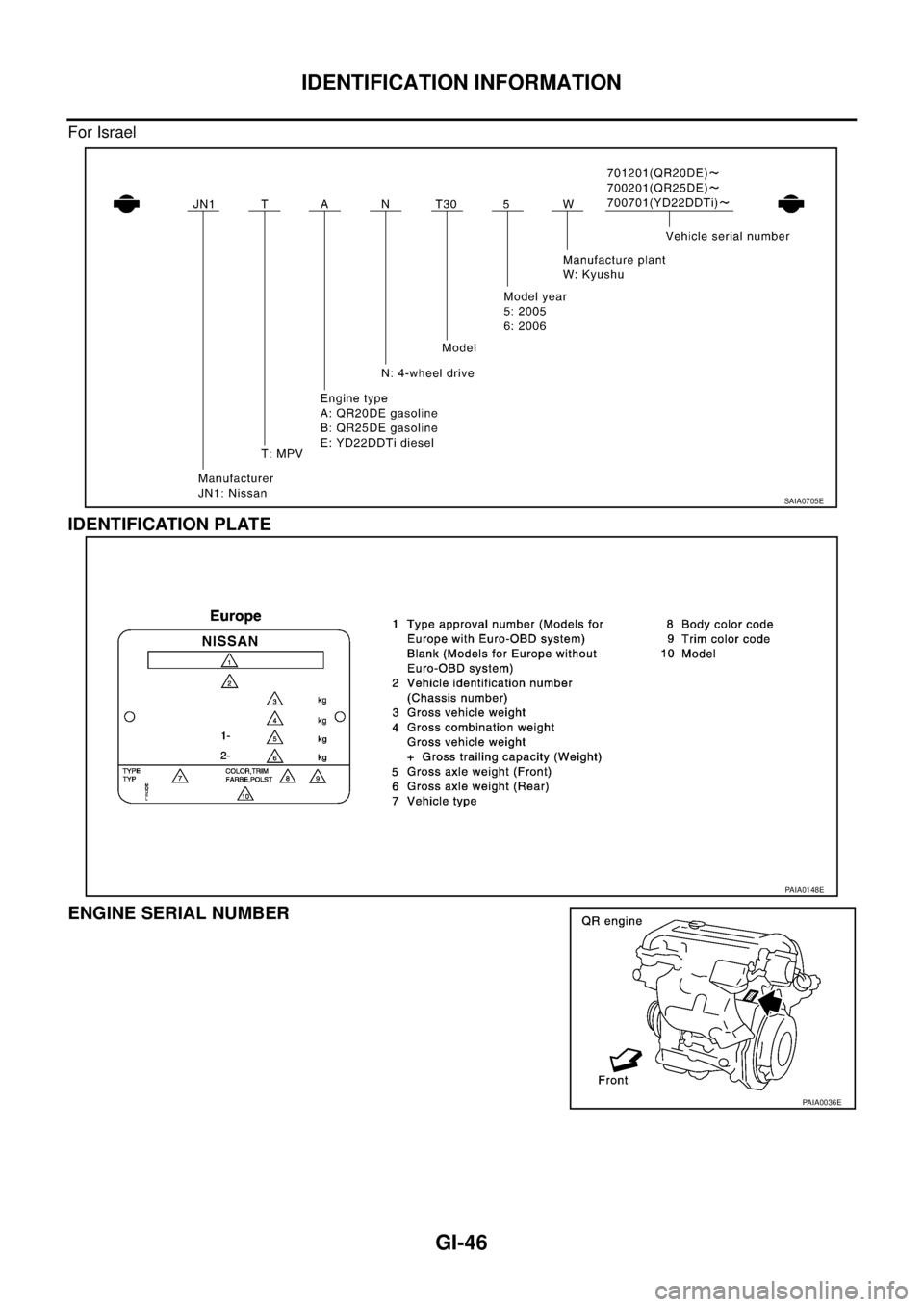

NISSAN X-TRAIL 2005 Service Repair Manual GI-46
IDENTIFICATION INFORMATION

For Israel
IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
SAIA0705E
PAIA0148E
PAIA0036E
