PRECAUTIONS
EM-131
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Precautions For Liquid GasketEBS00ODW
REMOVAL OF LIQUID GASKET
After removing the mounting bolts and nuts, separate the mating
surface using the seal cutter (special service tool) and remove
the old liquid gasket sealing.
CAUTION:
Be careful not to damage the mating surfaces.
Tap seal cutter to insert it (1), and then slide it (2) by tapping on
the side as shown in the figure.
In areas where seal cutter is difficult to use, use plastic hammer
to lightly tap the areas where the liquid gasket is applied.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach the liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.
If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.
As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified, it should be applied outside the holes.
Make sure to read the instruction in this manual.
Within five minutes of liquid gasket application, install the mat-
ing component.
If the liquid gasket protrudes, wipe it off immediately.
Do not retighten after the installation.
After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.
CAUTION:
If there are instructions in this manual, observe them.
PBIC0275E
PBIC0003E
PBIC2160E
SEM159F
Page 186 of 4555
EM-132
[YD22DDTi]
PREPARATION
PREPARATIONPFP:00002
Special Service ToolsEBS00LR6
Tool number
Tool nameDescription
ST0501S000
Engine stand assembly
1. ST05011000
Engine stand
2. ST05012000
BaseDisassembling and assembling
KV10106500
Engine stand shaft
KV11105900
Engine sub-attachmentUsed with KV10106500
KV10115600
Valve oil seal driftInstalling valve oil seal
Use side A.
Side A
a: 20 (0.79) dia.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
Unit: mm (in)
KV10107902
Valve oil seal puller
1. KV10116100
Valve oil seal puller adapterRemoving valve oil seal
KV11103000
Pulley pullerRemoving crankshaft pulley
ED19600610
Compression gauge adapterChecking compression pressure
NT042
NT028
NT799
NT603
S-NT605
NT676
ZZA1188D
Page 187 of 4555
PREPARATION
EM-133
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

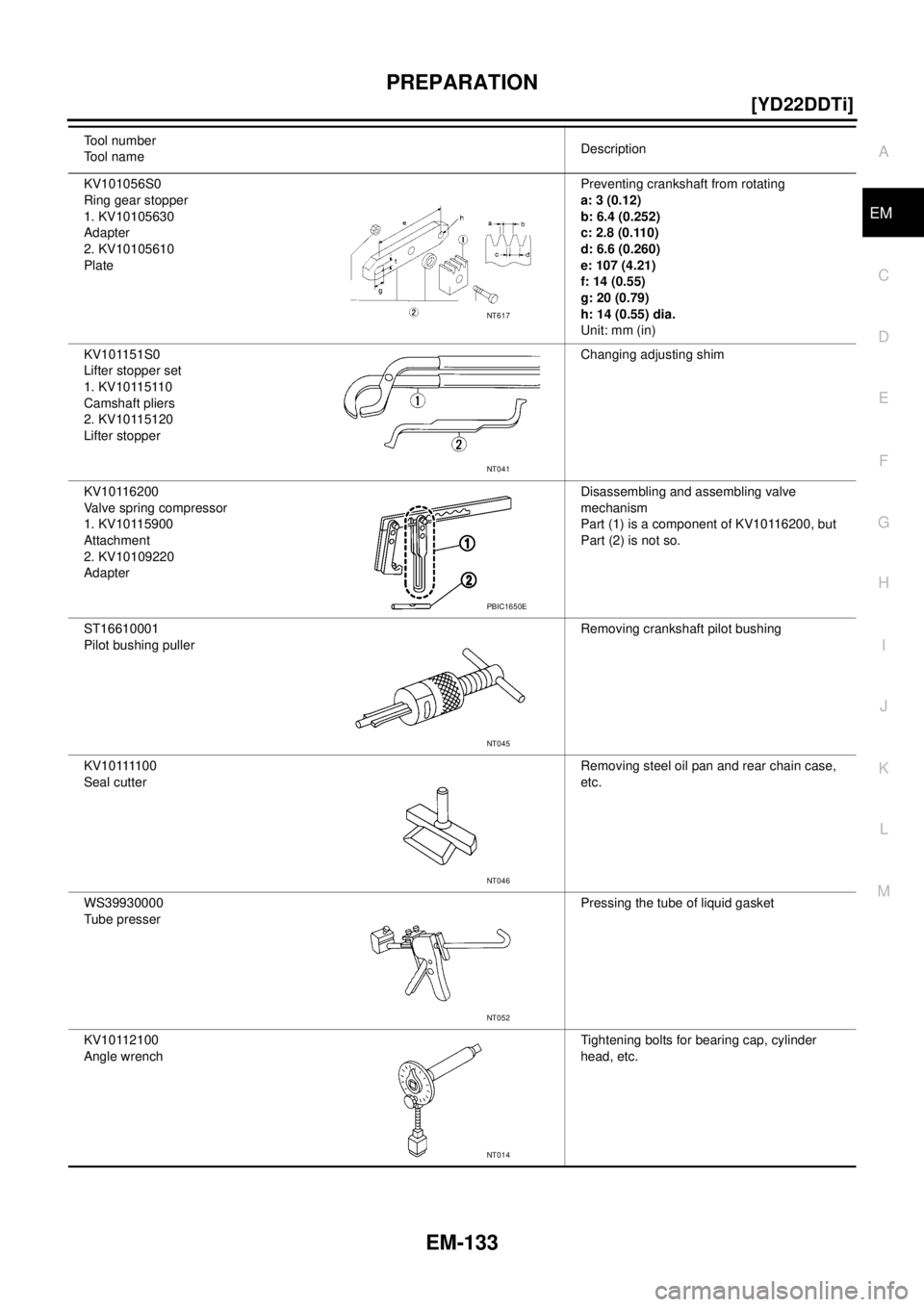

KV101056S0
Ring gear stopper
1. KV10105630
Adapter
2. KV10105610
PlatePreventing crankshaft from rotating
a: 3 (0.12)
b: 6.4 (0.252)
c: 2.8 (0.110)
d: 6.6 (0.260)
e: 107 (4.21)
f: 14 (0.55)
g: 20 (0.79)
h: 14 (0.55) dia.
Unit: mm (in)
KV101151S0
Lifter stopper set
1. KV10115110
Camshaft pliers
2. KV10115120
Lifter stopperChanging adjusting shim
KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
AdapterDisassembling and assembling valve
mechanism
Part (1) is a component of KV10116200, but
Part (2) is not so.
ST16610001
Pilot bushing pullerRemoving crankshaft pilot bushing
KV10111100
Seal cutterRemoving steel oil pan and rear chain case,
etc.
WS39930000
Tube presserPressing the tube of liquid gasket
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. Tool number
Tool nameDescription
NT617
NT041
PBIC1650E
NT045
NT046
NT052
NT014
Page 188 of 4555
EM-134
[YD22DDTi]
PREPARATION
EM03470000
Piston ring compressorInstalling piston assembly into cylinder bore
KV10109300
Pulley holderFixing crankshaft pulley
a: 68 mm (2.68 in)
b: 8 mm (0.31 in) dia.
KV11106010
Hexagon wrenchRemoving and installing chain tensioner
a: 5 mm (0.20 in) (Face to face)
b: 20 mm (0.79 in)
KV11106020
Hexagon wrenchRemoving and installing slack guide
a: 6 mm (0.24 in) (Face to face)
b: 20 mm (0.79 in)
KV11106030
Positioning stopper pinFixing fuel pump sprocket
a: 6 mm (0.24 in) dia.
b: 80 mm (3.15 in)
KV11106040
TORX wrenchRemoving and installing fuel pump sprocket
nut
a: T70
b: 26 mm (1.02 in)
KV11106050
Hexagonal wrenchRemoving and installing fuel pump sprocket
a: 6 mm (0.24 in) (Face to face)
b: 42 mm (1.65 in) Tool number
Tool nameDescription
NT044
NT628
NT801
NT803
NT804
NT805
SBIA0224E
Page 189 of 4555
PREPARATION
EM-135
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

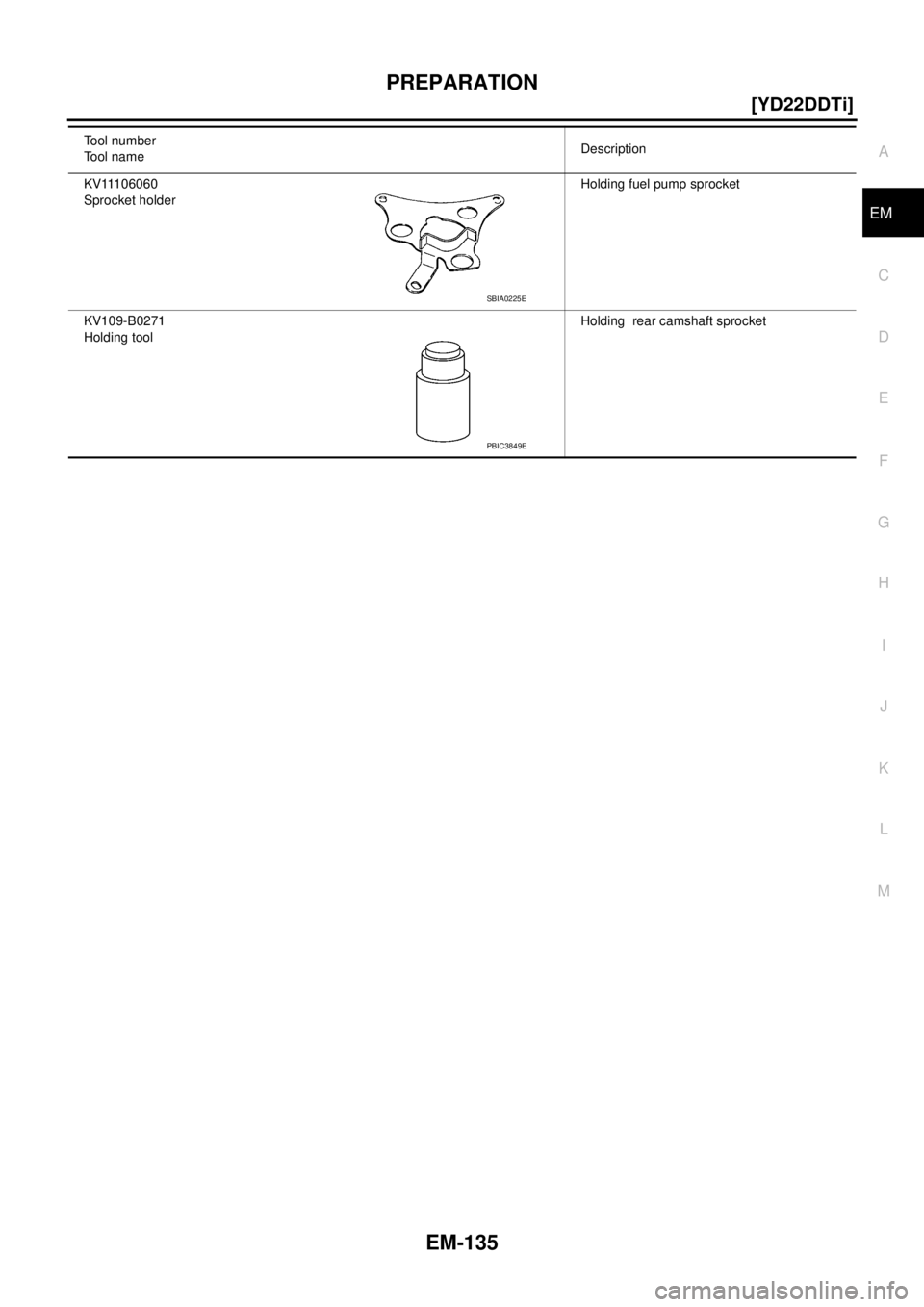

KV11106060
Sprocket holderHolding fuel pump sprocket
KV109-B0271
Holding toolHolding rear camshaft sprocket Tool number
Tool nameDescription
SBIA0225E
PBIC3849E
Page 190 of 4555
EM-136
[YD22DDTi]
PREPARATION
Commercial Service ToolsEBS00LR7
Tool nameDescription
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Manual lift table caddy Removing and installing engine
Valve guide reamer Reaming valve guide with (1) or hole for
oversize valve guide with (2)
Intake and Exhaust:
d
1 = 6.0 mm (0.236 in) dia.
d
2 = 10.2 mm (0.402 in) dia.
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a = 9.5 mm (0.374 in) dia.
b = 5.5 mm (0.217 in) dia.
TORX socketRemoving and installing flywheel
Size: T55
NT048
NT030
ZZA1210D
NT016
NT015
PBIC1113E
Page 191 of 4555
PREPARATION
EM-137
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

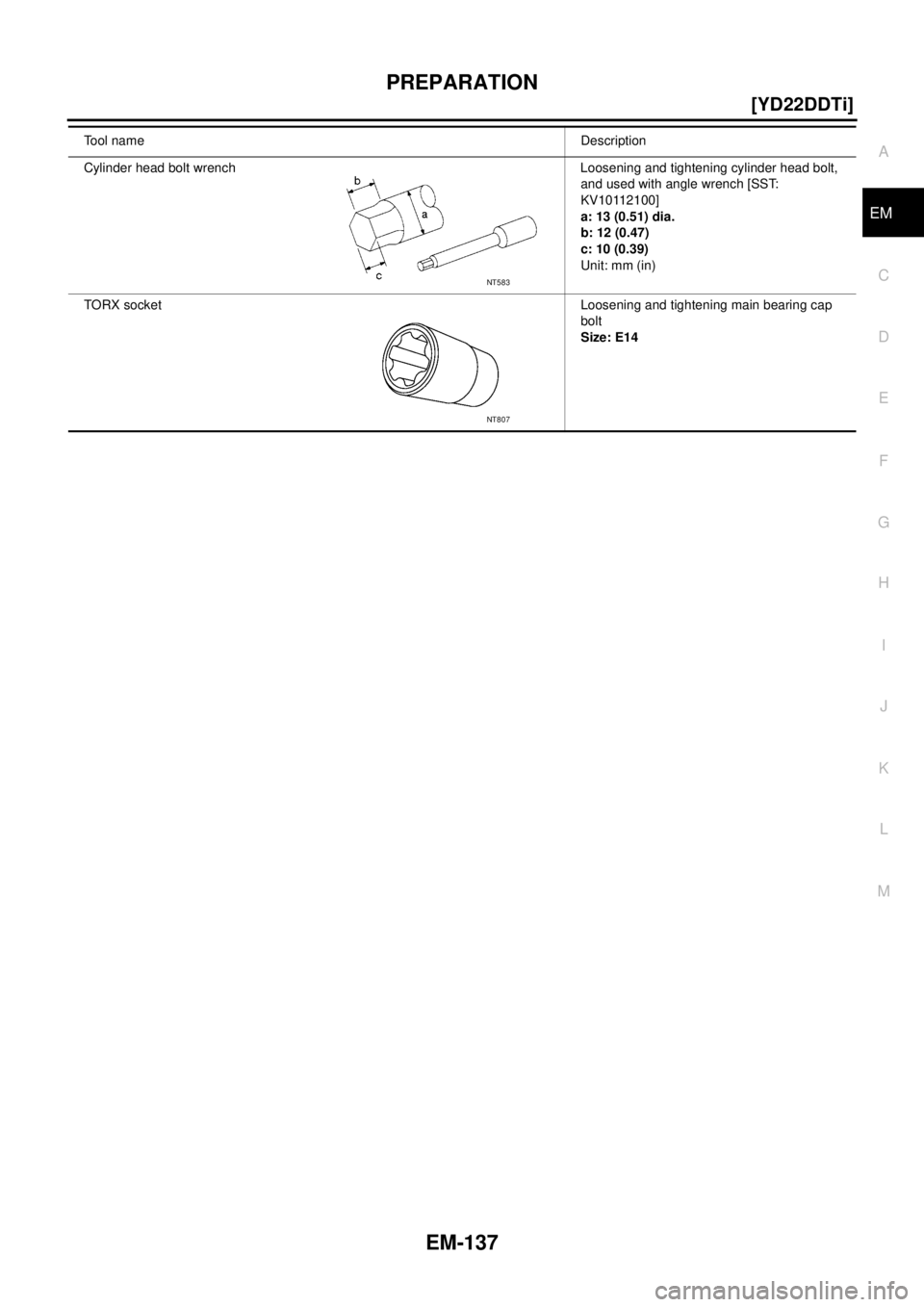

Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
TORX socketLoosening and tightening main bearing cap
bolt
Size: E14 Tool nameDescription
NT583
NT807
Page 192 of 4555
EM-138
[YD22DDTi]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting — Engine NoiseEBS00LR8
PBIC2311E
