Page 985 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-581 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 10. CHECK IGNITION TIMING 1. Run engine at idle. 2. Check ignition timing with a timing light. OK or NG OK >>INSPECTION END

Page 986 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-582 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS 14. CHECK TARGET IDLE SPEED AGAIN With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Read idle speed in “DATA MONI

Page 987 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-583 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 17. DETECT MALFUNCTIONING PART Check the following. Check camshaft position sensor (PHASE) and circuit. Refer to EC-701, "

Page 988 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-584 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS Symptom Matrix ChartEBS010X8 SYSTEM — BASIC ENGINE CONTROL SYSTEM SYMPTOM Reference page HARD/NO START/RESTART (EXCP. HA) ENGINE STALL HESITATION/

Page 989 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-585 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 1 - 6: The numbers refer to the order of inspection. (continued on next page)ECM 22333333333EC-716 , EC-719 Intake valve t

Page 990 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-586 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS SYSTEM — ENGINE MECHANICAL & OTHER SYMPTOM Reference page HARD/NO START/RESTART (EXCP. HA) ENGINE STALL HESITATION/SURGING/FLAT SPOT SPARK KNOCK/D

Page 991 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS EC-587 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 1 - 6: The numbers refer to the order of inspection.Va l v e mecha- nismTiming chain 55555 55 5EM-46 CamshaftEM-56 Intake

Page 992 of 4555

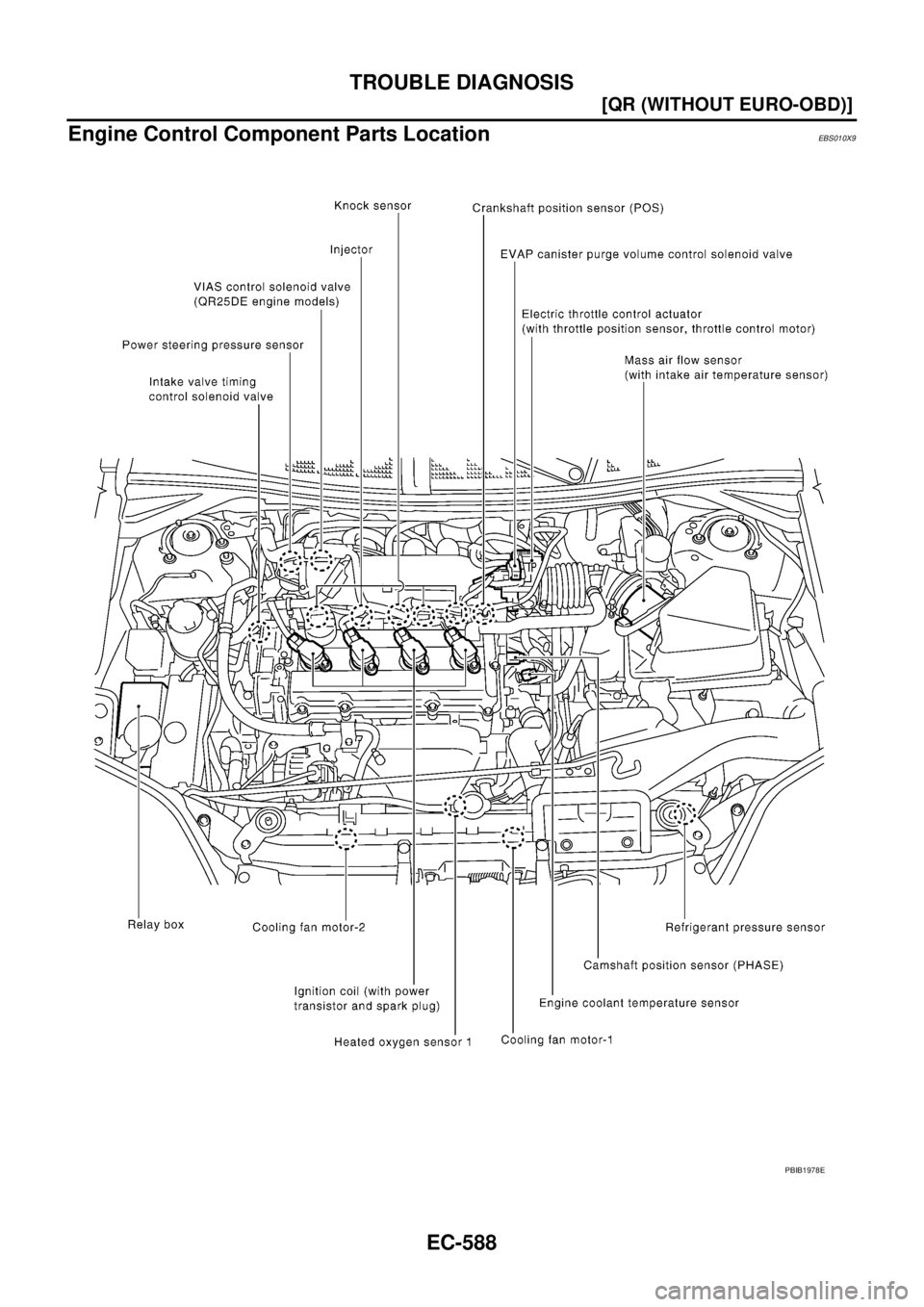

NISSAN X-TRAIL 2005 Service Repair Manual EC-588 [QR (WITHOUT EURO-OBD)] TROUBLE DIAGNOSIS Engine Control Component Parts LocationEBS010X9 PBIB1978E
