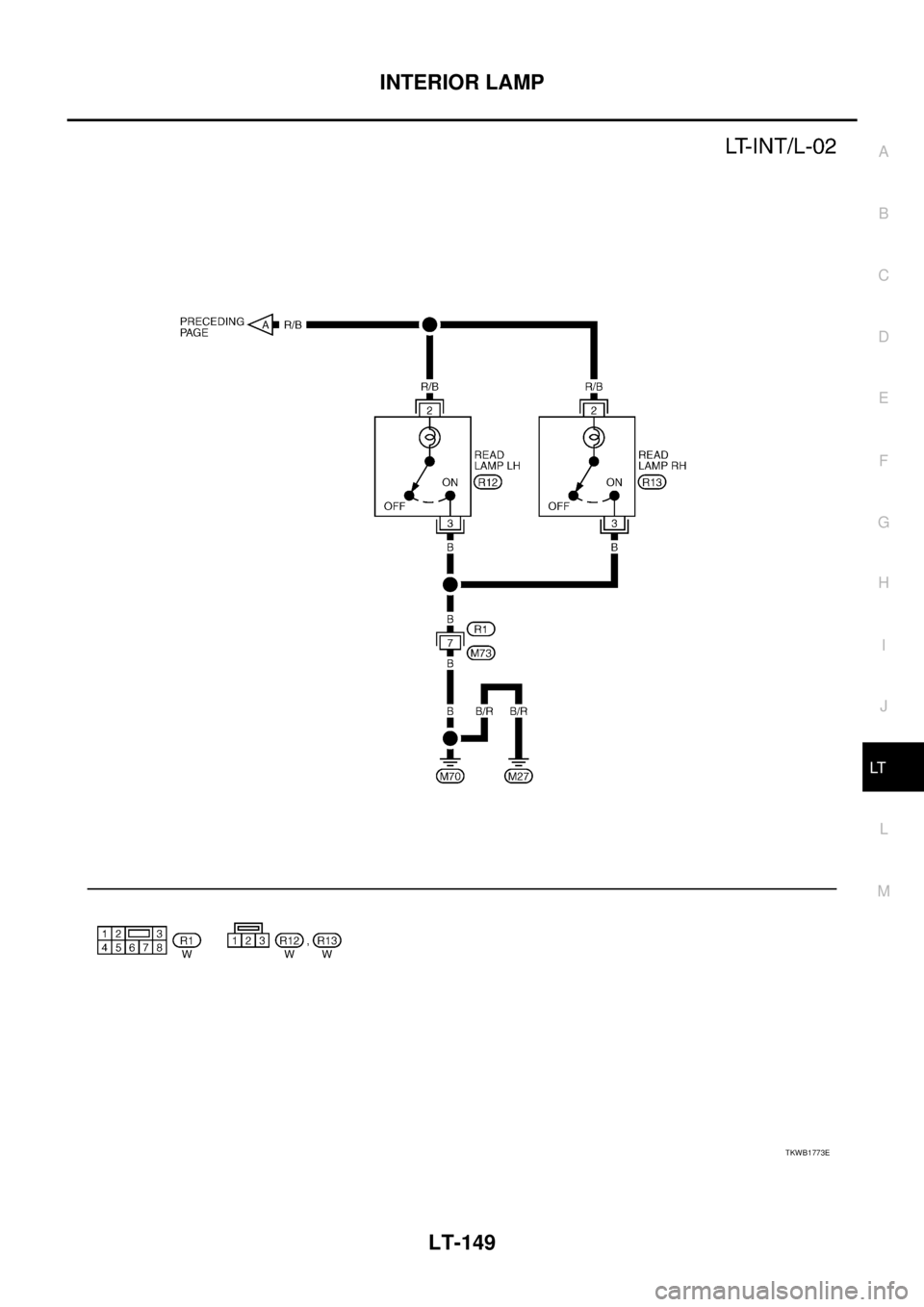

NISSAN X-TRAIL 2005 Service Repair Manual INTERIOR LAMP
LT-149
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWB1773E

Page 4146 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-150
INTERIOR LAMP

Bulb ReplacementEKS00OMA
MAP LAMP (WITHOUT SUNROOF)
1. Remove the lens using a clip driver or a suitable tool.
2. Remove the shade mounting screw and remove the shade from
the m

Page 4147 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual INTERIOR LAMP
LT-151
C
D
E
F
G
H
I
J
L
MA
B
LT

Map Lamp (With sunroof)
1. Using a clips driver or a suitable tool, press and remove the
metal clip of the map lamp.
2. Disconnect the map lamp connect

Page 4148 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-152
BULB SPECIFICATIONS

BULB SPECIFICATIONSPFP:26297
HeadlampEKS003GS
Exterior LampEKS003GT
Interior Lamp/IlluminationEKS003GU
Item Wattage (W)
Xenon typeLow 35 (D2R)
High 55 (H1)
Conventional ty

Page 4149 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION DI
A
B
DI

DRIVER INFORMATION SYSTEM
PRECAUTIONS .......................................................... 3
Precaut

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION DI
A
B
DI

DRIVER INFORMATION SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
COMBINATION METERS ........................................... 4
System Description .................................................. 4
UNIFIED CONTROL METER ................................ 4
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ........................................................ 4
POWER SUPPLY AND GROUND CIRCUIT ........ 4
WATER TEMPERATURE GAUGE ........................ 4
TACHOMETER ..................................................... 5
SPEEDOMETER ................................................... 5
FUEL GAUGE ....................................................... 5
AMBIENT TEMPERATURE INDICATOR .............. 5
CAN Communication ................................................ 6
CAN Communication Unit ........................................ 6
TYPE 1/TYPE 2 .................................................... 7
TYPE 3 .................................................................. 8
TYPE 4/TYPE 5 .................................................... 9
TYPE 6 ................................................................ 10
TYPE 7/TYPE 8 ................................................... 11
TYPE 9 ................................................................ 12
Component Parts and Harness Connector Location ... 13
Combination Meter ................................................. 14
CHECK ................................................................ 14
Schematic/LHD Models .......................................... 15
Wiring Diagram — METER —/LHD Models ........... 16
Schematic/RHD Models ......................................... 18
Wiring Diagram — METER —/RHD Models .......... 19
Terminals and Reference Value for Combination
Meter ...................................................................... 21
Meter/Gauges Operation and Odo/Trip Meter ........ 21
SELF-DIAGNOSIS FUNCTION .......................... 21
HOW TO ALTERNATE DIAGNOSIS MODE ....... 21
How to Perform Trouble Diagnosis ........................ 22
Diagnosis Flow ....................................................... 22
Power Supply and Ground Circuit Inspection ........ 23
Trouble Diagnosis Chart for Symptom ................... 24DIAGNOSIS RESULTS ....................................... 24
Fuel Level Sensor Signal Inspection [Gasoline
Engine Models] ....................................................... 25
FUEL GAUGE ..................................................... 25
LOW-FUEL WARNING LAMP ............................. 25
Fuel Level Sensor Signal Inspection [Diesel Engine
Models] ................................................................... 26
FUEL GAUGE ..................................................... 26
LOW-FUEL WARNING LAMP ............................. 26
Engine Speed Signal Inspection ............................. 28
Engine Coolant Temperature Signal Inspection ..... 28
Vehicle Speed Signal Inspection [With ESP] .......... 28
Vehicle Speed Signal Inspection [Without ESP] ..... 28
The Fuel Gauge Pointer Fluctuates, Indicator
Wrong Value or Varies ............................................ 28
The Fuel Gauge Does Not Move to FULL Position ... 29
Ambient Temperature Signal Inspection [Without
Auto A/C] ................................................................ 30
Ambient Temperature Signal Inspection [With Auto
A/C] ......................................................................... 31
Electrical Components Inspection .......................... 32
FUEL LEVEL SENSOR UNIT CHECK/GASO-
LINE ENGINE MODELS ..................................... 32
FUEL LEVEL SENSOR UNIT CHECK/DIESEL
ENGINE MODELS .............................................. 32
AMBIENT SENSOR CHECK ............................... 33
Removal and Installation for Combination Meter .... 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 33
Disassembly and Assembly for Combination Meter ... 34
DISASSEMBLY ................................................... 34
ASSEMBLY ......................................................... 34
WARNING LAMPS .................................................... 35
Schematic ............................................................... 35
Wiring Diagram — WARN —/LHD Models ............. 36
Wiring Diagram — WARN —/RHD Models ............ 44
Electrical Components Inspection .......................... 52
OIL PRESSURE SWITCH CHECK ..................... 52
DIODE CHECK ................................................... 52
A/T INDICATOR ........................................................ 53

Page 4150 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DI-2 Wiring Diagram — AT/IND —/LHD Models ............ 53
Wiring Diagram — AT/IND —/RHD Models ............ 54
A/T Indicator Does Not Illuminate ........................... 55
WARNING CHIME

Page 4151 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PRECAUTIONS
DI-3
C
D
E
F
G
H
I
J
L
MA
B
DI

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00367
The Supplemental Restra

Page 4152 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DI-4
COMBINATION METERS

COMBINATION METERSPFP:24814
System DescriptionEKS00EGZ
UNIFIED CONTROL METER
Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled b
