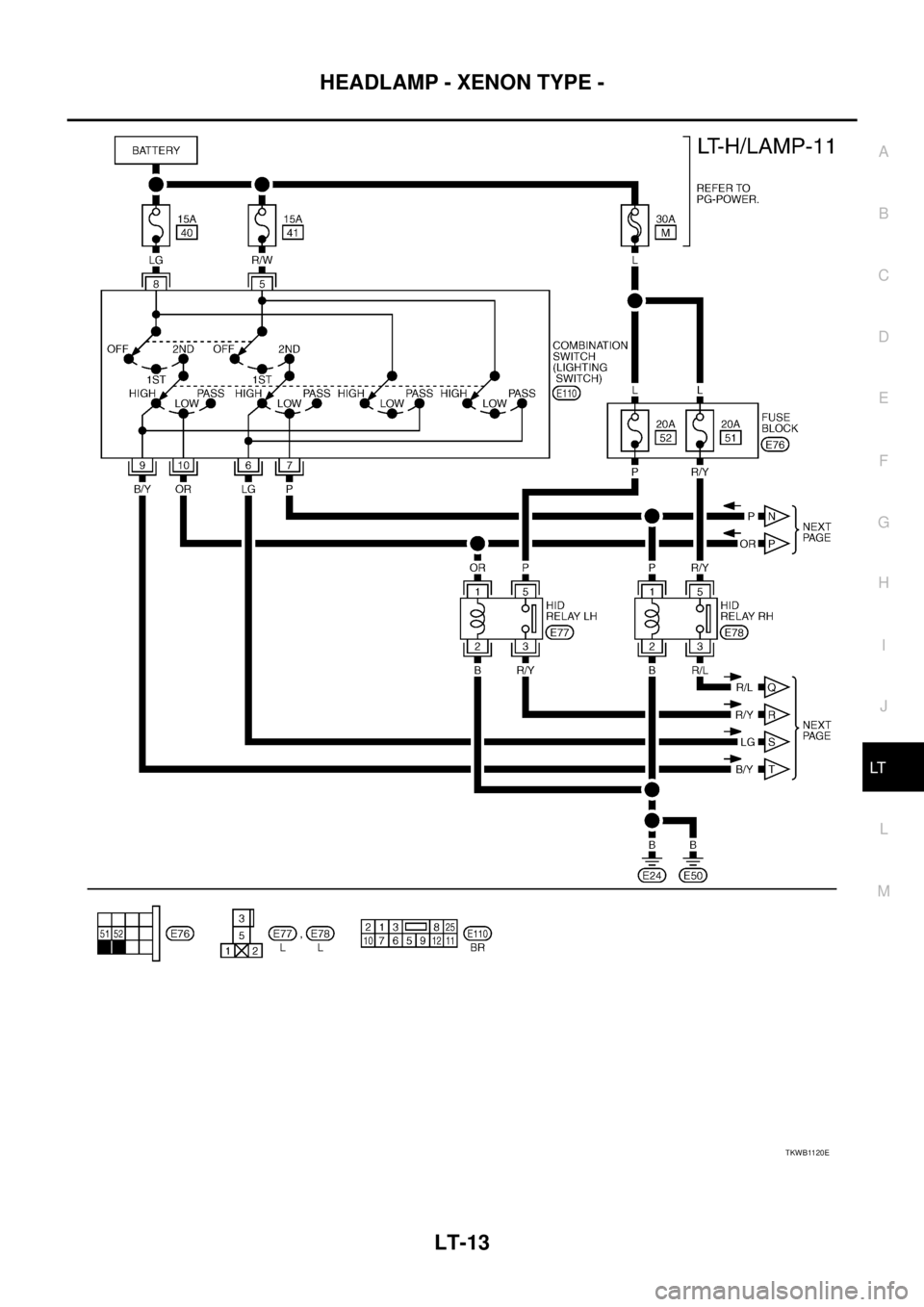

Page 4009 of 4555
HEADLAMP - XENON TYPE -
LT-13
C
D
E
F
G
H
I
J
L
MA
B
LT
TKWB1120E

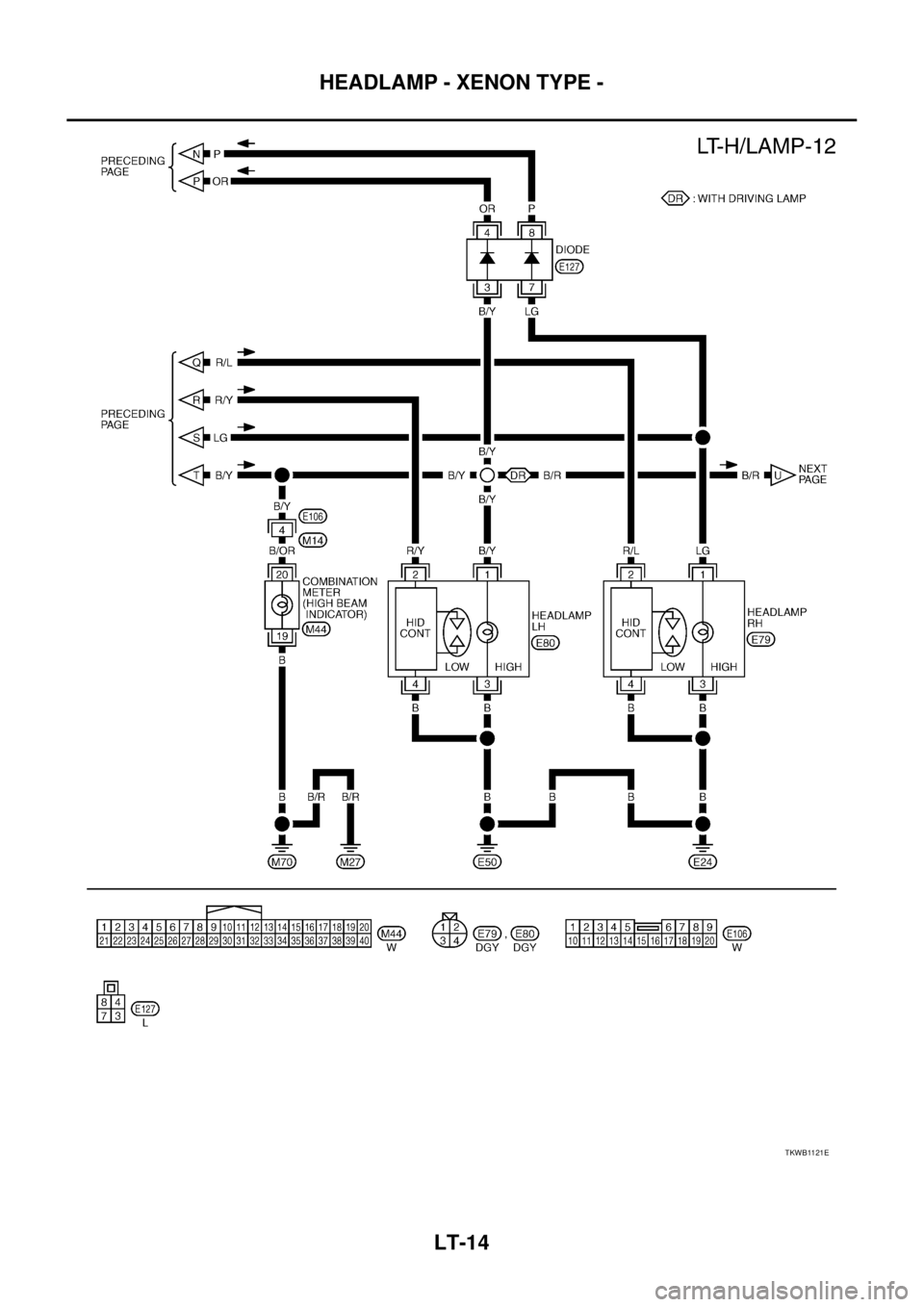

Page 4010 of 4555
LT-14
HEADLAMP - XENON TYPE -
TKWB1121E

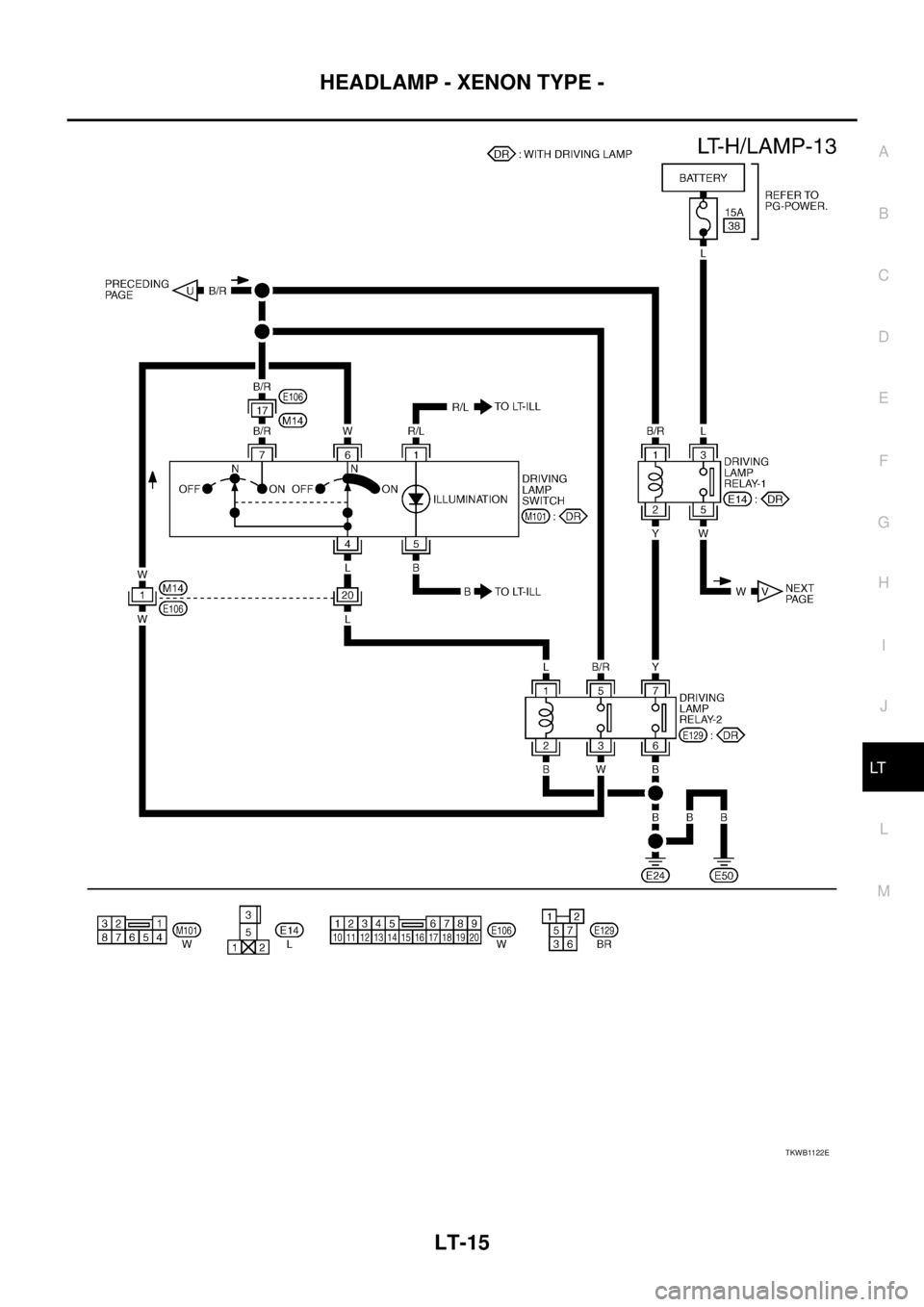

Page 4011 of 4555
HEADLAMP - XENON TYPE -
LT-15
C
D
E
F
G
H
I
J
L
MA
B
LT
TKWB1122E

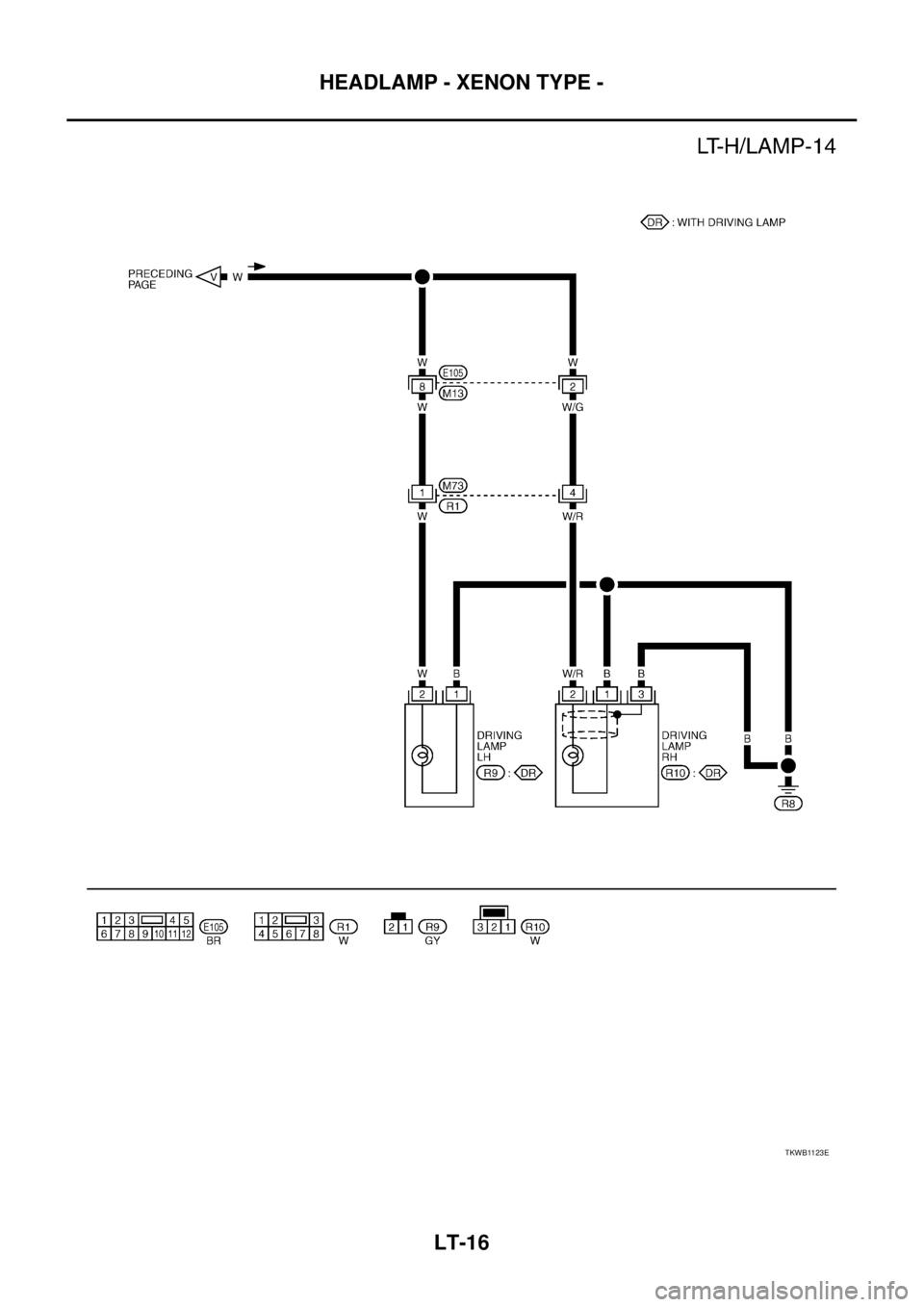

Page 4012 of 4555
LT-16
HEADLAMP - XENON TYPE -
TKWB1123E
Page 4013 of 4555

HEADLAMP - XENON TYPE -
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT
Trouble Diagnoses EKS00N4Y
WARNING:
Xenon headlamp has a high-tension current generating area. Be extremely careful when removing
and installing. Be certain to disconnect battery negative cable prior to removing or installing.
When xenon headlamp is lit, never touch harness (covered with red or amber insulation), bulb
itself or bulb socket with your bare hands
Never service a xenon headlamp with wet hands.
When checking body side harness with a circuit tester, be certain to disconnect harness connec-
tor from xenon headlamp.
When xenon headlamp is lit, xenon bulb must be installed in headlamp housing. (Never turn on
xenon headlamp, if bulb is out of headlamp housing.)
CAUTION:
Make sure to install bulb securely; if xenon bulb is improperly installed in its socket, high-tension cur-
rent leaks occur. This may lead to a melted bulb and/or bulb socket.
Symptom Possible cause Repair order
Headlamp does not operates.1. 30A fuse
2. HID relay circuit
3. Lighting switch
4. Headlamp ground circuit1. Check 30A fuse (letter M, located in fuse and fusible link
box).
2. Check lighting switch.
3. Check harness between lighting switch terminal and
ground.
Headlamp LH (low and high beam)
does not operate, but headlamp RH
(low and high beam) does operate.1. 15A fuse
2. 20A fuse
3. HID relay LH
4. HID relay LH circuit1. Check 15A fuse (No.40, located in fuse and fusible link
box).
2. Check 20A fuse (No.52, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay LH.
3. Check HID relay LH.
Headlamp RH (low and high beam)
does not operate, but headlamp LH
(low and high beam) does operate.1. 15A fuse
2. 20A fuse
3. HID relay RH
4. HID relay RH circuit1. Check 15A fuse (No.41, located in fuse and fusible link
box).
2. Check 20A fuse (No. 51, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay RH.
3. Check HID relay RH.
LH high beam does not operate, but
LH low beam operates.1. Bulb
2. Open in high beam LH circuit
3. Lighting switch
4. Headlamp LH ground circuit1. Check bulb.
2. Check the following.
–Harness between headlamp LH and lighting switch for
open circuit.
3. Check lighting switch.
4. Check harness between headlamp LH and ground.
LH low beam does not operate, but
LH high beam operates.1. 20A fuse
2. HID relay LH
3. Open in LH low beam circuit
4. LH low beam ground circuit
5. Xenon bulb
6. HID control unit1. Check 20A fuse (No52, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay LH.
2. Check HID relay LH.
3. Check harness between HID relay LH terminal 3 and
headlamp LH terminal 2 for an open circuit.
4. Check harness between headlamp LH and ground.
5. Replace xenon bulb with other side bulb or new one. (If
headlamps illuminate correctly, replace bulb.)
6. Replace HID control unit with other side control unit or
new one. (If headlamps illuminate correctly, replace con-
trol unit.)
Page 4014 of 4555

LT-18
HEADLAMP - XENON TYPE -
Aiming Adjustment of HeadlampEKS00N4Z
PREPARATION BEFORE ADJUSTING
For Details, Refer To The Regulations In Your Own Country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on flat surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM
1. Turn headlamp low beam ON.
2. Use adjusting screws to perform aiming adjustment.
RH high beam does not operate, but
RH low beam operates.1. Bulb
2. Open in high beam RH circuit
3. Lighting switch
4. Headlamp RH ground circuit1. Check bulb.
2. Check the following.–Harness between headlamp RH and lighting switch for
open circuit.
3. Check lighting switch.
4. Check harness between headlamp RH and ground.
RH low beam does not operate, but
RH high beam operates.1. 20A fuse
2. HID relay RH
3. Open in RH low beam circuit
4. RH low beam ground circuit
5. Xenon bulb
6. HID control unit1. Check 20A fuse (No.51, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of headlamp RH relay.
2. Check HID relay RH.
3. Check harness between HID relay RH terminal 3 and
headlamp RH terminal 2 for an open circuit.
4. Check harness between headlamp RH and ground.
5. Replace xenon bulb with other side bulb or new one. (If
headlamps illuminate correctly, replace bulb.)
6. Replace HID control unit with other side control unit or
new one. (If headlamps illuminate correctly, replace con-
trol unit.)
High beam indicator does not work.1. Bulb
2. Open in high beam circuit1. Check bulb in combination meter.
2. Check the harness circuit. Symptom Possible cause Repair order
PKIC0981E
Page 4015 of 4555

HEADLAMP - XENON TYPE -
LT-19
C
D
E
F
G
H
I
J
L
MA
B
LT
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.
Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.
Aiming Adjustment of Driving LampEKS00N50
Turn aiming adjusting screw to adjust.
For positions of adjusting screws and direction to turn, refer to
the figures.
When adjusting horizontal direction (right and left), turn two
adjusting screws to the same direction.
PREPARATION BEFORE ADJUSTING
For Details, Refer To The Regulations In Your Own Country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on flat surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
PKIC0481E
PKIA3394E
Page 4016 of 4555

LT-20
HEADLAMP - XENON TYPE -
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
ADJUSTING
1. Set the distance between the screen and the center of driving lamp lens as shown in the figure.
2. Turn headlamp switch high and driving lamp switch ON so that front driving lamps turn ON.
3. Adjust driving lamps using adjusting screws make sure of the following.
When performing this adjustment, cover headlamps and the opposite driving lamp, if necessary.
Vertical deflection of maximum illuminance point to be adjusted to stand at 218 mm (8.58 in) below driv-
ing lamp height (h).
Horizontal deflection of maximum illuminance point to be adjusted to stand within 0 ± 125 mm (0 ± 4.92
in) against line (V) on screen where a line passing through driving lamp center, parallel to vehicle center
line, cross screen.
Bulb Replacement of Headlamp and Clearance LampEKS00N51
HEADLAMP (UPPER SIDE), FOR LOW BEAM
1. Turn lighting switch OFF.
2. Disconnect the battery cable from the negative terminal or
remove power fuse.
3. Disconnect headlamp connector.
4. Remove air cleaner duct (when replacing LH bulb). Refer to EM-
16, "AIR CLEANER AND AIR DUCT" (QR), EM-142, "AIR
CLEANER AND AIR DUCT" (YD22) in “ENGINE MECHANICAL
(EM)” section.
5. Turn plastic cap counterclockwise and unlock it.
6. Turn bulb socket counterclockwise and unlock it.
7. Unlock retaining spring and remove bulb from headlamp.
8. Installation is the reverse order of removal.
PKIC0980E
Headlamp (Upper side), For Low Beam : 12V - 35W (D2R)
SKIA1465E
