Page 129 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-75
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Compress valve spring with valve spring compressor, attach-
ment and adapter (special service tool). Remove valve collet
with a magnet hand.
CAUTI

Page 130 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-76
[QR]
CYLINDER HEAD

5. Install valve spring (with valve spring seat).
Install smaller pitch (valve spring seat side) to cylinder head
side.
Confirm identification color of valve spring.
6. In

Page 131 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-77
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Inspection After DisassemblyEBS00KNS
VALVE DIMENSIONS
Check dimensions of each valve. For dimensions, refer to EM-
11 8 , "Valve Dimensions" .
I

Page 132 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-78
[QR]
CYLINDER HEAD

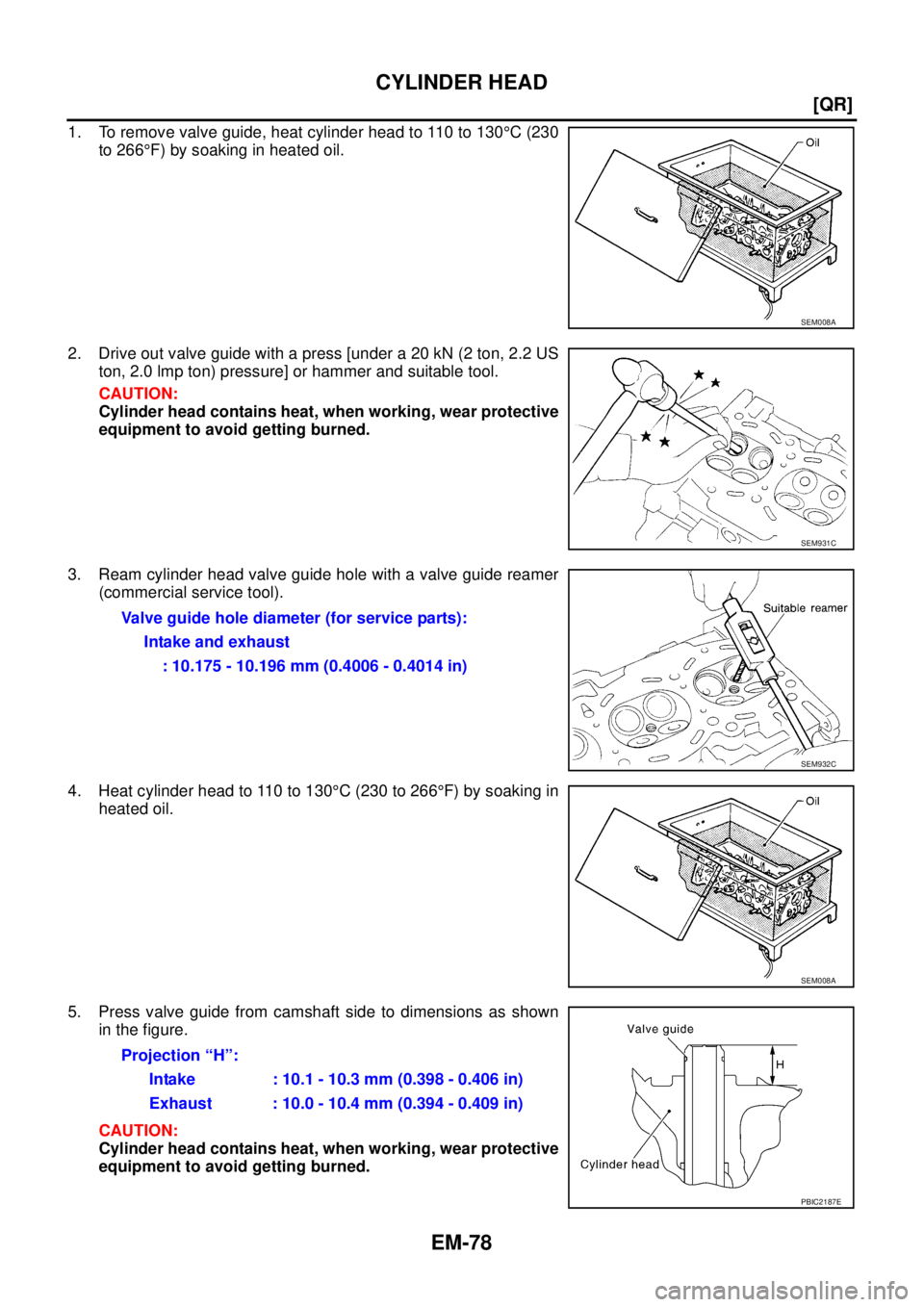

1. To remove valve guide, heat cylinder head to 110 to 130°C (230
to 266°F) by soaking in heated oil.
2. Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US
t

Page 133 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-79
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

6. Apply reamer finish to valve guide with a valve guide reamer
(commercial service tool).
VALVE SEAT CONTACT
After confirming that the dimensions

Page 134 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-80
[QR]
CYLINDER HEAD

5. Using valve seat cutter set (commercial service tool) or valve
seat grinder, finish valve seat to the specified dimensions. For
dimensions, refer to EM-121, "
Va l v e S

Page 135 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ENGINE ASSEMBLY
EM-81
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

ENGINE ASSEMBLYPFP:10001
Removal and Installation (2WD Models)EBS01FKJ
WARNING:
Situate the vehicle on a flat and solid surface.
Place chocks a

Page 136 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EM-82
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2.

EM-82
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belt.
4. Remove the following parts.
LH and RH undercovers
Front road wheels and tyres
Battery; Refer to SC-4, "BATTERY" .
Drive belt; Refer to EM-13, "DRIVE BELTS" .
Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .
Alternator; Refer to SC-13, "CHARGING SYSTEM" .
Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hoses, and plug them to prevent fuel from draining. Refer to EM-34, "FUEL INJEC-
TOR AND FUEL TUBE" .
2. Disconnect heater hoses, and install plugs them to prevent engine coolant from draining. Refer to CO-23,
"THERMOSTAT AND WATER CONTROL VALVE" .
3. Disconnect clutch operating cylinder from transaxle, and move it aside. Refer to CL-12, "
OPERATING
CYLINDER" .
4. Disconnect shift and select cable from transaxle. Refer to MT-16, "
CONTROL LINKAGE" .
5. Disconnect B terminal harness of starter motor. Refer to SC-23, "
STARTING SYSTEM" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
3. Remove power steering oil pump with piping connected from engine. Temporarily secure it on vehicle side
with a rope to avoid putting load on it. Refer to PS-37, "
HYDRAULIC LINE" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" .
3. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" .
4. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on the
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
5. Remove LH and RH drive shafts from steering knuckle. Refer to FAX-11, "
FRONT DRIVE SHAFT" .
Removal
1. Install engine slingers into front-left of cylinder head and rear-right of cylinder head.
