NISSAN X-TRAIL 2005 Service Repair Manual MAINSHAFT AND GEARS MT-85 D E F G H I J K L MA B MT Be sure not to hook center projection of 2 spread springs on same 1st-2nd shifting insert. 5. Install 1st inner baulk ring, 1st synchronizer cone

Page 2242 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MT-86 MAINSHAFT AND GEARS 11. Select 4th main gear adjusting shim so that dimension “C1” sat- isfies the standard value below, and install 4th main gear adjust- ing shim onto mainshaft. Refer to

Page 2243 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MAINSHAFT AND GEARS MT-87 D E F G H I J K L MA B MT 16. Select 6th main adjusting shim and then install it onto mainshaft. Calculate thickness “S” of 6th main adjusting shim following the proce

Page 2244 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MT-88 MAINSHAFT AND GEARS 19. Install C-ring holder, and then install snap ring. CAUTION: Do not reuse snap ring. 20. Check end play of 1st and 2nd main gears. PCIB0805E End play standard value 1st

Page 2245 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual REVERSE IDLER SHAFT AND GEARS MT-89 D E F G H I J K L MA B MT REVERSE IDLER SHAFT AND GEARSPFP:32281 Disassembly and Assembly (RS5F51A)ECS008C8 DISASSEMBLY 1. Remove reverse idler gear (rear), rever

Page 2246 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual MT-90 REVERSE IDLER SHAFT AND GEARS BAULK RING CLEARANCE Push baulk ring on the cone, and measure the clearance between baulk ring and cone. If the measurement is below limit, replace it with a new

Page 2247 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual REVERSE IDLER SHAFT AND GEARS MT-91 D E F G H I J K L MA B MT INSPECTION AFTER DISASSEMBLY Reverse Idler Shaft and Gears Check items below. If necessary, replace them with new ones. Damage, peeling

Page 2248 of 4555

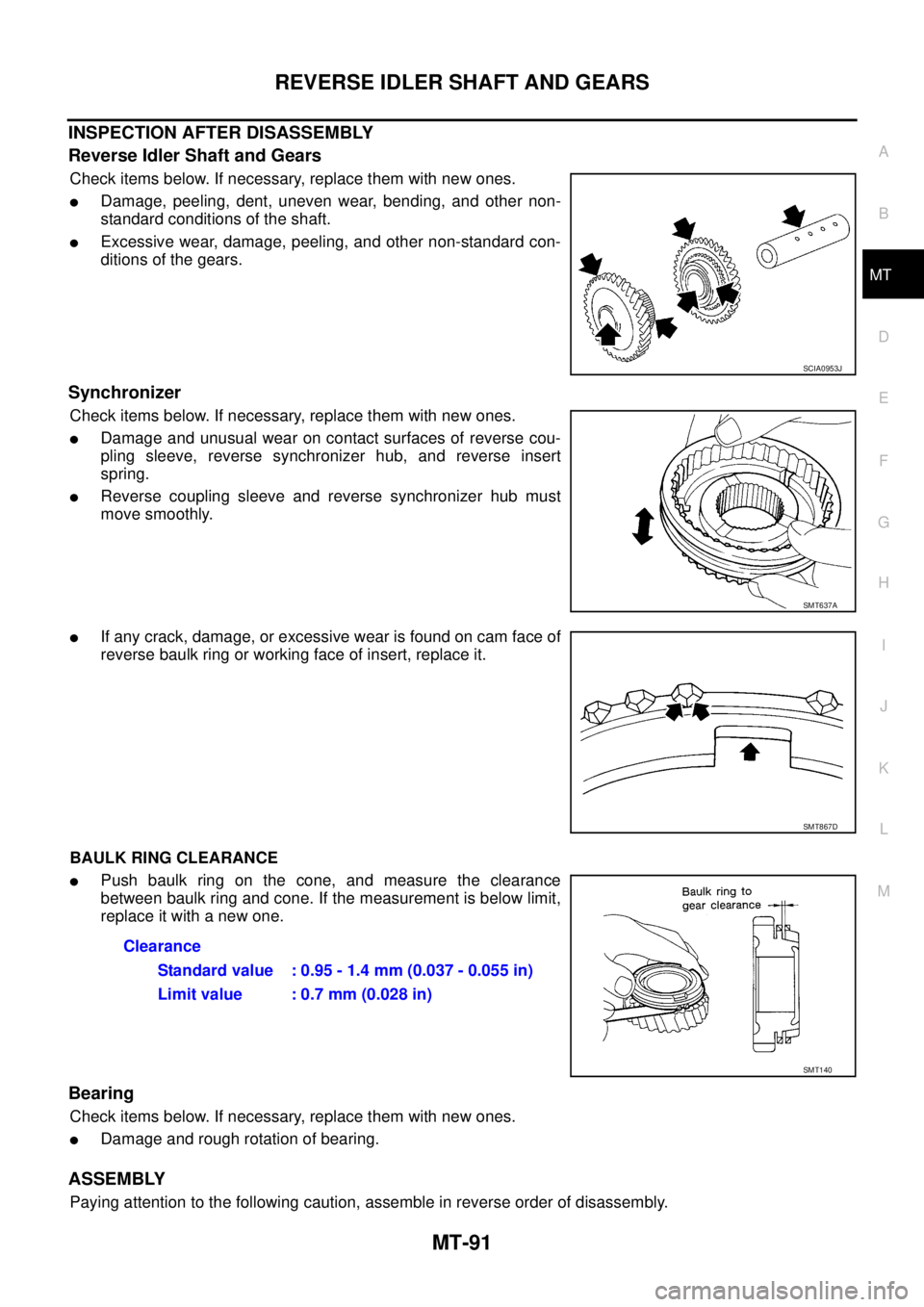

NISSAN X-TRAIL 2005 Service Repair Manual MT-92 REVERSE IDLER SHAFT AND GEARS CAUTION: Be careful with orientation of reverse insert spring. SCIA0954E
