2005 NISSAN X-TRAIL length

GI-6
PRECAUTIONS

CAUTION:

Do not use home heating oil, gasoline or other alternate fuels in your diesel engine. The use of
those can cause engine damage.

Do not use summer fuel at temperatures below –7°C (20°F). The cold temperatures will cause wax
to form in the fuel. As a result, it may prevent the engine from running smoothly.

Do not add gasoline or other alternate fuels to diesel fuel.
Precautions for Multiport Fuel Injection System or Engine Control SystemEAS000FT

Before connecting or disconnecting any harness connector for
the multiport fuel injection system or ECM:
Turn ignition switch to “OFF” position.
Disconnect negative battery terminal.
Otherwise, there may be damage to ECM.

Before disconnecting pressurized fuel line from fuel pump to
injectors, be sure to release fuel pressure.

Be careful not to jar components such as ECM and mass air
flow sensor.
Precautions for Turbocharger (If Equipped)EAS000FU
The turbocharger turbine revolves at extremely high speeds and
becomes very hot. Therefore, it is essential to maintain a clean sup-
ply of oil flowing through the turbocharger and to follow all required
maintenance instructions and operating procedures.

Always use the recommended oil. Follow the instructions for
proper time to change the oil and proper oil level.

Avoid accelerating engine to a high rpm immediately after start-
ing.

If engine had been operating at high rpm for an extended period
of time, let it idle for a few minutes prior to shutting if off.
Precautions for HosesEAS000FV
HOSE REMOVAL AND INSTALLATION

To prevent damage to rubber hose, do not pry off rubber hose
with tapered tool or screwdriver.

To reinstall the rubber hose securely, make sure that hose inser-
tion length and orientation is correct. (If tube is equipped with
hose stopper, insert rubber hose into tube until it butts up
against hose stopper.)
SGI787
SGI292
SMA019D
SMA020D

IDENTIFICATION INFORMATION
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI

AUTOMATIC TRANSAXLE NUMBER
MANUAL TRANSAXLE NUMBER
Dimensions EAS000GF
Unit: mm (in)
Wheels & Tires EAS000GG
*: Option
PAIA0008E
PAIA0009E
PAIA0010E
Overall length 4,455 (175.4)
Overall width 1,765 (69.5)
Overall height1,675 (Standard, 65.9)
1,750 (With Rear spoiler or Roof rail with Driving lights, 68.9)
Front tread 1,530 (60.2)
Rear tread 1,530 (60.2)
Wheelbase 2,625 (103.3)
Conventional Spare
Road wheel/offset mm (in)15 × 6JJ Steel/40 (1.57)
16 × 6.5JJ Steel/Aluminum/40 (1.57)
17 × 6.5JJ Aluminum/40 (1.57)*Conventional
Tire size215/70R15
215/65R16
215/60R17*Conventional

DRIVE BELTS
EM-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00KN7
WARNING:
Be sure to perform this step when the engine is stopped.

Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use
range (between three line notches on moving side).
NOTE:

Check the drive belt auto-tensioner indication when the engine is cold.

When new drive belt is installed, the indicator (notch on fixed side) should be within the range “a” in the
figure.

Visually check entire drive belt for wear, damage or cracks.

If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentEBS00KN8
Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Removal and InstallationEBS00KN9
REMOVAL
1. Remove splash guard on RH undercover.
2. Hold the hexagonal part in center of drive belt auto-tensioner
pulley with a box wrench securely. Then move the wrench han-
dle in the direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
3. Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole of the retaining boss to fix drive belt auto-tensioner pulley.
4. Loosen drive belt from water pump pulley in sequence, and remove it.
PBIC2622E
PBIC2169E

EM-14
[QR]
DRIVE BELTS

INSTALLATION
1. Hold the hexagonal part in center of drive belt auto-tensioner
pulley with a box wrench securely. Then move the wrench han-
dle in the direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto-tensioner pulley (Do not turn it counterclockwise). If
turned counterclockwise, the complete drive belt auto-
tensioner must be replaced as a unit, including the pul-
ley.
2. Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole of retaining boss to fix drive belt auto-tensioner pulley.
3. Hook drive belt onto all pulleys except for water pump, and then onto water pump pulley finally.
CAUTION:

Confirm drive belt is completely set to pulleys.

Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each
pulley groove.
4. Release drive belt auto-tensioner, and apply tension to drive belt.
5. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
6. Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to
EM-13, "
Checking Drive Belts" .
Removal and Installation of Drive Belt Auto-TensionerEBS00KNA
REMOVAL
CAUTION:
The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.
1. Remove splash guard on RH undercover.
2. Remove drive belt. Refer to EM-13, "
Removal and Installation" .
3. Release the fixed drive belt auto-tensioner pulley.
4. Remove drive belt auto-tensioner.
PBIC2627E
1. Drive belt auto-tensioner 2. Water pump pulley
PBIC2170E

CYLINDER BLOCK
EM-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

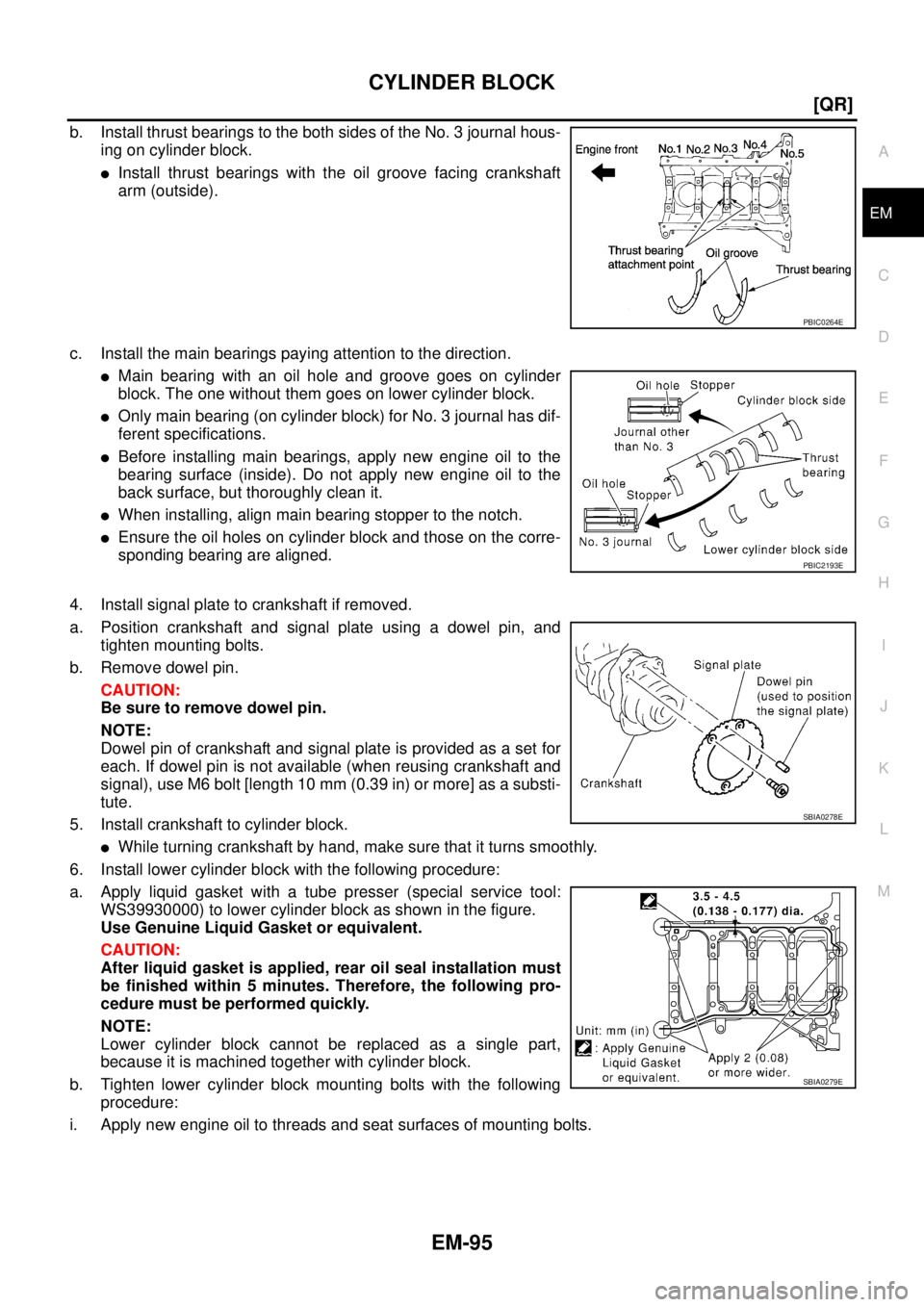

b. Install thrust bearings to the both sides of the No. 3 journal hous-
ing on cylinder block.

Install thrust bearings with the oil groove facing crankshaft
arm (outside).
c. Install the main bearings paying attention to the direction.

Main bearing with an oil hole and groove goes on cylinder
block. The one without them goes on lower cylinder block.

Only main bearing (on cylinder block) for No. 3 journal has dif-
ferent specifications.

Before installing main bearings, apply new engine oil to the
bearing surface (inside). Do not apply new engine oil to the
back surface, but thoroughly clean it.

When installing, align main bearing stopper to the notch.

Ensure the oil holes on cylinder block and those on the corre-
sponding bearing are aligned.
4. Install signal plate to crankshaft if removed.
a. Position crankshaft and signal plate using a dowel pin, and
tighten mounting bolts.
b. Remove dowel pin.
CAUTION:
Be sure to remove dowel pin.
NOTE:
Dowel pin of crankshaft and signal plate is provided as a set for
each. If dowel pin is not available (when reusing crankshaft and
signal), use M6 bolt [length 10 mm (0.39 in) or more] as a substi-
tute.
5. Install crankshaft to cylinder block.

While turning crankshaft by hand, make sure that it turns smoothly.
6. Install lower cylinder block with the following procedure:
a. Apply liquid gasket with a tube presser (special service tool:
WS39930000) to lower cylinder block as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
After liquid gasket is applied, rear oil seal installation must
be finished within 5 minutes. Therefore, the following pro-
cedure must be performed quickly.
NOTE:
Lower cylinder block cannot be replaced as a single part,
because it is machined together with cylinder block.
b. Tighten lower cylinder block mounting bolts with the following
procedure:
i. Apply new engine oil to threads and seat surfaces of mounting bolts.
PBIC0264E
PBIC2193E
SBIA0278E
SBIA0279E

CYLINDER BLOCK
EM-109
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

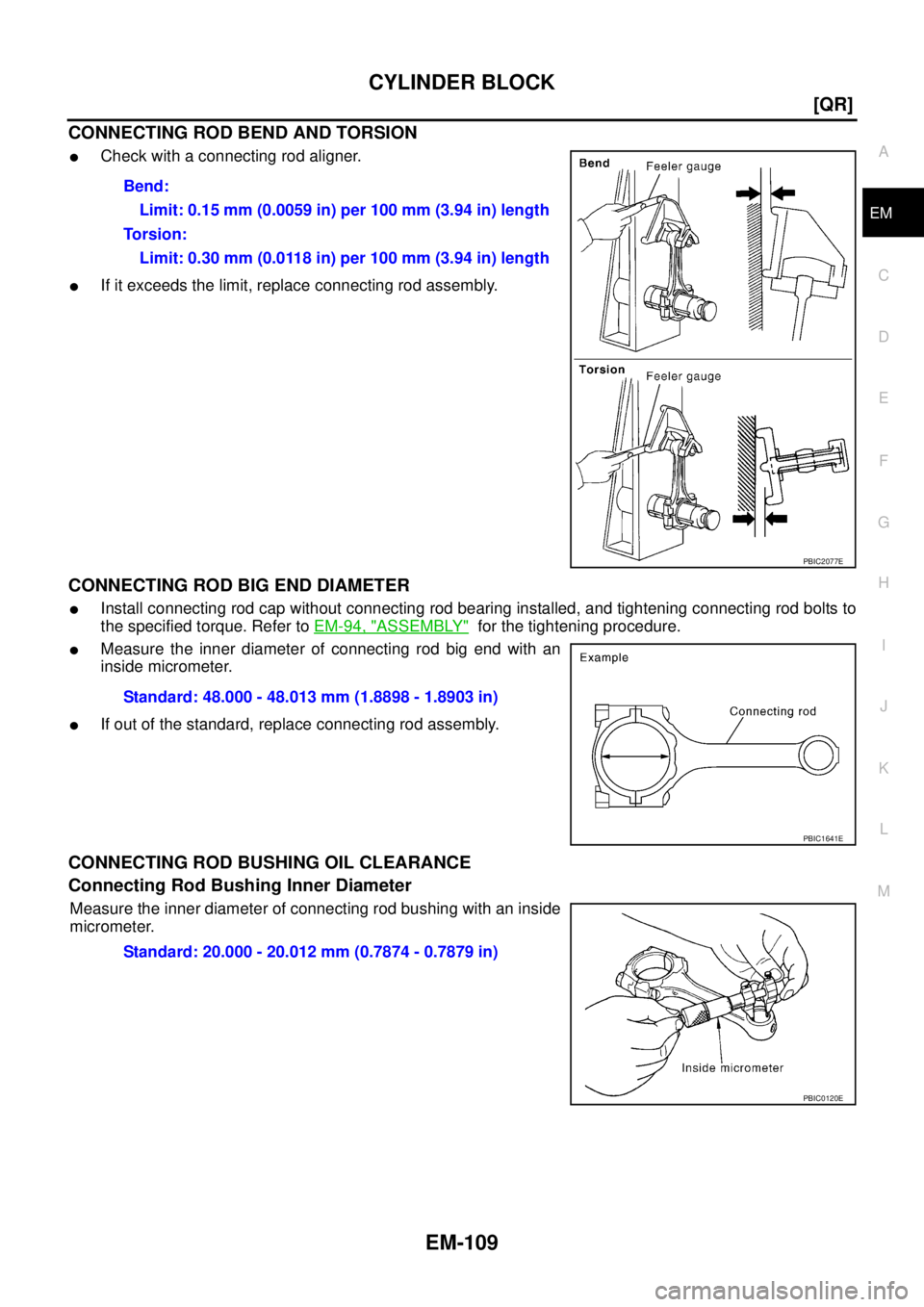

CONNECTING ROD BEND AND TORSION

Check with a connecting rod aligner.

If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER

Install connecting rod cap without connecting rod bearing installed, and tightening connecting rod bolts to
the specified torque. Refer to EM-94, "
ASSEMBLY" for the tightening procedure.

Measure the inner diameter of connecting rod big end with an
inside micrometer.

If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Measure the inner diameter of connecting rod bushing with an inside
micrometer.Bend:
Limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n :
Limit: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
PBIC2077E
Standard: 48.000 - 48.013 mm (1.8898 - 1.8903 in)
PBIC1641E
Standard: 20.000 - 20.012 mm (0.7874 - 0.7879 in)
PBIC0120E

EM-118
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

VA LV E

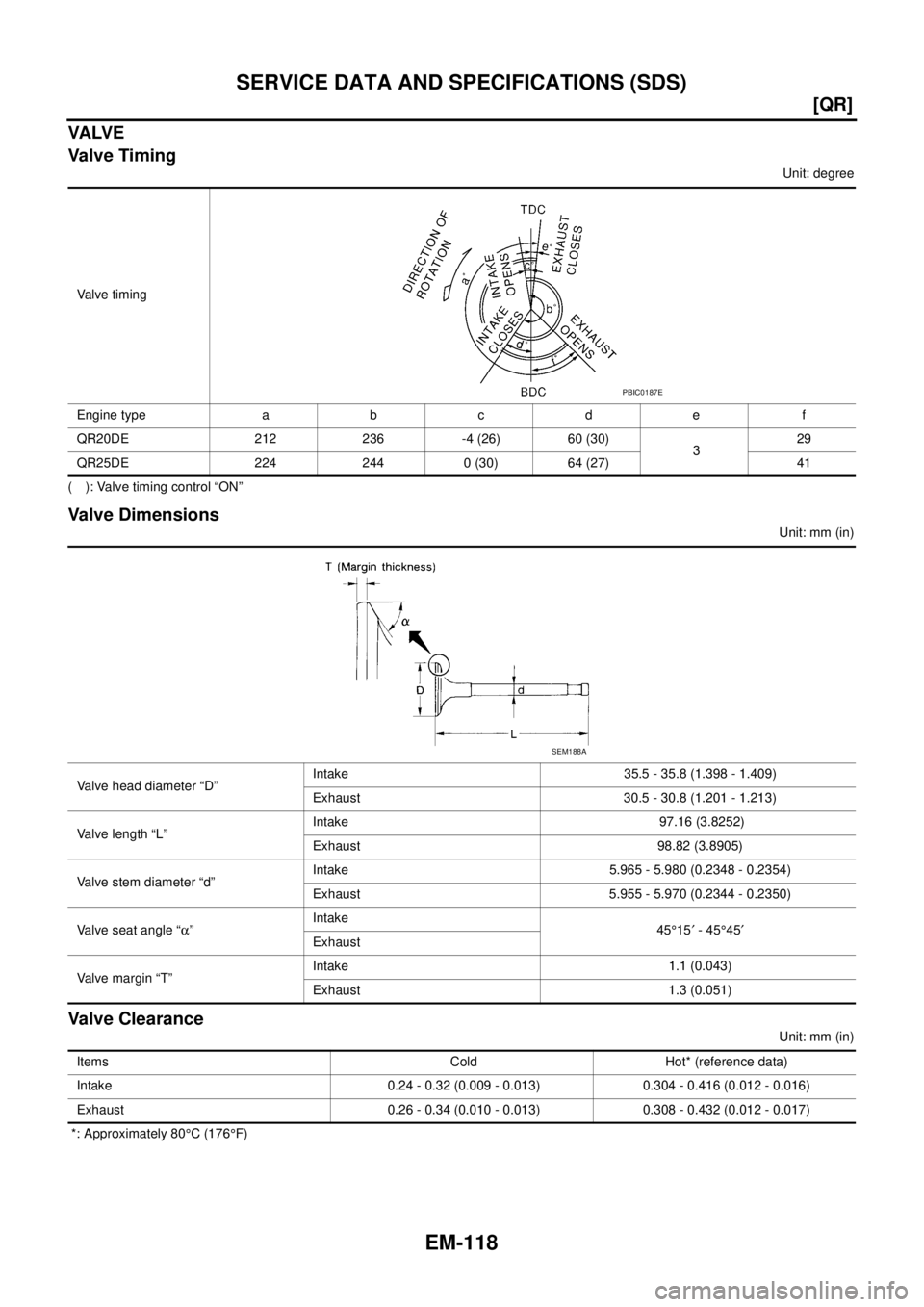

Valve Timing
Unit: degree
( ): Valve timing control “ON”
Valve Dimensions
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Approximately 80°C (176°F) Va l v e t i m i n g
Engine type a b c d e f
QR20DE 212 236 -4 (26) 60 (30)
329
QR25DE 224 244 0 (30) 64 (27) 41
PBIC0187E
Valve head diameter “D”Intake 35.5 - 35.8 (1.398 - 1.409)
Exhaust 30.5 - 30.8 (1.201 - 1.213)
Valve length “L”Intake 97.16 (3.8252)
Exhaust 98.82 (3.8905)
Valve stem diameter “d”Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle “α”Intake
45°15′ - 45°45′
Exhaust
Valve margin “T”Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
SEM188A
Items Cold Hot* (reference data)
Intake 0.24 - 0.32 (0.009 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.26 - 0.34 (0.010 - 0.013) 0.308 - 0.432 (0.012 - 0.017)

EM-120
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in) Items Standard
Valve lifter outer diameter 33.965 - 33.980 (1.3372 - 1.3378)
Valve lifter hole diameter 34.000 - 34.021 (1.3386 - 1.3394)
Valve lifter clearance 0.020 - 0.056 (0.0008 - 0.0022)
Items Standard part Service part
Valve guideOuter diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Items Standard Limit
Valve guide clearanceIntake 0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.003)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025) 0.09 (0.004)
Projection length “L”Intake 10.1 - 10.3 (0.398 - 0.406)
Exhaust 10.0 - 10.4 (0.394 - 0.409)
PBIC0184E
