2005 NISSAN X-TRAIL relay

GI-16
HOW TO USE THIS MANUAL

Optional Splice
DESCRIPTION
SGI942
Num-
berItem Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

GI-24
SERVICE INFORMATION FOR ELECTRICAL INCIDENT


Heat sensitive

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.

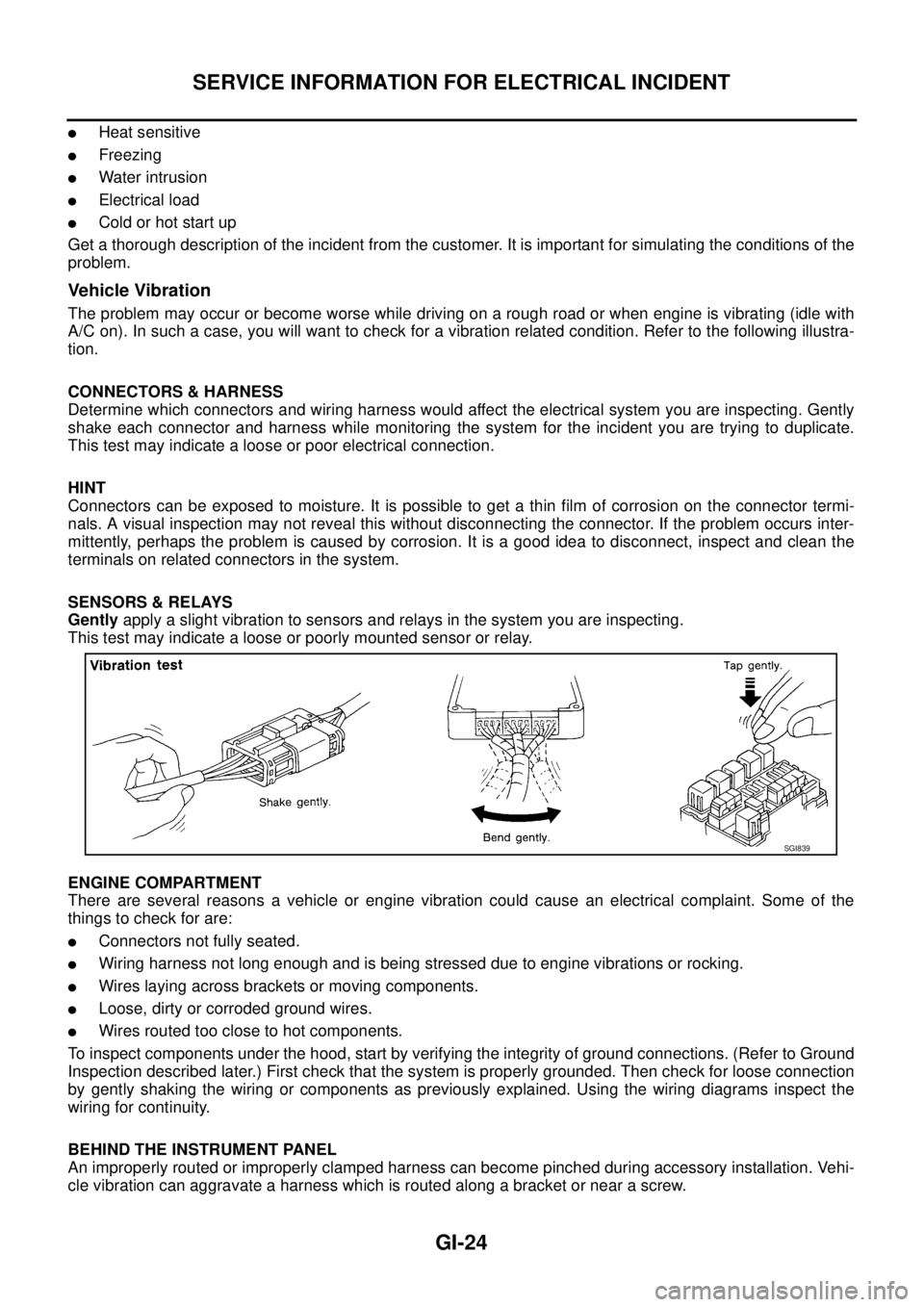

CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

GI-26
SERVICE INFORMATION FOR ELECTRICAL INCIDENT

Cold or Hot Start Up
On some occasions an electrical incident may occur only when the car is started cold, or it may occur when
the car is restarted hot shortly after being turned off. In these cases you may have to keep the car overnight to
make a proper diagnosis.
CIRCUIT INSPECTION
Introduction
In general, testing electrical circuits is an easy task if it is approached in a logical and organized method.
Before beginning it is important to have all available information on the system to be tested. Also, get a thor-
ough understanding of system operation. Then you will be able to use the appropriate equipment and follow
the correct test procedure.
You may have to simulate vehicle vibrations while testing electrical components. Gently shake the wiring har-
ness or electrical component to do this.
NOTE:
Refer to “How to Check Terminal” to probe or check terminal.
Testing for “Opens” in the Circuit
Before you begin to diagnose and test the system, you should rough sketch a schematic of the system. This
will help you to logically walk through the diagnosis process. Drawing the sketch will also reinforce your work-
ing knowledge of the system.
CONTINUITY CHECK METHOD
The continuity check is used to find an open in the circuit. The digital multimeter (DMM) set on the resistance
function will indicate an open circuit as over limit (no beep tone or no ohms symbol). Make sure to always start
with the DMM at the highest resistance level.
To help in understanding the diagnosis of open circuits, please refer to the previous schematic.

Disconnect the battery negative cable.

Start at one end of the circuit and work your way to the other end. (At the fuse block in this example)

Connect one probe of the DMM to the fuse block terminal on the load side.

Connect the other probe to the fuse block (power) side of SW1. Little or no resistance will indicate that
portion of the circuit has good continuity. If there were an open in the circuit, the DMM would indicate an
over limit or infinite resistance condition. (point A)

Connect the probes between SW1 and the relay. Little or no resistance will indicate that portion of the cir-
cuit has good continuity. If there were an open in the circuit, the DMM would indicate an over limit or infi-
nite resistance condition. (point B)

Connect the probes between the relay and the solenoid. Little or no resistance will indicate that portion of
the circuit has good continuity. If there were an open in the circuit, the DMM would indicate an over limit or
infinite resistance condition. (point C)
Any circuit can be diagnosed using the approach in the previous example.
OPENA circuit is open when there is no continuity through a section of the circuit.
SHORTThere are two types of shorts.

SHORT CIRCUITWhen a circuit contacts another circuit and causes the normal resistance to
change.

SHORT TO GROUND When a circuit contacts a ground source and grounds the circuit.
SGI846-A

SERVICE INFORMATION FOR ELECTRICAL INCIDENT
GI-27
C
D
E
F
G
H
I
J
K
L
MB
GI

VOLTAGE CHECK METHOD
To help in understanding the diagnosis of open circuits please refer to the previous schematic.
In any powered circuit, an open can be found by methodically checking the system for the presence of voltage.
This is done by switching the DMM to the voltage function.

Connect one probe of the DMM to a known good ground.

Begin probing at one end of the circuit and work your way to the other end.

With SW1 open, probe at SW1 to check for voltage.
voltage; open is further down the circuit than SW1.
no voltage; open is between fuse block and SW1 (point A).

Close SW1 and probe at relay.
voltage; open is further down the circuit than the relay.
no voltage; open is between SW1 and relay (point B).

Close the relay and probe at the solenoid.
voltage; open is further down the circuit than the solenoid.
no voltage; open is between relay and solenoid (point C).
Any powered circuit can be diagnosed using the approach in the previous example.

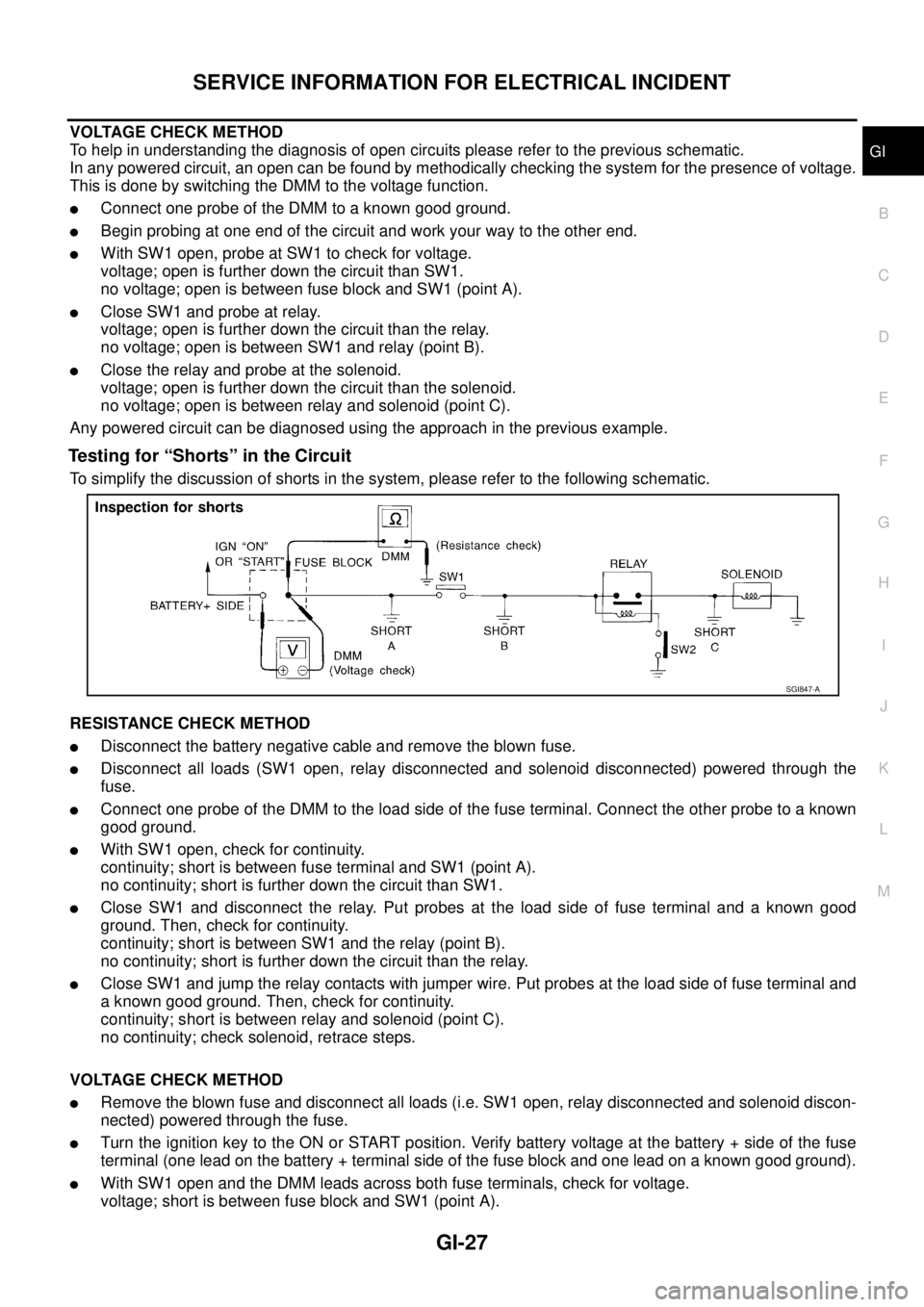

Testing for “Shorts” in the Circuit
To simplify the discussion of shorts in the system, please refer to the following schematic.
RESISTANCE CHECK METHOD

Disconnect the battery negative cable and remove the blown fuse.

Disconnect all loads (SW1 open, relay disconnected and solenoid disconnected) powered through the
fuse.

Connect one probe of the DMM to the load side of the fuse terminal. Connect the other probe to a known
good ground.

With SW1 open, check for continuity.
continuity; short is between fuse terminal and SW1 (point A).
no continuity; short is further down the circuit than SW1.

Close SW1 and disconnect the relay. Put probes at the load side of fuse terminal and a known good
ground. Then, check for continuity.
continuity; short is between SW1 and the relay (point B).
no continuity; short is further down the circuit than the relay.

Close SW1 and jump the relay contacts with jumper wire. Put probes at the load side of fuse terminal and
a known good ground. Then, check for continuity.
continuity; short is between relay and solenoid (point C).
no continuity; check solenoid, retrace steps.
VOLTAGE CHECK METHOD

Remove the blown fuse and disconnect all loads (i.e. SW1 open, relay disconnected and solenoid discon-
nected) powered through the fuse.

Turn the ignition key to the ON or START position. Verify battery voltage at the battery + side of the fuse
terminal (one lead on the battery + terminal side of the fuse block and one lead on a known good ground).

With SW1 open and the DMM leads across both fuse terminals, check for voltage.
voltage; short is between fuse block and SW1 (point A).
SGI847-A

GI-28
SERVICE INFORMATION FOR ELECTRICAL INCIDENT

no voltage; short is further down the circuit than SW1.

With SW1 closed, relay and solenoid disconnected and the DMM leads across both fuse terminals, check
for voltage.
voltage; short is between SW1 and the relay (point B).
no voltage; short is further down the circuit than the relay.

With SW1 closed, relay contacts jumped with fused jumper wire check for voltage.
voltage; short is down the circuit of the relay or between the relay and the disconnected solenoid (point C).
no voltage; retrace steps and check power to fuse block.

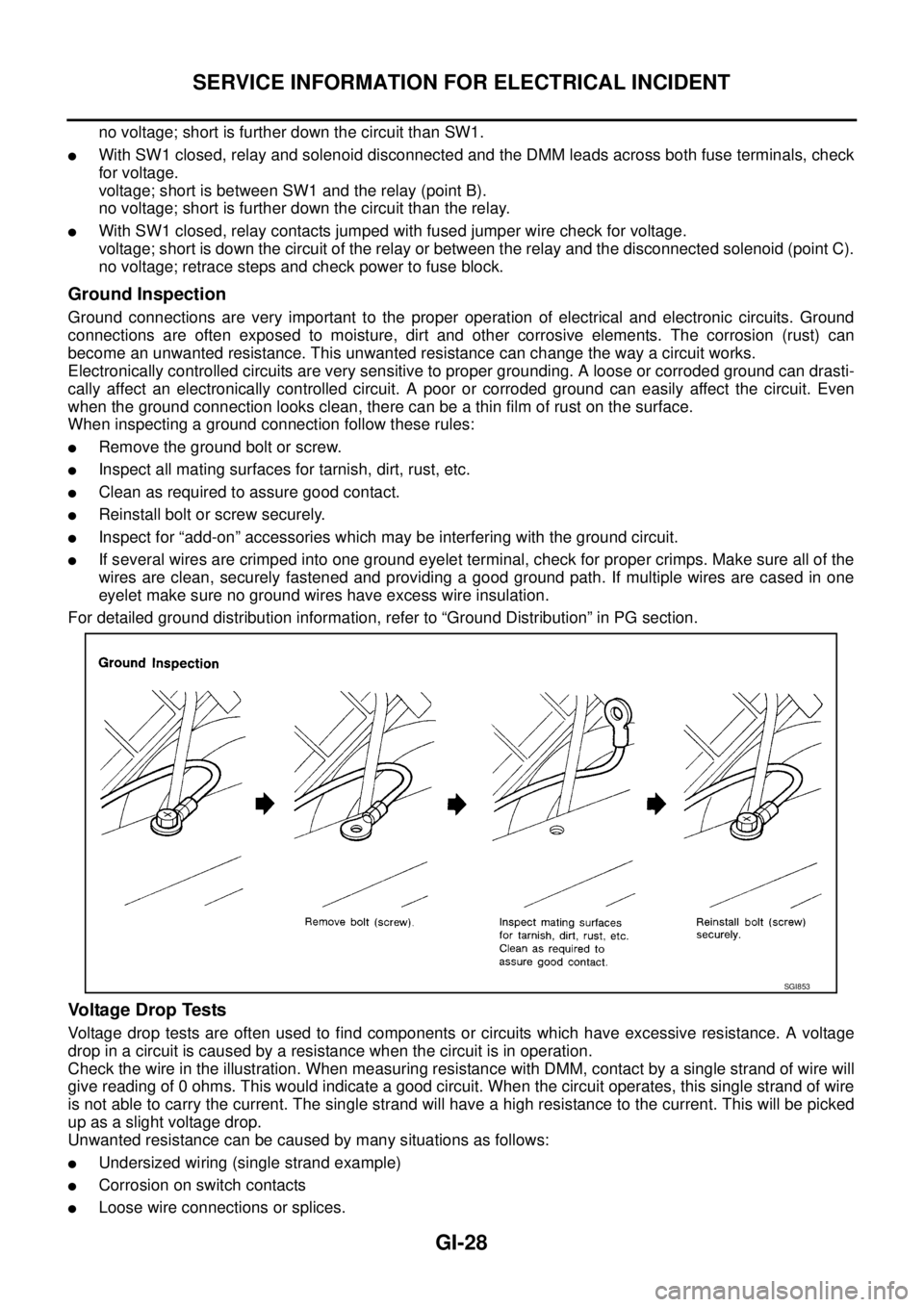

Ground Inspection
Ground connections are very important to the proper operation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:

Remove the ground bolt or screw.

Inspect all mating surfaces for tarnish, dirt, rust, etc.

Clean as required to assure good contact.

Reinstall bolt or screw securely.

Inspect for “add-on” accessories which may be interfering with the ground circuit.

If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the
wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one
eyelet make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to “Ground Distribution” in PG section.
Voltage Drop Tests
Voltage drop tests are often used to find components or circuits which have excessive resistance. A voltage
drop in a circuit is caused by a resistance when the circuit is in operation.
Check the wire in the illustration. When measuring resistance with DMM, contact by a single strand of wire will
give reading of 0 ohms. This would indicate a good circuit. When the circuit operates, this single strand of wire
is not able to carry the current. The single strand will have a high resistance to the current. This will be picked
up as a slight voltage drop.
Unwanted resistance can be caused by many situations as follows:

Undersized wiring (single strand example)

Corrosion on switch contacts

Loose wire connections or splices.
SGI853

EC-3
C
D
E
F
G
H
I
J
K
L
M
ECA
DTC P0172 FUEL INJECTION SYSTEM FUNCTION . 225
On Board Diagnosis Logic ................................... 225
DTC Confirmation Procedure ............................... 225
Wiring Diagram .................................................... 227
Diagnostic Procedure ........................................... 228
DTC P0222, P0223 TP SENSOR ........................... 231
Component Description ........................................ 231
CONSULT-II Reference Value in Data Monitor Mode
. 231
On Board Diagnosis Logic ................................... 231
DTC Confirmation Procedure ............................... 231
Wiring Diagram .................................................... 233
Diagnostic Procedure ........................................... 235
Component Inspection ......................................... 238
Removal and Installation ...................................... 238
DTC P0300 - P0304 MULTIPLE CYLINDER MIS-
FIRE, NO. 1 - 4 CYLINDER MISFIRE ..................... 239
On Board Diagnosis Logic ................................... 239
DTC Confirmation Procedure ............................... 239
Diagnostic Procedure ........................................... 240
DTC P0327, P0328 KS ........................................... 245
Component Description ........................................ 245
On Board Diagnosis Logic ................................... 245
DTC Confirmation Procedure ............................... 245
Wiring Diagram .................................................... 246
Diagnostic Procedure ........................................... 247
Component Inspection ......................................... 249
Removal and Installation ...................................... 249
DTC P0335 CKP SENSOR (POS) .......................... 250
Component Description ........................................ 250
CONSULT-II Reference Value in Data Monitor Mode
. 250
On Board Diagnosis Logic ................................... 250
DTC Confirmation Procedure ............................... 250
Wiring Diagram .................................................... 251
Diagnostic Procedure ........................................... 253
Component Inspection ......................................... 255
Removal and Installation ...................................... 256
DTC P0340 CMP SENSOR (PHASE) ..................... 257
Component Description ........................................ 257
On Board Diagnosis Logic ................................... 257
DTC Confirmation Procedure ............................... 257
Wiring Diagram .................................................... 258
Diagnostic Procedure ........................................... 259
Component Inspection ......................................... 262
Removal and Installation ...................................... 263
DTC P0420 THREE WAY CATALYST FUNCTION . 264
On Board Diagnosis Logic ................................... 264
DTC Confirmation Procedure ............................... 264
Overall Function Check ........................................ 265
Diagnostic Procedure ........................................... 266
DTC P0444 EVAP CANISTER PURGE VOLUME
CONTROL SOLENOID VALVE .............................. 269
Description ........................................................... 269
CONSULT-II Reference Value in Data Monitor Mode
. 269
On Board Diagnosis Logic ................................... 269
DTC Confirmation Procedure ............................... 270
Wiring Diagram .................................................... 271Diagnostic Procedure ...........................................273
Component Inspection ..........................................275
Removal and Installation ......................................275
DTC P0500 VSS ......................................................276
Description ............................................................276
On Board Diagnosis Logic ....................................276
DTC Confirmation Procedure ...............................276
Overall Function Check ........................................276
Diagnostic Procedure ...........................................277
DTC P0550 PSP SENSOR .....................................278
Component Description ........................................278
CONSULT-II Reference Value in Data Monitor Mode
.278
On Board Diagnosis Logic ....................................278
DTC Confirmation Procedure ...............................278
Wiring Diagram .....................................................279
Diagnostic Procedure ...........................................280
Component Inspection ..........................................282
Removal and Installation ......................................282
DTC P0605 ECM .....................................................283
Component Description ........................................283
On Board Diagnosis Logic ....................................283
DTC Confirmation Procedure ...............................283
Diagnostic Procedure ...........................................284
DTC P1065 ECM POWER SUPPLY .......................286
Component Description ........................................286
On Board Diagnosis Logic ....................................286
DTC Confirmation Procedure ...............................286
Wiring Diagram .....................................................287
Diagnostic Procedure ...........................................288
DTC P1111 IVT CONTROL SOLENOID VALVE .....290
Component Description ........................................290
CONSULT-II Reference Value in Data Monitor Mode
.290
On Board Diagnosis Logic ....................................290
DTC Confirmation Procedure ...............................290
Wiring Diagram .....................................................291
Diagnostic Procedure ...........................................292
Component Inspection ..........................................293
Removal and Installation ......................................293
DTC P1121 ELECTRIC THROTTLE CONTROL
ACTUATOR .............................................................294
Component Description ........................................294
On Board Diagnosis Logic ....................................294
DTC Confirmation Procedure ...............................294
Diagnostic Procedure ...........................................295
Removal and Installation ......................................295
DTC P1122 ELECTRIC THROTTLE CONTROL
FUNCTION ..............................................................296
Description ............................................................296
On Board Diagnosis Logic ....................................296
DTC Confirmation Procedure ...............................296
Wiring Diagram .....................................................297
Diagnostic Procedure ...........................................301
Component Inspection ..........................................304
Removal and Installation ......................................305
DTC P1124, P1126 THROTTLE CONTROL MOTOR
RELAY .....................................................................306
Component Description ........................................306

EC-8 Component Inspection ..........................................735
Removal and Installation ......................................736
DTC P1124, P1126 THROTTLE CONTROL MOTOR
RELAY .....................................................................737
Component Description ........................................737
CONSULT-II Reference Value in Data Monitor Mode
.737
On Board Diagnosis Logic ....................................737
DTC Confirmation Procedure ...............................737
Wiring Diagram .....................................................739
Diagnostic Procedure ...........................................742
Component Inspection ..........................................744
DTC P1128 THROTTLE CONTROL MOTOR .........745
Component Description ........................................745
On Board Diagnosis Logic ....................................745
DTC Confirmation Procedure ...............................745
Wiring Diagram .....................................................746
Diagnostic Procedure ...........................................750
Component Inspection ..........................................751
Removal and Installation ......................................752
DTC P1211 TCS CONTROL UNIT ..........................753
Description ............................................................753
On Board Diagnosis Logic ....................................753
DTC Confirmation Procedure ...............................753
Diagnostic Procedure ...........................................753
DTC P1212 TCS COMMUNICATION LINE ............754
Description ............................................................754
On Board Diagnosis Logic ....................................754
DTC Confirmation Procedure ...............................754
Diagnostic Procedure ...........................................754
DTC P1217 ENGINE OVER TEMPERATURE ........755
System Description ...............................................755
CONSULT-II Reference Value in Data Monitor Mode
.756
On Board Diagnosis Logic ....................................756
Overall Function Check ........................................756
Wiring Diagram .....................................................759
Diagnostic Procedure ...........................................762
Main 12 Causes of Overheating ...........................769
Component Inspection ..........................................770
DTC P1225 TP SENSOR ........................................771
Component Description ........................................771
On Board Diagnosis Logic ....................................771
DTC Confirmation Procedure ...............................771
Diagnostic Procedure ...........................................772
Removal and Installation ......................................772
DTC P1226 TP SENSOR ........................................773
Component Description ........................................773
On Board Diagnosis Logic ....................................773
DTC Confirmation Procedure ...............................773
Diagnostic Procedure ...........................................774
Removal and Installation ......................................774
DTC P1229 SENSOR POWER SUPPLY ................775
On Board Diagnosis Logic ....................................775
DTC Confirmation Procedure ...............................775
Wiring Diagram .....................................................776
Diagnostic Procedure ...........................................777
DTC P1564 ASCD STEERING SWITCH ................780
Component Description ........................................780CONSULT-II Reference Value in Data Monitor Mode
.780
On Board Diagnosis Logic ....................................780
DTC Confirmation Procedure ................................781
Wiring Diagram .....................................................782
Diagnostic Procedure ............................................786
Component Inspection ..........................................789
DTC P1572 ASCD BRAKE SWITCH ......................790
Component Description ........................................790
CONSULT-II Reference Value in Data Monitor Mode
.790
On Board Diagnosis Logic ....................................790
DTC Confirmation Procedure ................................791
Overall Function Check .........................................791
Wiring Diagram .....................................................793
Diagnostic Procedure ............................................794
Component Inspection ..........................................799
DTC P1574 ASCD VEHICLE SPEED SENSOR .....800
Component Description ........................................800
On Board Diagnosis Logic ....................................800
DTC Confirmation Procedure ................................800
Diagnostic Procedure ............................................801
DTC P1706 PNP SWITCH .......................................802
Component Description ........................................802
CONSULT-II Reference Value in Data Monitor Mode
.802
On Board Diagnosis Logic ....................................802
DTC Confirmation Procedure ................................802
Overall Function Check .........................................802
Wiring Diagram .....................................................804
Diagnostic Procedure ............................................805
DTC P1720 VSS ......................................................807
Description ............................................................807
CONSULT-II Reference Value in Data Monitor Mode
.807
On Board Diagnosis Logic ....................................807
DTC Confirmation Procedure ................................807
Diagnostic Procedure ............................................808
DTC P1805 BRAKE SWITCH .................................809
Description ............................................................809
CONSULT-II Reference Value in Data Monitor Mode
.809
On Board Diagnosis Logic ....................................809
DTC Confirmation Procedure ................................809
Wiring Diagram .....................................................811
Diagnostic Procedure ............................................812
Component Inspection ..........................................813
DTC P2122, P2123 APP SENSOR .........................815
Component Description ........................................815
CONSULT-II Reference Value in Data Monitor Mode
.815
On Board Diagnosis Logic ....................................815
DTC Confirmation Procedure ................................816
Wiring Diagram .....................................................817
Diagnostic Procedure ............................................819
Component Inspection ..........................................821
Removal and Installation .......................................821
DTC P2127, P2128 APP SENSOR .........................822
Component Description ........................................822

EC-12 Diagnostic Procedure ..........................................11 4 7
Component Inspection .........................................11 5 0
Removal and Installation .....................................11 5 0
DTC P0237, P0238 TC BOOST SENSOR .............115 1
Component Description .......................................11 5 1
CONSULT-II Reference Value in Data Monitor Mode
11 5 1
On Board Diagnosis Logic ...................................11 5 2
DTC Confirmation Procedure ..............................11 5 2
Wiring Diagram ....................................................11 5 3
Diagnostic Procedure ..........................................11 5 4
Component Inspection .........................................11 5 6
Removal and Installation .....................................11 5 6
DTC P0335 CKP SENSOR ....................................115 7
Description ...........................................................11 5 7
CONSULT-II Reference Value in Data Monitor Mode
11 5 7
On Board Diagnosis Logic ...................................11 5 7
DTC Confirmation Procedure ..............................11 5 7
Wiring Diagram ....................................................11 5 8
Diagnostic Procedure ..........................................11 6 0
Component Inspection .........................................11 6 2
Removal and Installation .....................................11 6 2
DTC P0336 CKP SENSOR ....................................116 3
Description ...........................................................11 6 3
CONSULT-II Reference Value in Data Monitor Mode
11 6 3
On Board Diagnosis Logic ...................................11 6 3
DTC Confirmation Procedure ..............................11 6 3
Wiring Diagram ....................................................11 6 4
Diagnostic Procedure ..........................................11 6 6
Component Inspection .........................................11 6 8
Removal and Installation .....................................11 6 8
DTC P0340 CMP SENSOR ....................................116 9
Description ...........................................................11 6 9
On Board Diagnosis Logic ...................................11 6 9
DTC Confirmation Procedure ..............................11 6 9
Wiring Diagram ....................................................11 7 0
Diagnostic Procedure ..........................................11 7 1
Component Inspection .........................................11 7 4
Removal and Installation .....................................11 7 4
DTC P0341 CMP SENSOR ....................................117 5
Description ...........................................................11 7 5
On Board Diagnosis Logic ...................................11 7 5
DTC Confirmation Procedure ..............................11 7 5
Wiring Diagram ....................................................11 7 6
Diagnostic Procedure ..........................................11 7 7
Component Inspection .........................................11 8 1
Removal and Installation .....................................11 8 1
DTC P0380 GLOW RELAY ....................................118 2
On Board Diagnosis Logic ...................................11 8 2
DTC Confirmation Procedure ..............................11 8 2
Wiring Diagram ....................................................11 8 3
Diagnostic Procedure ..........................................11 8 4
Component Inspection .........................................11 8 5
DTC P0401 EGR FUNCTION .................................118 6
Description ...........................................................11 8 6
CONSULT-II Reference Value in Data Monitor Mode
11 8 7On Board Diagnosis Logic ...................................11 8 7
DTC Confirmation Procedure ...............................11 8 7
Wiring Diagram ....................................................11 8 8
Diagnostic Procedure ...........................................11 8 9
Component Inspection .........................................11 9 0
Removal and Installation ......................................11 9 2
DTC P0404 EGR VOLUME CONTROL VALVE .....11 93
Description ...........................................................11 9 3
CONSULT-II Reference Value in Data Monitor Mode
11 9 4
On Board Diagnosis Logic ...................................11 9 4
DTC Confirmation Procedure ...............................11 9 4
Wiring Diagram ....................................................11 9 5
Diagnostic Procedure ...........................................11 9 6
Component Inspection .........................................11 9 7
Removal and Installation ......................................11 9 9
DTC P0501 ASCD VEHICLE SPEED SENSOR ....1200
Component Description .......................................1200
On Board Diagnosis Logic ...................................1200
DTC Confirmation Procedure ...............................1200
Diagnostic Procedure ...........................................1201
DTC P0502 ASCD VEHICLE SPEED SENSOR ....1202
Component Description .......................................1202
On Board Diagnosis Logic ...................................1202
DTC Confirmation Procedure ...............................1202
Diagnostic Procedure ...........................................1203
DTC P0503 ASCD VEHICLE SPEED SENSOR ....1204
Component Description .......................................1204
On Board Diagnosis Logic ...................................1204
DTC Confirmation Procedure ...............................1204
Diagnostic Procedure ...........................................1205
DTC P0504 ASCD BRAKE SWITCH .....................1206
Component Description .......................................1206
CONSULT-II Reference Value in Data Monitor Mode
1206
On Board Diagnosis Logic ...................................1206
DTC confirmation Procedure ...............................1207
Wiring Diagram ....................................................1208
Diagnostic Procedure ...........................................1209
Component Inspection .........................................1213
DTC P0563 BATTERY VOLTAGE ..........................1215
On Board Diagnosis Logic ...................................1215
DTC Confirmation Procedure ...............................1215
Diagnostic Procedure ...........................................1215
DTC P0580, P0581 ASCD STEERING SWITCH ...1218
Component Description .......................................1218
CONSULT-II Reference Value in Data Monitor Mode
1218
On Board Diagnosis Logic ...................................1219
DTC Confirmation Procedure ...............................1219
Wiring Diagram ....................................................1220
Diagnostic Procedure ...........................................1223
Component Inspection .........................................1225
DTC P0605 ECM ....................................................1227
Description ...........................................................1227
On Board Diagnosis Logic ...................................1227
DTC Confirmation Procedure ...............................1227
Diagnostic Procedure ...........................................1228
