CYLINDER HEAD
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Remove cylinder head bolts in reverse order as shown in the
figure with the cylinder head bolt wrench (commercial service
tool).
Lift up cylinder head assembly to avoid interference with
dowel pins located between the cylinder block and cylinder
head, and remove cylinder head assembly.
CAUTION:
Remove glow plug in advance to avoid damage as the tip
of the glow plug projects from the bottom of cylinder
head, or, place wood blocks beneath both ends of cylin-
der head to keep the cylinder bottom from any contact.
For glow plug removal, the following shall be noted.
CAUTION:
To avoid breakage, do not remove glow plug unless necessary.
Perform continuity test with glow plug installed.
Keep glow plug from any impact. [Replace if dropped from a height 10 cm (3.94 in) or higher.]
Do not use air impact wrench.
4. Remove cylinder head gasket.
INSPECTION AFTER REMOVAL
Cylinder Head Bolt Deformation
Using micrometer, measure the outer diameters “d1” and “d2” of
bolt thread as shown in the figure.
If the necking point can be identified, set it as measuring point
“d1”.
Calculate the difference between “d1” and “d2”.
If it exceeds the limit, replace cylinder head bolt.
Cylinder Head Distortion
NOTE:
When performing this inspection, cylinder block distortion should be also checked. Refer to EM-249, "
CYLIN-
DER BLOCK TOP SURFACE DISTORTION" .
1. Wipe off oil and remove water scale (like deposit), gasket, sealer, carbon, etc. with scraper.
CAUTION:
Use utmost care not to allow gasket debris to enter passages for oil or water.
2. At each of several locations on bottom surface of cylinder head,
measure distortion in six directions.
If it exceeds the limit, replace cylinder head.
JEM149G
Limit : 0.15 mm (0.0059 in)
JEM171G
Limit : 0.1mm (0.004 in)
SEM496G
Page 266 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EM-212
[YD22DDTi]
CYLINDER HEAD
Cylinder head- to- block Difference Check
After installing cylinder head, measure dimension from the front
end surface of cylinder block to that of cylinder head.
NISSAN X-TRAIL 2005 Service Repair Manual EM-212
[YD22DDTi]
CYLINDER HEAD
Cylinder head- to- block Difference Check
After installing cylinder head, measure dimension from the front
end surface of cylinder block to that of cylinder head.
](/manual-img/5/57403/w960_57403-265.png)
EM-212
[YD22DDTi]
CYLINDER HEAD
Cylinder head- to- block Difference Check
After installing cylinder head, measure dimension from the front
end surface of cylinder block to that of cylinder head.
If out of the standard, check fitting of dowel pins and cylinder
head.
INSTALLATION
Before installation, remove old liquid gasket from mating surface of all liquid gasket applied parts.
1. Install cylinder head gasket.
Cylinder head gasket to be installed is selected by its thickness through the following procedure.
–When replacing gasket alone
Install a gasket with same thickness as that of the one removed.
Identify the thickness of gasket by the number of cut-outs on
the rear right side.
*: Measured with head bolts tightened
Gasket thickness can be identified at the location shown in
the figure by the numbers of cut-outs before removal.
–When the following parts have been repaired/replaced:
With cylinder block upper surface and/or crankshaft pin journal ground
With cylinder block, pistons, connecting rods, and/or crankshaft replaced
a. Set piston at a point close to TDC.Standard : 23.53 - 24.07 mm (0.9264 - 0.9476 in)
JEM172G
Gasket thickness* mm (in) Number of grade Number of cut-outs
0.900 (0.0354) 1 0
0.925 (0.0364) 2 1
0.950 (0.0374) 3 2
0.975 (0.0384) 4 3
1.000 (0.0394) 5 4
1.025 (0.0404) 6 5
MBIA0020E
PBIC0682E
Page 267 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Set the dial indicator at the location as shown in the figure. Turn-
ing crankshaft gradually, set the indicator scale to “0” where t NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Set the dial indicator at the location as shown in the figure. Turn-
ing crankshaft gradually, set the indicator scale to “0” where t](/manual-img/5/57403/w960_57403-266.png)
CYLINDER HEAD
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Set the dial indicator at the location as shown in the figure. Turn-
ing crankshaft gradually, set the indicator scale to “0” where the
piston protrusion is maximized.
c. Move the dial indicator stand so that the tip of dial indicator can
contact cylinder block. Read the difference.
d. Measure two points from each cylinder in order to obtain each
mean value of them. Choose a properly thick gasket corre-
sponding the highest number of the four values.
*: Measured with head bolts tightened
2. Apply a continuous bead of liquid gasket with the tube presser
(special service tool: WS39930000) as shown in the figure.
3. Install cylinder head assembly.
a. Apply engine oil to bolt threads and seat surfaces.
b. Tighten all bolts in numerical order as shown.
PBIC2645E
Piston protrusion mm (in) Gasket thickness* mm (in)Identification
Number of cut-outs
Less than 0.255 (0.0100) 0.900 (0.0354) 0
Less than 0.255 - 0.280 (0.0100 - 0.0110) 0.925 (0.0364) 1
Less than 0.280 - 0.305 (0.0110 - 0.0120) 0.950 (0.0374) 2
Less than 0.305 - 0.330 (0.0120 - 0.0130) 0.975 (0.0384) 3
Less than 0.330 - 0.355 (0.0130 - 0.0140) 1.000 (0.0394) 4
More than 0.355 (0.0140) 1.025 (0.0404) 5
A : Apply bead so that it does not protrude into oil pas-
sage.
B : Minimize the overlapping area of the bead, with
start and end areas of bead as shown in the figure.
* : Comes at an external location but cannot be viewed
externally after engine is assembled.
PBIC1256E
: 39.2 N·m (4.0 kg-m, 29 ft-lb)
JEM149G
Page 268 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EM-214
[YD22DDTi]
CYLINDER HEAD
c. Tighten 180 degrees in numerical order as shown (angle tight-
ening).
d. Loosen completely in reverse order of that shown in the figure.
e. Tighten all bolts in nu NISSAN X-TRAIL 2005 Service Repair Manual EM-214
[YD22DDTi]
CYLINDER HEAD
c. Tighten 180 degrees in numerical order as shown (angle tight-
ening).
d. Loosen completely in reverse order of that shown in the figure.
e. Tighten all bolts in nu](/manual-img/5/57403/w960_57403-267.png)
EM-214
[YD22DDTi]
CYLINDER HEAD
c. Tighten 180 degrees in numerical order as shown (angle tight-
ening).
d. Loosen completely in reverse order of that shown in the figure.
e. Tighten all bolts in numerical order as shown.
f. Tighten 90 degrees in numerical order as shown (angle tighten-
ing).
g. Tighten another 90 degrees in numerical order as shown (angle
tightening).
CAUTION:
When the angle wrench (special service tool) is not used, paint an alignment mark on the head
of cylinder head bolt and cylinder head surface before tightening. Check the angle with a pro-
tractor.
4. Install glow plug.
CAUTION:
To avoid damage, glow plugs should be removed only when required.
Handle with care to avoid applying shock. When dropped from approx. 10 cm (3.94 in) or higher,
always replace with a new one.
Before installing, remove carbon depositing on mounting hole of glow plug with a reamer.
5. Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Before starting engine, bleed air from fuel piping. Refer to FL-18, "Air Bleeding" .
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.
: 0 N·m (0 kg-m, 0 ft-lb)
:39.2 N·m (4.0 kg-m, 29 ft-lb)
JEM166G
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
Page 269 of 4555
CYLINDER HEAD
EM-215
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Disassembly and AssemblyEBS00LRX
DISASSEMBLY
1. Remove adjusting shims and valve lifters.
Check the installation positions, and keep them to avoid being confused.
2. Remove valve collet.
Using the valve spring compressor, attachment and adapter
(special service tool), compress valve spring. Using magnet
hand, remove valve collets.
3. Remove valve spring retainers and valve springs.
4. Remove valves as pressing valve stems toward combustion chamber.
Before removing valve, check the valve guide clearance. Refer to EM-217, "Valve Guide Clearance" .
1. Adjusting shim 2. Valve lifter 3. Valve collet
4. Valve spring retainer 5. Valve spring 6. Valve oil seal
7. Valve spring seat 8. Valve guide 9. Cylinder head
10. Valve seat 11. Valve (Exhaust) 12. Valve (Intake)
PBIC2328E
PBIC2388E
Page 270 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EM-216
[YD22DDTi]
CYLINDER HEAD
NOTE:
Refer to the figure for intake and exhaust valve positions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
5. Remove valve NISSAN X-TRAIL 2005 Service Repair Manual EM-216
[YD22DDTi]
CYLINDER HEAD
NOTE:
Refer to the figure for intake and exhaust valve positions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
5. Remove valve](/manual-img/5/57403/w960_57403-269.png)
EM-216
[YD22DDTi]
CYLINDER HEAD
NOTE:
Refer to the figure for intake and exhaust valve positions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
5. Remove valve oil seals using the valve oil seal puller (special
service tool).
6. Remove valve spring seats.
7. When removing valve seats must be replaced. Refer to EM-219, "
Valve Seat Replacement" .
8. When removing valve guides must be replaced. Refer to EM-218, "
Valve Guide Replacement" .
ASSEMBLY
1. Install valve guides if removed. Refer to EM-218, "Valve Guide Replacement" .
2. Install valve seats if removed. Refer to EM-219, "
Valve Seat Replacement" .
3. Using the valve oil seal drift (special service tool), install valve oil
seals referring to the dimension shown in the figure.
4. Install valve spring seats.
5. Install valves.
Install larger diameter to intake valve side.
Note that valve layout here is different from that of conven-
tional engine.
6. Install valve spring.
SBIA0196E
JEM153G
JEM165G
SBIA0196E
Page 271 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Install valve spring retainers.
8. Using the valve spring compressor, attachment and adapter
(special service tool), compress valve sprin NISSAN X-TRAIL 2005 Service Repair Manual CYLINDER HEAD
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Install valve spring retainers.
8. Using the valve spring compressor, attachment and adapter
(special service tool), compress valve sprin](/manual-img/5/57403/w960_57403-270.png)
CYLINDER HEAD
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
7. Install valve spring retainers.
8. Using the valve spring compressor, attachment and adapter
(special service tool), compress valve springs.
Then install valve collets using magnet hand.
After installing valve collets, tap the stem end using the plastic
hammer, and check the installation status.
9. Install valve lifters and adjusting shims to the same positions as before.
INSPECTION AFTER DISASSEMBLY
Valve Dimension
Check dimensions of each valve. For dimensions, refer to EM-
259, "Valve Dimensions" .
If dimensions are out of the standard, replace valve.
Valve Guide Clearance
VALVE STEM DIAMETER
Measure diameter of valve stem with micrometer.
VALVE GUIDE INNER DIAMETER
Measure inner diameter of valve guide with bore gauge.
VALVE GUIDE CLEARANCE
(Valve guide clearance) = (Valve guide inner diameter) – (Valve stem diameter).
PBIC2388E
SEM188A
Standard
Intake : 5.965 - 5.980 mm (0.2348 - 0.2354 in)
Exhaust : 5.945 - 5.960 mm (0.2341 - 0.2346 in)
SEM938C
Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard
Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.040 - 0.073 mm (0.0016 - 0.0029 in)
Limit
Page 272 of 4555

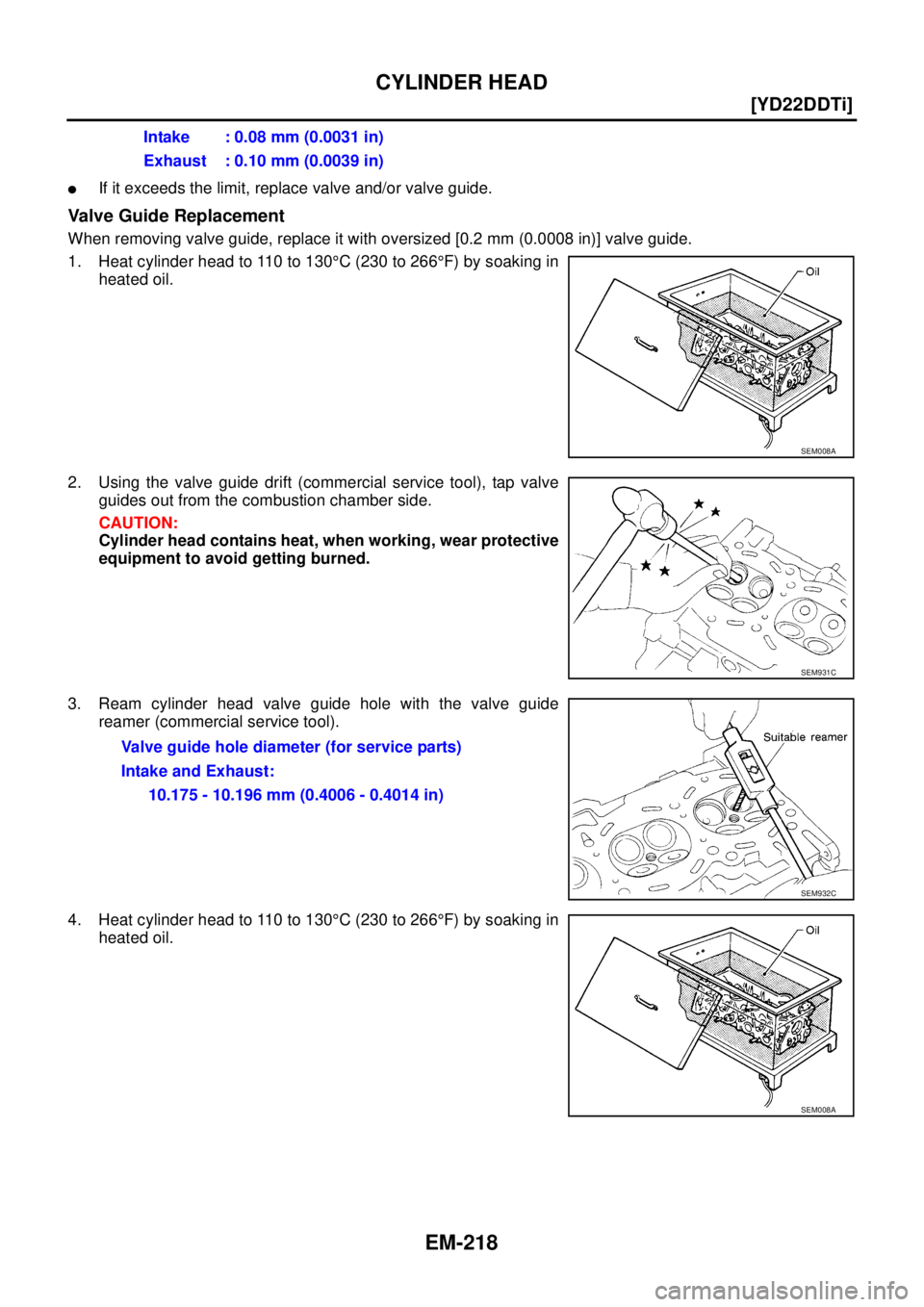

EM-218
[YD22DDTi]
CYLINDER HEAD
If it exceeds the limit, replace valve and/or valve guide.
Valve Guide Replacement
When removing valve guide, replace it with oversized [0.2 mm (0.0008 in)] valve guide.
1. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
2. Using the valve guide drift (commercial service tool), tap valve
guides out from the combustion chamber side.
CAUTION:
Cylinder head contains heat, when working, wear protective
equipment to avoid getting burned.
3. Ream cylinder head valve guide hole with the valve guide
reamer (commercial service tool).
4. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.Intake : 0.08 mm (0.0031 in)
Exhaust : 0.10 mm (0.0039 in)
SEM008A
SEM931C
Valve guide hole diameter (for service parts)
Intake and Exhaust:
10.175 - 10.196 mm (0.4006 - 0.4014 in)
SEM932C
SEM008A
