Page 3201 of 4555

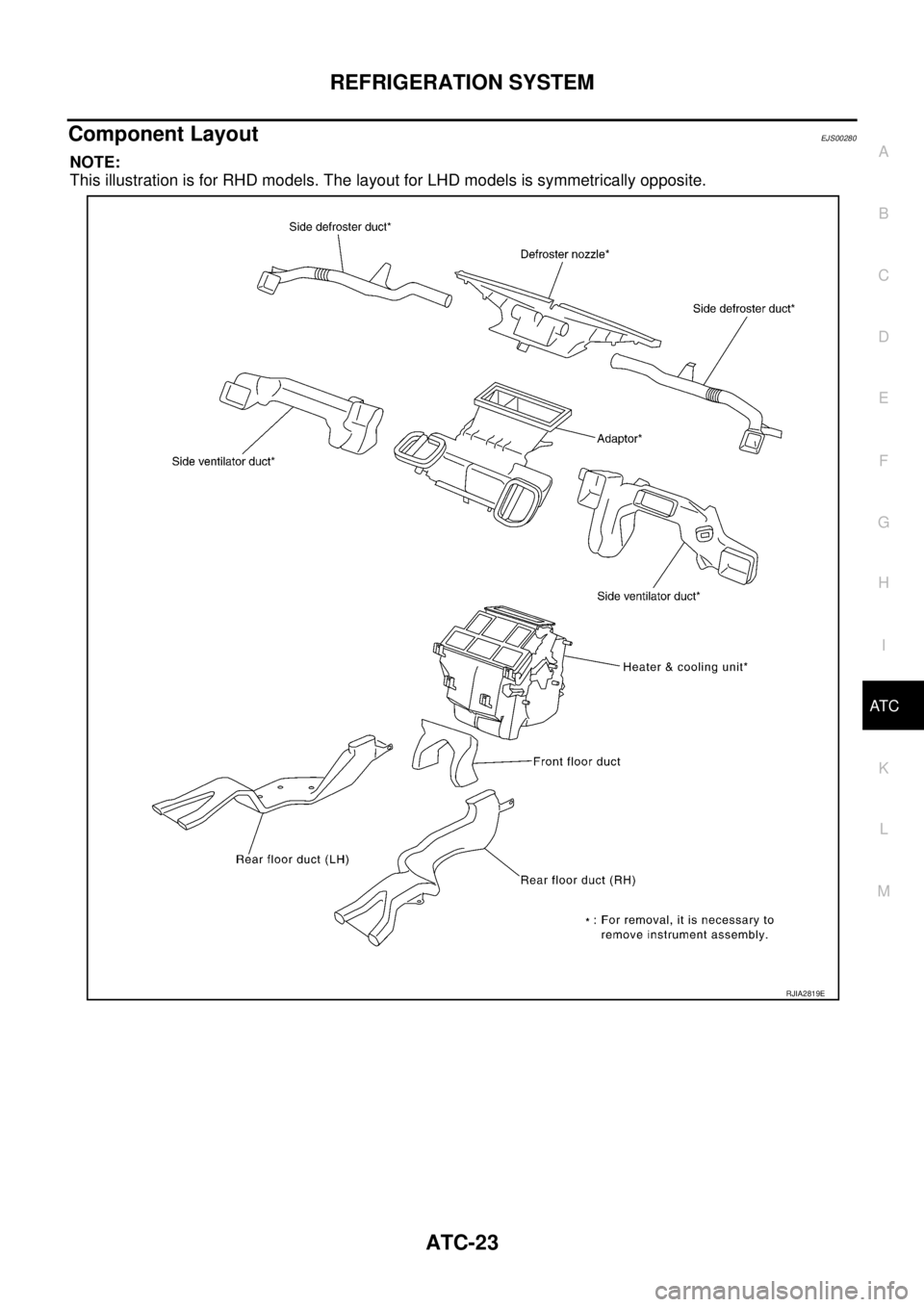

NISSAN X-TRAIL 2005 Service Repair Manual REFRIGERATION SYSTEM ATC-23 C D E F G H I K L MA B AT C Component LayoutEJS00280 NOTE: This illustration is for RHD models. The layout for LHD models is symmetrically opposite. RJIA2819E

Page 3202 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-24 LUBRICANT LUBRICANTPFP:KLG00 Maintenance of Lubricant Quantity in CompressorEJS000TH The lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compr

Page 3203 of 4555

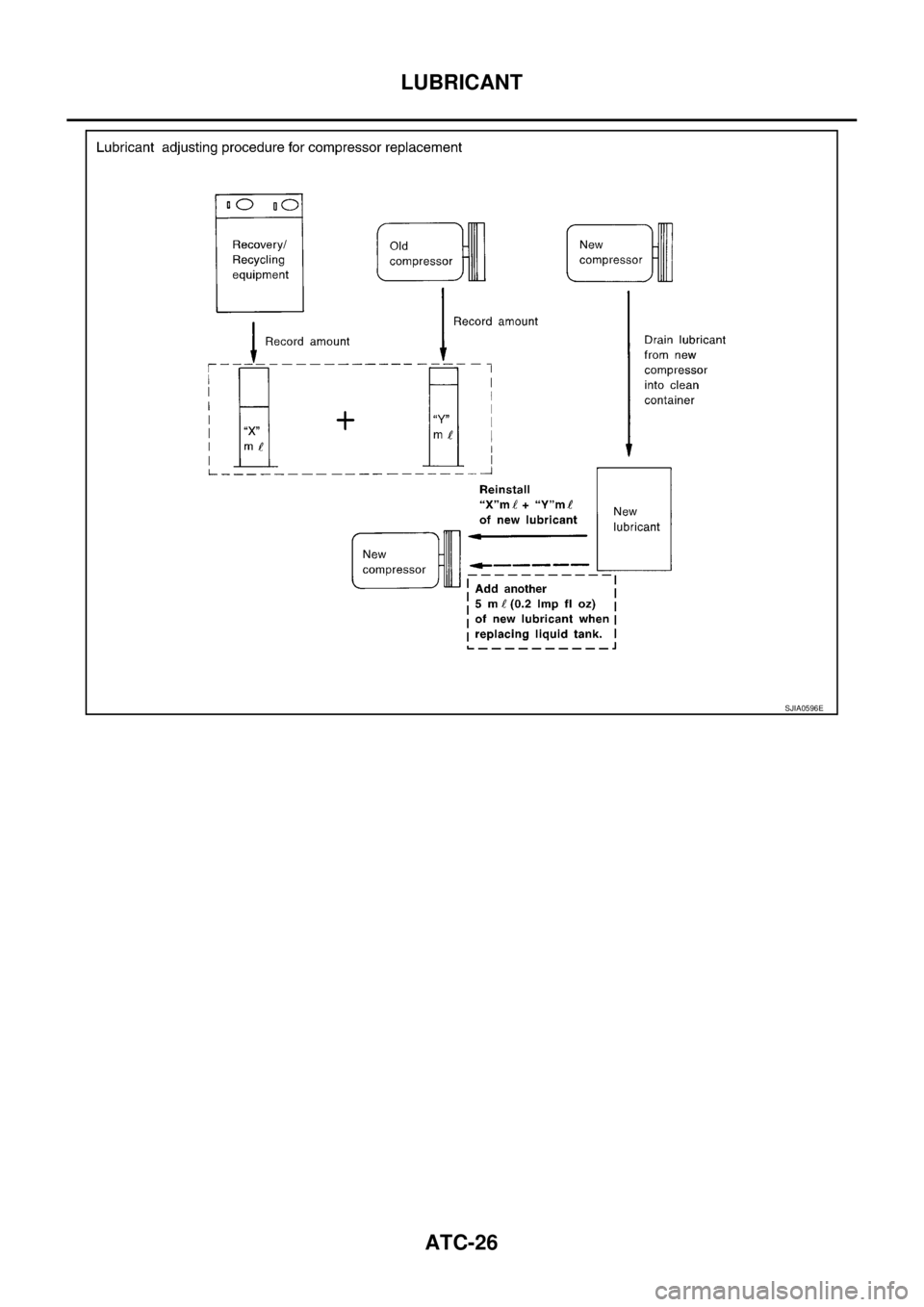

NISSAN X-TRAIL 2005 Service Repair Manual LUBRICANT ATC-25 C D E F G H I K L MA B AT C LUBRICANT ADJUSTING PROCEDURE FOR COMPONENTS REPLACEMENT EXCEPT COM- PRESSOR After replacing any of the following major components, add the correct amoun

Page 3204 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-26 LUBRICANT SJIA0596E

Page 3205 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AIR CONDITIONER CONTROL ATC-27 C D E F G H I K L MA B AT C AIR CONDITIONER CONTROLPFP:27500 Description of Air Conditioner LAN Control SystemEJS000TI The LAN (Local Area Network) system consists of

Page 3206 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-28 AIR CONDITIONER CONTROL TRANSMISSION DATA AND TRANSMISSION ORDER Auto amp. data is transmitted consecutively to each of the door motors following the form shown in figure below. Start: Initia

Page 3207 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AIR CONDITIONER CONTROL ATC-29 C D E F G H I K L MA B AT C Stop Signal: At the end of each transmission, a stop operation, in-operation, or internal malfunction message is delivered to the auto amp.

Page 3208 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual ATC-30 AIR CONDITIONER CONTROL Description of Control SystemEJS000TK The control system consists of input sensors, switches, the auto amp. (microcomputer) and outputs. The relationship of these comp
