Page 1729 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PNP SWITCH EC-1325 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect park/neutral position (PNP) switch

Page 1730 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1326 [YD (WITH EURO-OBD)] PSP SWITCH PSP SWITCHPFP:49761 Component DescriptionEBS011G9 The power steering pressure switch is attached to the power steer- ing high-pressure tube and detects a powe

Page 1731 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PSP SWITCH EC-1327 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011GC TBWA0583E

Page 1732 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1328 [YD (WITH EURO-OBD)] PSP SWITCH Specification data are reference values, and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outp

Page 1733 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual PSP SWITCH EC-1329 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. CHECK POWER STEERING PRESSURE SWITCH GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect power steering

Page 1734 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1330 [YD (WITH EURO-OBD)] PSP SWITCH 2. Check continuity between power steering pressure switch termi- nal 1 and 2 under the following conditions. Removal and InstallationEBS0128B Refer to PS-37,

Page 1735 of 4555

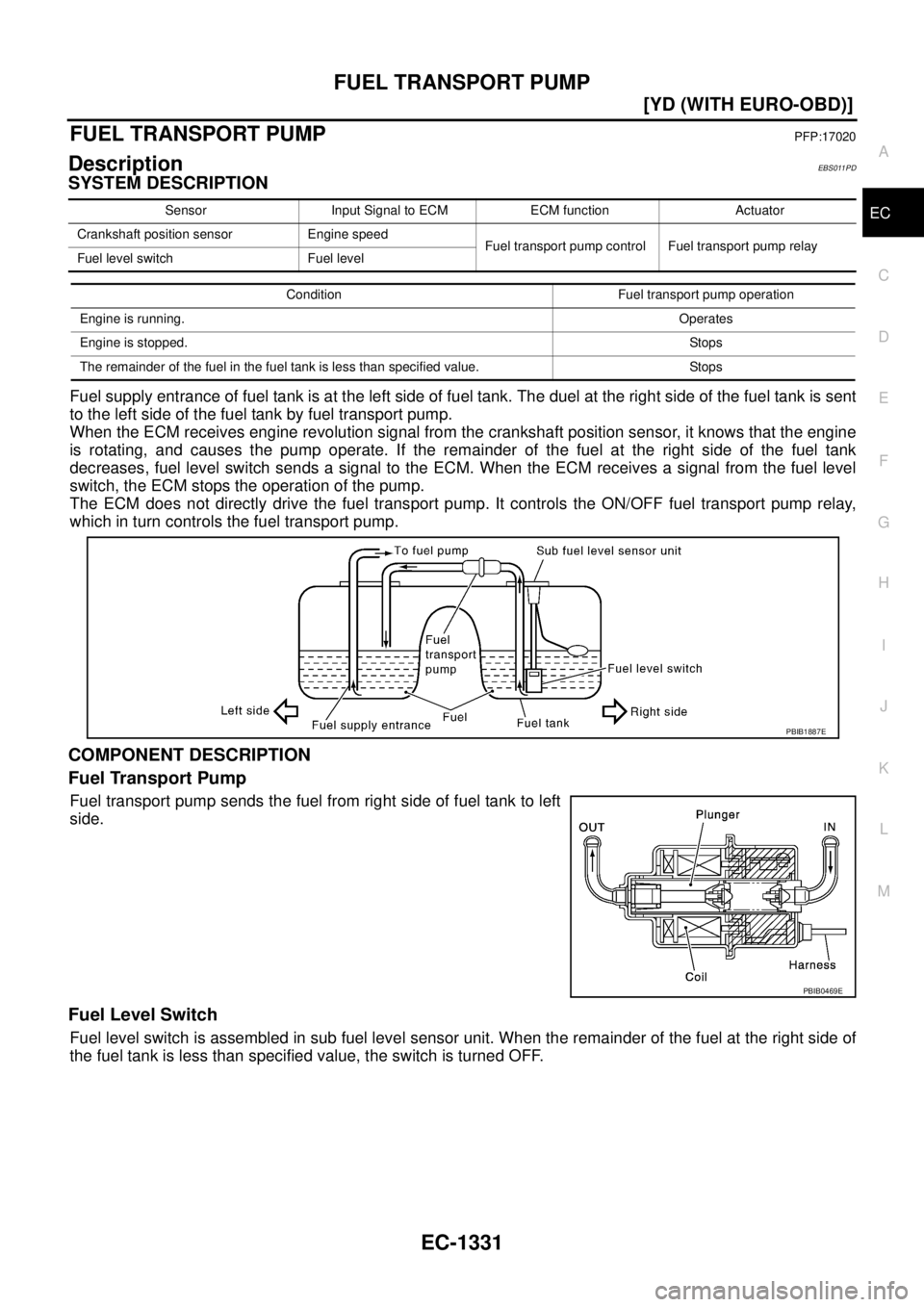

NISSAN X-TRAIL 2005 Service Repair Manual FUEL TRANSPORT PUMP EC-1331 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC FUEL TRANSPORT PUMPPFP:17020 DescriptionEBS011PD SYSTEM DESCRIPTION Fuel supply entrance of fuel tank is at the left side o

Page 1736 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1332 [YD (WITH EURO-OBD)] FUEL TRANSPORT PUMP Wiring DiagramEBS011PF LHD MODELS TBWA0590E
