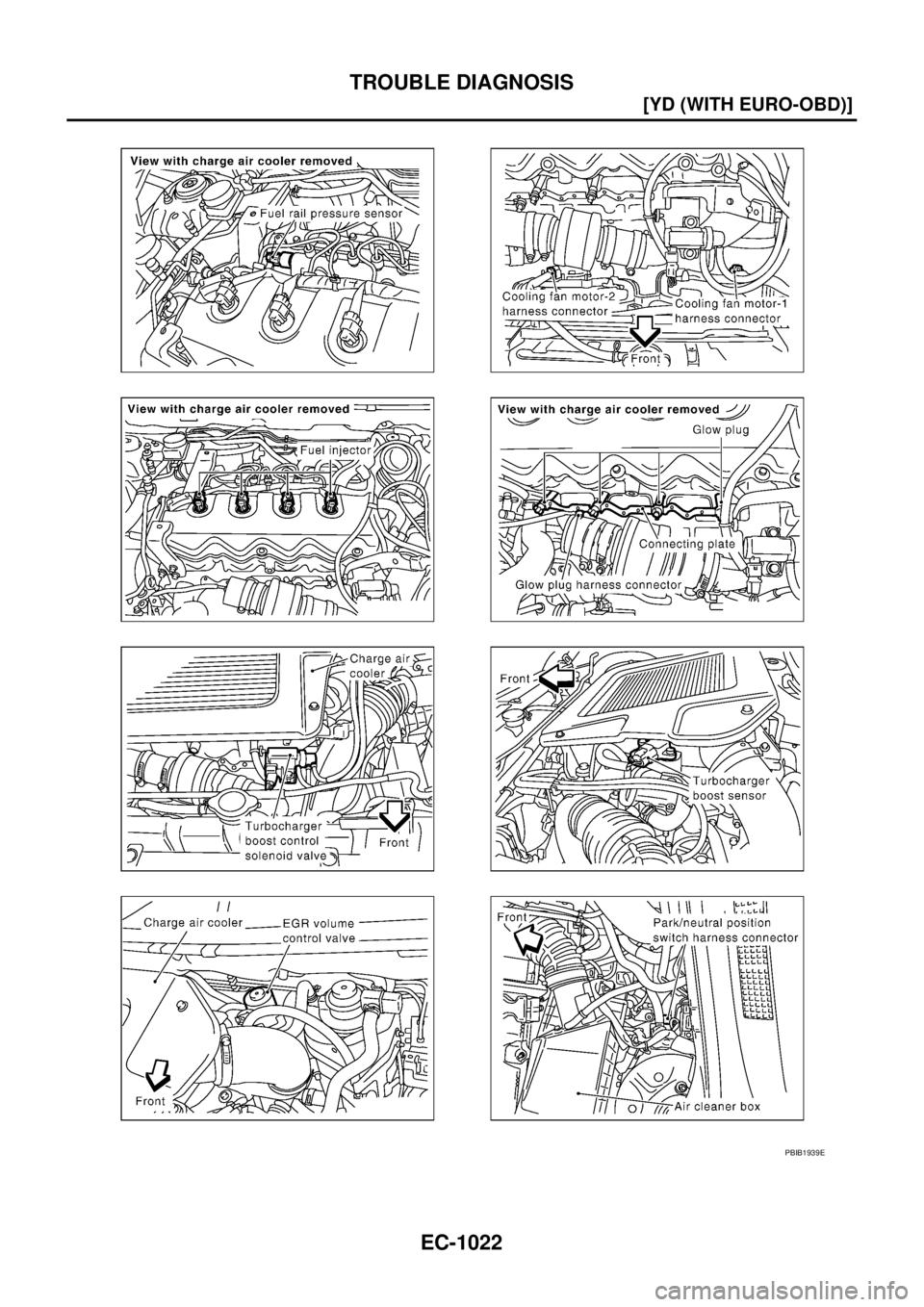

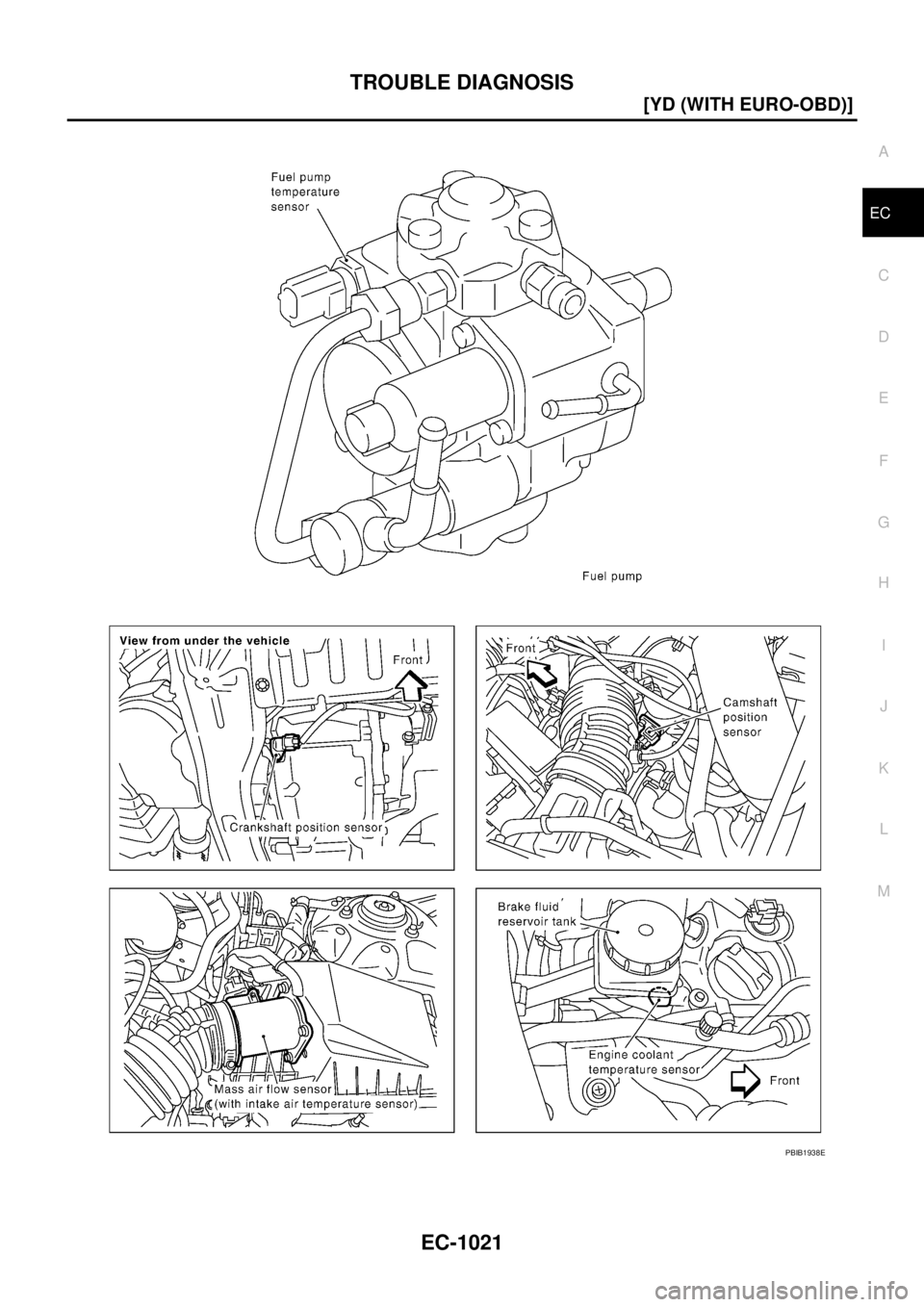

Page 1425 of 4555
TROUBLE DIAGNOSIS
EC-1021
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PBIB1938E

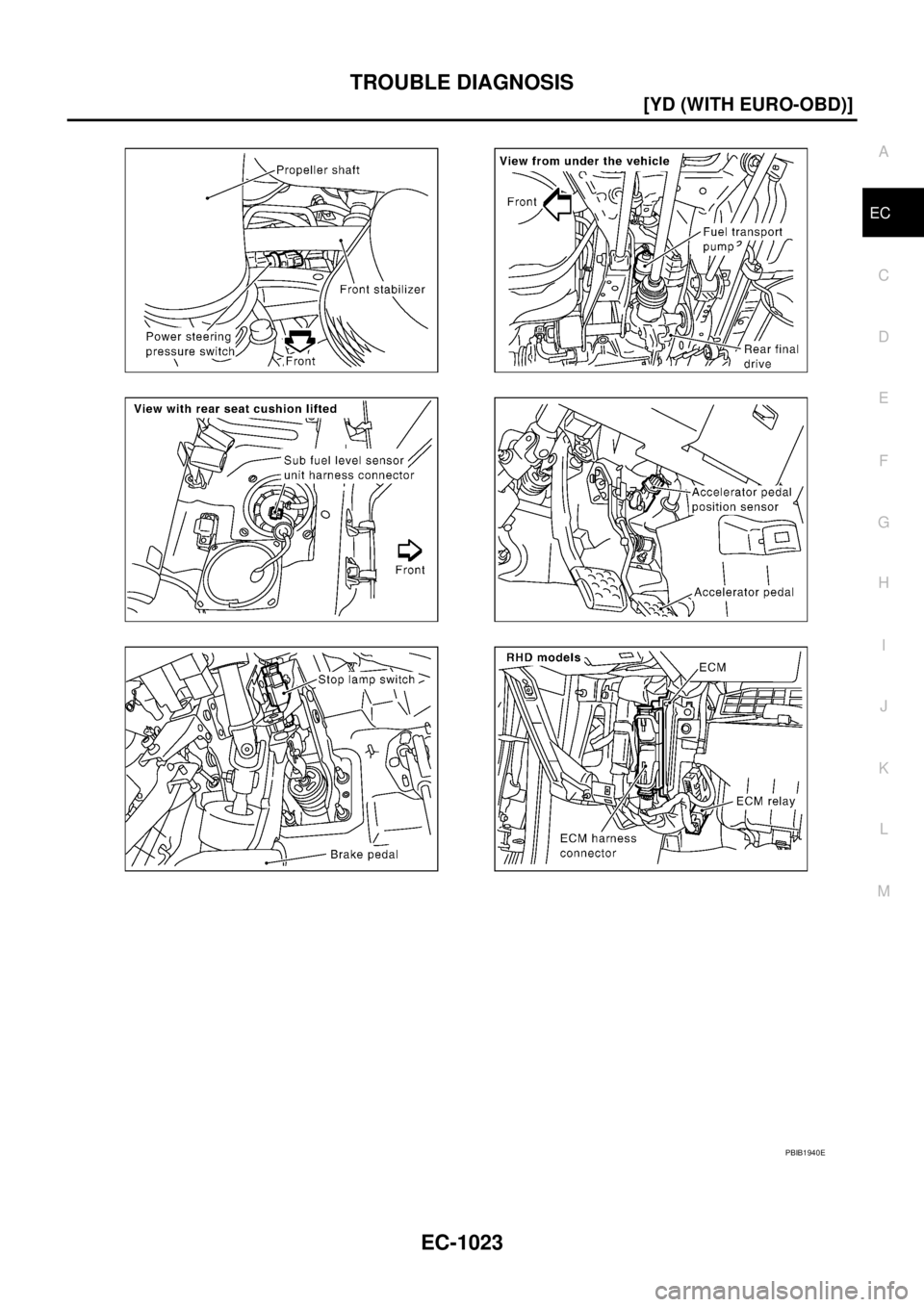

Page 1426 of 4555
EC-1022
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB1939E
Page 1427 of 4555
TROUBLE DIAGNOSIS
EC-1023
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PBIB1940E
Page 1428 of 4555
EC-1024
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. CANSEL switch
4. SET/COAST switch 5. MAIN switch 6. Stop lamp switch harness connector
7. ASCD brake switch harness con-
nector8. ASCD clutch switch harness con-
nector
PBIB2881E
Page 1429 of 4555
TROUBLE DIAGNOSIS
EC-1025
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

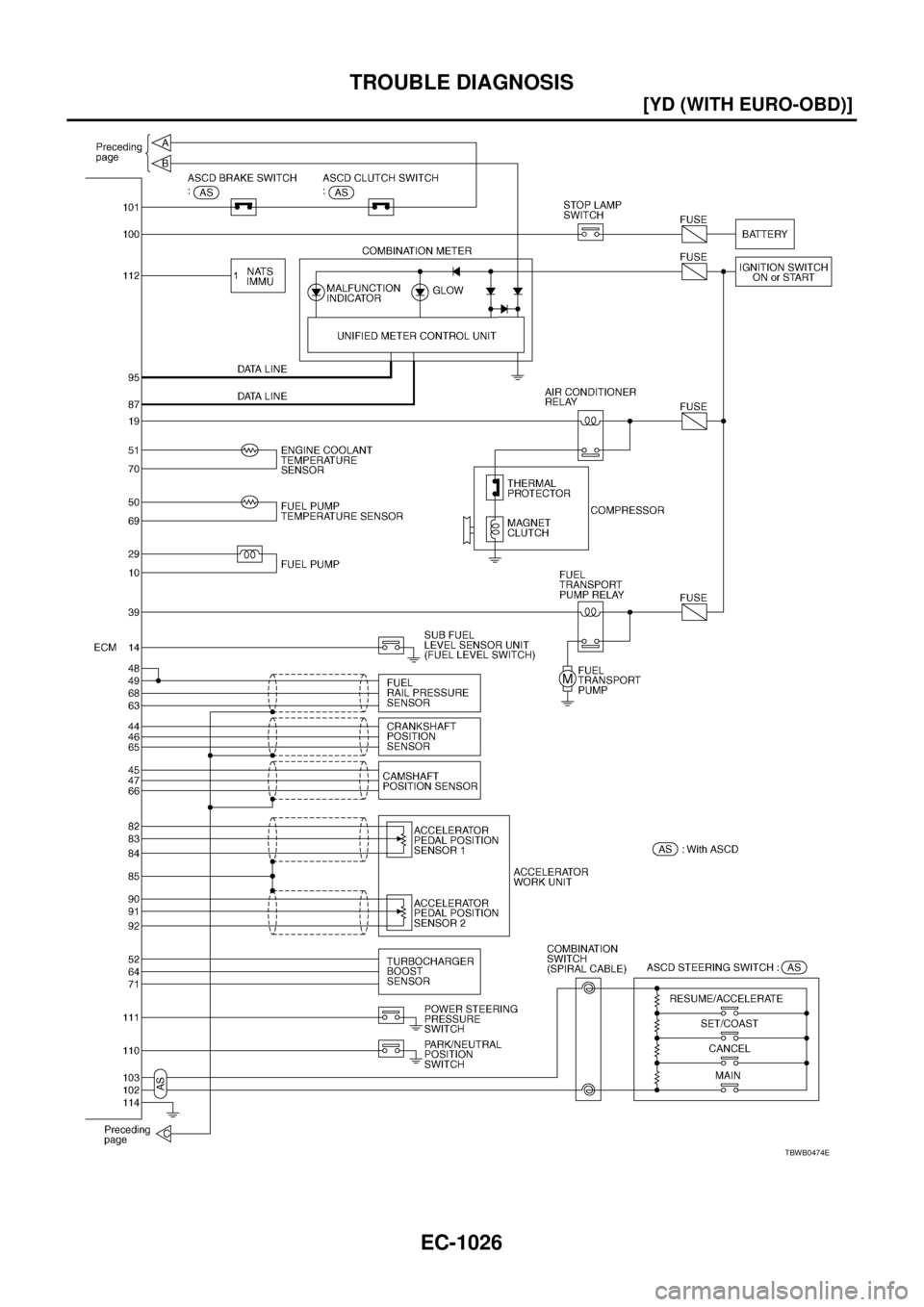

Circuit DiagramEBS0117D
TBWB0473E
Page 1430 of 4555
EC-1026
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
TBWB0474E
Page 1431 of 4555
TROUBLE DIAGNOSIS
EC-1027
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Harness Connector Terminal LayoutEBS0117E
ECM Terminals And Reference ValueEBS0117F
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.
Use extreme care not to touch 2 pins at one time.
Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Remarks: Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
PBIB1899E
PBIB1512E
Page 1432 of 4555
EC-1028
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
1
2
3B
B
BECM ground[Engine is running]
Warm-up condition
Idle speedApproximately 0V
4
5W/B
G/BFuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.5 - 10V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm5 - 10V
6LTurbocharger boost control
solenoid valve[Ignition switch ON]
Warm-up condition
Idle speed0 - 12.5V
[Ignition switch ON]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
10 Y/L Fuel pump power supply[Engine is running]
Warm-up condition
Idle speed0 - 12.5V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
MBIB0883E
MBIB0884E
MBIB0889E
MBIB0890E
MBIB0885E
