NISSAN X-TRAIL 2005 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1493
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS0120E
The accelerator pedal position sensor is installed on t

DTC P0222, P0223 APP SENSOR
EC-1493
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0222, P0223 APP SENSORPFP:18002
DescriptionEBS0120E
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS0120F
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
On Board Diagnosis LogicEBS0120H
The MI will not light up for these self-diagnoses.
NOTE:
If DTC P0222 or P0223 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for
DTC P0652 or P0653. Refer to EC-1579, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS0120I
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1497, "
Diagnostic Procedure" .
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222Accelerator pedal position
sensor 2 circuit low inputAn excessively low voltage from the APP sensor
2 is sent to ECM.
Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)
Accelerator pedal position sensor
(Accelerator pedal position sensor 2) P0223
0223Accelerator pedal position
sensor 2 circuit high inputAn excessively high voltage from the APP sen-
sor 2 is sent to ECM.
SEF817Y

Page 1898 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1494
[YD (WITHOUT EURO-OBD)]
DTC P0222, P0223 APP SENSOR

WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then

Page 1899 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1495
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS0120J
TBWA0729E

Page 1900 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1496
[YD (WITHOUT EURO-OBD)]
DTC P0222, P0223 APP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when m

Page 1901 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1497
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0120K

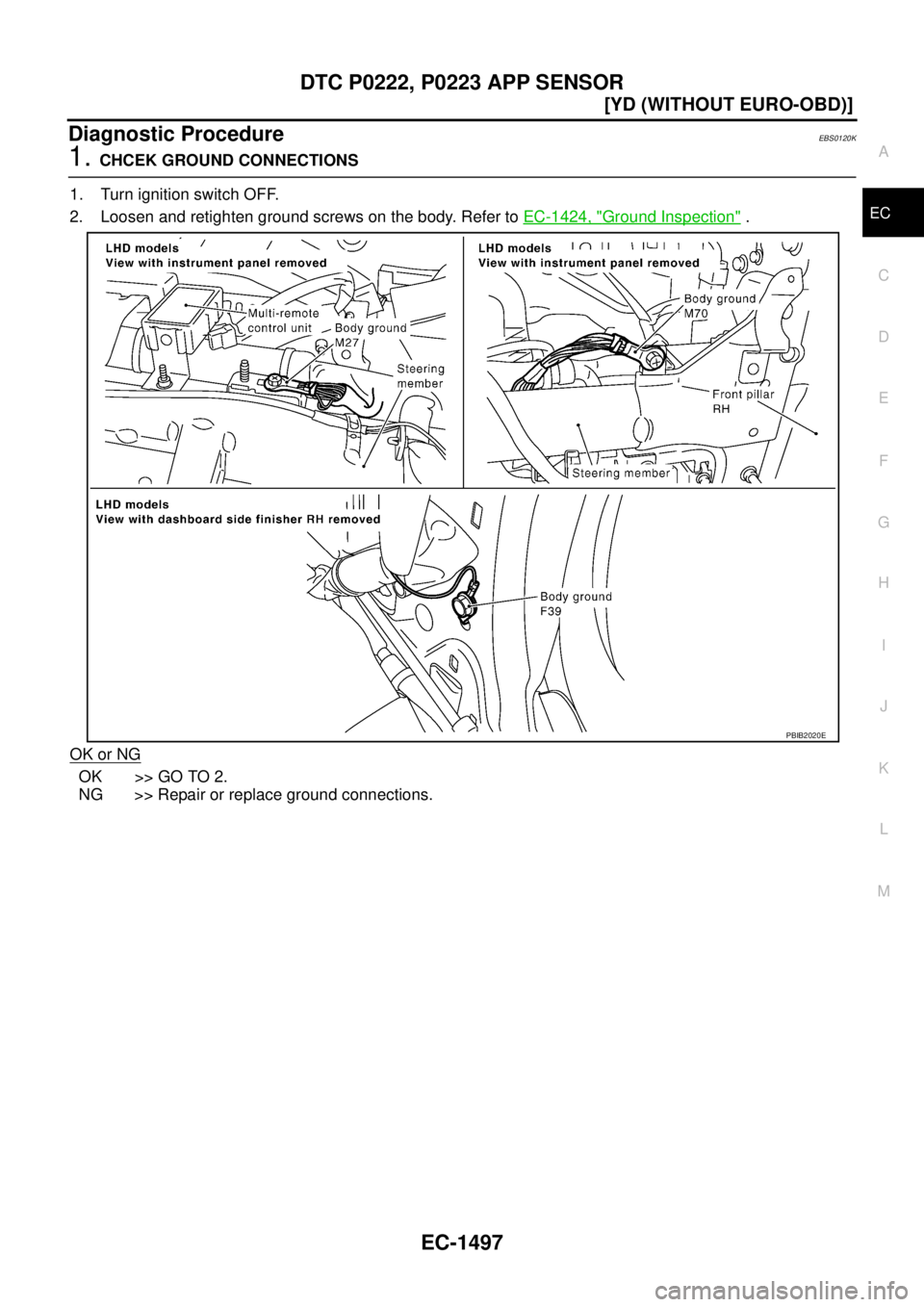

1. CHCEK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten gr

Page 1902 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1498
[YD (WITHOUT EURO-OBD)]
DTC P0222, P0223 APP SENSOR

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switc

Page 1903 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual DTC P0222, P0223 APP SENSOR
EC-1499
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION E

Page 1904 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual EC-1500
[YD (WITHOUT EURO-OBD)]
DTC P0234 TC SYSTEM

DTC P0234 TC SYSTEMPFP:14411
DescriptionEBS0120N
The load from the turbocharger boost control solenoid valve controls
the actuator. By changing th
