INTERIOR ROOM LAMP
LT-133
C
D
E
F
G
H
I
J
L
MA
B
LT
When map lamp switch is ON, ground is supplied (with sunroof)
to map lamp terminal 2
through ground M27 and M70.
INTERIOR ROOM LAMP TIMER OPERATION
When interior room lamp and map lamp (with sunroof) switch is in the DOOR position, the time control unit
keeps the interior room lamp and map lamp (with sunroof) illuminated for about 30 seconds when
unlock signal is supplied from driver's door unlock sensor while all doors are closed and key is out of igni-
tion key cylinder
key is removed from ignition key cylinder while all doors are closed
driver's door is opened and then closed while key is out of the ignition key cylinder. (However, if the
driver's door is closed with the key inserted in the ignition key cylinder after the driver's door is opened
with the key removed, the timer is operated.)
The timer is canceled when
driver's door is locked,
driver's door is opened, or
ignition switch is turned ON.
ON-OFF CONTROL
When the driver’s door, passenger’s door, rear LH door or rear RH door is opened, the interior room lamp and
map lamp (with sunroof) turns on while the interior room lamp and map lamp (with sunroof) switch is in the
DOOR position.
Page 4130 of 4555
LT-134
INTERIOR ROOM LAMP

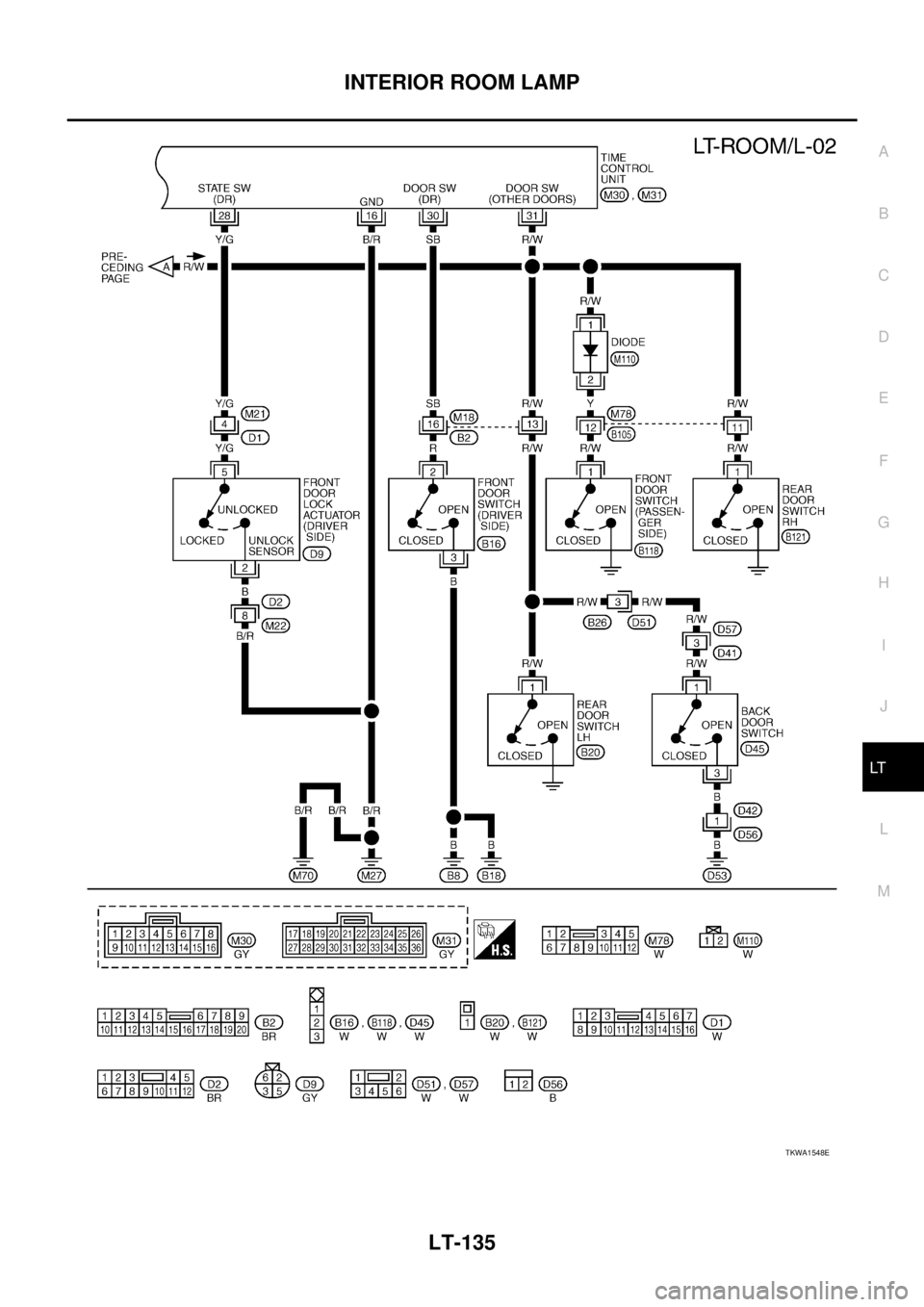

Wiring Diagram — ROOM/L—EKS003BR
LHD MODELS
TKWA1547E

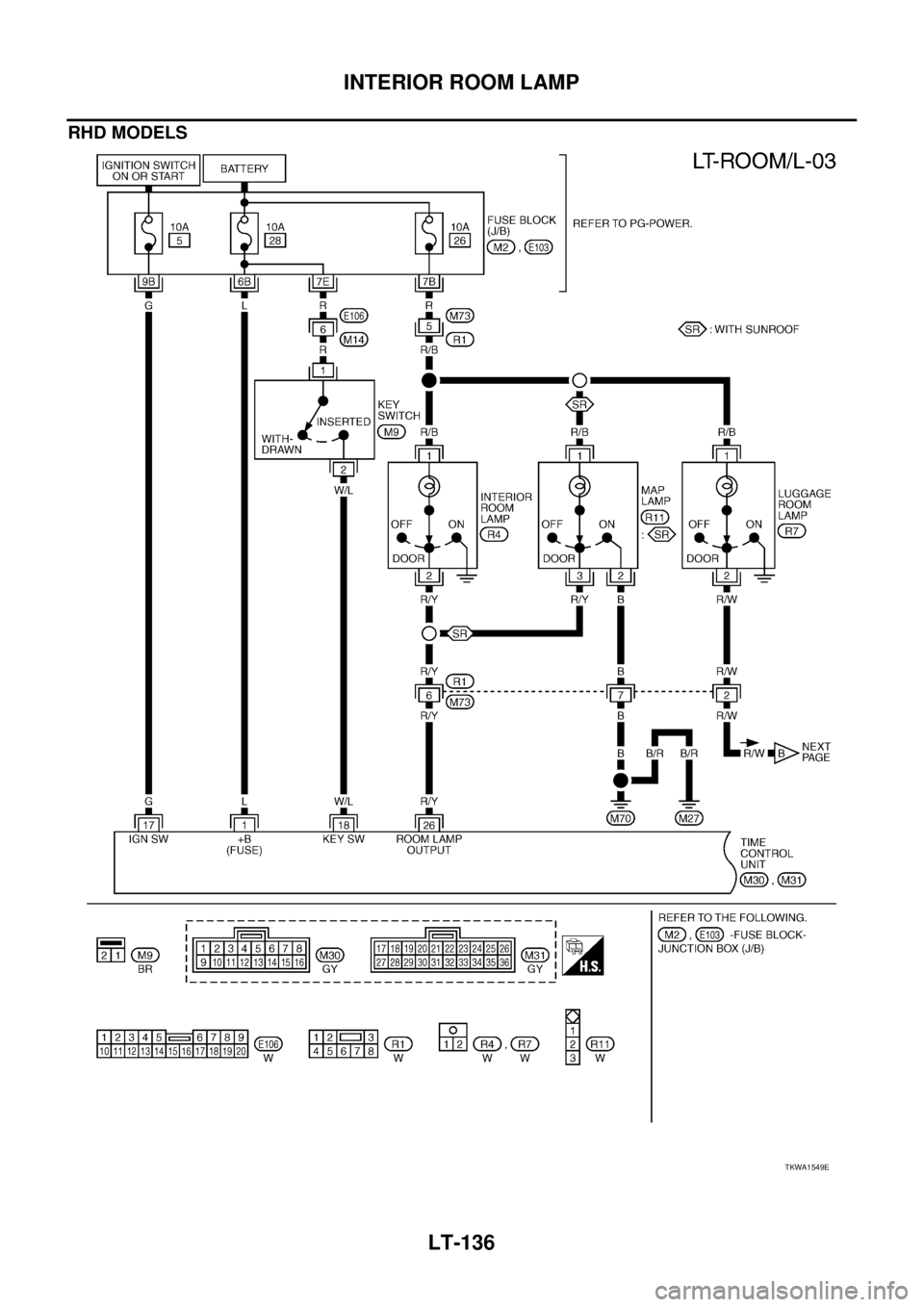

Page 4131 of 4555
INTERIOR ROOM LAMP
LT-135
C
D
E
F
G
H
I
J
L
MA
B
LT
TKWA1548E
Page 4132 of 4555
LT-136
INTERIOR ROOM LAMP

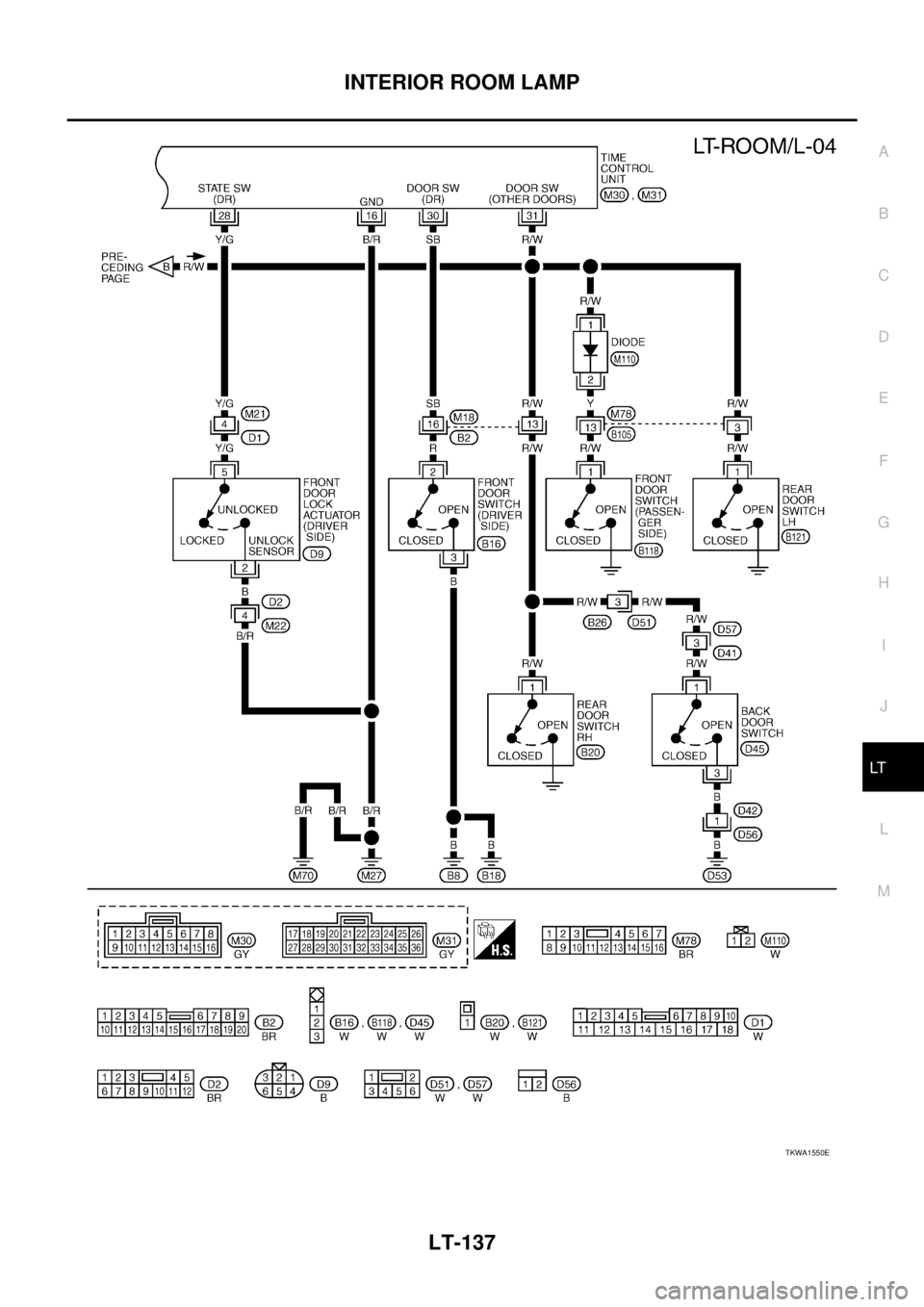

RHD MODELS
