DTC P0628, P0629 FUEL PUMP
EC-1573
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS0122I
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connector.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL PUMP
Refer to EC-1574, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB1943E
Continuity should exist.
Continuity should exist.
Page 1978 of 4555
EC-1574
[YD (WITHOUT EURO-OBD)]
DTC P0628, P0629 FUEL PUMP
Component InspectionEBS0122J
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS0122K
FUEL PUMP
Refer to EM-171, "FUEL PUMP" . Continuity should exist.
SEF807Z
Page 1979 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1575
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0642, P0643 SENSOR POWER SUPPLYPFP:18002
On Board Diagnosis LogicEBS01FE1
The MI will not light up NISSAN X-TRAIL 2005 Service Repair Manual DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1575
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0642, P0643 SENSOR POWER SUPPLYPFP:18002
On Board Diagnosis LogicEBS01FE1
The MI will not light up](/manual-img/5/57403/w960_57403-1978.png)
DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1575
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0642, P0643 SENSOR POWER SUPPLYPFP:18002
On Board Diagnosis LogicEBS01FE1
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS01FE2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1577, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1577, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0642
0642Sensor power supply cir-
cuit low inputECM detects a voltage of power source for sen-
sor is excessively low.
Harness or connectors
(The APP sensor 1 power supply cir-
cuit is shorted.)
Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0643
0643Sensor power supply cir-
cuit high inputECM detects a voltage of power source for Sen-
sor is excessively high.
SEF817Y
Page 1980 of 4555
EC-1576
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY
Wiring DiagramEBS01FE3
TBWA0731E
Page 1981 of 4555
DTC P0642, P0643 SENSOR POWER SUPPLY
EC-1577
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

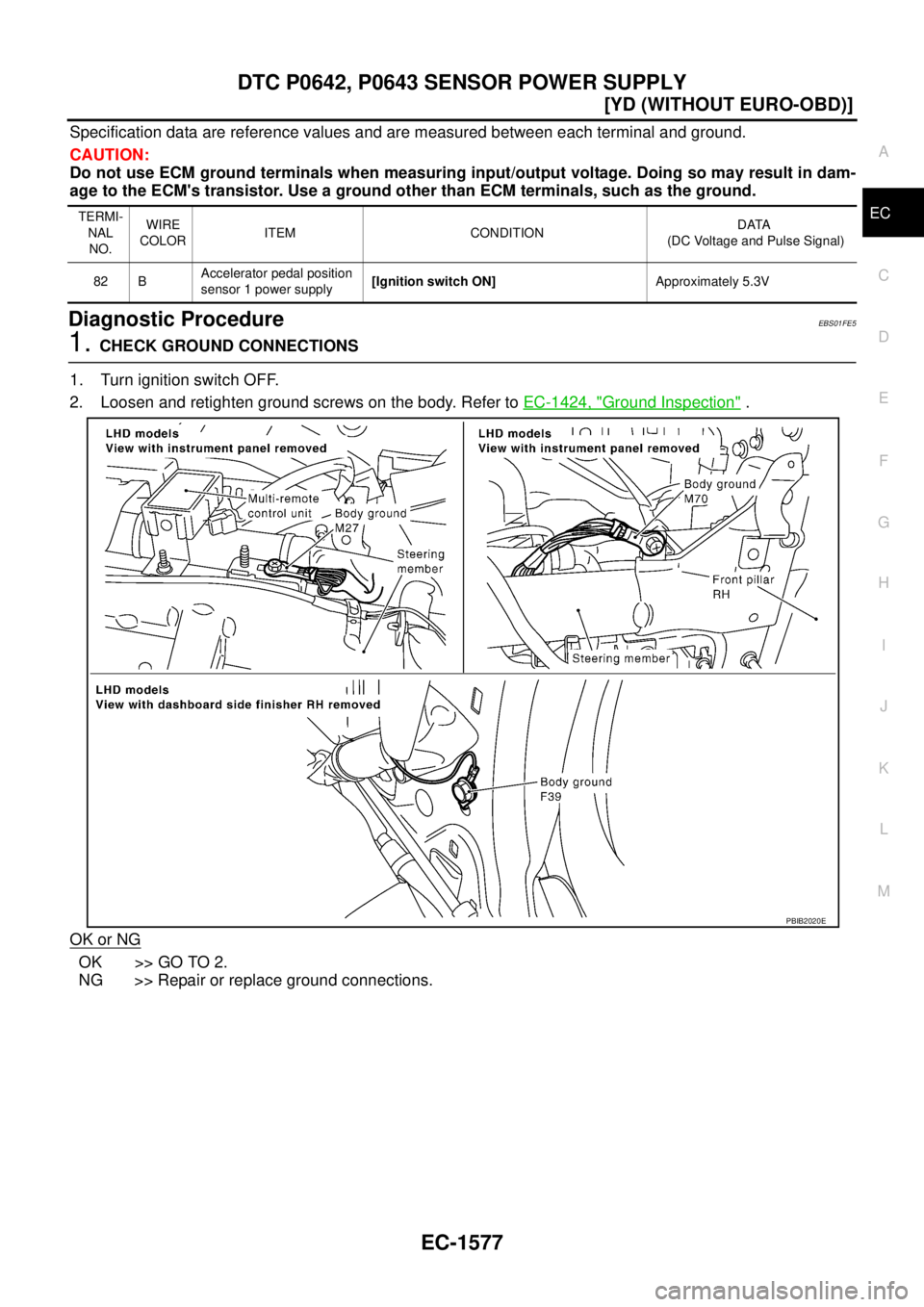

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01FE5
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
PBIB2020E
Page 1982 of 4555
EC-1578
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

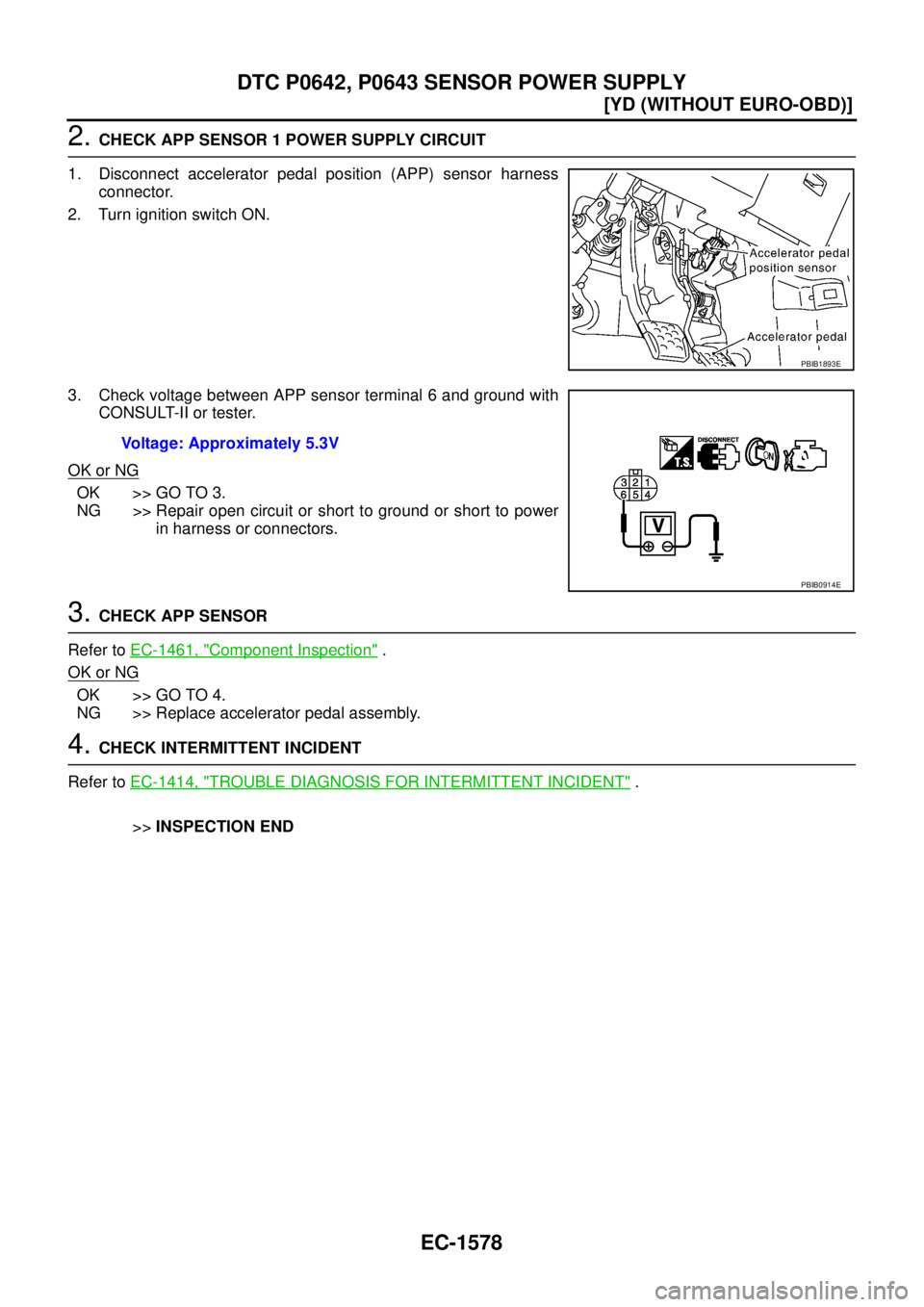

1. Disconnect accelerator pedal position (APP) sensor harness
