Page 4257 of 4555

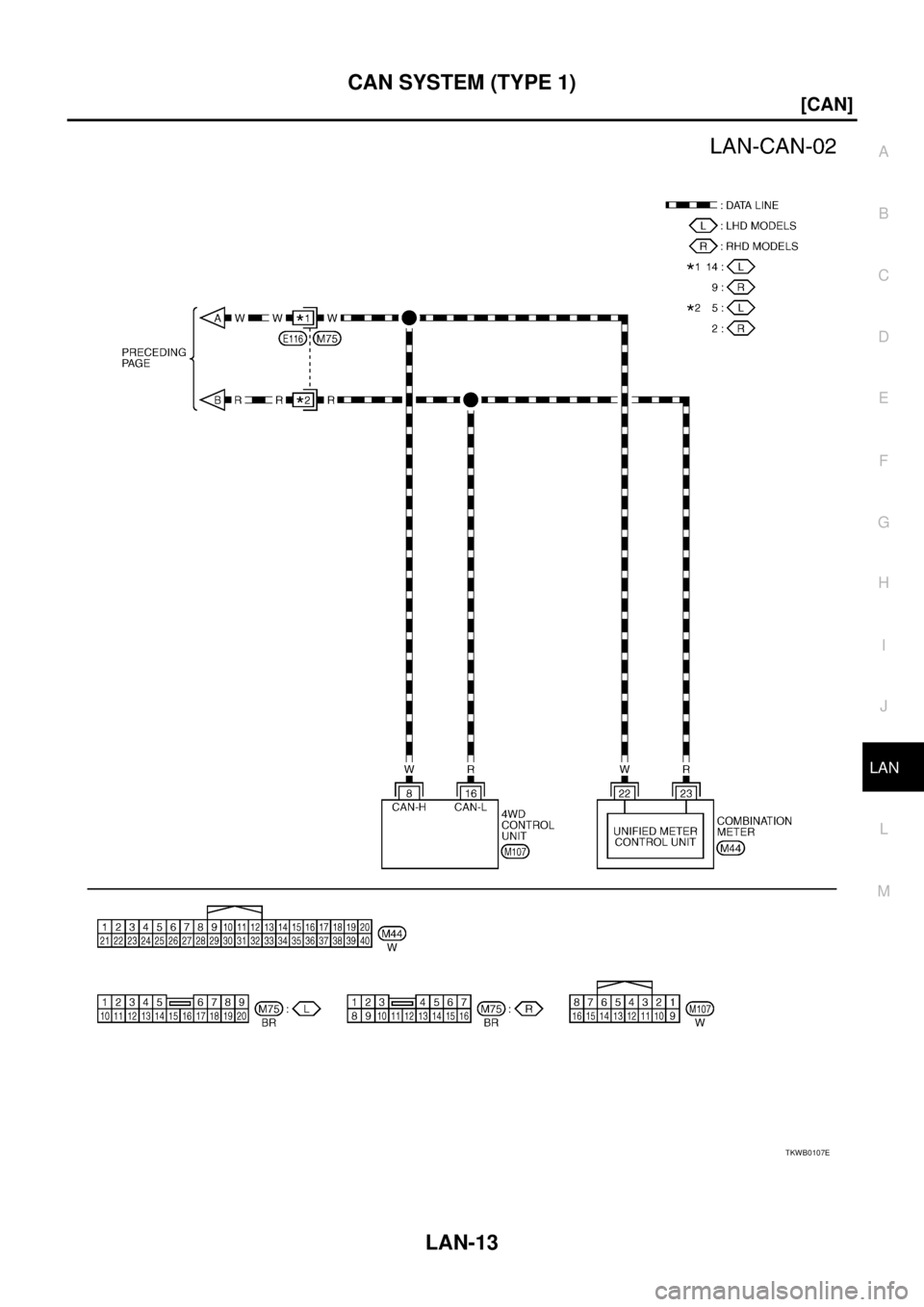

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-13 [CAN] C D E F G H I J L MA B LAN TKWB0107E

Page 4258 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LAN-14 [CAN] CAN SYSTEM (TYPE 1) Work FlowEKS00LU0 1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed on CONSULT-II. 2. Print all the d

Page 4259 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-15 [CAN] C D E F G H I J L MA B LAN CHECK SHEET NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIB9041E

Page 4260 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LAN-16 [CAN] CAN SYSTEM (TYPE 1) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betw

Page 4261 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-17 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer to LAN-22, "ECM Circuit Inspection" . PKIB9043E PKIA6503E

Page 4262 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LAN-18 [CAN] CAN SYSTEM (TYPE 1) Case 3 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-23, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection" . PKIB9044E P

Page 4263 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 1) LAN-19 [CAN] C D E F G H I J L MA B LAN Case 4 Check 4WD control unit circuit. Refer to LAN-23, "4WD Control Unit Circuit Inspection" . PKIB9045E PKIA6505E

Page 4264 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LAN-20 [CAN] CAN SYSTEM (TYPE 1) Case 5 Check combination meter circuit. Refer to LAN-24, "Combination Meter Circuit Inspection" . Case 6 Check CAN communication circuit. Refer to LAN-24, "CAN Commu
