NISSAN X-TRAIL 2005 Service Repair Manual BL-108
NATS (NISSAN ANTI-THEFT SYSTEM)

NATS (NISSAN ANTI-THEFT SYSTEM)PFP:25386
Component Parts and Harness Connector LocationEIS001RQ
PIIA0586E

Page 3691 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM)
BL-109
C
D
E
F
G
H
J
K
L
MA
B
BL

System DescriptionEIS001RR
NATS (Nissan Anti-Theft System) has the following immobilizer functions:
Since only NATS ignition keys, w

NATS (NISSAN ANTI-THEFT SYSTEM)
BL-109
C
D
E
F
G
H
J
K
L
MA
B
BL

System DescriptionEIS001RR
NATS (Nissan Anti-Theft System) has the following immobilizer functions:
Since only NATS ignition keys, whose ID Nos. have been registered into the ECM and IMMU of NATS,
allow the engine to run, a vehicle operation without registered key in NATS is prevented by NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.
This version of NATS has dongle unit to improve its anti-theft performance (RHD models). Dongle unit has
its own ID which is registered into NATS IMMU. So if dongle unit is replaced, initialization must be carried
out.
When malfunction of dongle unit is detected:
The security indicator lamp illuminates for about 15 minutes after ignition switch is turned to ON.
–When dongle unit has a malfunction and the indicator lamp is illuminated, engine can not be started. How-
ever engine can be started only one time when security indicator lamp turns off in about 15 minutes after
ignition switch is turned to ON.
All of the originally supplied ignition key IDs have been registered in NATS.
If requested by the vehicle owner, a maximum of five key IDs can be registered into the NATS compo-
nents.
The security indicator blinks when the ignition switch is in “OFF” or “ACC” position. Therefore, NATS
warns outsiders that the vehicle is equipped with the anti-theft system.
When NATS detects trouble, the security indicator lamp lights up as follows.
NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key IDs
must be carried out using CONSULT-II hardware and CONSULT-II NATS software.
When NATS initialization has been completed, the ID of the inserted ignition key is auto matically regis-
tered in NATS. Then, if necessary, additional registration of other NATS ignition key IDs can be carried
out.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to CONSULT-
II operation manual, NATS.
When servicing a malfunction of the NATS (indicated by lighting up of Security Indicator Lamp) or
registering another NATS ignition key ID No., it may be necessary to re-register original key identi-
fication. Therefore, be sure to receive ALL KEYS from vehicle owner.
Condition IGN ON andWith dongle Without dongle
Security indicator Security indicator
NATS malfunction (except dongle unit) is
detected1. 6 times blinking
2. Staying ON after ignition switch is turned
ONStaying ON
Only malfunction of dongle unit is
detected.Staying ON for about 15 minutes after igni-
tion switch is turned ON—
Malfunction of NATS and engine related
parts are detected.1. 6 times blinking
2. Staying ON after ignition switch is turned
ONStaying ON
Only engine related part malfunction is
detected.——
Just after initialization of NATS 6 times blinking —

Page 3692 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-110
NATS (NISSAN ANTI-THEFT SYSTEM)

System CompositionEIS001RS
The immobilizer function of the NATS consists of the following:
NATS ignition key
NATS immobilizer control unit (IMMU) located in

Page 3693 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM)
BL-111
C
D
E
F
G
H
J
K
L
MA
B
BL

Wiring Diagram — NATS —EIS008F2

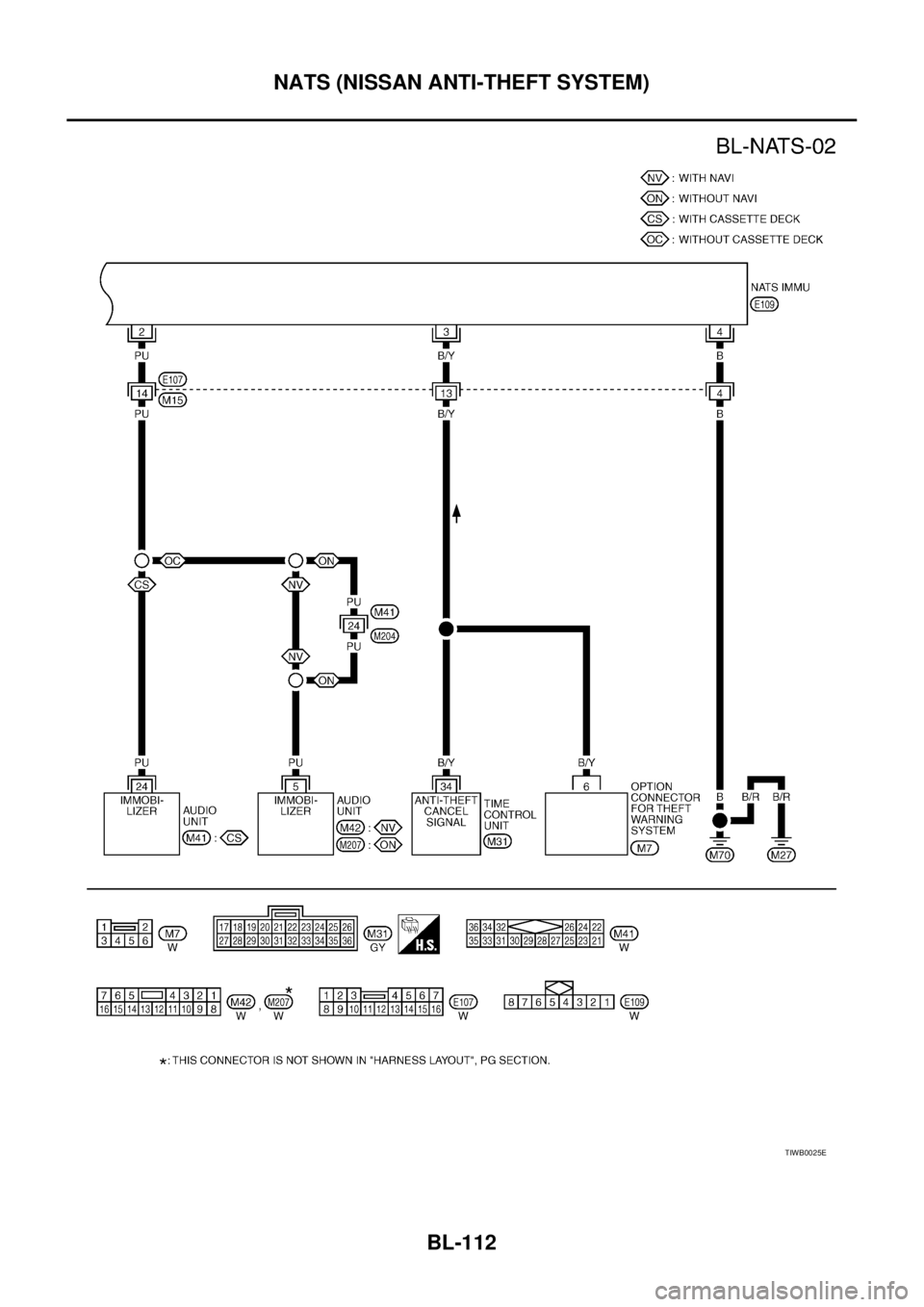

LHD MODELS
TIWA0481E

Page 3694 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-112
NATS (NISSAN ANTI-THEFT SYSTEM)

TIWB0025E

Page 3695 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual NATS (NISSAN ANTI-THEFT SYSTEM)
BL-113
C
D
E
F
G
H
J
K
L
MA
B
BL

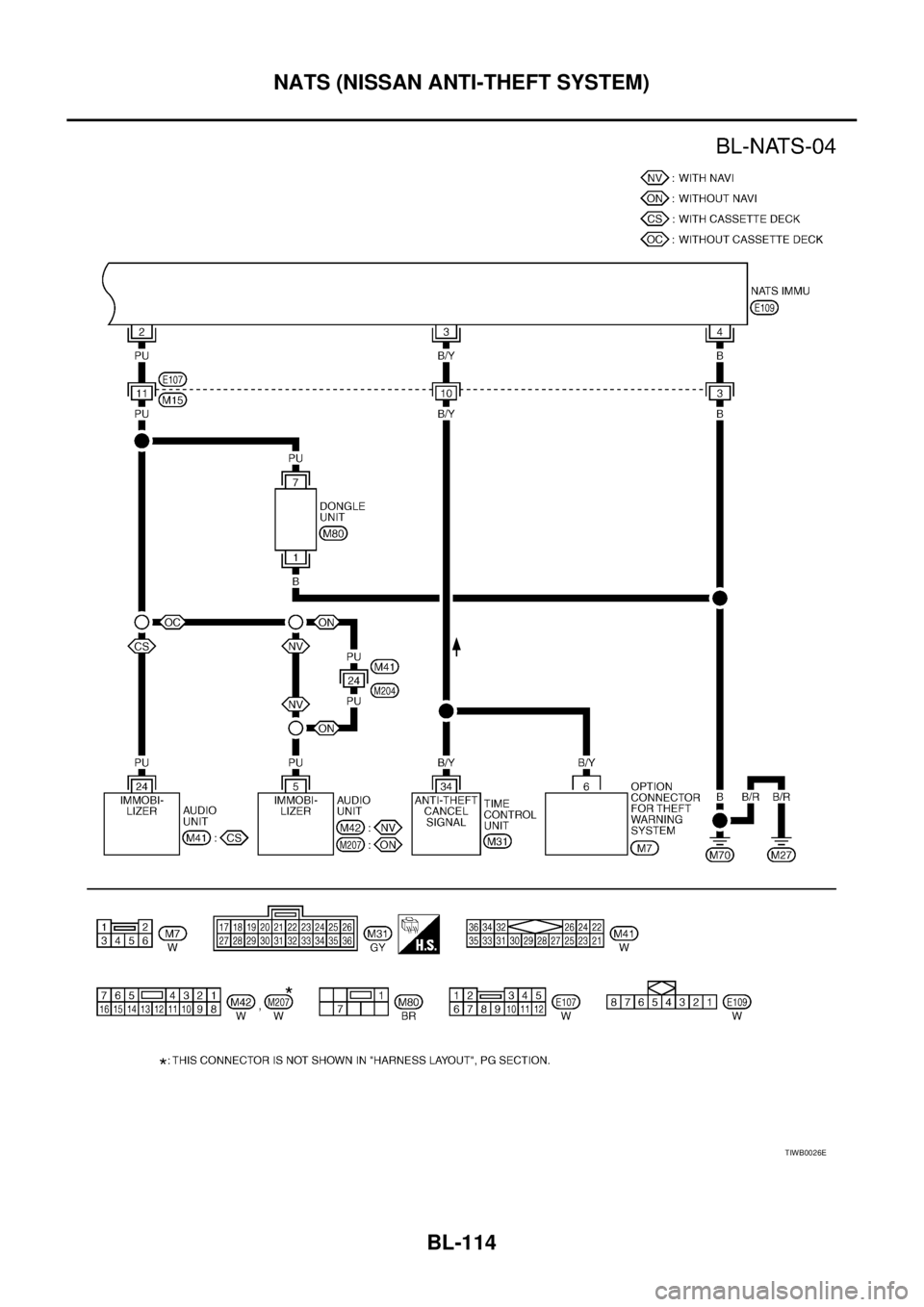

RHD MODELS
TIWA0482E

Page 3696 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-114
NATS (NISSAN ANTI-THEFT SYSTEM)

TIWB0026E
