NISSAN X-TRAIL 2005 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-489 [ALL] D E F G H I J K L MA B AT INSPECTION Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub Check rubbing surfaces for wear or damage. Bearings and Fo

Page 2754 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-490 [ALL] REPAIR FOR COMPONENT PARTS 3. Install thrust washer on rear internal gear. CAUTION: Apply petroleum jelly to thrust washer. Align hooks of thrust washer with holes of rear internal ge

Page 2755 of 4555

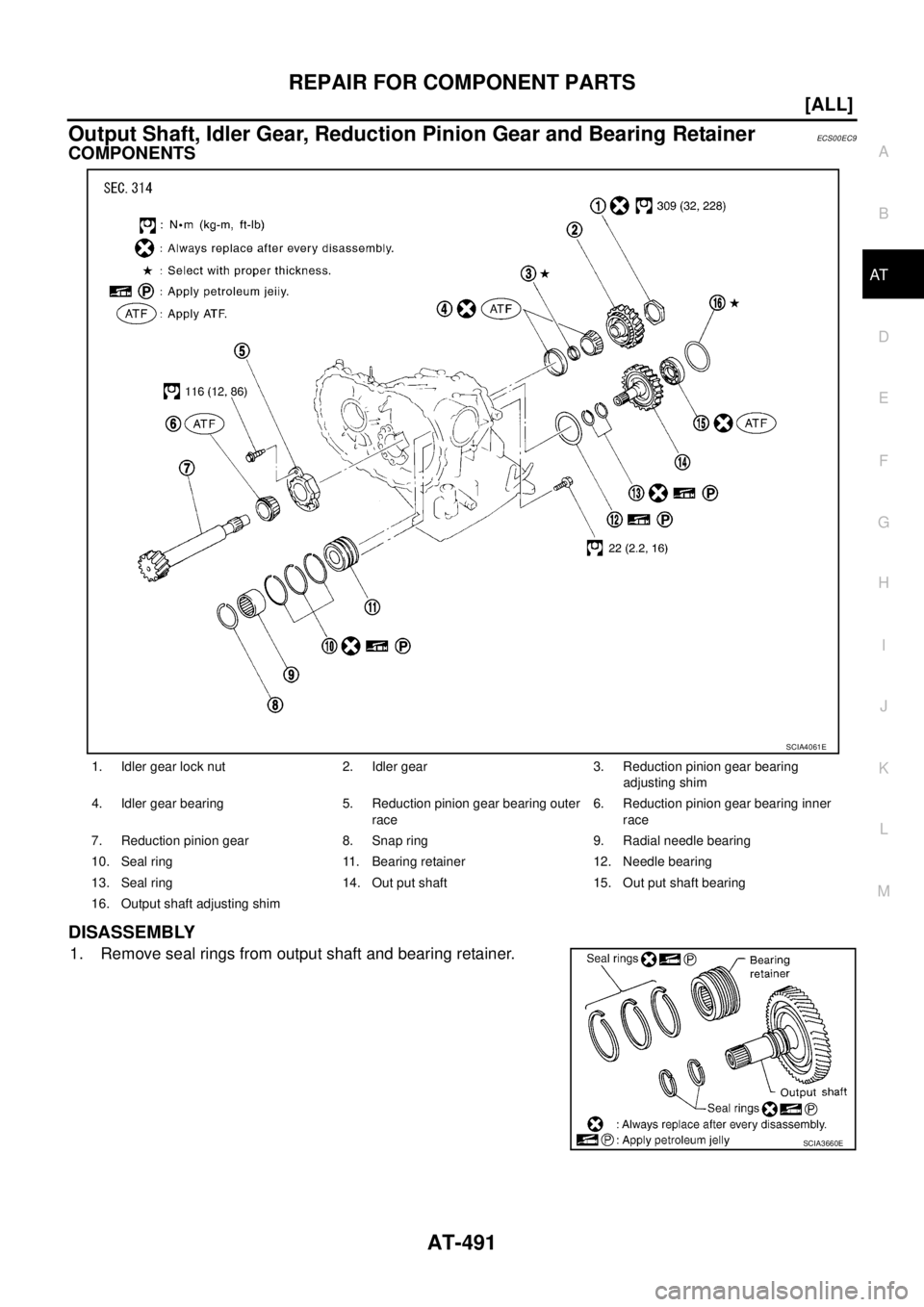

NISSAN X-TRAIL 2005 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-491 [ALL] D E F G H I J K L MA B AT Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing RetainerECS00EC9 COMPONENTS DISASSEMBLY 1. Remove seal rings from output

Page 2756 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-492 [ALL] REPAIR FOR COMPONENT PARTS 2. Remove output shaft bearing with flat-bladed screwdrivers. CAUTION: Always replace bearing with a new one when removed. Do not damage output shaft. 3. Re

Page 2757 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-493 [ALL] D E F G H I J K L MA B AT 7. Press out reduction pinion gear bearing inner race from reduc- tion pinion gear. 8. Remove reduction pinion gear bearing outer ra

Page 2758 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-494 [ALL] REPAIR FOR COMPONENT PARTS If not within allowable limit, replace bearing retainer. ASSEMBLY 1. Press reduction pinion gear bearing inner race on reduction pin- ion gear. CAUTION: Appl

Page 2759 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-495 [ALL] D E F G H I J K L MA B AT 6. Press output shaft bearing on output shaft. CAUTION: Do not reuse output shaft bearing. Apply ATF to output shaft bearing. 7. P

Page 2760 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AT-496 [ALL] REPAIR FOR COMPONENT PARTS CAUTION: Roll paper around seal rings to prevent seal rings from spreading. SAT179F
