2005 NISSAN X-TRAIL seats

CYLINDER HEAD
EM-79
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

6. Apply reamer finish to valve guide with a valve guide reamer
(commercial service tool).
VALVE SEAT CONTACT

After confirming that the dimensions of valve guides and valves
are within specifications, perform this procedure.

Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.

Check if the contact area band is continuous all around the cir-
cumference.

If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has NG conditions even after the re-check,
replace valve seat.
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this. Refer to EM-121, "
Va l v e S e a t" .
2. Ream cylinder head recess diameter for service valve seat.

Be sure to ream in circles concentric to the valve guide center.
This will enable valve seat to fit correctly.
3. Heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in
heated oil.
4. Provide valve seats cooled well with dry ice. Press-fit valve seat into cylinder head.
CAUTION:

Avoid directly to touching cold valve seats.

Cylinder head contains heat, when working, wear protective equipment to avoid getting burned.Standard
Intake and exhaust:
6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E
Oversize [0.5 mm (0.020 in)]
Intake : 37.000 - 37.016 mm (1.4567 - 1.4573 in)
Exhaust : 32.000 - 32.016 mm (1.2598 - 1.2605 in)
SEM795A
SEM008A

EM-98
[QR]
CYLINDER BLOCK


Using a piston ring compressor (special service tool) or suit-
able tool, install piston with the front mark on the piston head
facing the front of the engine.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod
big end.
11. Install connecting rod cap.

Match the stamped cylinder number marks on connecting rod
with those on connecting rod cap to install.
12. Tighten connecting rod bolt with the following procedure:
a. Apply new engine oil to the threads and seats of connecting rod bolts.
b. Tighten bolts.
c. Then turn all bolts 90 degrees clockwise (Angle tightening).
CAUTION:
Check and confirm the tightening angle by using an angle
wrench (special service tool) or protractor. Avoid judge-
ment by visual inspection without the tool.

After tightening connecting rod bolt, make sure that crankshaft rotates smoothly.

Check the connecting rod side clearance. Refer to EM-107, "CONNECTING ROD SIDE CLEARANCE" .
13. Install flywheel (M/T models) or drive plate (A/T models).
CAUTION:
Make sure that dowel pin is installed at the rear end of crankshaft.

When installing flywheel (M/T models) or drive plate (A/T models) to crankshaft, make sure that align
crankshaft side dowel pin with flywheel/drive-plate side dowel pin hole correctly.
CAUTION:
If these are not aligned correctly, engine runs roughly and “MI” turns on.

Secure crankshaft with a stopper plate, and tighten mounting bolts crosswise over several times.
PBIC1619E
PBIC2196E
: 19.6 N·m (2.0 kg-m, 14 ft-lb)
KBIA0068E

CYLINDER HEAD
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

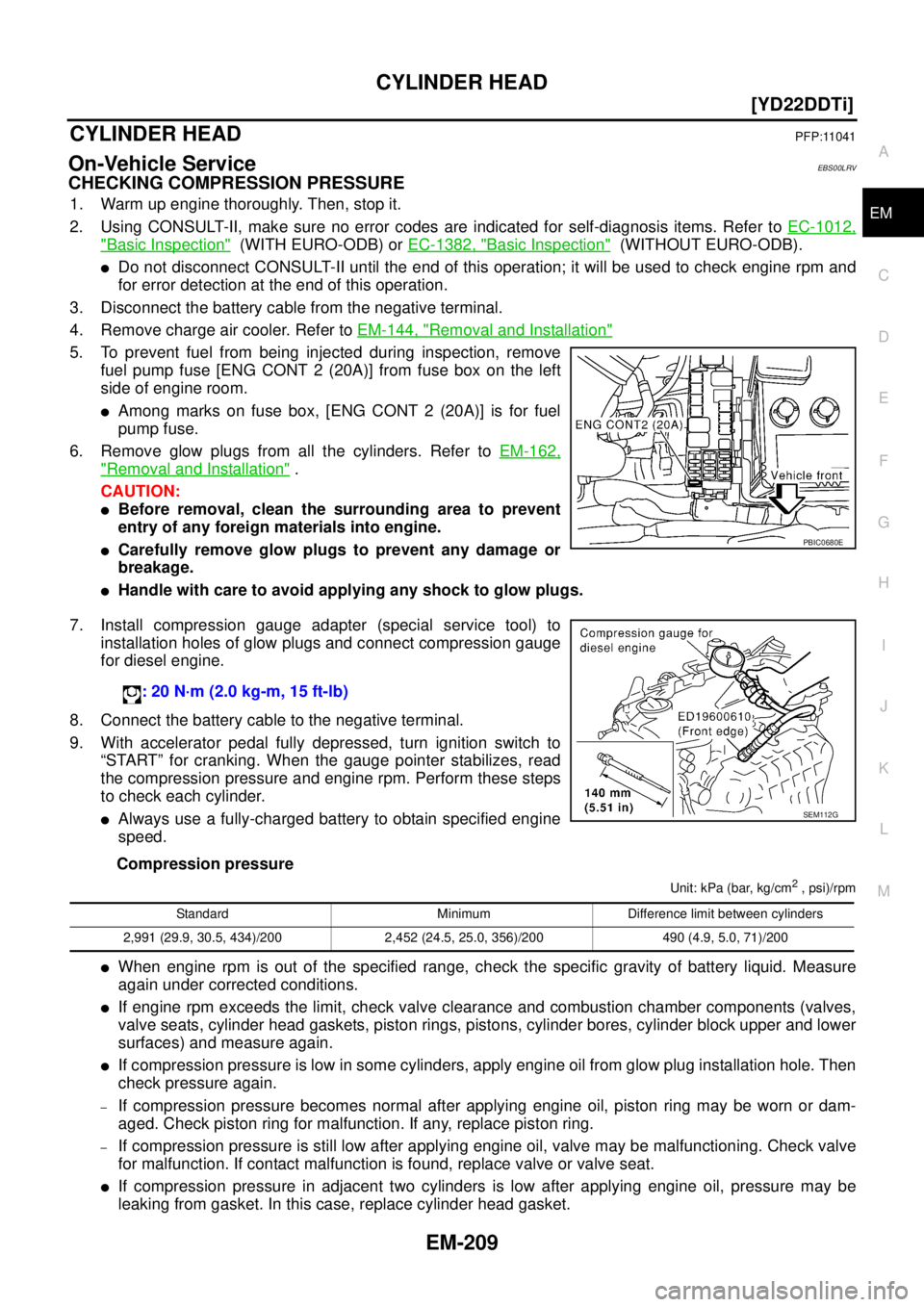

CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00LRV
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Using CONSULT-II, make sure no error codes are indicated for self-diagnosis items. Refer to EC-1012,
"Basic Inspection" (WITH EURO-ODB) or EC-1382, "Basic Inspection" (WITHOUT EURO-ODB).

Do not disconnect CONSULT-II until the end of this operation; it will be used to check engine rpm and
for error detection at the end of this operation.
3. Disconnect the battery cable from the negative terminal.
4. Remove charge air cooler. Refer to EM-144, "
Removal and Installation"
5. To prevent fuel from being injected during inspection, remove
fuel pump fuse [ENG CONT 2 (20A)] from fuse box on the left
side of engine room.

Among marks on fuse box, [ENG CONT 2 (20A)] is for fuel
pump fuse.
6. Remove glow plugs from all the cylinders. Refer to EM-162,
"Removal and Installation" .
CAUTION:

Before removal, clean the surrounding area to prevent
entry of any foreign materials into engine.

Carefully remove glow plugs to prevent any damage or
breakage.

Handle with care to avoid applying any shock to glow plugs.
7. Install compression gauge adapter (special service tool) to
installation holes of glow plugs and connect compression gauge
for diesel engine.
8. Connect the battery cable to the negative terminal.
9. With accelerator pedal fully depressed, turn ignition switch to
“START” for cranking. When the gauge pointer stabilizes, read
the compression pressure and engine rpm. Perform these steps
to check each cylinder.

Always use a fully-charged battery to obtain specified engine
speed.
Compression pressure
Unit: kPa (bar, kg/cm2 , psi)/rpm

When engine rpm is out of the specified range, check the specific gravity of battery liquid. Measure
again under corrected conditions.

If engine rpm exceeds the limit, check valve clearance and combustion chamber components (valves,
valve seats, cylinder head gaskets, piston rings, pistons, cylinder bores, cylinder block upper and lower
surfaces) and measure again.

If compression pressure is low in some cylinders, apply engine oil from glow plug installation hole. Then
check pressure again.
–If compression pressure becomes normal after applying engine oil, piston ring may be worn or dam-
aged. Check piston ring for malfunction. If any, replace piston ring.
–If compression pressure is still low after applying engine oil, valve may be malfunctioning. Check valve
for malfunction. If contact malfunction is found, replace valve or valve seat.

If compression pressure in adjacent two cylinders is low after applying engine oil, pressure may be
leaking from gasket. In this case, replace cylinder head gasket.
PBIC0680E
: 20 N·m (2.0 kg-m, 15 ft-lb)
SEM112G
Standard Minimum Difference limit between cylinders
2,991 (29.9, 30.5, 434)/200 2,452 (24.5, 25.0, 356)/200 490 (4.9, 5.0, 71)/200

EM-216
[YD22DDTi]
CYLINDER HEAD

NOTE:

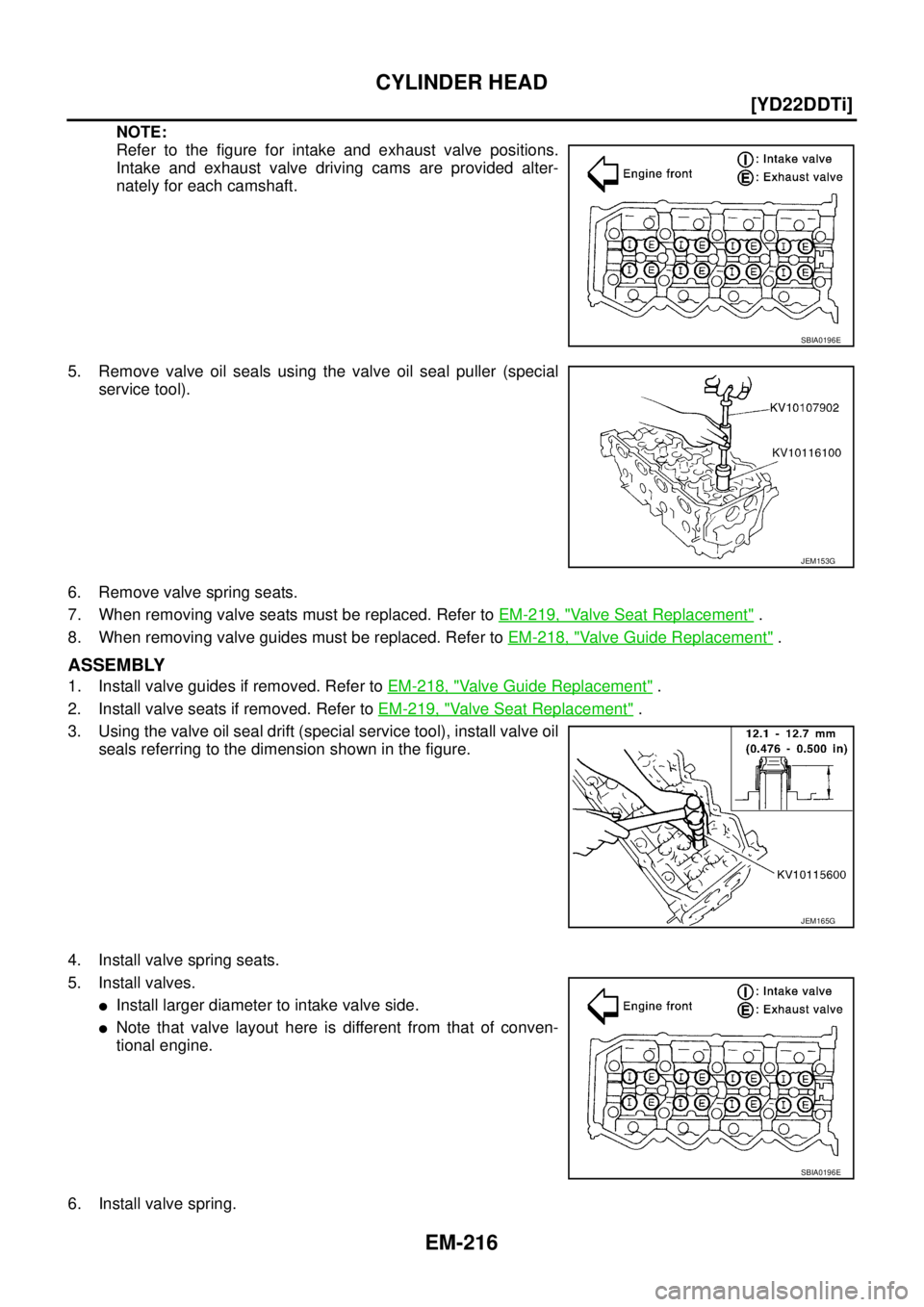

Refer to the figure for intake and exhaust valve positions.
Intake and exhaust valve driving cams are provided alter-
nately for each camshaft.
5. Remove valve oil seals using the valve oil seal puller (special
service tool).
6. Remove valve spring seats.
7. When removing valve seats must be replaced. Refer to EM-219, "
Valve Seat Replacement" .
8. When removing valve guides must be replaced. Refer to EM-218, "
Valve Guide Replacement" .
ASSEMBLY
1. Install valve guides if removed. Refer to EM-218, "Valve Guide Replacement" .
2. Install valve seats if removed. Refer to EM-219, "
Valve Seat Replacement" .
3. Using the valve oil seal drift (special service tool), install valve oil
seals referring to the dimension shown in the figure.
4. Install valve spring seats.
5. Install valves.

Install larger diameter to intake valve side.

Note that valve layout here is different from that of conven-
tional engine.
6. Install valve spring.
SBIA0196E
JEM153G
JEM165G
SBIA0196E

EM-220
[YD22DDTi]
CYLINDER HEAD

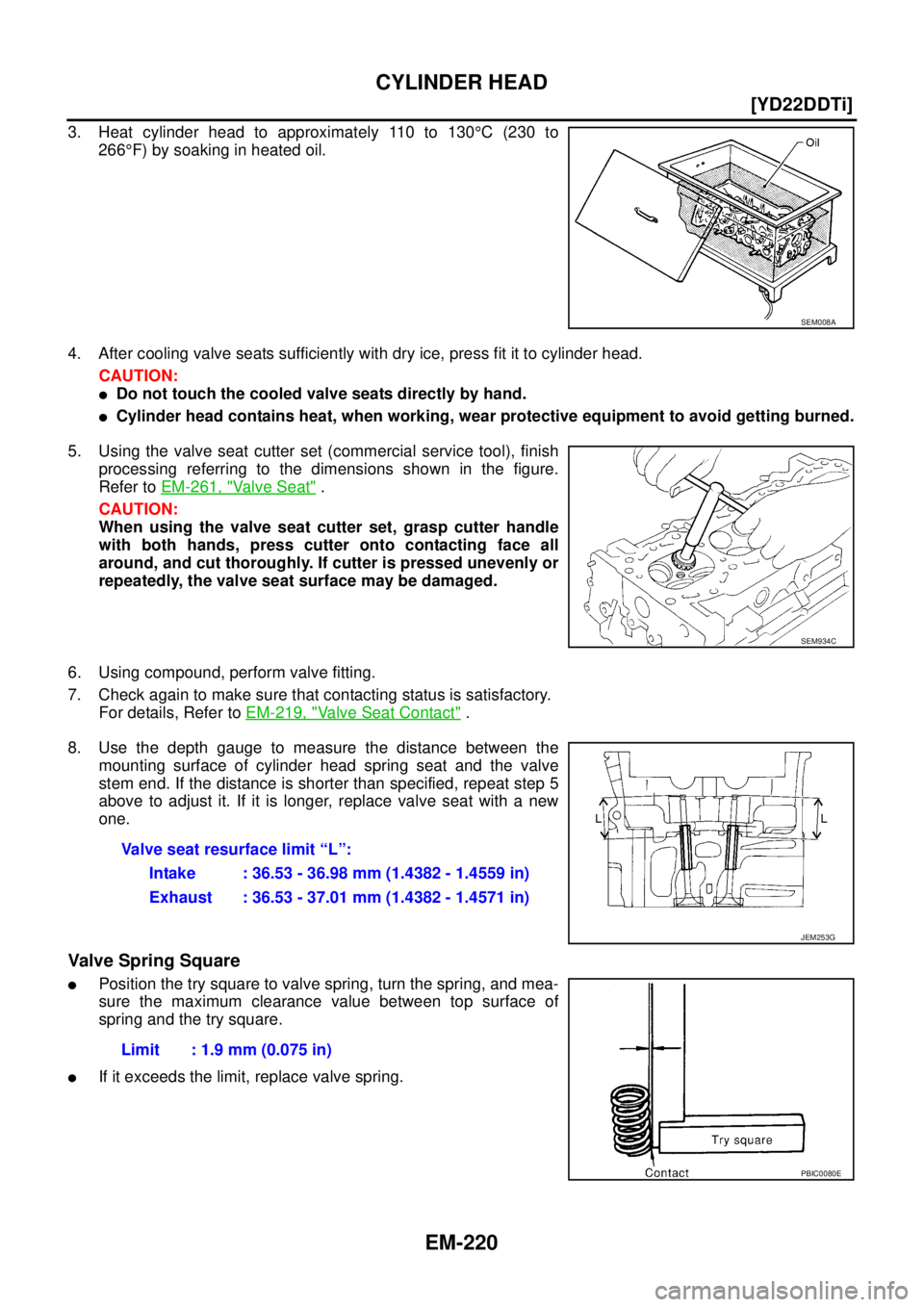

3. Heat cylinder head to approximately 110 to 130°C (230 to
266°F) by soaking in heated oil.
4. After cooling valve seats sufficiently with dry ice, press fit it to cylinder head.
CAUTION:

Do not touch the cooled valve seats directly by hand.

Cylinder head contains heat, when working, wear protective equipment to avoid getting burned.
5. Using the valve seat cutter set (commercial service tool), finish
processing referring to the dimensions shown in the figure.
Refer to EM-261, "
Va l v e S e a t" .
CAUTION:
When using the valve seat cutter set, grasp cutter handle
with both hands, press cutter onto contacting face all
around, and cut thoroughly. If cutter is pressed unevenly or
repeatedly, the valve seat surface may be damaged.
6. Using compound, perform valve fitting.
7. Check again to make sure that contacting status is satisfactory.
For details, Refer to EM-219, "
Valve Seat Contact" .
8. Use the depth gauge to measure the distance between the
mounting surface of cylinder head spring seat and the valve
stem end. If the distance is shorter than specified, repeat step 5
above to adjust it. If it is longer, replace valve seat with a new
one.
Valve Spring Square

Position the try square to valve spring, turn the spring, and mea-
sure the maximum clearance value between top surface of
spring and the try square.

If it exceeds the limit, replace valve spring.
SEM008A
SEM934C
Valve seat resurface limit “L”:
Intake : 36.53 - 36.98 mm (1.4382 - 1.4559 in)
Exhaust : 36.53 - 37.01 mm (1.4382 - 1.4571 in)
JEM253G
Limit : 1.9 mm (0.075 in)
PBIC0080E

EC-242
[QR (WITH EURO-OBD)]
DTC P0300 - P0304 MULTIPLE CYLINDER MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE

5. CHECK IGNITION SPARK
1. Stop engine.
2. Disconnect ignition coil assembly from rocker cover.
3. Disconnect spark plug from ignition coil assembly.
4. Connect a known-good spark plug to the ignition coil assembly.
5. Disconnect all injector harness connectors.
6. Place end of spark plug against a suitable ground and crank engine.
7. Check for spark.
OK or NG
OK >> GO TO 6.
NG >> Check ignition coil, power transistor and their circuits.
Refer to EC-440, "
IGNITION SIGNAL" .
6. CHECK SPARK PLUGS
Remove the spark plugs and check for fouling, etc.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace spark plug(s) with standard type
one(s). For spark plug type, refer to MA-26, "
Checking
and Changing Spark Plugs" .
7. CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-70, "
CHECKING COMPRESSION PRESSURE" .
OK or NG
OK >> GO TO 8.
NG >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
8. CHECK FUEL PRESSURE
1. Install all removed parts.
2. Release fuel pressure to zero. Refer to EC-49, "
FUEL PRESSURE RELEASE" .
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-49, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
SEF575Q
SEF156I
Standard:
1,190 kPa (11.9 bar, 12.1 kg/cm2 , 172 psi)/250 rpm
Minimum:
990 kPa (9.9 bar, 10.1 kg/cm
2 , 144 psi)/250 rpm
Difference between each
cylinder:98 kPa (0.98 bar, 1.0 kg/cm
2 , 14 psi)/250 rpm
At idle: Approx. 350 kPa (3.5 bar, 3.57 kg/cm
2 , 51 psi)

TF-72
TRANSFER ASSEMBLY

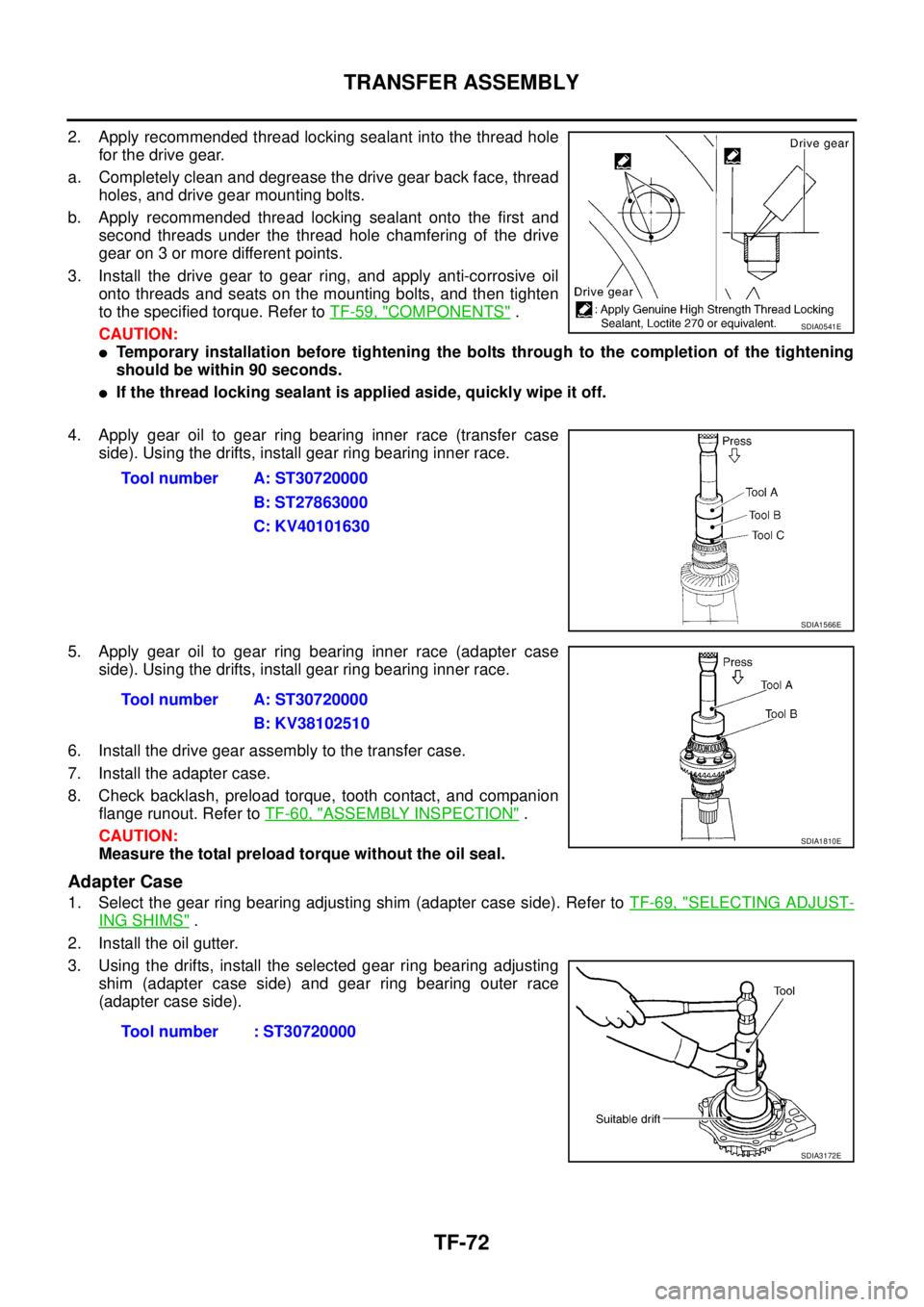

2. Apply recommended thread locking sealant into the thread hole
for the drive gear.
a. Completely clean and degrease the drive gear back face, thread
holes, and drive gear mounting bolts.
b. Apply recommended thread locking sealant onto the first and
second threads under the thread hole chamfering of the drive
gear on 3 or more different points.
3. Install the drive gear to gear ring, and apply anti-corrosive oil
onto threads and seats on the mounting bolts, and then tighten
to the specified torque. Refer to TF-59, "
COMPONENTS" .
CAUTION:

Temporary installation before tightening the bolts through to the completion of the tightening
should be within 90 seconds.

If the thread locking sealant is applied aside, quickly wipe it off.

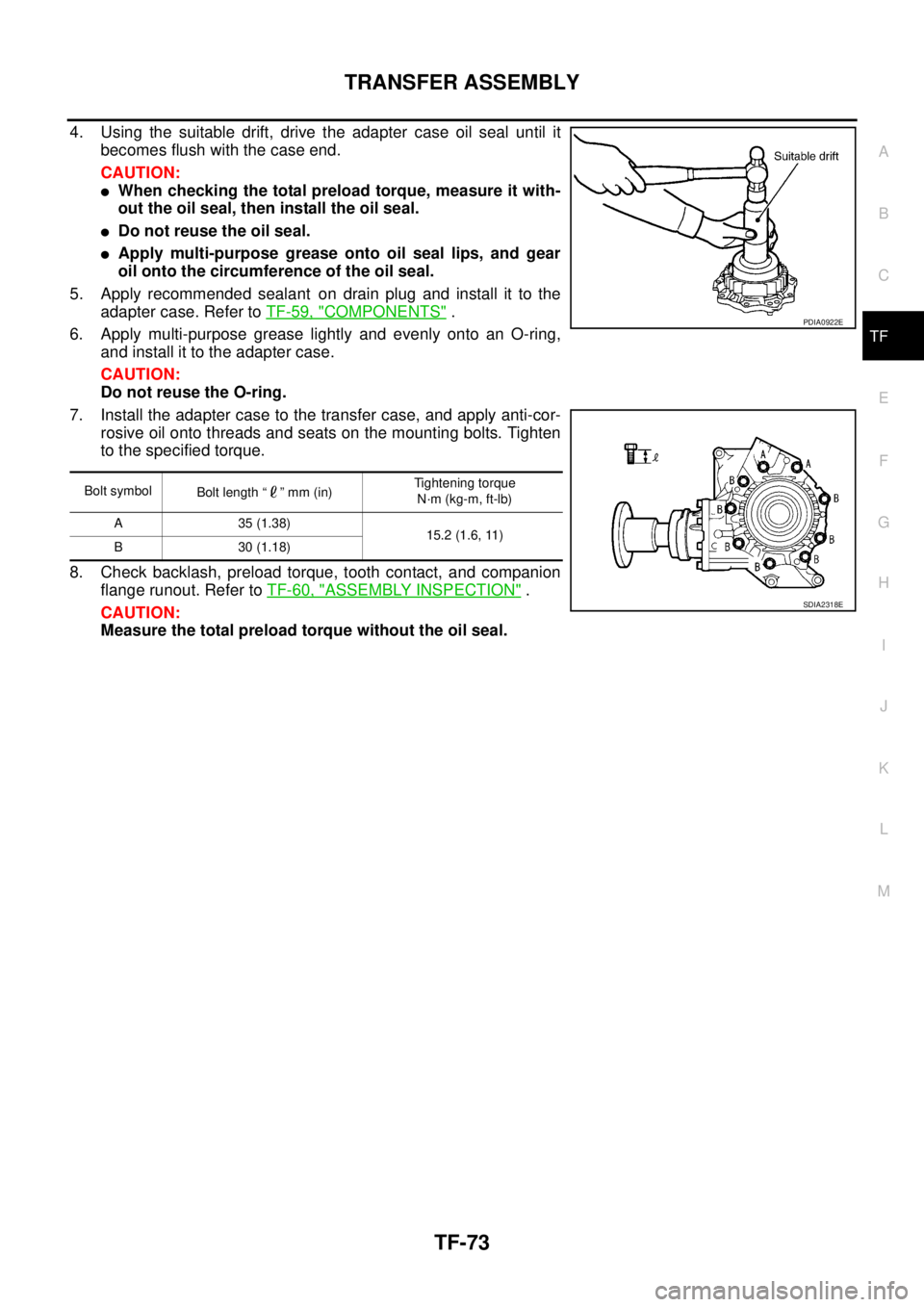

4. Apply gear oil to gear ring bearing inner race (transfer case
side). Using the drifts, install gear ring bearing inner race.
5. Apply gear oil to gear ring bearing inner race (adapter case
side). Using the drifts, install gear ring bearing inner race.
6. Install the drive gear assembly to the transfer case.
7. Install the adapter case.
8. Check backlash, preload torque, tooth contact, and companion
flange runout. Refer to TF-60, "
ASSEMBLY INSPECTION" .
CAUTION:
Measure the total preload torque without the oil seal.
Adapter Case
1. Select the gear ring bearing adjusting shim (adapter case side). Refer to TF-69, "SELECTING ADJUST-
ING SHIMS" .
2. Install the oil gutter.
3. Using the drifts, install the selected gear ring bearing adjusting
shim (adapter case side) and gear ring bearing outer race
(adapter case side).
SDIA0541E
Tool number A: ST30720000
B: ST27863000
C: KV40101630
SDIA1566E
Tool number A: ST30720000
B: KV38102510
SDIA1810E
Tool number : ST30720000
SDIA3172E

TRANSFER ASSEMBLY
TF-73
C
E
F
G
H
I
J
K
L
MA
B
TF

4. Using the suitable drift, drive the adapter case oil seal until it
becomes flush with the case end.
CAUTION:

When checking the total preload torque, measure it with-
out the oil seal, then install the oil seal.

Do not reuse the oil seal.

Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of the oil seal.
5. Apply recommended sealant on drain plug and install it to the
adapter case. Refer to TF-59, "
COMPONENTS" .
6. Apply multi-purpose grease lightly and evenly onto an O-ring,
and install it to the adapter case.
CAUTION:
Do not reuse the O-ring.
7. Install the adapter case to the transfer case, and apply anti-cor-
rosive oil onto threads and seats on the mounting bolts. Tighten
to the specified torque.
8. Check backlash, preload torque, tooth contact, and companion
flange runout. Refer to TF-60, "
ASSEMBLY INSPECTION" .
CAUTION:
Measure the total preload torque without the oil seal.
Bolt symbol
Bolt length “ ” mm (in)Tightening torque
N·m (kg-m, ft-lb)
A 35 (1.38)
15.2 (1.6, 11)
B 30 (1.18)
PDIA0922E
SDIA2318E
