FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
through front wiper and washer switch terminal 14
through wiper amp.
The wiper motor operates at low speed at the desired interval.
WASHER OPERATION
With the ignition switch in the ON or START position, power is supplied
through 20A fuse [No. 6, located in fuse block (J/B)]
to front washer motor terminal 1.
Ground is supplied
to front wiper and washer switch terminal 17
through grounds E24 and E50.
When the washer switch is pulled to the ON position, ground is supplied
to front washer motor terminal 2
through front wiper and washer switch terminal 18
through front wiper and washer switch terminal 17, and
through grounds E24 and E50.
With power and ground supplied, the washer motor operates.
When the washer switch is pulled to the ON position for one second or more, the wiper motor operates at low
speed for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the
same manner as the intermittent operation.
Page 4218 of 4555
WW-6
FRONT WIPER AND WASHER SYSTEM
Wiring Diagram — WIPER —EKS0032O
TKWA1554E
Page 4219 of 4555
FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW
Wiring Diagram — WIPER —/LHD modelsEKS00ES7
TKWA1555E
Page 4220 of 4555

WW-8
FRONT WIPER AND WASHER SYSTEM
Terminal and Reference Values for Combination SwitchEKS0032P
Removal and Installation of Front Wiper Arms, Adjustment for Wiper Arms Stop
Location
EKS0032Q
1. Prior to front wiper arm installation, turn on wiper switch to oper-
ate front wiper motor and then turn it “OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” & “L2” immediately before
tightening nut.
3. Eject washer fluid. Turn on front wiper switch to operate front
wiper motor and then turn it “OFF”.
4. Ensure that front wiper blades stop within clearance “L1” & “L2”.
Tighten front wiper arm nuts to specified torque.
Before reinstalling front wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of front wiper arm loose-
ness.
Terminal
No.Wire
colorSignal name Measuring condition
Reference value
Ignition switch Condition or operation
13 L/YWiper auto
Stop signalONWiper is moving Approx. 0V
Wiper while the vehicle is stopped Battery voltage
14 LWiper motor
Operation signal (LO)ON Wiper switchOFF Battery voltage
LO Approx. 0V
15 Y/G Ignition switch (ON) ON — Battery voltage
16 L/BWiper motor
Operation signal (HI)ON Wiper switchOFF Battery voltage
HI Approx. 0V
17 B/W Ground OFF — —
18 G Washer switch signal ON Wiper switchWASH Approx. 0V
OFF Battery voltage
PKIA5548E
Clearance “L1” : 49.2 - 64.2 mm (1.937 - 2.528 in)
Clearance “L2” : 39.3 - 54.3 mm (1.547 - 2.138 in)
Front wiper arm nut
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PKIA5763E
SEL024J
Page 4221 of 4555
FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation of Front Wiper Drive Assembly EKS0032R
REMOVAL
1. Operate wiper motor, and stop it at the upper limit position.
2. Remove front wiper arm from the vehicle.
3. Remove the cowl top cover. Refer to EI-20, "
COWL TOP" .

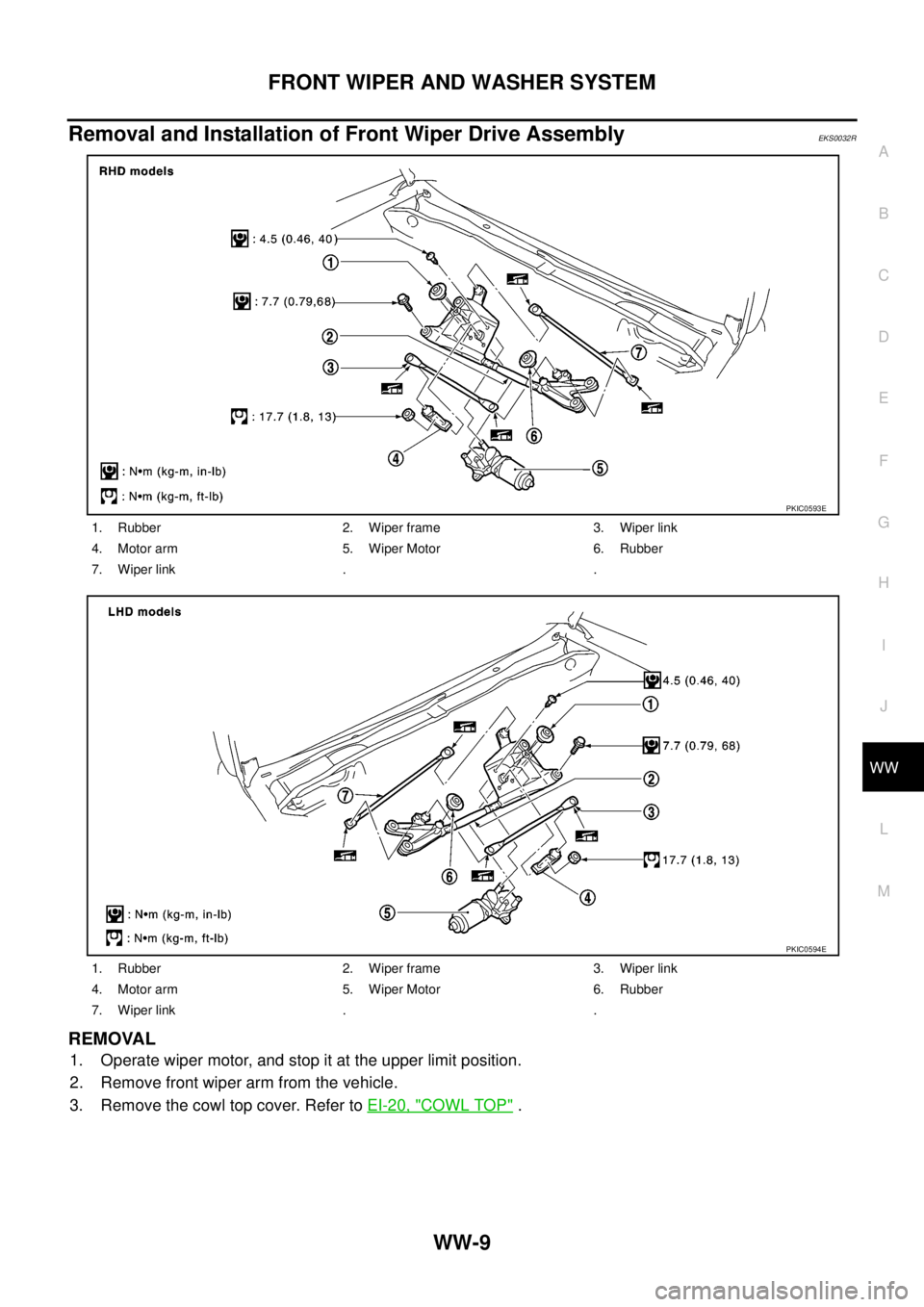

1. Rubber 2. Wiper frame 3. Wiper link
