CAN SYSTEM (TYPE 6)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN Communication Circuit InspectionEKS00LVX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–TCM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M61.
2. Check continuity between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M61.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M61. 94 (G/R) - 86 (GY/R) : Continuity should not exist.
PKIA9592E
94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E
Page 4370 of 4555
LAN-126
[CAN]
CAN SYSTEM (TYPE 6)
4. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect TCM connector.
2. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R) and 6 (GY/R).
3. Disconnect harness connector M75.
4. Check continuity between harness connector M61 terminals 21
(L/R) and 8 (B/W).
RHD models
1. Disconnect TCM connector and harness connector F36.
2. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R) and 6 (GY/R).
OK or NG
OK >> GO TO 5.
NG >>
LHD models
Check the following harness. If any harness is dam-
aged, repair the harness.
–Harness between TCM and harness connector F41
–Harness between harness connector M61 and har-
ness connector M75
RHD models
–Repair harness between TCM and harness connector F36. 5 (G/R) - 6 (GY/R) : Continuity should not exist.
SKIB0094E
21 (L/R) - 8 (B/W) : Continuity should not exist.
SKIB0096E
5 (G/R) - 6 (GY/R) : Continuity should not exist.
SKIB0094E
Page 4371 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
5. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and gro NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
5. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and gro](/manual-img/5/57403/w960_57403-4370.png)
CAN SYSTEM (TYPE 6)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
5. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
2. Check continuity between harness connector M61 terminals 21
(L/R), 8 (B/W) and ground.
RHD models
Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
OK or NG
OK >> GO TO 6.
NG >>
LHD models
Check the following harness. If any harness is dam-
aged, repair the harness.
–Harness between TCM and harness connector F41
–Harness between harness connector M61 and harness connector M75
RHD models
–Repair harness between TCM and harness connector F36. 5 (G/R) - Ground : Continuity should not exist.
6 (GY/R) - Ground : Continuity should not exist.
SKIB0099E
21 (L/R) - Ground : Continuity should not exist.
8 (B/W) - Ground : Continuity should not exist.
SKIB0100E
5 (G/R) - Ground : Continuity should not exist.
6 (GY/R) - Ground : Continuity should not exist.
SKIB0099E
Page 4372 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-128
[CAN]
CAN SYSTEM (TYPE 6)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connect NISSAN X-TRAIL 2005 Service Repair Manual LAN-128
[CAN]
CAN SYSTEM (TYPE 6)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connect](/manual-img/5/57403/w960_57403-4371.png)
LAN-128
[CAN]
CAN SYSTEM (TYPE 6)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
RHD models
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> GO TO 7.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector E122 terminals 61 (W), 63 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116. 61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - Ground : Continuity should not exist.
63 (R) - Ground : Continuity should not exist.
PKIA9633E
Page 4373 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector](/manual-img/5/57403/w960_57403-4372.png)
CAN SYSTEM (TYPE 6)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
–Combination meter connector
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and steering
angle sensor
Harness between combination meter and harness connector M75
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and steering angle sensor
Harness between combination meter and harness connector M75
10. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-129, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-107, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LVY
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Remove ECM and combination meter from vehicle.
Check resistance between ECM terminals 94 and 86.
Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E
Page 4374 of 4555
LAN-130
[CAN]
CAN SYSTEM (TYPE 7)
CAN SYSTEM (TYPE 7)PFP:23710
System DescriptionEKS00NKZ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Component Parts and Harness Connector LocationEKS00NL0
SKIB0327E
Page 4375 of 4555
CAN SYSTEM (TYPE 7)
LAN-131
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

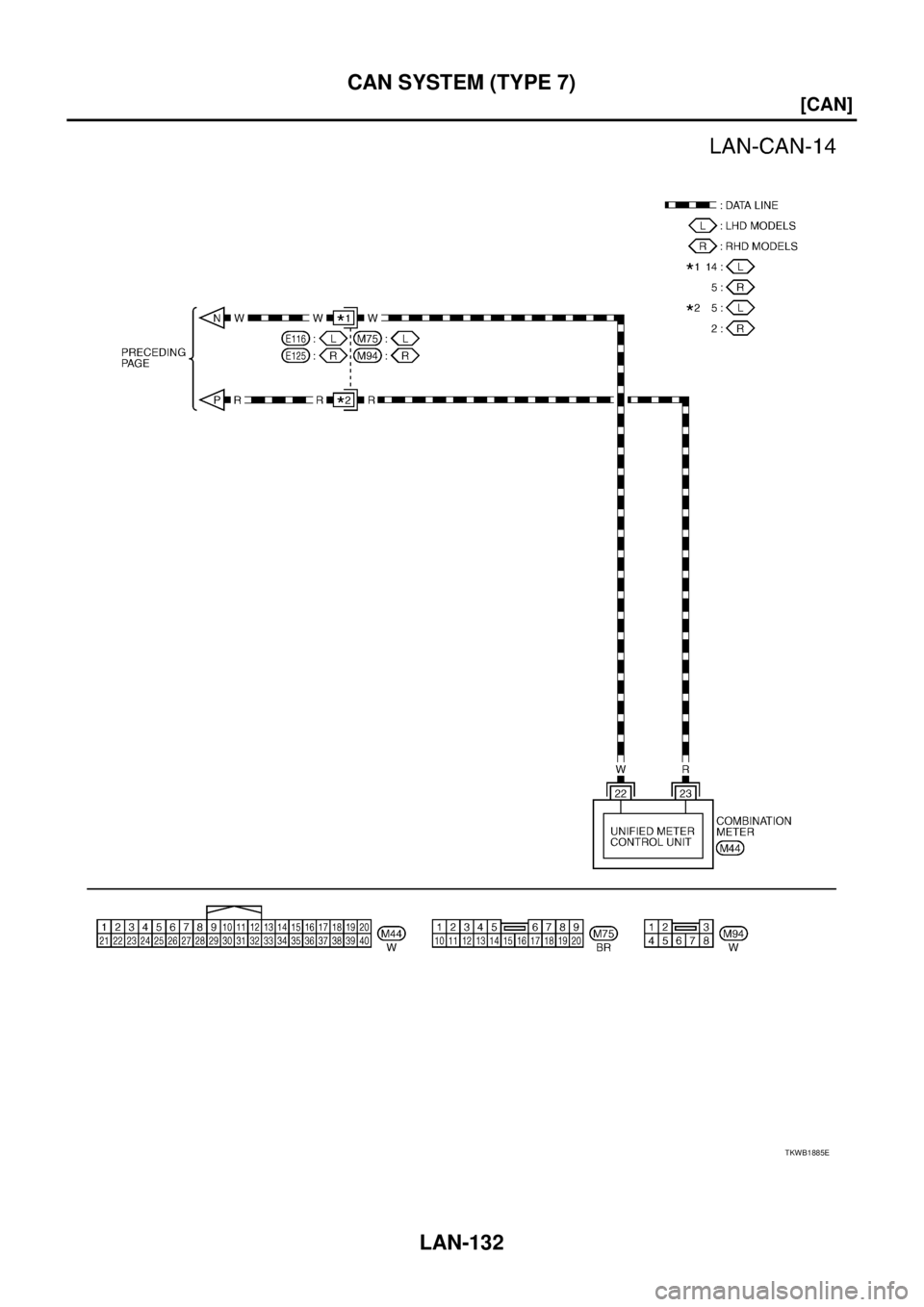

Wiring Diagram — CAN —EKS00NL1
