HEADLAMP - CONVENTIONAL TYPE -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
ADJUSTING
1. Set the distance between the screen and the center of the driving lamp lens as shown in the figure.
2. Turn head lamp switch high and driving lamp switch ON so that front driving lamps turn ON.
3. Adjust driving lamps using adjusting screws make sure of the following.
When performing this adjustment, cover the headlamps and the opposite driving lamp, if necessary.
Vertical deflection of maximum illuminance point to be adjusted to stand at 218mm (8.58in) below driv-
ing lamp height (h).
Horizontal deflection of maximum illuminance point to be adjusted to stand within 0 ± 125mm (0 ±
4.92in) against line (V) on screen where a line passing through driving lamp center, parallel to vehicle
center line, cross screen.
Bulb Replacement of Headlamp and Clearance lampEKS00N5D
HEAD LAMP
1. Disconnect headlamp connector.
2. Remove rubber cap.
3. Unlock retaining spring, then remove bulb.
4. Installation is the reverse order of removal.
CLEARANCE LAMP
1. Turn bulb socket counterclockwise and unlock them.
2. Remove the bulb from its socket.
PKIC0980E
Headlamp (High/Low) : 12V - 60/55 W(H4)
SKIA0073E
Page 4034 of 4555

LT-38
HEADLAMP - CONVENTIONAL TYPE -
3. Installation is the reverse of order removal.
CAUTION:
Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off. Burning may result.
When replacing bulb, prepare new bulb first of all. Never leave bulb out of headlamp housing for a
long period, because dust, moisture or smoke will cause performance lowering (fouling, cloud,
etc.) of headlamp reflector and lens.
When bulb is installed, be sure to lock rubber cap to ensure watertightness.
Bulb Replacement of Driving LampEKS00N5E
1. Remove the driving lamp. Refer to LT- 3 9 , "Removal and Installa-
tion of Driving Lamp" in “HEADLAMP”.
2. Disconnect driving lamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Installation is the reverse order of removal.
CAUTION:
Never touch the glass of bulb directly by hand. Keep
grease and other oily matters away from it. Never touch
bulb by hand while it is lit or right after being turned off.
Burning may result.
When replacing bulb, prepare new bulb first of all. Never leave bulb out of driving lamp housing
for a long period, because dust, moisture or smoke will cause performance lowering (fouling,
cloud, etc.) of driving lamp reflector and lens.
Removal and Installation of HeadlampEKS00N5F
REMOVAL
1. Remove the front turn signal lamps. Refer toLT- 9 4 , "Removal
and Installation of Front Turn Signal Lamp" .
2. Disconnect headlamp and clearance lamp connector.
3. Remove the front grille. Refer to EI-19, "
FRONT GRILLE" in
“EXTERIOR & INTERIOR (EI)” section.
4. Remove the headlamp mounting bolts.
5. Pull the headlamp forward the vehicle.
INSTALLATION
Installation is the reverse order of removal.Clearance lamp : 12V - 5W
Driving lamp : 12 V - 65 W (H1R1)
PKIA3396E
PKIA5555E
Headlamp mounting bolts
: 5.5 N·m (0.56 kg-m, 49 in-lb)
Page 4035 of 4555
HEADLAMP - CONVENTIONAL TYPE -
LT-39
C
D
E
F
G
H
I
J
L
MA
B
LT
Removal and Installation of Driving LampEKS00N5G
REMOVAL
1. Remove cap (front) and cap (rear).
2. Remove driving lamp mounting nut.
3. Pull the front of driving lamp toward upper side so that undo the
pin from the roof panel.
4. Remove rear end of driving lamp from roof rail.
5. Pull out driving lamp from vehicle and disconnect connector.
INSTALLATION
Installation is the reverse order of removal.
1. Cap (rear) 2. Driving lamp assembly 3. Nut
4. Cap (front) 5. Driving lamp bracket 6. Grommet
7. Roof rail
PKIC0925E
PKIA3400E
Driving lamp mounting nut
: 5.5 N·m (0.56 kg-m, 49 in-lb)
Page 4036 of 4555
LT-40
HEADLAMP - CONVENTIONAL TYPE -
CAUTION:
Make sure the pawl shown in figure be connected correctly.
Removal and Installation for Driving Lamp SwitchEKS00N5H
1. Remove the Instrument lower driver panel. Refer to IP-11,
"Removal and Installation" in “INSTRUMENT PANEL ASSEM-
BLY (IP)” section.
2. Press the driving lamp switch fixing pawls and remove it from
the Instrument lower driver panel.
PKIA3398E
PKIA3399E
PKIA7164E
Page 4037 of 4555

HEADLAMP (WITH DAYTIME) - XENON TYPE -
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP (WITH DAYTIME) - XENON TYPE -PFP:26010
System DescriptionEKS00N5I
DESCRIPTION
The headlamp system on vehicles for North Europe contains a daytime light control unit. The unit activates the
following whenever the engine is running with the lighting switch in the OFF position:
Low beam headlamps
Parking, license plate and tail lamps, and illumination.
Power is supplied at all times
through 10A fuse (No. 31, located in fuse and fusible link box)
to daytime light control unit terminal 1, and
to lighting switch terminal 11,
through 15A fuse (No. 41, located in fuse and fusible link box)
to daytime light control unit terminal 3, and
to lighting switch terminal 5,
through 15A fuse (No. 40, located in fuse and fusible link box)
to daytime light control unit terminal 2, and
to lighting switch terminal 8,
through 30A fusible link (letter M, located in fuse and fusible link box)
through 20A fuse (No. 52, located in fuse block)
to daytime light relay LH terminal 5, and
through 20A fuse (No. 51, located in fuse block)
to daytime light relay RH terminal 5,
through 15A fuse (No. 38, located in fuse and fusible link box)
to driving lamp relay-1 terminal 3.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 13, located in fuse block (J/B)]
to daytime light control unit terminal 7,
through 10A fuse [No. 11, located in fuse block (J/B)]
through combination meter terminal 2
through combination meter terminal 5
to daytime light control unit terminal 8.
With the ignition switch in the START position, power is supplied
through 10A fuse [No. 7, located in the fuse block (J/B)]
to daytime light control unit terminal 6.
Ground is supplied
to daytime light control unit terminal 9
through grounds E24 and E50.
LOW BEAM OPERATION (DAYTIME LIGHT SYSTEM CANCEL OPERATION)
When the lighting switch is turned to the 1ST or 2ND position, power is supplied
through lighting switch terminal 12
to daytime light control unit terminal 11,
through lighting switch terminal 10
to daytime light relay LH terminal 1,
through lighting switch terminal 7
to daytime light relay RH terminal 1,
through daytime light relay LH and RH terminal 3
to headlamp LH and RH terminal 2.
Ground is supplied
Page 4038 of 4555

LT-42
HEADLAMP (WITH DAYTIME) - XENON TYPE -
to daytime light relay LH and RH terminal 2
through grounds E24 and E50,
to headlamp LH and RH terminal 4
through grounds E24 and E50.
With power and ground supplied, low beam headlamps illuminate.
HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION
When the lighting switch is turned to the 2ND position and placed in HIGH BEAM position or PASSING posi-
tion, power is supplied
through lighting switch terminal 9
to headlamp LH terminal 1
to combination meter terminal 20, and
to daytime light relay LH terminal 1,
through lighting switch terminal 6
to headlamp RH terminal 1, and
to daytime light relay RH terminal 1,
through daytime light relay LH and RH terminal 3
to headlamp LH and RH terminal 2.
Ground is supplied
to daytime light relay LH and RH terminal 2
through grounds E24 and E50,
to headlamp LH and RH terminal 3, and
to headlamp LH and RH terminal 4
through grounds E24 and E50,
to combination meter terminal 19
through grounds M27 and M70.
With power and ground supplied, low beam and high beam headlamps, and HIGH BEAM indicator illuminate.
DAYTIME LIGHT SYSTEM OPERATION
With the engine running and the lighting switch in the OFF position, power is supplied
from alternator terminal 3
to daytime light control unit terminal 8,
through daytime light control unit terminal 5
to daytime light relay LH terminal 1,
through daytime light control unit terminal 4
to daytime light relay RH terminal 1,
through daytime light relay LH and RH terminal 3
to headlamp LH and RH terminal 2,
through daytime light control unit terminal 10
to parking, license plate and tail lamps, and illumination.
Ground is supplied
to daytime light relay LH and RH terminal 2
through grounds E24 and E50,
to headlamp LH and RH terminal 4
through grounds E24 and E50.
With power and ground supplied, low beam headlamps, parking, license plate and tail lamps, and illumination
illuminate.
DRIVING LAMP OPERATION
To illuminate the driving lamp, push the driving lamp switch when the lighting switch is turned to the 2ND posi-
tion and placed in HIGH BEAM position or PASSING position, power is supplied
through lighting switch terminal 9
Page 4039 of 4555

HEADLAMP (WITH DAYTIME) - XENON TYPE -
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT
to headlamp LH terminal 1
to combination meter terminal 20
to daytime light relay LH terminal 1
to driving lamp relay-1 terminal 1
to driving lamp switch terminal 7, and
to driving lamp relay-2 terminal 5,
through lighting switch terminal 6
to headlamp RH terminal 1, and
to daytime light relay RH terminal 1,
through driving lamp relay-2 terminal 3
to driving lamp switch terminal 6,
through driving lamp relay-1 terminal 5
to driving lamp LH and RH terminal 2,
through daytime light relay LH and RH terminal 3
to headlamp LH and RH terminal 2.
Ground is supplied
to driving lamp relay-1 terminal 2
through driving lamp relay-2 terminal 7
through driving lamp relay-2 terminal 6
through grounds E24 and E50,
to driving lamp switch terminal 4
through driving lamp relay-2 terminal 1
through driving lamp relay-2 terminal 2
through grounds E24 and E50,
to driving lamp LH terminal 1
through ground R8,
to driving lamp RH terminals 1 and 3
through ground R8,
to headlamp LH and RH terminal 3, and
to headlamp LH and RH terminal 4
through grounds E24 and E50,
to combination meter terminal 19
through grounds M27 and M70.
With power and ground supplied, low beam and high beam headlamps, driving lamp and the HIGH BEAM indi-
cator illuminate.
XENON HEADLAMP
Xenon type lamps are used for to the low beam headlamps. Xenon bulbs do not use a filament. Instead, they
produce light when a high voltage current is passed between two tungsten electrodes through a mixture of
xenon (an inert gas) and certain other metal halides. In addition to strong lighting power, electronic control of
the power supply gives the headlamps stable quality and tone color.
Followings are some advantages of the xenon type headlamp.
The light produced by the headlamps is white color similar to sunlight that is easy to the eyes.
Light output is nearly double that of halogen headlamps, affording increased area of illumination.
Counter-reflected luminance increases and the contrast enhances on the wet road in the rain. That makes
visibility go up more than the increase of the light volume.
Power consumption is approximately 25 percent less than halogen headlamps, reducing battery load.
Page 4040 of 4555
LT-44
HEADLAMP (WITH DAYTIME) - XENON TYPE -

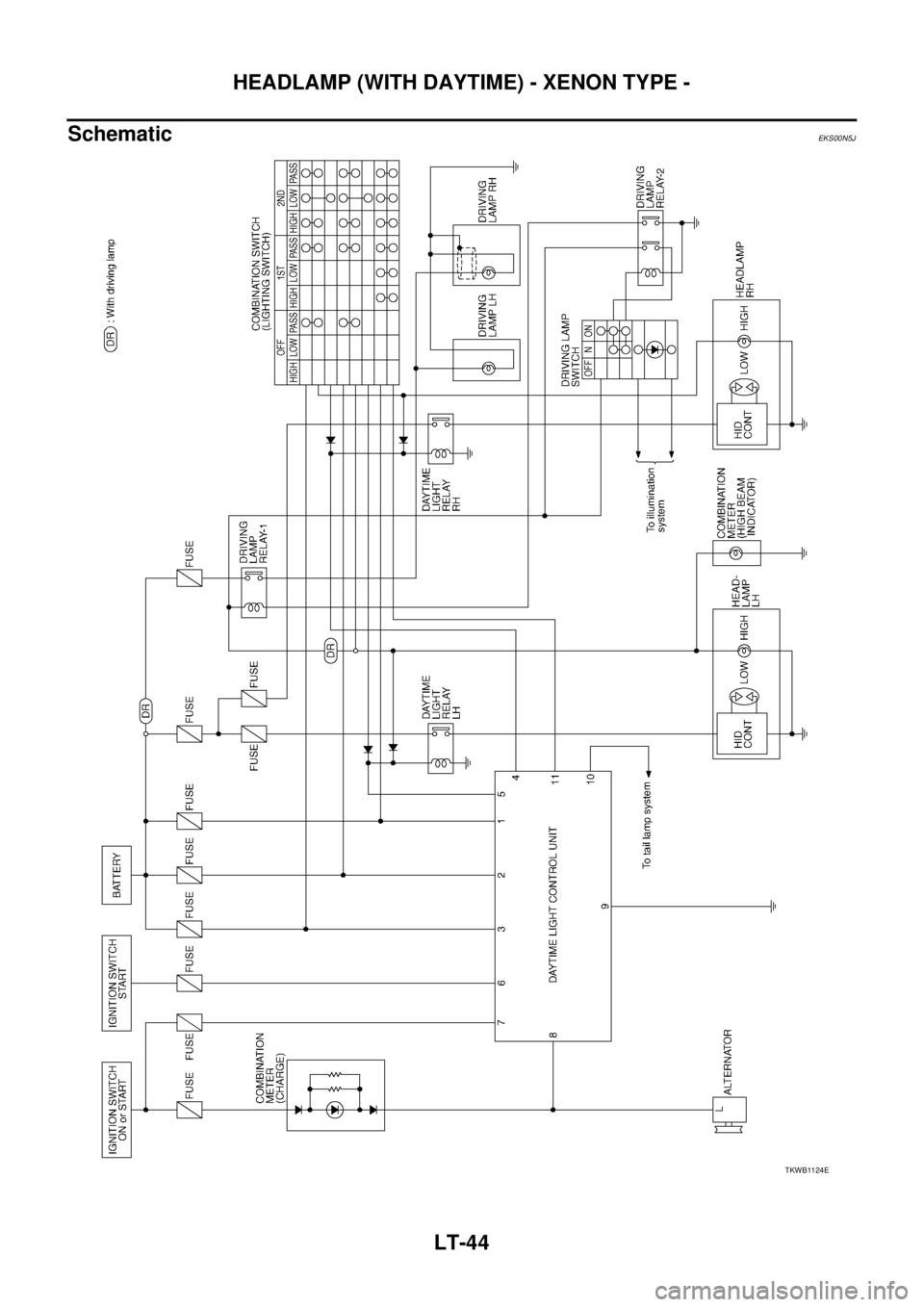

SchematicEKS00N5J
TKWB1124E
