Page 4049 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - LT-53 C D E F G H I J L MA B LT to driving lamp relay-1 terminal 2 through driving lamp relay-2 terminal 7 through driving lamp relay-2 terminal 6 t

Page 4050 of 4555

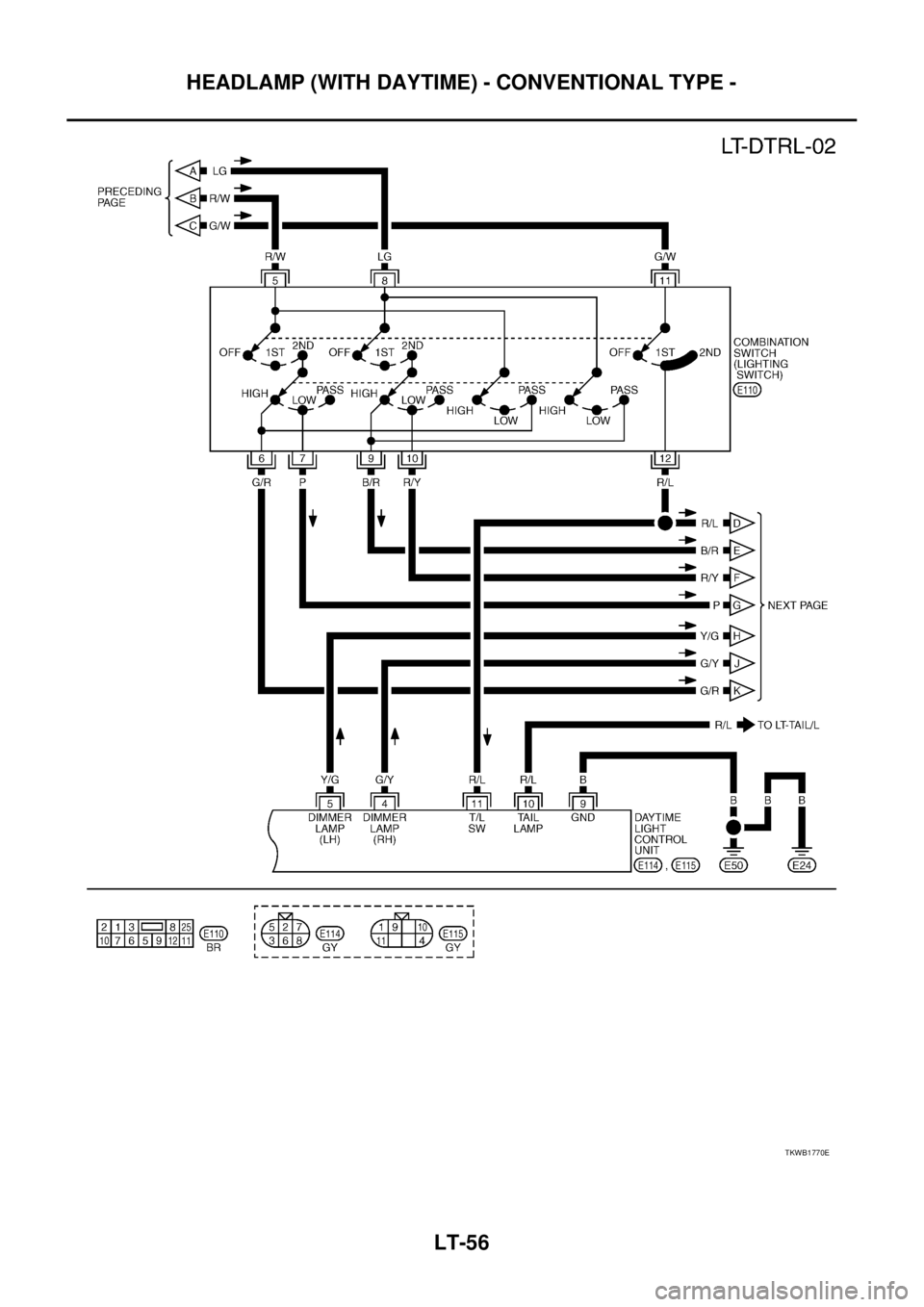

NISSAN X-TRAIL 2005 Service Repair Manual LT-54 HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - SchematicEKS00N5Q TKWA1521E

Page 4051 of 4555

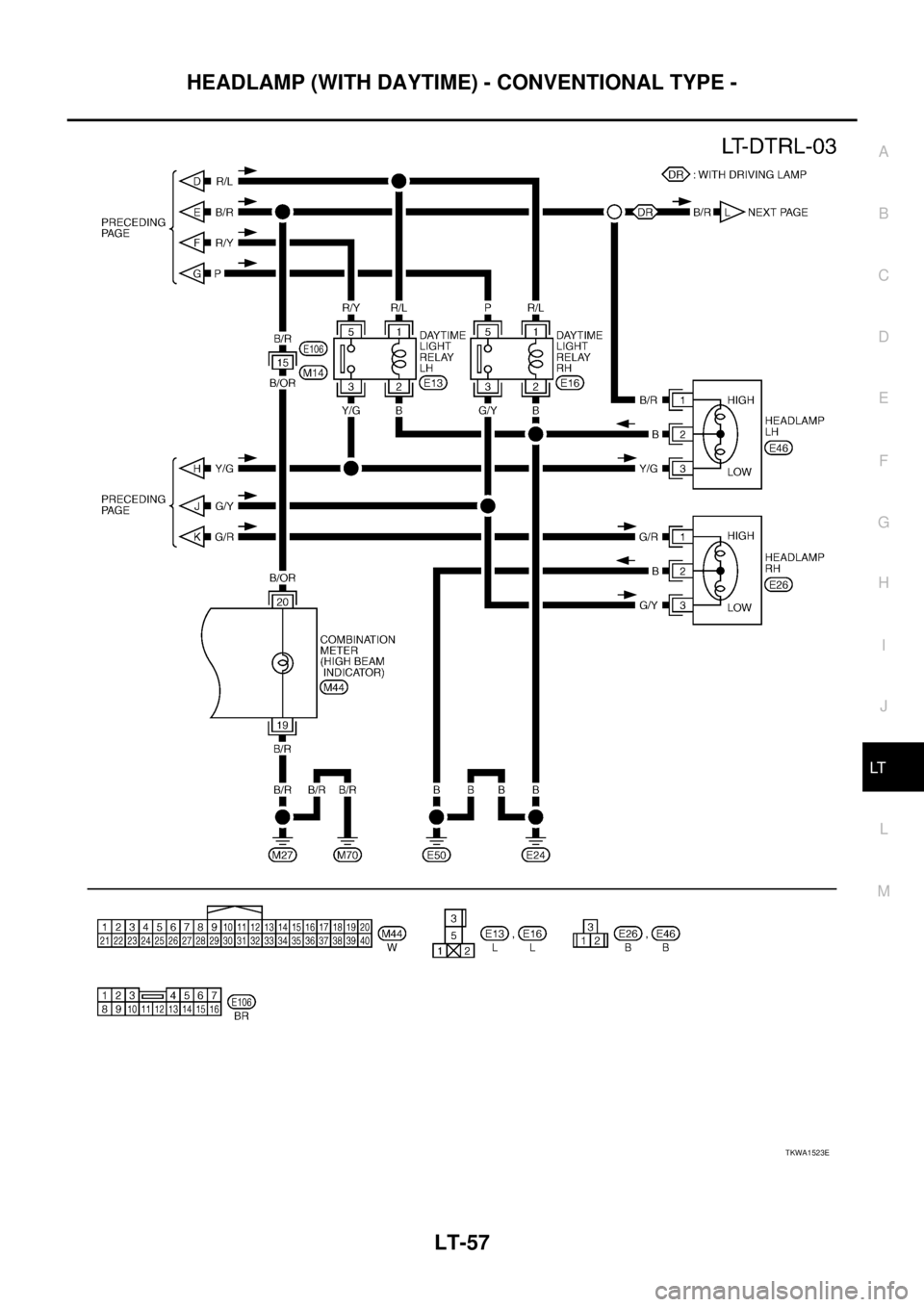

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - LT-55 C D E F G H I J L MA B LT Wiring Diagram —DTRL—EKS00N5R TKWB1769E

Page 4052 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-56 HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - TKWB1770E

Page 4053 of 4555

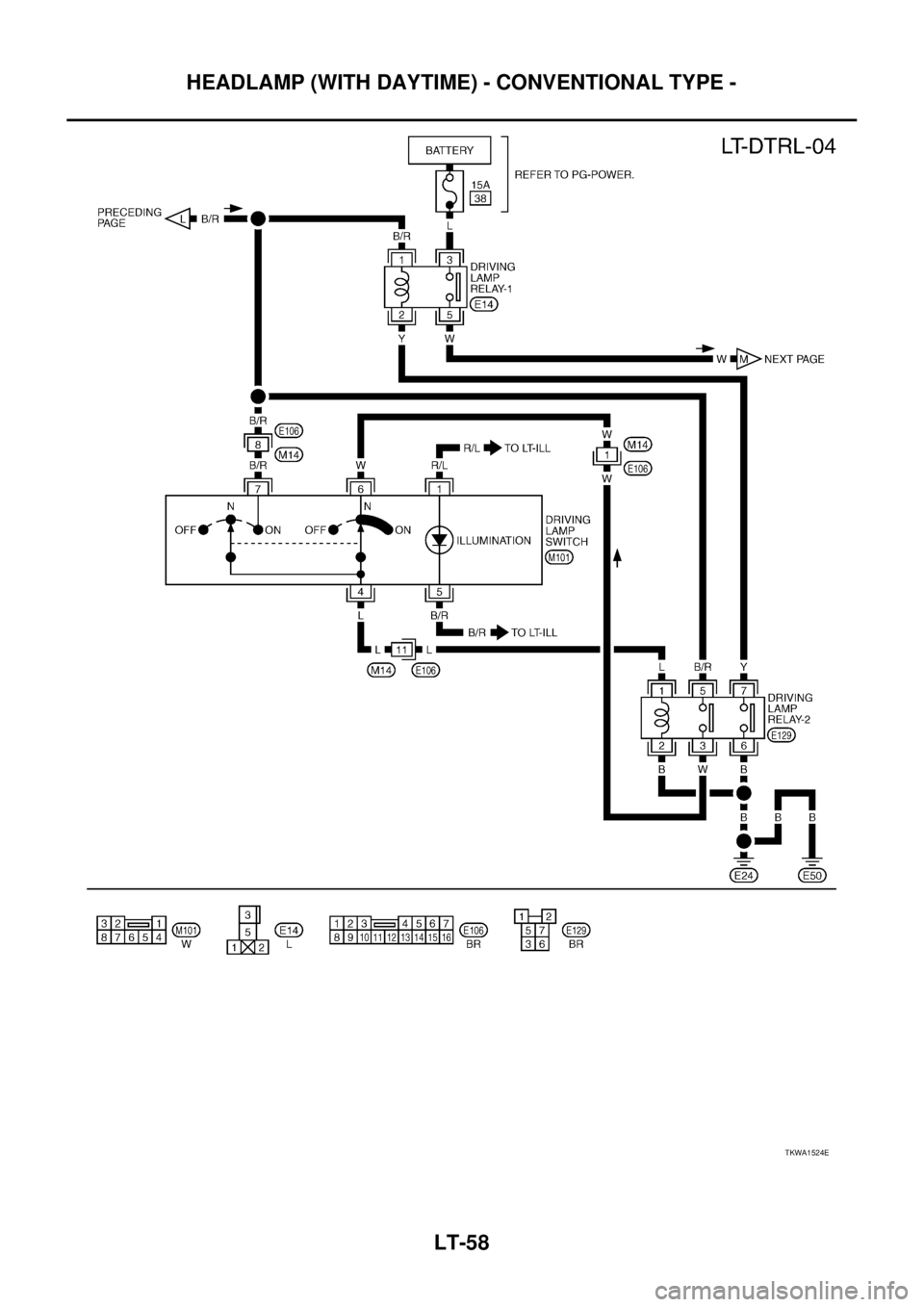

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - LT-57 C D E F G H I J L MA B LT TKWA1523E

Page 4054 of 4555

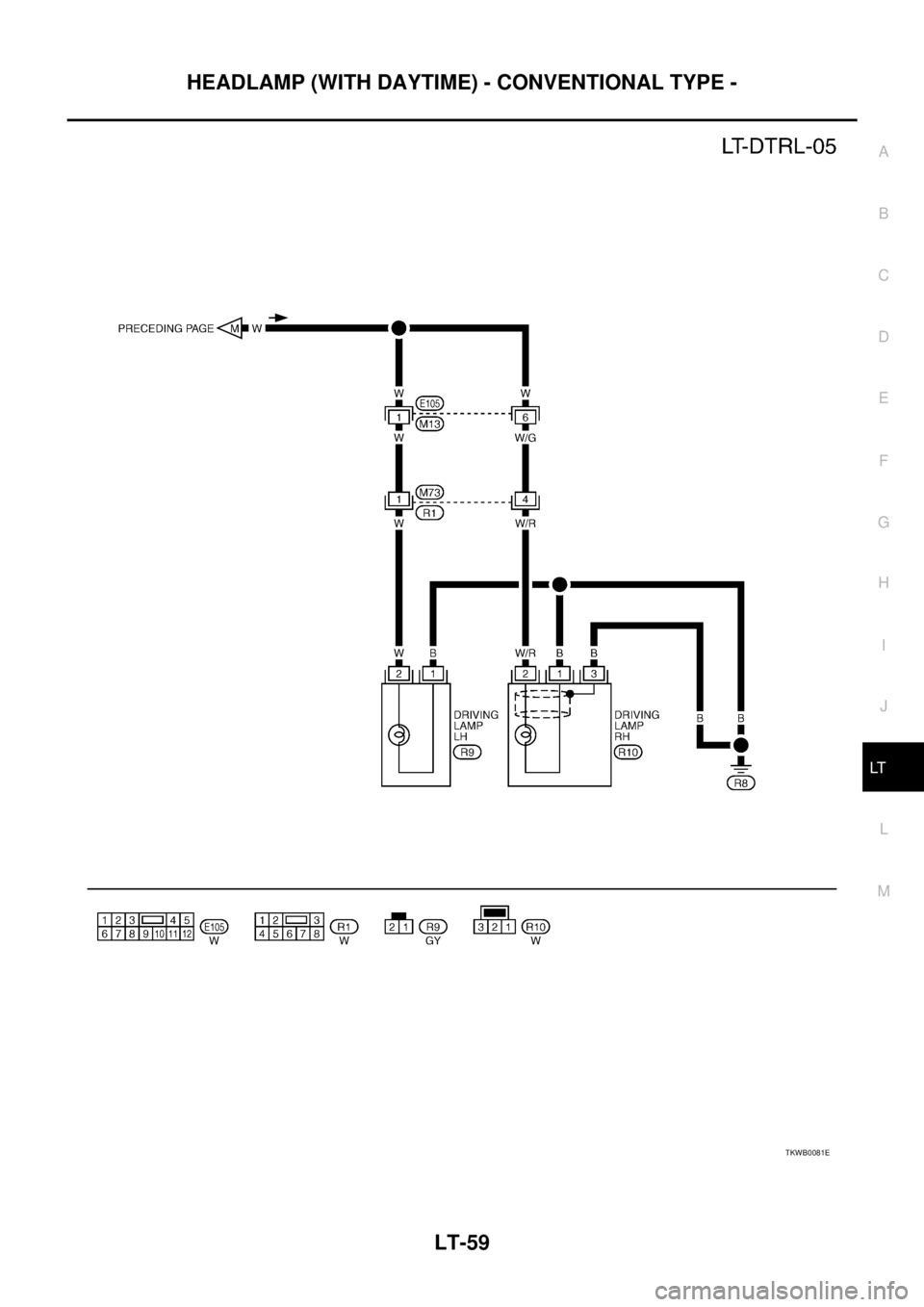

NISSAN X-TRAIL 2005 Service Repair Manual LT-58 HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - TKWA1524E

Page 4055 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - LT-59 C D E F G H I J L MA B LT TKWB0081E

Page 4056 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual LT-60 HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE - Trouble DiagnosesEKS00N5S DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE *: Daytime light operating: Lighting switch in OFF position with engine runn
