ENGINE ASSEMBLY
EM-81
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

ENGINE ASSEMBLYPFP:10001
Removal and Installation (2WD Models)EBS01FKJ
WARNING:

Situate the vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with a transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .

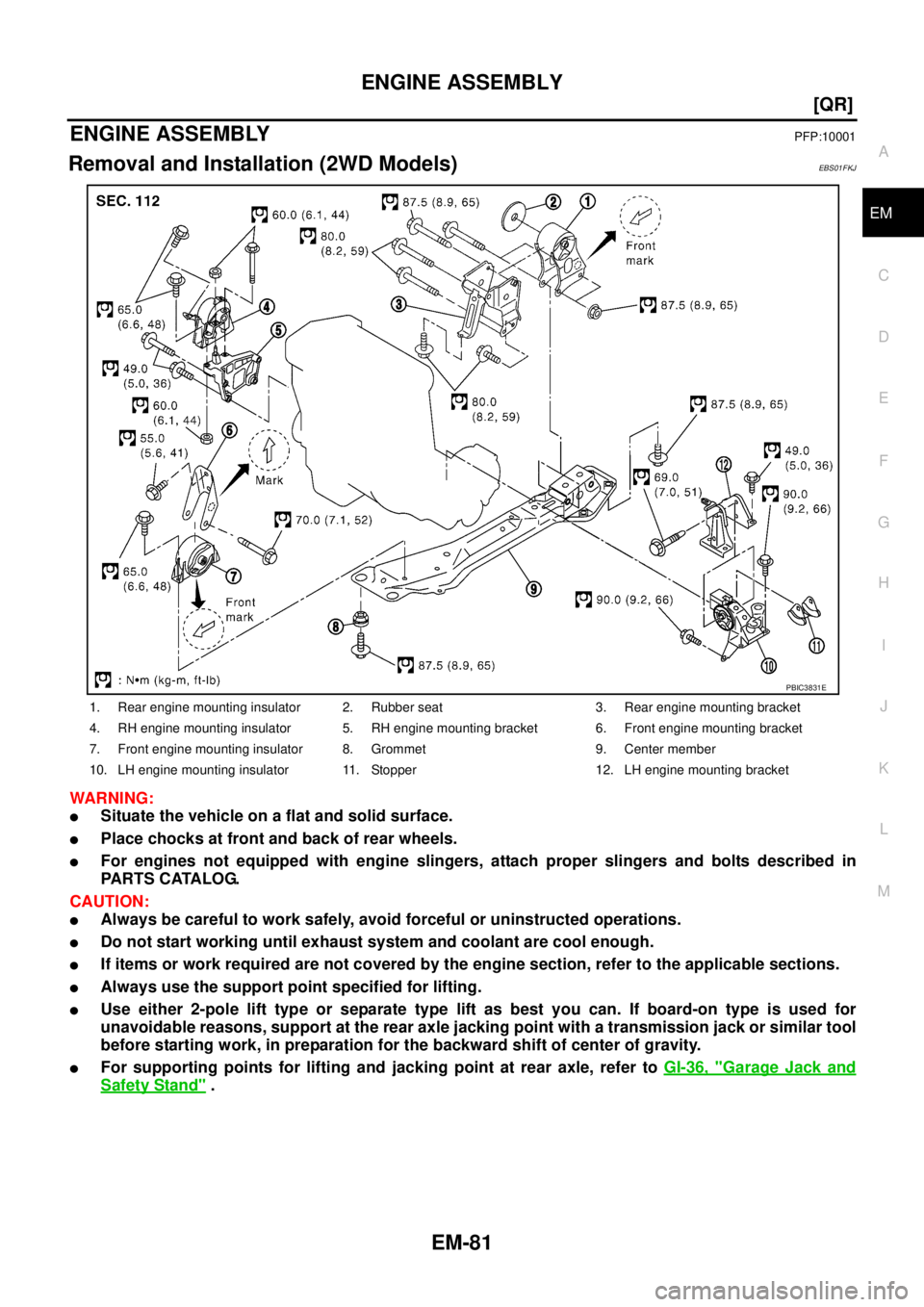

1. Rear engine mounting insulator 2. Rubber seat 3. Rear engine mounting bracket
4. RH engine mounting insulator 5. RH engine mounting bracket 6. Front engine mounting bracket
7. Front engine mounting insulator 8. Grommet 9. Center member
10. LH engine mounting insulator 11. Stopper 12. LH engine mounting bracket
PBIC3831E

EM-82
[QR]
ENGINE ASSEMBLY

REMOVAL
Outline
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Release fuel pressure. Refer to EC-49, "
FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belt.
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hoses, and plug them to prevent fuel from draining. Refer to EM-34, "FUEL INJEC-
TOR AND FUEL TUBE" .
2. Disconnect heater hoses, and install plugs them to prevent engine coolant from draining. Refer to CO-23,
"THERMOSTAT AND WATER CONTROL VALVE" .
3. Disconnect clutch operating cylinder from transaxle, and move it aside. Refer to CL-12, "
OPERATING
CYLINDER" .
4. Disconnect shift and select cable from transaxle. Refer to MT-16, "
CONTROL LINKAGE" .
5. Disconnect B terminal harness of starter motor. Refer to SC-23, "
STARTING SYSTEM" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
3. Remove power steering oil pump with piping connected from engine. Temporarily secure it on vehicle side
with a rope to avoid putting load on it. Refer to PS-37, "
HYDRAULIC LINE" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" .
3. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" .
4. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on the
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
5. Remove LH and RH drive shafts from steering knuckle. Refer to FAX-11, "
FRONT DRIVE SHAFT" .
Removal
1. Install engine slingers into front-left of cylinder head and rear-right of cylinder head.

ENGINE ASSEMBLY
EM-85
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (4WD Models)EBS00KNT
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .
REMOVAL
Outline
Remove engine, transaxle and transfer assembly with front suspension member from vehicle downward. Sep-
arate front suspension member, and then separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .

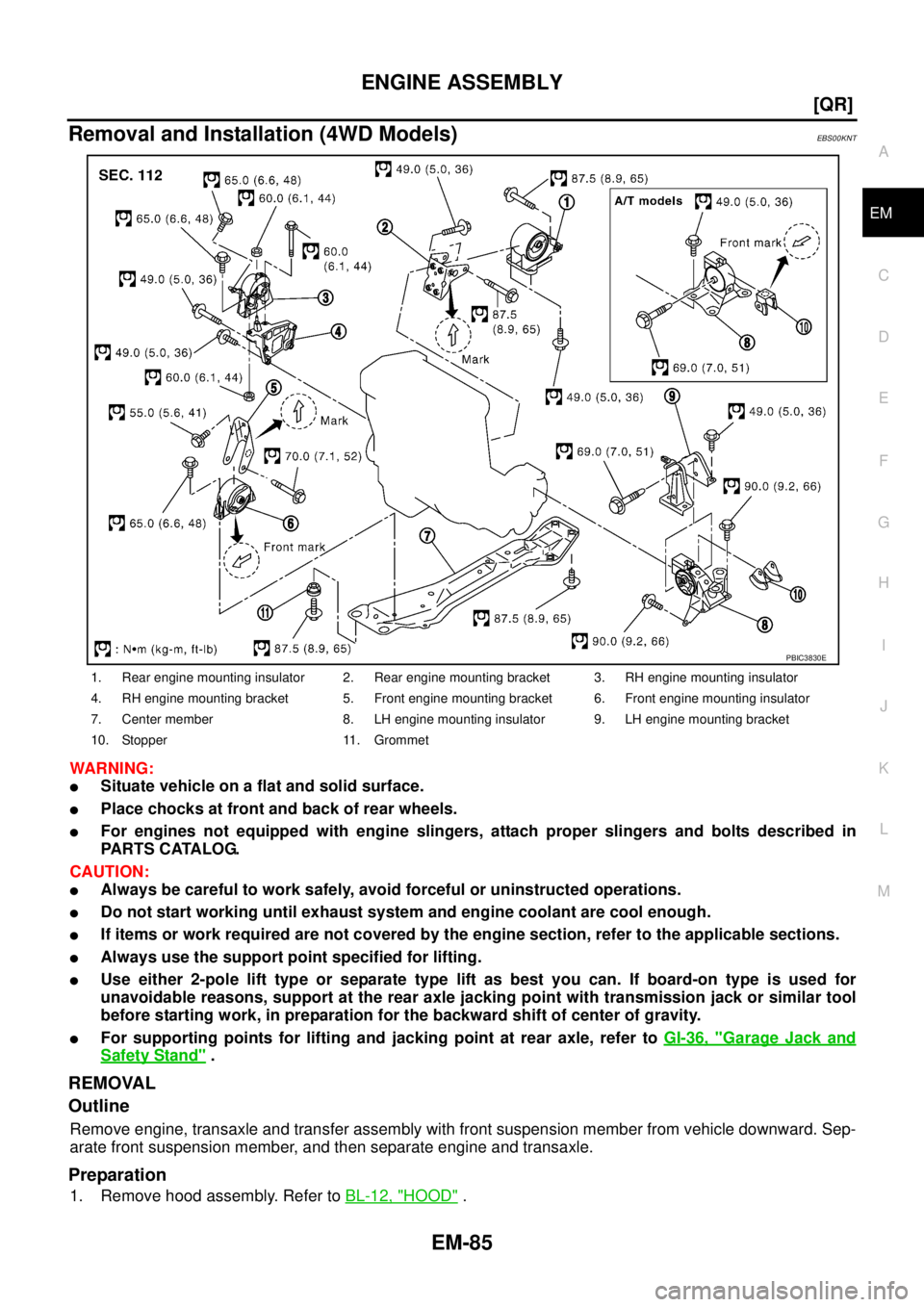

1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Center member 8. LH engine mounting insulator 9. LH engine mounting bracket
10. Stopper 11. Grommet
PBIC3830E

EM-86
[QR]
ENGINE ASSEMBLY

2. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-34, "FUEL INJECTOR
AND FUEL TUBE"
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
3. Disconnect control cable from transaxle (A/T models). Refer to AT- 4 0 4 , "
ON-VEHICLE SERVICE" .
4. Disconnect clutch operating cylinder from transaxle, and move it aside (M/T models). Refer to CL-12,
"OPERATING CYLINDER" .
5. Disconnect shift and select cable from transaxle (M/T models). Refer to MT-16, "
CONTROL LINKAGE" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove propeller shaft. Refer to PR-3, "
REAR PROPELLER SHAFT" .
3. Remove steering lower joint from steering gear. Refer to PS-11, "
STEERING COLUMN" .
4. Disconnect power steering fluid piping at a point between vehicle and engine. Refer to PS-37, "
HYDRAU-
LIC LINE" .
5. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter
(A/T models). Refer to EM-27, "
OIL PAN AND OIL STRAINER" and AT- 4 1 3 , "REMOVAL AND INSTALLA-
TION" .
6. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 , "REMOVAL AND INSTALLATION" (A/T models).
7. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" (ABS) or BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
8. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
9. Remove lower ends of left and right strut from steering knuckle. Refer to FSU-5, "
FRONT SUSPENSION
ASSEMBLY" .
Removal
1. Install engine slingers into front left of cylinder head and rear right of cylinder head.

CYLINDER BLOCK
EM-91
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


A widely use engine stand can be used.
NOTE:
This example is an engine stand for holding at transaxle
mounting side with flywheel (M/T models) or drive plate (A/T
models) removed.
3. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
4. Drain engine coolant by removing water drain plug from inside of
engine.
5. Remove cylinder head. Refer to EM-70, "
CYLINDER HEAD" .
6. Remove knock sensor.
CAUTION:
Carefully handle knock sensor avoiding shocks.
7. Remove crankshaft position sensor (POS).
CAUTION:

Avoid impacts such as a dropping.

Do not disassemble.

Keep it away from metal particles.

Do not place sensor in a location where it is exposed to
magnetism.
8. Remove clutch cover and clutch disc (M/T models). Refer to CL-16, "
CLUTCH DISC, CLUTCH COVER
AND FLYWHEEL" .
9. Remove flywheel (M/T models) or drive plate (A/T models).

Secure crankshaft with a stopper plate, and remove mounting
bolts.

Using the following TORX socket, loosen mounting bolts.
CAUTION:
Be careful not to damage contact surface for clutch disc of
flywheel (M/T models).
PBIC0085E
PBIC2716E
PBIC2191E
Flywheel (M/T models)
: size T55 (commercial service tool)
Drive plate (A/T models)
: size E20
PBIC2352E

EM-98
[QR]
CYLINDER BLOCK


Using a piston ring compressor (special service tool) or suit-
able tool, install piston with the front mark on the piston head
facing the front of the engine.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod
big end.
11. Install connecting rod cap.

Match the stamped cylinder number marks on connecting rod
with those on connecting rod cap to install.
12. Tighten connecting rod bolt with the following procedure:
a. Apply new engine oil to the threads and seats of connecting rod bolts.
b. Tighten bolts.
c. Then turn all bolts 90 degrees clockwise (Angle tightening).
CAUTION:
Check and confirm the tightening angle by using an angle
wrench (special service tool) or protractor. Avoid judge-
ment by visual inspection without the tool.

After tightening connecting rod bolt, make sure that crankshaft rotates smoothly.

Check the connecting rod side clearance. Refer to EM-107, "CONNECTING ROD SIDE CLEARANCE" .
13. Install flywheel (M/T models) or drive plate (A/T models).
CAUTION:
Make sure that dowel pin is installed at the rear end of crankshaft.

When installing flywheel (M/T models) or drive plate (A/T models) to crankshaft, make sure that align
crankshaft side dowel pin with flywheel/drive-plate side dowel pin hole correctly.
CAUTION:
If these are not aligned correctly, engine runs roughly and “MI” turns on.

Secure crankshaft with a stopper plate, and tighten mounting bolts crosswise over several times.
PBIC1619E
PBIC2196E
: 19.6 N·m (2.0 kg-m, 14 ft-lb)
KBIA0068E

EM-222
[YD22DDTi]
ENGINE ASSEMBLY

ENGINE ASSEMBLYPFP:10001

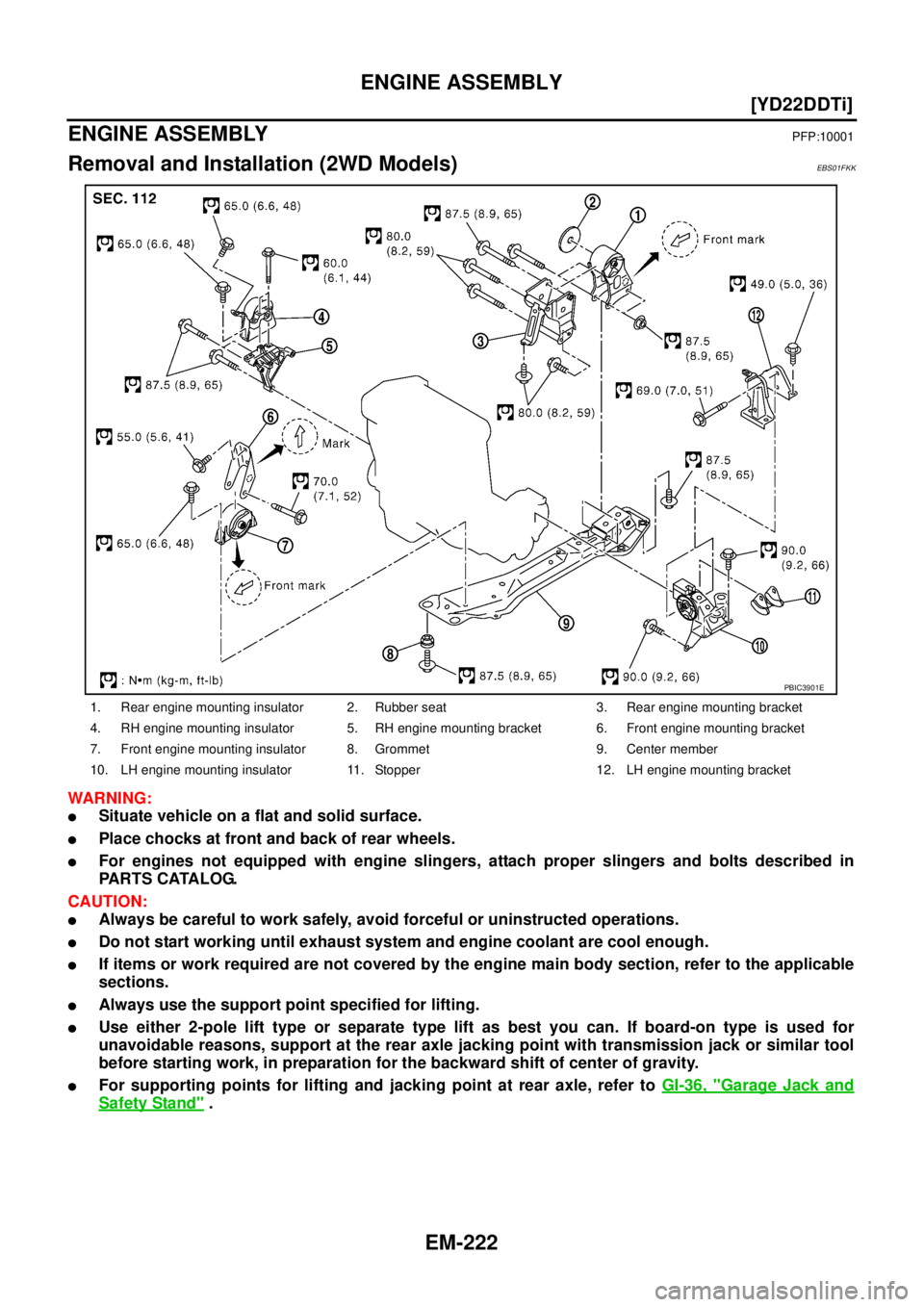

Removal and Installation (2WD Models)EBS01FKK
WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine main body section, refer to the applicable
sections.

Always use the support point specified for lifting.

Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to GI-36, "Garage Jack and
Safety Stand" .
1. Rear engine mounting insulator 2. Rubber seat 3. Rear engine mounting bracket
4. RH engine mounting insulator 5. RH engine mounting bracket 6. Front engine mounting bracket
7. Front engine mounting insulator 8. Grommet 9. Center member
10. LH engine mounting insulator 11. Stopper 12. LH engine mounting bracket
PBIC3901E

ENGINE ASSEMBLY
EM-223
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

REMOVAL
Description of work
Remove engine and transaxle assembly from vehicle downward. Separate engine and transaxle.
Preparation
1. Remove hood assembly. Refer to BL-12, "HOOD" .
2. Drain engine coolant from radiator drain plug. Refer to CO-32, "
DRAINING ENGINE COOLANT" .
3. Remove the following parts.

LH and RH engine undercover

LH and RH front wheels

Battery; Refer to SC-4, "BATTERY" .

Drive belts; Refer to EM-140, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-142, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-17, "Removal and Installation" .

Radiator assembly; Refer to CO-35, "RADIATOR" .

Charge air cooler; Refer to EM-144, "CHARGE AIR COOLER" .
4. Disconnect engine room harness from the engine side and set it aside for easier work.
5. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine room LH
1. Disconnect fuel hose, and plug it to prevent fuel from draining. Refer to EM-146, "INTAKE MANIFOLD" .
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining. Refer to EM-146,
"INTAKE MANIFOLD" .
3. Remove clutch operating cylinder from transaxle, and move it aside. Refer to MT-19, "
TRANSAXLE
ASSEMBLY" and CL-12, "OPERATING CYLINDER" .
4. Disconnect shift cable from transaxle. Refer to MT-16, "
CONTROL LINKAGE" .
Engine room RH
1. Remove engine coolant reservoir tank. Refer to CO-35, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on body with a rope to
avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Disconnect power steering fluid cooler piping at a point between body and engine. Refer to PS-37,
"HYDRAULIC LINE" .
3. Remove front wheel sensor (LH and RH) for ABS from brake caliper. Refer to BRC-46, "
WHEEL SEN-
SORS" (ABS), BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
4. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a
rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
5. Remove drive shaft (LH and RH) from steering knuckle. Refer to FA X - 11 , "
FRONT DRIVE SHAFT" .
6. Preparation for the separation work of transaxle as follows:
a. Remove crankshaft position sensor from transmission. Refer toEM-157, "
OIL PAN AND OIL STRAINER" .
b. Remove transaxle joint bolts which pierce at oil pan (lower) rear side. Refer to EM-157, "
OIL PAN AND
OIL STRAINER" .
