Page 4017 of 4555

HEADLAMP - XENON TYPE -
LT-21
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP (LOWER SIDE), FOR HIGH BEAM
1. Turn lighting switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.
3. Disconnect headlamp connector.
4. Remove air cleaner duct (when replacing LH bulb). Refer to EM-16, "
AIR CLEANER AND AIR DUCT" ,
EM-142, "
AIR CLEANER AND AIR DUCT" (QR), EM-142, "AIR CLEANER AND AIR DUCT" (YD22) in
“ENGINE MECHANICAL (EM)” section.
5. Turn plastic cap counterclockwise and unlock it.
6. Disconnect terminal connected to bulb.
7. Unlock retaining spring and remove bulb from headlamp.
8. Installation is the reverse order of removal.
CLEARANCE LAMP
1. Turn lighting switch OFF.
2. Disconnect headlamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from headlamp.
5. Installation is the reverse order of removal.
CAUTION:
Never touch glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off. Burning may result.
Never leave bulb out of headlamp reflector for a long time because dust, moisture, smoke, etc.
may affect the performance of headlamp. When replacing bulb, be sure to replace it with new one.
When bulb is installed, be sure to install plastic cap and bulb socket securely to ensure watertight-
ness.
Bulb Replacement of Driving LampEKS00N52
1. Remove driving lamp. Refer to LT- 2 3 , "Removal and Installation
of Driving Lamp" in “HEADLAMP -XENON TYPE-”.
2. Disconnect driving lamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Installation is the reverse order of removal.
CAUTION:
Never touch glass of bulb directly by hand. Keep grease
and other oily matters away from it. Never touch bulb by
hand while it is lit or right after being turned off. Burning
may result.
When replacing bulb, prepare new bulb first of all. Never leave bulb out of driving lamp housing
for a long period, because dust, moisture or smoke will cause performance lowering (fouling,
cloud, etc.) of driving lamp reflector and lens.
Removal and Installation of HeadlampEKS00N53
REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.Headlamp (Lower side), For High Beam : 12V - 55W (H1)
Clearance lamp : 12V - 5W
Driving lamp : 12 V - 65 W (H1R1)
PKIA3396E
Page 4018 of 4555

LT-22
HEADLAMP - XENON TYPE -
3. Remove front turn signal lamps. Refer to LT- 9 4 , "Removal and
Installation of Front Turn Signal Lamp" .
4. Disconnect connector of headlamp and clearance lamp.
5. Remove front grille. Refer to EI-19, "
FRONT GRILLE" in
“EXTERIOR & INTERIOR (EI)” section.
6. Remove headlamp mounting bolts.
7. Pull headlamp forward the vehicle.
INSTALLATION
Installation is the reverse order of removal.
Disassembly and AssemblyEKS00N54
DISASSEMBLY
1. Turn plastic cap counterclockwise and unlock it.
2. Disconnect terminal connected to halogen bulb.
3. Turn xenon bulb socket counterclockwise and unlock it.
4. Unlock retaining spring, and then remove xenon bulb and halogen bulb.
5. Turn clearance bulb socket counterclockwise and unlock it.
6. Remove clearance bulb from clearance bulb socket.
7. Remove HID control unit mounting screws and remove HID control unit.
ASSEMBLY
Assembly is the reverse order of disassembly.
CAUTION:
When HID control unit is removed, reinstall it securely and avoid any looseness.
After installing bulb, be sure to install plastic cap and bulb socket securely to ensure watertight-
ness.
PKIA5555E
Headlamp mounting bolts
: 5.5 N·m (0.56 kg-m, 49 in-lb)
1. Xenon bulb socket 2. Xenon bulb 3. Halogen bulb
4. HID control unit 5. Screws 6. Plastic cap
7. Clearance lamp bulb socket 8. Clearance lamp bulb 9. Retaining springs
SKIA1466E
HID control unit mounting screws
: 3.2 N·m (0.33 kg-m, 28 in-lb)
Page 4019 of 4555
HEADLAMP - XENON TYPE -
LT-23
C
D
E
F
G
H
I
J
L
MA
B
LT
Removal and Installation of Driving LampEKS00N55
REMOVAL
1. Remove cap (front) and cap (rear).
2. Remove driving lamp mounting nut.
3. Pull the front of driving lamp toward upper side so that undo the
pin from roof panel.
4. Remove rear end of driving lamp from roof rail.
5. Pull out driving lamp from vehicle and disconnect connector.
INSTALLATION
Installation is the reverse order of removal.
1. Cap (rear) 2. Driving lamp assembly 3. Nut
4. Cap (front) 5. Driving lamp bracket 6. Grommet
7. Roof rail
PKIC0925E
PKIA3400E
Driving lamp mounting nut
: 5.5 N·m (0.56 kg-m, 49 in-lb)
Page 4020 of 4555
LT-24
HEADLAMP - XENON TYPE -
CAUTION:
Make sure pawl shown in figure be connected correctly.
Removal and Installation of Driving Lamp SwitchEKS00N56
1. Remove instrument lower driver panel. Refer to IP-11, "Removal
and Installation" in “INSTRUMENT PANEL ASSEMBLY (IP)”
section.
2. Press driving lamp switch fixing pawls and remove it from Instru-
ment lower driver panel.
PKIA3398E
PKIA3399E
PKIA7164E
Page 4021 of 4555

HEADLAMP - CONVENTIONAL TYPE -
LT-25
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP - CONVENTIONAL TYPE -PFP:26010
System Description EKS00N57
DESCRIPTION
The headlamps are controlled by the lighting switch which is built in the combination switch.
Power is supplied at all times
through 15A fuse (No. 40, located in fuse and fusible link box)
to lighting switch terminal 8,
through 15A fuse (No. 41, located in fuse and fusible link box)
to lighting switch terminal 5,
through 15A fuse (No. 38, located in fuse and fusible link box)
to driving lamp relay-1 terminal 3.
LOW BEAM OPERATION
When the lighting switch is turned to the 2ND position, power is supplied
through lighting switch terminal 10
to headlamp LH terminal 3,
through lighting switch terminal 7
to headlamp RH terminal 3.
Ground is supplied
to headlamp LH and RH terminal 2
through grounds E24 and E50.
With power and ground supplied, low beam headlamps illuminate.
HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION
When the lighting switch is turned to the 2ND position and placed in HIGH BEAM position or PASSING posi-
tion, power is supplied
through lighting switch terminal 9
to headlamp LH terminal 1, and
to combination meter terminal 20,
through lighting switch terminal 6
to headlamp RH terminal 1.
Ground is supplied
to headlamp LH and RH terminal 2
through grounds E24 and E50,
to combination meter terminal 19
through grounds M27 and M70.
With power and ground supplied, high beam headlamps and HIGH BEAM indicator illuminate.
DRIVING LAMP OPERATION
To illuminate the driving lamp, push the driving lamp switch when the lighting switch is turned to the 2ND posi-
tion and placed in HIGH BEAM position or PASSING position, power is supplied
through lighting switch terminal 9
to headlamp LH terminal 1
to combination meter terminal 20
to driving lamp relay-1 terminal 1
to driving lamp switch terminal 7, and
to driving lamp relay-2 terminal 5,
through driving lamp relay-2 terminal 3
to driving lamp switch terminal 6,
through driving lamp relay-1 terminal 5
to driving lamp LH and RH terminal 2,
Page 4022 of 4555
LT-26
HEADLAMP - CONVENTIONAL TYPE -
through lighting switch terminal 6
to headlamp RH terminal 1.
Ground is supplied
to driving lamp relay-1 terminal 2
through driving lamp relay-2 terminal 7
through driving lamp relay-2 terminal 6
through grounds E24 and E50,
to driving lamp switch terminal 4
through driving lamp relay-2 terminal 1
through driving lamp relay-2 terminal 2
through grounds E24 and E50,
to driving lamp LH terminal 1
through ground R8,
to driving lamp RH terminals 1 and 3
through ground R8,
to headlamp LH and RH terminal 2
through grounds E24 and E50,
to combination meter terminal 19
through grounds M27 and M70.
With power and ground supplied, high beams headlamp, driving lamp and the HIGH BEAM indicator illumi-
nate.
Page 4023 of 4555
HEADLAMP - CONVENTIONAL TYPE -
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT

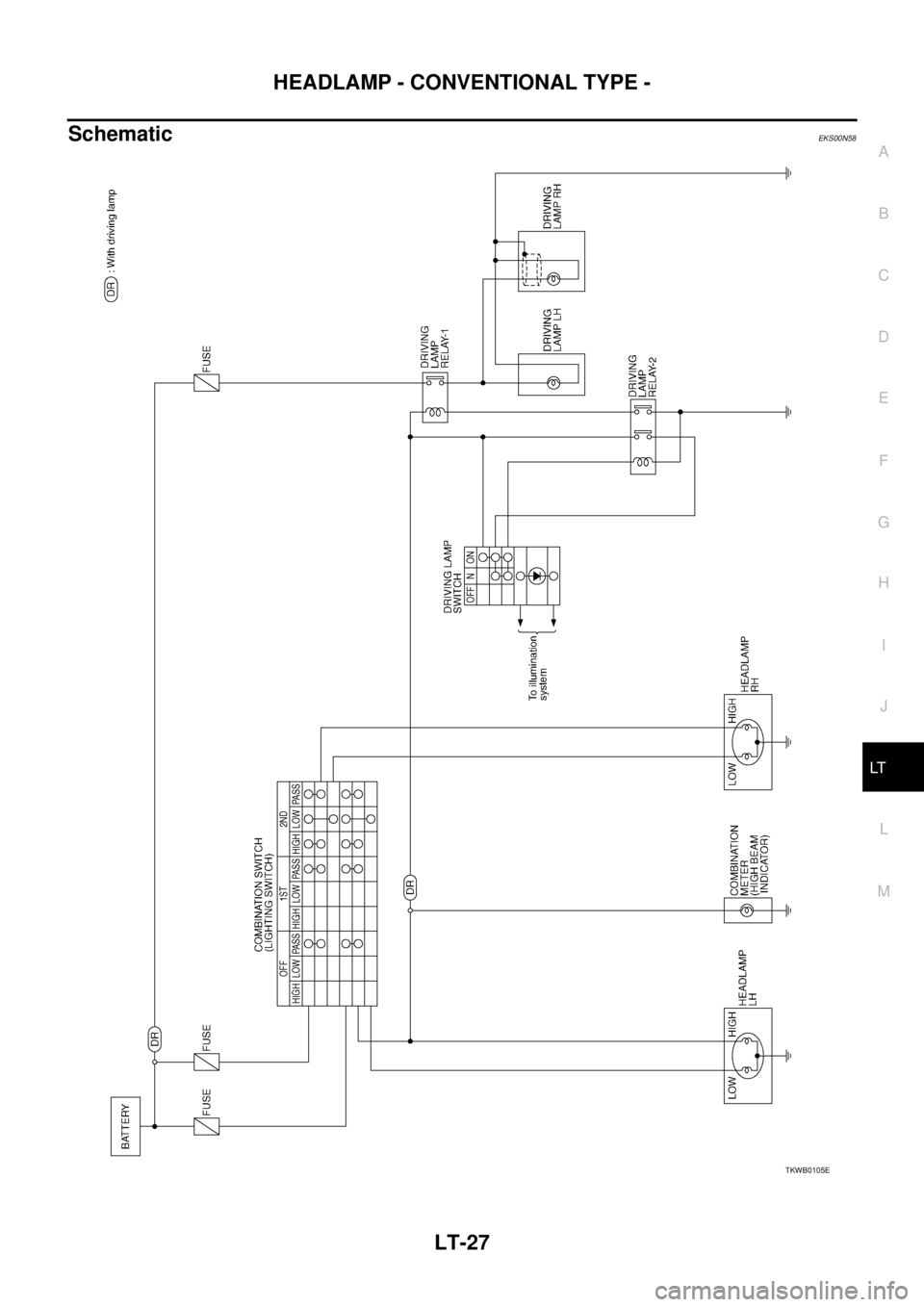

SchematicEKS00N58
TKWB0105E
Page 4024 of 4555
LT-28
HEADLAMP - CONVENTIONAL TYPE -
Wiring Diagram — H/LAMP — EKS00N59
LHD MODELS
TKWA1516E
