Removal and Installation of Washer Tank EKS0032X
REMOVAL
1. Remove washer tank inlet mounting screw and pull out washer
tank inlet.
2. Remove fender protector. Refer to EI-21, "
FENDER PROTEC-
TOR" .
3. Remove washer motor connector.
4. Remove washer tank mounting screw and pawl.
5. Remove washer hose, and remove the washer tank from the
vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.
Removal and Installation of Washer Motor EKS0032Y
REMOVAL
1. Remove fender protector. Refer to EI-21, "FENDER PROTECTOR"
2. Remove washer motor connector and hose.
3. Pull out washer motor in the direction of the arrow in the figure,
and remove the washer motor from the washer tank.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
When installing washer motor, there should be no packing twists, etc.
PKIA0484E
PKIA8885E
Washer tank mounting screw
: 4.5 N·m (0.46 kg-m, 40 in-lb)
PKIC0591E
Page 4226 of 4555
WW-14
REAR WIPER AND WASHER SYSTEM
REAR WIPER AND WASHER SYSTEMPFP:28710

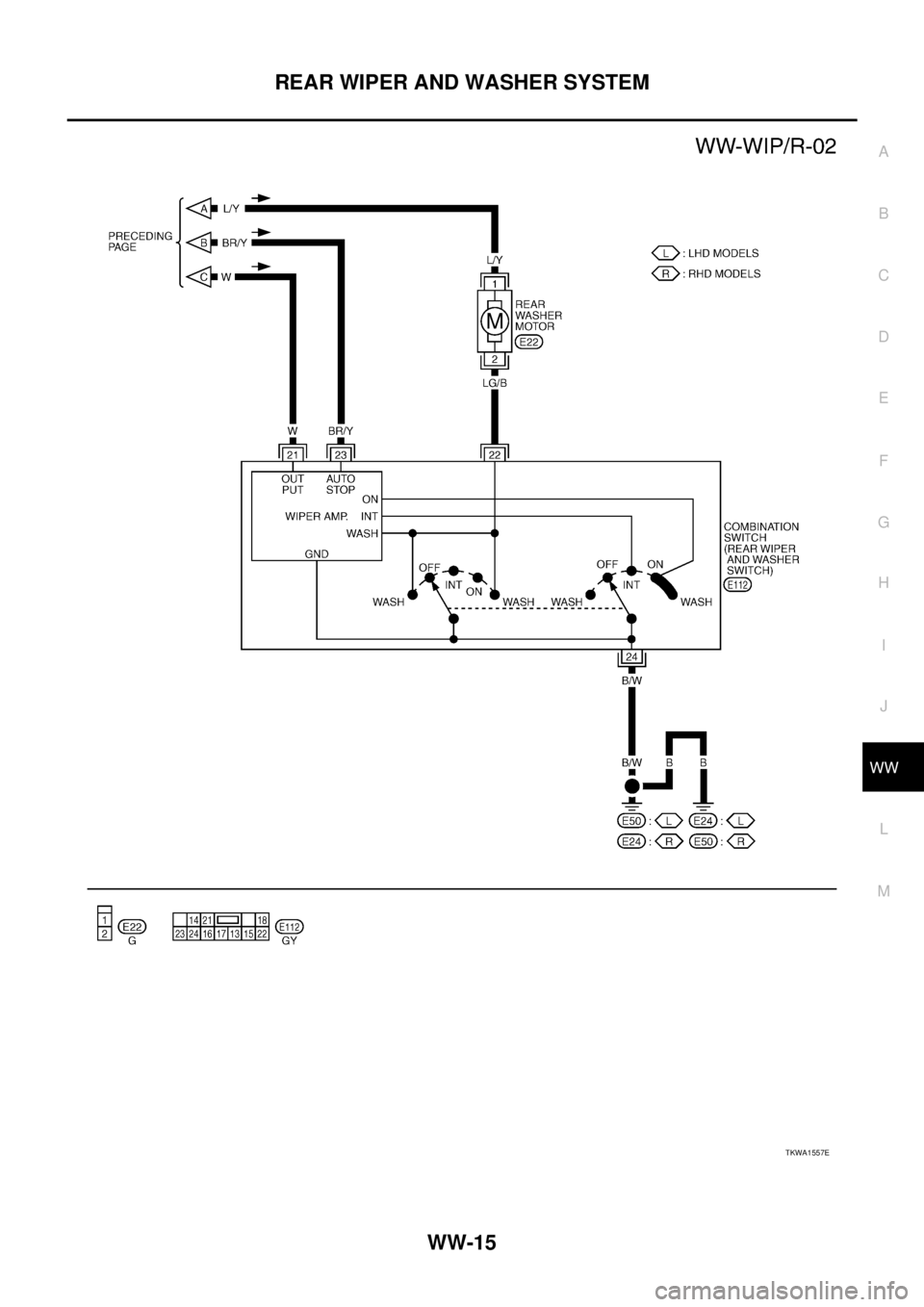

Wiring Diagram — WIP/R —EKS0032Z
TKWA1556E
Page 4227 of 4555
REAR WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
TKWA1557E
Page 4228 of 4555

WW-16
REAR WIPER AND WASHER SYSTEM
Terminal and Reference Values for Combination SwitchEKS00330
Removal and Installation of Rear Wiper Arms EKS00331
WIPER ARMS
1. Turn on wiper switch to operate wiper motor and then turn it
“OFF” (auto stop).
2. Lift the blade up and then set it down onto glass surface. Set the
black center to clearance “L” immediately before tightening the
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.
Tighten wiper arm nut to specified torque.
Before reinstalling wiper arm, clean up the pivot area as illus-
trated. This will reduce possibility of wiper arm looseness.
Terminal
No.Wire
colorSignal name Measuring condition
Reference value
Ignition switch Condition or operation
21 WWiper motor
Operation signal (ON)ON Wiper switchOFF Battery voltage
ON Approx. 0V
22 LG/B Washer switch signal ON Wiper switchWASH Approx. 0V
OFF Battery voltage
23 BR/YWiper motor
Operation signalON Wiper switch: INT
24 B/W Ground OFF — —
SKIA0083J
Clearance “L” : 55.6 - 70.6 mm (2.189 - 2.780 in)
Rear wiper arm nuts
: 15.2 N·m (1.6 kg-m, 11 ft-lb)
SKIA0077E
SEL024J
Page 4229 of 4555

REAR WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation of Rear Wiper MotorEKS00332
REMOVAL
1. Remove the back door finisher. Refer to EI-34, "BACK DOOR TRIM" .
2. Disconnect wiper motor connector.
3. Remove wiper arm from the vehicle.
4. Remove wiper motor form the vehicle.
5. Remove rubber from the vehicle.
INSTALLATION
1. Install rubber to the vehicle.
2. Install wiper motor to the vehicle.
3. Connect wiper motor to connector. Turn the rear wiper switch ON to operate wiper motor, then turn the
rear wiper switch OFF (auto stop).
4. Install wiper arm to the vehicle.
5. Install back door finisher. Refer to EI-34, "
BACK DOOR TRIM" .
CAUTION:
Never drop the wiper motor or cause it to contact other parts.
Check the grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if
necessary.
1. Wiper motor 2. Rubber 3. Nut cover
4. Wiper arm 5. Wiper blade
PKIA7846E
SKIA0040E
Rear wiper motor mounting bolt
: 4.5 N·m (0.46 kg-m, 40 in-lb)
Page 4230 of 4555
WW-18
REAR WIPER AND WASHER SYSTEM
Rear Washer Nozzle AdjustmentEKS00333
Adjust rear washer nozzle with suitable tool as shown in the figure at left.
Unit: mm (in)
*: The diameter of this circle is less than 40 mm (1.57in).
Removal and Installation of Rear Washer Nozzle EKS00334
REMOVAL
1. Remove washer hose from rear washer nozzle.
2. Remove rear washer nozzle mounting screw and remove rear
washer nozzle.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Rear Washer Nozzle EKS00335
CHECK VALVE
Blow air in the injection direction, and check that air flows only one
way. Make sure that the reverse direction (inhale) is not possible. Adjustable range : ±10° (In any direction)
PKIA0487E
*H 90 (3.54)
* L 150 (5.91)
SKIA0091E
PKIA5552E
SKIA0042E
Page 4231 of 4555
REAR WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation of Wiper and Washer Switch EKS00336
Refer to WW-12, "Removal and Installation of Wiper and Washer Switch" .
Removal and Installation of Washer Tank EKS00337
Refer to WW-13, "Removal and Installation of Washer Tank" .
Removal and Installation of Washer Motor EKS00338
Refer to WW-13, "Removal and Installation of Washer Motor" .

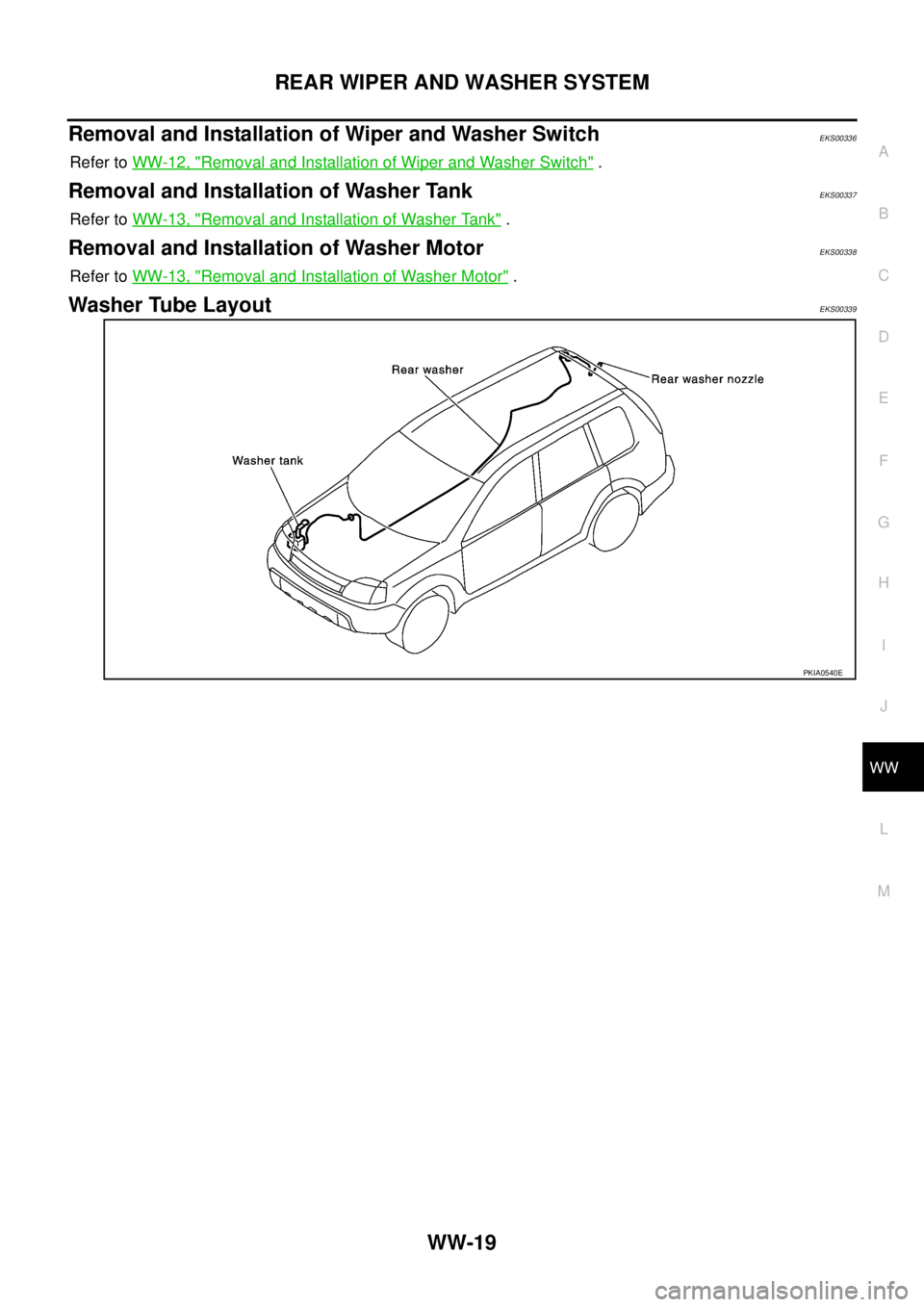

Washer Tube LayoutEKS00339
PKIA0540E
Page 4232 of 4555

WW-20
HEADLAMP WASHER
HEADLAMP WASHERPFP:28620
System DescriptionEKS0036H
The headlamp washer is controlled by the headlamp washer timer. With power and ground supplied, the head-
lamp washer motor operates.
Power is supplied at all times
through 30A fusible link (letter E, located in fuse and fusible link box)
to headlamp washer motor terminal 1,
through 10A fuse (No. 31, located in fuse and fusible link box)
to lighting switch terminal 11.
With the ignition switch in the ON or START position, power is supplied (with xenon headlamp)
through 10A fuse [No. 11, located in fuse block (J/B)]
to headlamp washer timer terminal 4.
With the ignition switch in the ON or START position, power is supplied (without xenon headlamp)
through 10A fuse [No. 13, located in fuse block (J/B)]
to headlamp washer timer terminal 4.
Ground is supplied
to headlamp washer timer terminal 5
through grounds E24 and E50.
When headlamp washer switch is pushed during lighting switch is in 1ST or 2ND position, ground is supplied
(with xenon headlamp)
to headlamp washer motor terminal 2
through headlamp washer timer terminal 2,
to headlamp washer timer terminal 6
through front wiper and washer switch terminal 18
through front wiper and washer switch terminal 17
through grounds M24 and M50.
When headlamp washer switch is pushed during lighting switch is in 1ST or 2ND position, ground is supplied
(without xenon headlamp)
to headlamp washer motor terminal 2
through headlamp washer timer terminal 2,
to headlamp washer timer terminal 6
through headlamp washer switch terminal 2
through headlamp washer switch terminal 1
through grounds M27 and M70.
With power and ground supplied, the headlamp washer motor operates.
