Page 3593 of 4555

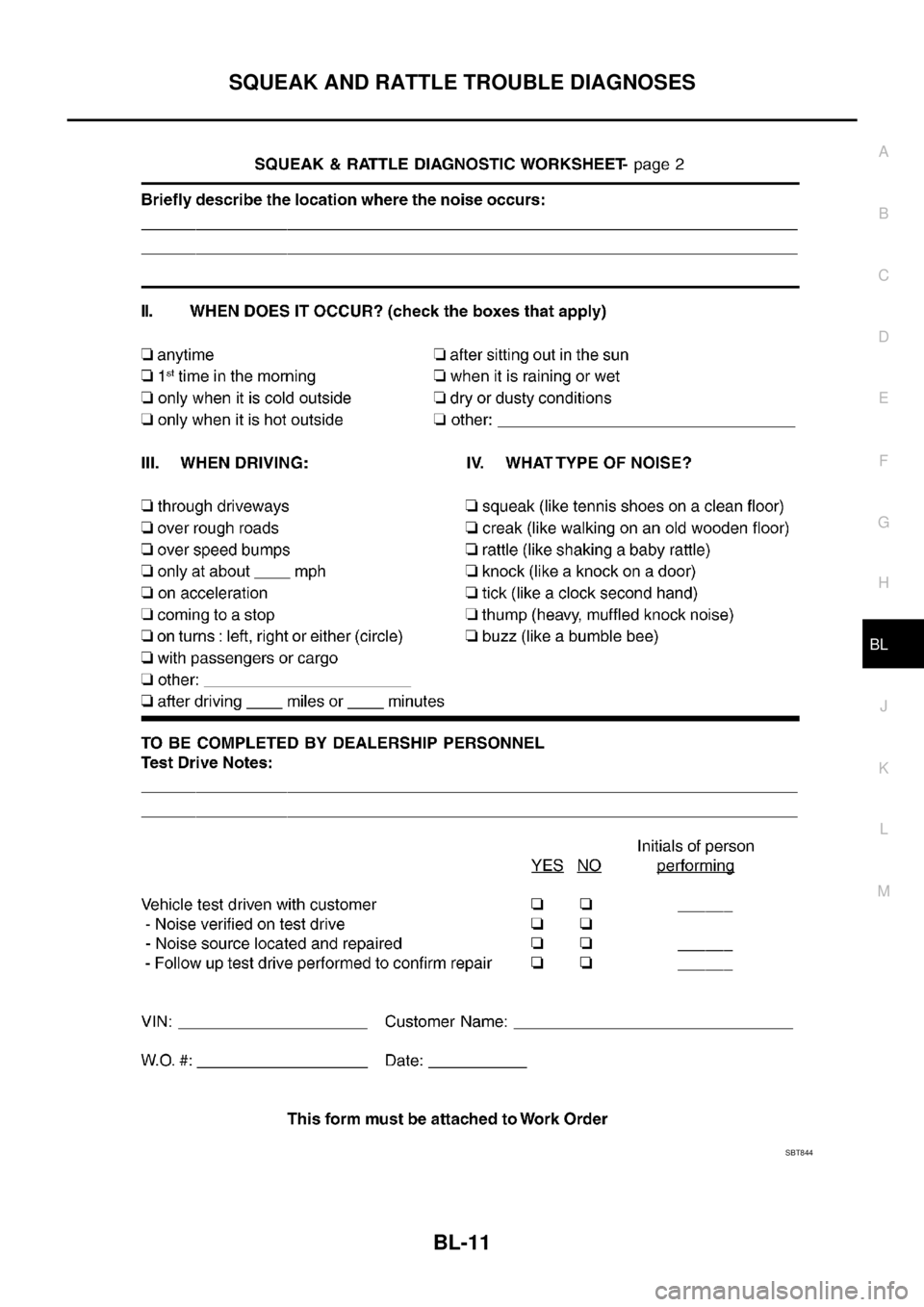

NISSAN X-TRAIL 2005 Service Repair Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES BL-11 C D E F G H J K L MA B BL SBT844

Page 3594 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-12 HOOD HOODPFP:65100 Fitting AdjustmentEIS009QH LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT 1. Remove hood lock assembly, loosen the hood hinge nuts and close the hood. 2. Adjust the lateral a

Page 3595 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HOOD BL-13 C D E F G H J K L MA B BL 2. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and striker for looseness, and tighten the hood lock m

Page 3596 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-14 HOOD SURFACE HEIGHT ADJUSTMENT 1. Remove hood lock, and adjust the surface height difference of hood, fender and headlamp according to the fitting standard dimension, by rotating RH and LH bum

Page 3597 of 4555

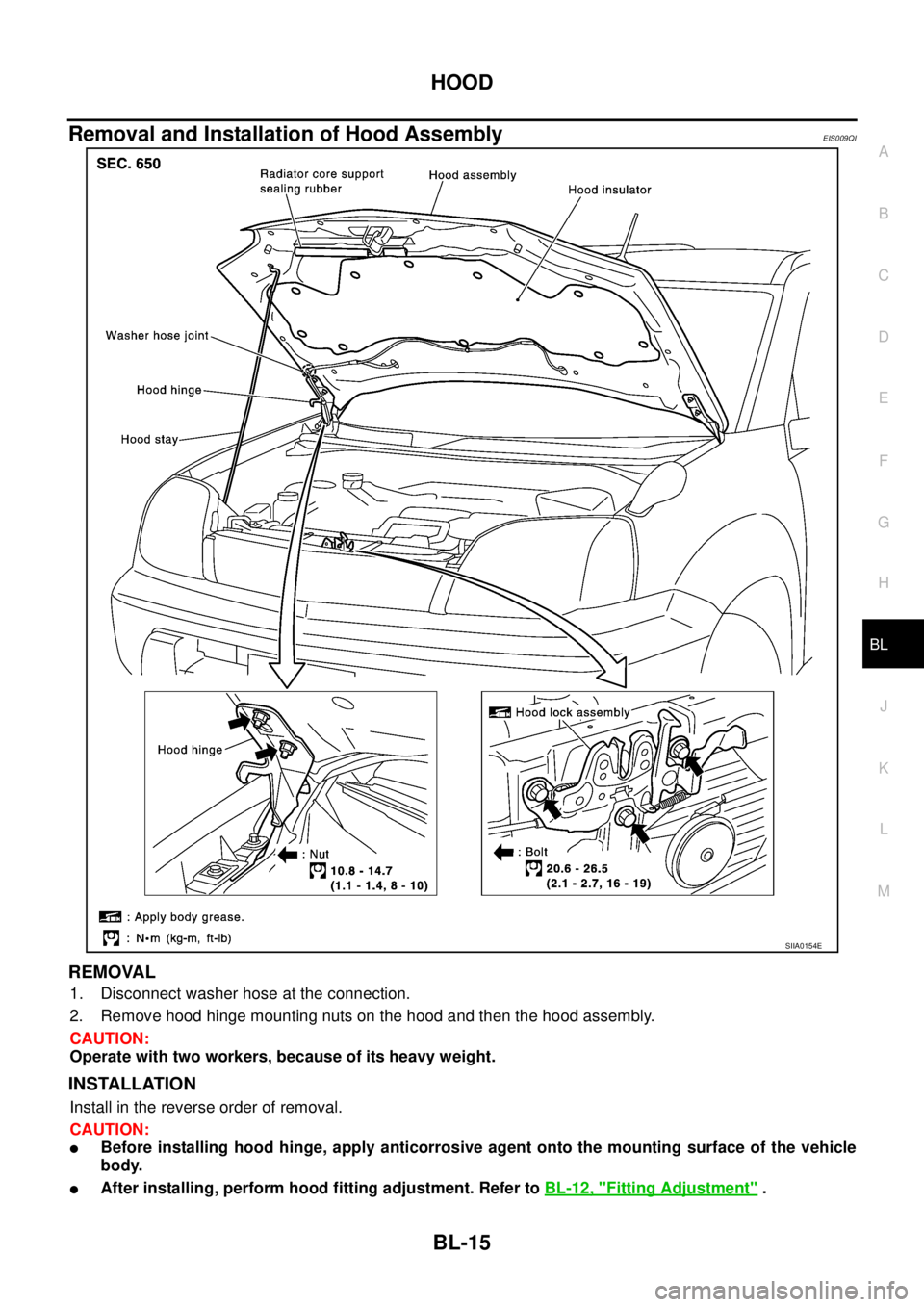

NISSAN X-TRAIL 2005 Service Repair Manual HOOD BL-15 C D E F G H J K L MA B BL Removal and Installation of Hood AssemblyEIS009QI REMOVAL 1. Disconnect washer hose at the connection. 2. Remove hood hinge mounting nuts on the hood and then th

Page 3598 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-16 HOOD Removal and Installation of Hood Lock ControlEIS009QJ REMOVAL 1. Remove hood lock cable from hood lock and clip of upper por- tion of radiator core support and hood ledge. 2. Remove dash

Page 3599 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual HOOD BL-17 C D E F G H J K L MA B BL 4. Connect cable securely to the lock. 5. After connection, confirm proper adjustment and operation for both hood lock and hood opener. Hood Lock Control Inspect

Page 3600 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual BL-18 DOOR DOORPFP:80100 Fitting AdjustmentEIS00A67 FRONT DOOR Longitudinal clearance and surface height adjustment at front end 1. Remove fender protector. Refer to EI-21, "FENDER PROTECTOR" . 2. W
