2005 NISSAN X-TRAIL height

IDENTIFICATION INFORMATION
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI

AUTOMATIC TRANSAXLE NUMBER
MANUAL TRANSAXLE NUMBER
Dimensions EAS000GF
Unit: mm (in)
Wheels & Tires EAS000GG
*: Option
PAIA0008E
PAIA0009E
PAIA0010E
Overall length 4,455 (175.4)
Overall width 1,765 (69.5)
Overall height1,675 (Standard, 65.9)
1,750 (With Rear spoiler or Roof rail with Driving lights, 68.9)
Front tread 1,530 (60.2)
Rear tread 1,530 (60.2)
Wheelbase 2,625 (103.3)
Conventional Spare
Road wheel/offset mm (in)15 × 6JJ Steel/40 (1.57)
16 × 6.5JJ Steel/Aluminum/40 (1.57)
17 × 6.5JJ Aluminum/40 (1.57)*Conventional
Tire size215/70R15
215/65R16
215/60R17*Conventional

EM-2 ROCKER COVER ..................................................... 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44
INSTALLATION .................................................... 45
TIMING CHAIN .......................................................... 46
Removal and Installation ........................................ 46
REMOVAL ........................................................... 46
INSPECTION AFTER REMOVAL ........................ 50
INSTALLATION .................................................... 51
INSPECTION AFTER INSTALLATION ................ 55
CAMSHAFT ............................................................... 56
Removal and Installation ........................................ 56
REMOVAL ........................................................... 56
INSPECTION AFTER REMOVAL ........................ 58
INSTALLATION .................................................... 61
Valve Clearance ...................................................... 64
INSPECTION ....................................................... 64
ADJUSTMENT .................................................... 65
OIL SEAL .................................................................. 67
Removal and Installation of Valve Oil Seal ............. 67
REMOVAL ........................................................... 67
INSTALLATION .................................................... 67
Removal and Installation of Front Oil Seal ............. 67
REMOVAL ........................................................... 67
INSTALLATION .................................................... 68
Removal and Installation of Rear Oil Seal .............. 68
REMOVAL ........................................................... 68
INSTALLATION .................................................... 68
CYLINDER HEAD ..................................................... 70
On-Vehicle Service ................................................. 70
CHECKING COMPRESSION PRESSURE ......... 70
Removal and Installation ........................................ 71
REMOVAL ........................................................... 71
INSPECTION AFTER REMOVAL ........................ 72
INSTALLATION .................................................... 73
INSPECTION AFTER INSTALLATION ................ 73
Disassembly and Assembly .................................... 74
DISASSEMBLY ................................................... 74
ASSEMBLY ......................................................... 75
Inspection After Disassembly ................................. 77
VALVE DIMENSIONS .......................................... 77
VALVE GUIDE CLEARANCE .............................. 77
VALVE GUIDE REPLACEMENT ......................... 77
VALVE SEAT CONTACT ..................................... 79
VALVE SEAT REPLACEMENT ........................... 79
VALVE SPRING SQUARENESS ......................... 80
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 80
ENGINE ASSEMBLY ................................................ 81
Removal and Installation (2WD Models) ................ 81
REMOVAL ........................................................... 82
INSTALLATION .................................................... 83
INSPECTION AFTER INSTALLATION ................ 84
Removal and Installation (4WD Models) ................ 85
REMOVAL ........................................................... 85
INSTALLATION .................................................... 88
INSPECTION AFTER INSTALLATION ................ 88CYLINDER BLOCK ................................................... 89
Disassembly and Assembly .................................... 89
DISASSEMBLY .................................................... 90
ASSEMBLY .......................................................... 94
How to Select Piston and Bearing .......................... 99
DESCRIPTION .................................................... 99
HOW TO SELECT PISTON ...............................100
HOW TO SELECT CONNECTING ROD BEAR-
ING .....................................................................100
HOW TO SELECT MAIN BEARING ..................102
Inspection After Disassembly ................................107
CRANKSHAFT END PLAY ................................107
CONNECTING ROD SIDE CLEARANCE .........107
PISTON TO PISTON PIN OIL CLEARANCE .....107
PISTON RING SIDE CLEARANCE ...................108
PISTON RING END GAP ..................................108
CONNECTING ROD BEND AND TORSION .....109
CONNECTING ROD BIG END DIAMETER ......109
CONNECTING ROD BUSHING OIL CLEAR-
ANCE .................................................................109
CYLINDER BLOCK DISTORTION ....................110
MAIN BEARING HOUSING INNER DIAMETER . 111
PISTON TO CYLINDER BORE CLEARANCE .. 111
CRANKSHAFT MAIN JOURNAL DIAMETER ...112
CRANKSHAFT PIN JOURNAL DIAMETER ......113
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT ...............................................................113
CRANKSHAFT RUNOUT ..................................113
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................113
MAIN BEARING OIL CLEARANCE ...................114
MAIN BEARING CRUSH HEIGHT ....................115
CONNECTING ROD BEARING CRUSH
HEIGHT .............................................................115
LOWER CYLINDER BLOCK MOUNTING BOLT
OUTER DIAMETER ...........................................115
CONNECTING ROD BOLT OUTER DIAMETER .115
FLYWHEEL DEFLECTION (M/T MODELS) ......116
MOVEMENT AMOUNT OF FLYWHEEL (M/T
MODELS) ...........................................................116
SERVICE DATA AND SPECIFICATIONS (SDS) ....117
Standard and Limit ................................................117
GENERAL SPECIFICATIONS ...........................117
DRIVE BELT ......................................................117
INTAKE MANIFOLD AND EXHAUST MANI-
FOLD .................................................................117
SPARK PLUG ....................................................117
CYLINDER HEAD ..............................................117
VALVE ................................................................118
CAMSHAFT AND CAMSHAFT BEARING .........121
CYLINDER BLOCK ............................................122
PISTON, PISTON RING AND PISTON PIN ......123
CONNECTING ROD ..........................................124
CRANKSHAFT ...................................................124
MAIN BEARING .................................................126
CONNECTING ROD BEARING .........................127
Tightening Torque .................................................127

EM-4 INSTALLATION ..................................................191
Removal and Installation of Rear Oil Seal ............192
REMOVAL .........................................................192
INSTALLATION ..................................................192
SECONDARY TIMING CHAIN ................................193
Removal and Installation ......................................193
REMOVAL .........................................................193
INSPECTION AFTER REMOVAL ......................195
INSTALLATION ..................................................195
PRIMARY TIMING CHAIN ......................................198
Removal and Installation ......................................198
REMOVAL .........................................................200
INSPECTION AFTER REMOVAL ......................203
INSTALLATION ..................................................203
CYLINDER HEAD ...................................................209
On-Vehicle Service ...............................................209
CHECKING COMPRESSION PRESSURE .......209
Removal and Installation ......................................210
REMOVAL .........................................................210
INSPECTION AFTER REMOVAL ......................211
INSTALLATION ..................................................212
INSPECTION AFTER INSTALLATION ..............214
Disassembly and Assembly ..................................215
DISASSEMBLY .................................................215
ASSEMBLY .......................................................216
INSPECTION AFTER DISASSEMBLY ..............217
ENGINE ASSEMBLY ..............................................222
Removal and Installation (2WD Models) ..............222
REMOVAL .........................................................223
INSTALLATION ..................................................224
INSPECTION AFTER INSTALLATION ..............225
Removal and Installation (4WD Models) ..............226
REMOVAL .........................................................227
INSTALLATION ..................................................229
INSPECTION AFTER INSTALLATION ..............229
CYLINDER BLOCK .................................................230
Disassembly and Assembly ..................................230
DISASSEMBLY .................................................231
ASSEMBLY .......................................................235
How to Select Piston and Bearing ........................241
DESCRIPTION ..................................................241
HOW TO SELECT PISTON ...............................242
HOW TO SELECT CONNECTING ROD BEAR-
ING ....................................................................242HOW TO SELECT MAIN BEARING ..................244
Inspection After Disassembly ................................245
CRANKSHAFT END PLAY ................................245
CONNECTING ROD SIDE CLEARANCE .........246
PISTON TO PISTON PIN CLEARANCE ...........246
PISTON RING SIDE CLEARANCE ...................247
PISTON RING END GAP ..................................247
CONNECTING ROD BEND AND TORSION .....248
CONNECTING ROD BIG END INNER DIAME-
TER ....................................................................248
CONNECTING ROD BUSHING OIL CLEAR-
ANCE .................................................................248
CYLINDER BLOCK TOP SURFACE DISTOR-
TION ..................................................................249
MAIN BEARING HOUSING INNER DIAMETER .249
PISTON TO CYLINDER BORE CLEARANCE ..250
CRANKSHAFT MAIN JOURNAL DIAMETER ...251
CRANKSHAFT PIN JOURNAL DIAMETER ......251
CRANKSHAFT OUT-OF-ROUND AND TAPER .251
CRANKSHAFT RUNOUT ..................................252
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................252
MAIN BEARING OIL CLEARANCE ...................253
CRUSH HEIGHT OF MAIN BEARING ..............253
CRUSH HEIGHT OF CONNECTING ROD
BEARING ...........................................................253
MAIN BEARING CAP BOLT DEFORMATION ...254
CONNECTING ROD BOLT DEFORMATION ....254
OIL JET ..............................................................254
OIL JET RELIEF VALVE ....................................254
FLYWHEEL DEFLECTION ................................255
MOVEMENT AMOUNT OF FLYWHEEL ...........255
SERVICE DATA AND SPECIFICATIONS (SDS) ....256
Standard and Limit ................................................256
GENERAL SPECIFICATIONS ...........................256
INTAKE MANIFOLD AND EXHAUST MANI-
FOLD .................................................................256
DRIVE BELTS ....................................................256
CAMSHAFT .......................................................257
CYLINDER HEAD ..............................................259
VALVE ................................................................259
CYLINDER BLOCK ............................................262
PISTON, PISTON RING AND PISTON PIN ......263
CONNECTING ROD ..........................................264
CRANKSHAFT ...................................................264
AVAILABLE MAIN BEARING .............................265
AVAILABLE CONNECTING ROD BEARING .....265
Tightening Torque .................................................266

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationEBS00KND
REMOVAL
1. Remove heated oxygen sensors with the following procedure:
a. Disconnect harness connector of each heated oxygen sensor, and harness from bracket and middle
clamp.
b. Using heated oxygen sensor wrench (special service tool),
remove heated oxygen sensors.
CAUTION:

Be careful not to damage heated oxygen sensor.

Discard any heated oxygen sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; replace with a new
one.
2. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
3. Remove alternator. Refer to SC-13, "
CHARGING SYSTEM" .
4. Remove exhaust manifold cover (upper).

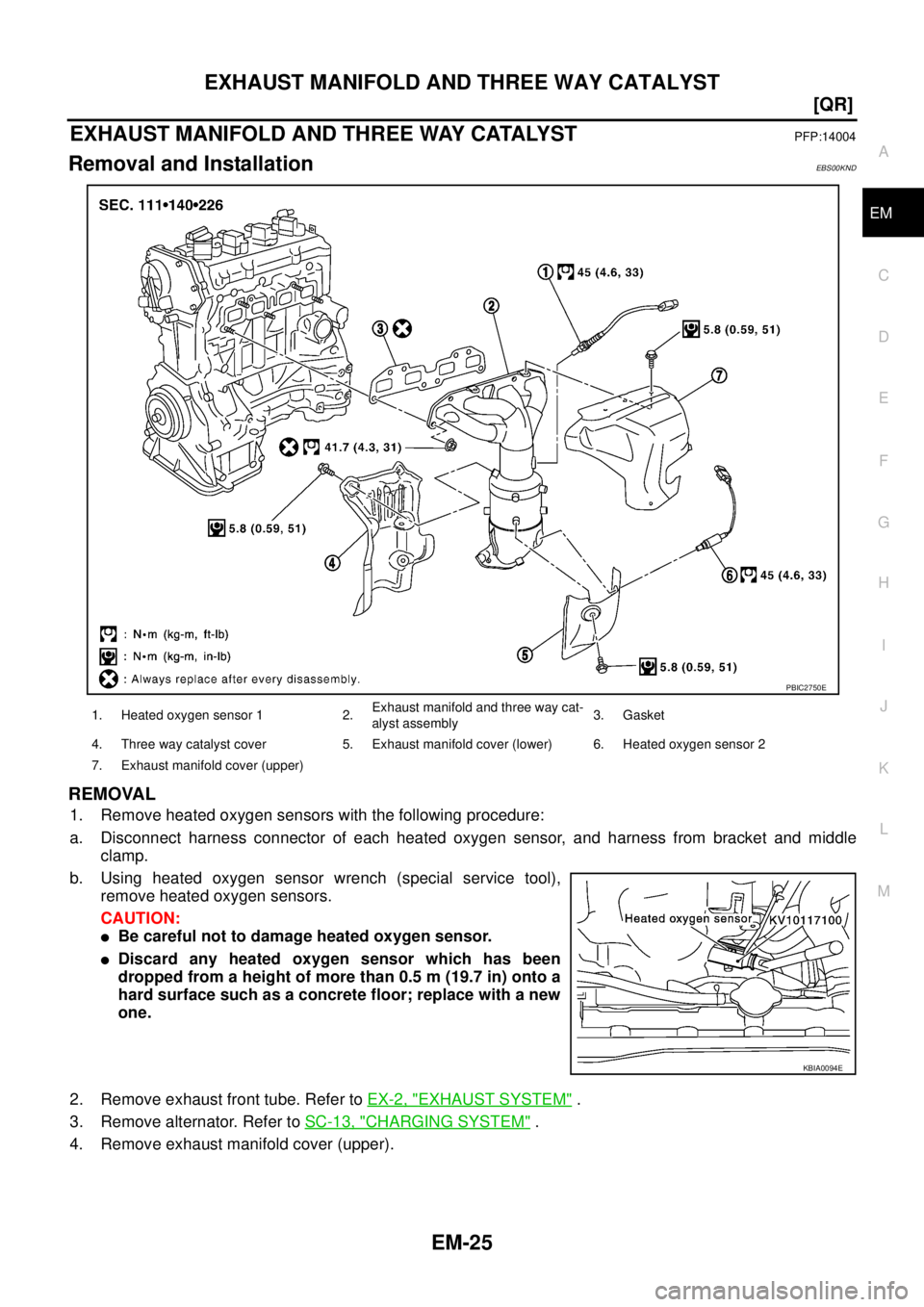

1. Heated oxygen sensor 1 2.Exhaust manifold and three way cat-
alyst assembly3. Gasket
4. Three way catalyst cover 5. Exhaust manifold cover (lower) 6. Heated oxygen sensor 2
7. Exhaust manifold cover (upper)
PBIC2750E
KBIA0094E

CAMSHAFT
EM-59
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

4. If out of the standard, replace camshaft.
Camshaft Cam Height
1. Measure the camshaft cam height with a micrometer.
2. If out of the standard, replace camshaft.
Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER
Measure the outer diameter of camshaft journal with a micrometer.
CAMSHAFT BRACKET INNER DIAMETER

Tighten camshaft bracket bolts with specified torque. Refer to EM-61, "INSTALLATION" for the tightening
procedure.

Measure the inner diameter of camshaft bracket with an inside
micrometer.
CAMSHAFT JOURNAL OIL CLEARANCE

(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter)

If out of the standard, replace either or both camshaft and cylinder head.
NOTE:
Camshaft bracket cannot be replaced as a single part, because it is machined together with cylinder head.
Replace whole cylinder head assembly.
Camshaft End Play
1. Install camshaft in cylinder head. Refer to EM-61, "INSTALLATION" for tightening procedure. Standard:
Intake
QR20DE : 45.015 - 45.205 mm (1.7722 - 1.7797 in)
QR25DE : 45.665 - 45.855 mm (1.7978 - 1.8053 in)
Exhaust
QR20DE : 42.825 - 43.015 mm (1.6860 - 1.6935 in)
QR25DE : 43.975 - 44.165 mm (1.7313 - 1.7388 in)
PBIC0039E
Standard:
No. 1 : 27.935 - 27.955 mm (1.0998 - 1.1006 in)
No. 2, 3, 4, 5 : 23.435 - 23.455 mm (0.9226 - 0.9234 in)
PBIC0040E
Standard:
No. 1 : 28.000 - 28.021 mm (1.1024 - 1.1032 in)
No. 2, 3, 4, 5 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)
PBIC0041E
Standard: 0.045 - 0.086 mm (0.0018 - 0.0034 in)

OIL SEAL
EM-67
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

OIL SEALPFP:12279
Removal and Installation of Valve Oil SealEBS00KNM
REMOVAL
1. Remove camshafts. Refer to EM-56, "CAMSHAFT" .
2. Remove valve lifters. Refer to EM-56, "
CAMSHAFT" .
3. Rotate crankshaft, and set piston whose valve oil seal is to be removed to TDC. This will prevent valve
from dropping into cylinder.
CAUTION:
When rotating crankshaft, be careful to avoid scarring front cover with timing chain.
4. Remove valve collet.

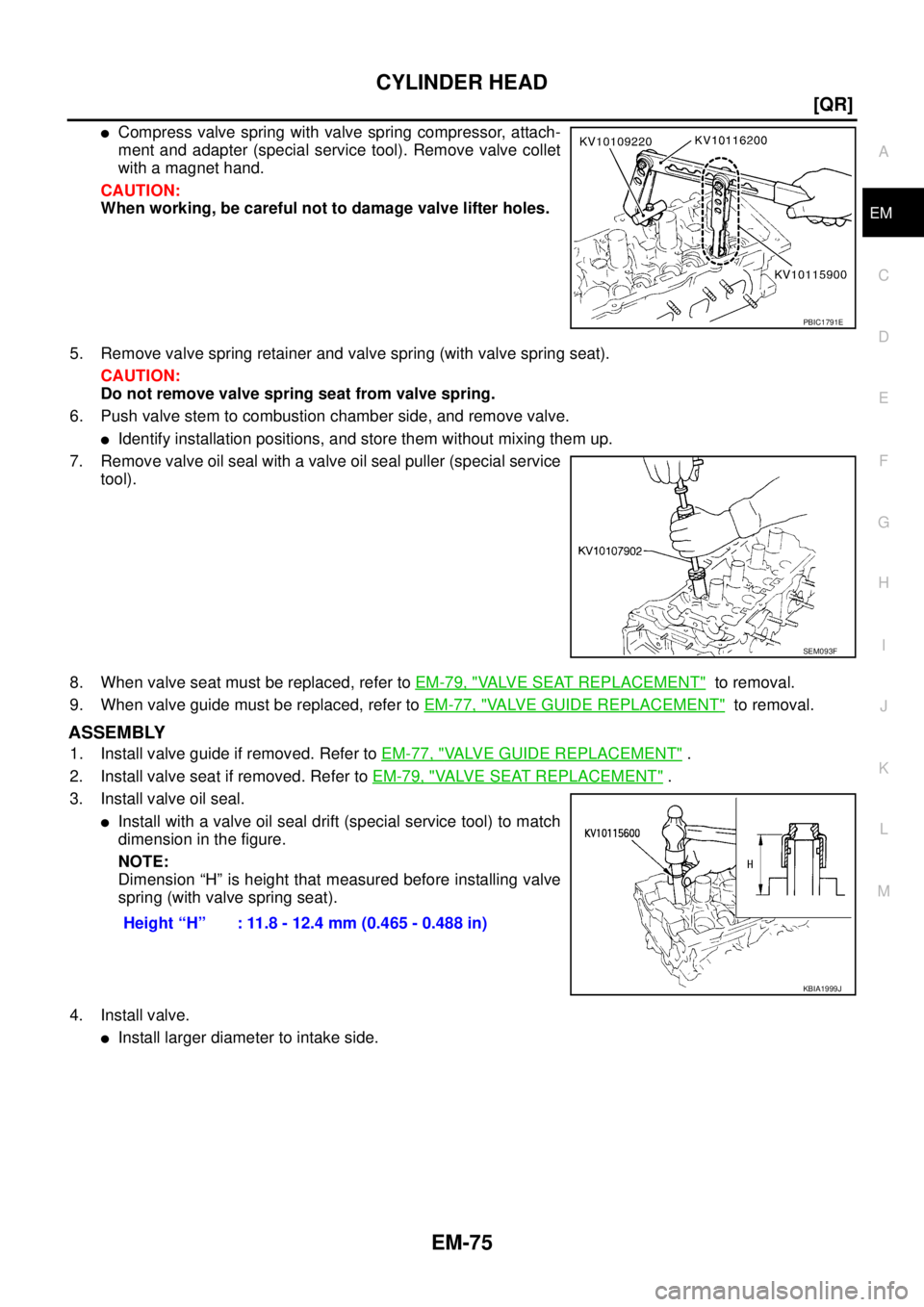

Compress valve spring with valve spring compressor, attach-
ment and adapter (special service tool). Remove valve collet
with a magnet hand.
CAUTION:
When working, be careful not to damage valve lifter holes.
5. Remove valve spring retainer and valve spring.
CAUTION:
Do not remove valve spring seat from valve spring.
6. Remove valve oil seal with a valve oil seal puller (special service
tool).
INSTALLATION
1. Apply new engine oil to valve oil seal joint surface and seal lip.
2. Press in valve oil seal to the height “H” shown in the figure with a
valve oil seal drift (special service tool).
NOTE:
Dimension “H” is height that measured before installing valve
spring (with valve spring seat).
3. Install in the reverse order of removal after this step.
Removal and Installation of Front Oil SealEBS00KNN
REMOVAL
1. Remove the following parts.

RH undercover
PBIC1791E
SEM093F
Height “H” : 11.8 - 12.4 mm (0.465 - 0.488 in)
KBIA1999J

CYLINDER HEAD
EM-75
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Compress valve spring with valve spring compressor, attach-
ment and adapter (special service tool). Remove valve collet
with a magnet hand.
CAUTION:
When working, be careful not to damage valve lifter holes.
5. Remove valve spring retainer and valve spring (with valve spring seat).
CAUTION:
Do not remove valve spring seat from valve spring.
6. Push valve stem to combustion chamber side, and remove valve.

Identify installation positions, and store them without mixing them up.
7. Remove valve oil seal with a valve oil seal puller (special service
tool).
8. When valve seat must be replaced, refer to EM-79, "
VALVE SEAT REPLACEMENT" to removal.
9. When valve guide must be replaced, refer to EM-77, "
VALVE GUIDE REPLACEMENT" to removal.
ASSEMBLY
1. Install valve guide if removed. Refer to EM-77, "VALVE GUIDE REPLACEMENT" .
2. Install valve seat if removed. Refer to EM-79, "
VALVE SEAT REPLACEMENT" .
3. Install valve oil seal.

Install with a valve oil seal drift (special service tool) to match
dimension in the figure.
NOTE:
Dimension “H” is height that measured before installing valve
spring (with valve spring seat).
4. Install valve.

Install larger diameter to intake side.
PBIC1791E
SEM093F
Height “H” : 11.8 - 12.4 mm (0.465 - 0.488 in)
KBIA1999J

EM-76
[QR]
CYLINDER HEAD

5. Install valve spring (with valve spring seat).

Install smaller pitch (valve spring seat side) to cylinder head
side.

Confirm identification color of valve spring.
6. Install valve spring retainer.
7. Install valve collet.

Compress valve spring with a valve spring compressor,
attachment and adapter (special service tool). Install valve
collet with a magnet hand.
CAUTION:
When working, be careful not to damage valve lifter
holes.

Tap valve stem edge lightly with a plastic hammer after instal-
lation to check its installed condition.
8. Install valve lifter.
9. Install spark plug tube if removed.

Press-fit it into cylinder head with the following procedure:
a. Remove old thread locking sealant from cylinder head side
installation hole.
b. Apply thread locking sealant all round on spark plug tube within
approximately 12 mm (0.47 in) width from edge of spark plug
tube on the press-fit side.
Use Genuine Thread Locking Sealant or equivalent.
c. Using a drift, press-fit spark plug tube so that height is as same
as “H” shown in figure.
CAUTION:

When press-fitting, be careful not to deform spark plug tube.

After press-fitting, wipe off any protruding thread locking sealant on top surface of cylinder
head.
10. Install spark plug with spark plug wrench (commercial service tool).Intake : Blue
Exhaust : Yellow
PBIC0525E
PBIC1791E
Standard press-fit height “H”:
41.2 - 42.2 mm (1.622 - 1.661 in)
PBIC2636E
