2005 NISSAN X-TRAIL height

HEADLAMP AIMING CONTROL (AUTO)
LT-85
C
D
E
F
G
H
I
J
L
MA
B
LT

4. CHECK HEADLAMP AIMING MOTOR RH
1. Connect headlamp aiming motor RH connector only.
2. Turn ignition switch ON.
3. Check if “ACT OUTPUT” and “ACT MEASURED” indicated the
same value.
OK or NG
OK >> GO TO 5.
NG >> Replace headlamp RH. Refer to LT- 2 1 , "
Removal and
Installation of Headlamp" in HEADLAMP - XENON
TYPE -.
5. CHECK HEADLAMP AIMING MOTOR LH
1. Turn ignition switch OFF.
2. Disconnect headlamp aiming motor RH connector.
3. Connect headlamp aiming motor LH connector.
4. Turn ignition switch ON.
5. Check if “ACT OUTPUT” and “ACT MEASURED” indicated the
same value.
OK or NG
OK >> Replace height sensor, and initialize it. Refer to LT- 8 6 ,
"Removal and Installation of Height Sensor" and LT- 7 0 ,
"WORK SUPPORT" .
NG >> Replace headlamp LH. Refer to LT- 2 1 , "
Removal and
Installation of Headlamp" in HEADLAMP - XENON TYPE -.
PKIB7209E
PKIB7209E

LT-86
HEADLAMP AIMING CONTROL (AUTO)

Removal and Installation of Height SensorEKS00N6H
REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.
3. Lift-up the vehicle.
4. Disconnect height sensor sub harness connector.
5. Remove linkage mounting bolt.
6. Remove height sensor mounting bolt and remove height sensor
from vehicle.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Initialize whenever replacing the height sensor. Refer to LT- 7 0 , "
WORK SUPPORT" .
PKIC0424E
Height sensor mounting bolt : 5.5 N·m (0.56 kg-m, 49 in-lb)
Linkage mounting bolt : 5.5 N·m (0.56 kg-m, 49 in-lb)

LT-110
FRONT FOG LAMP

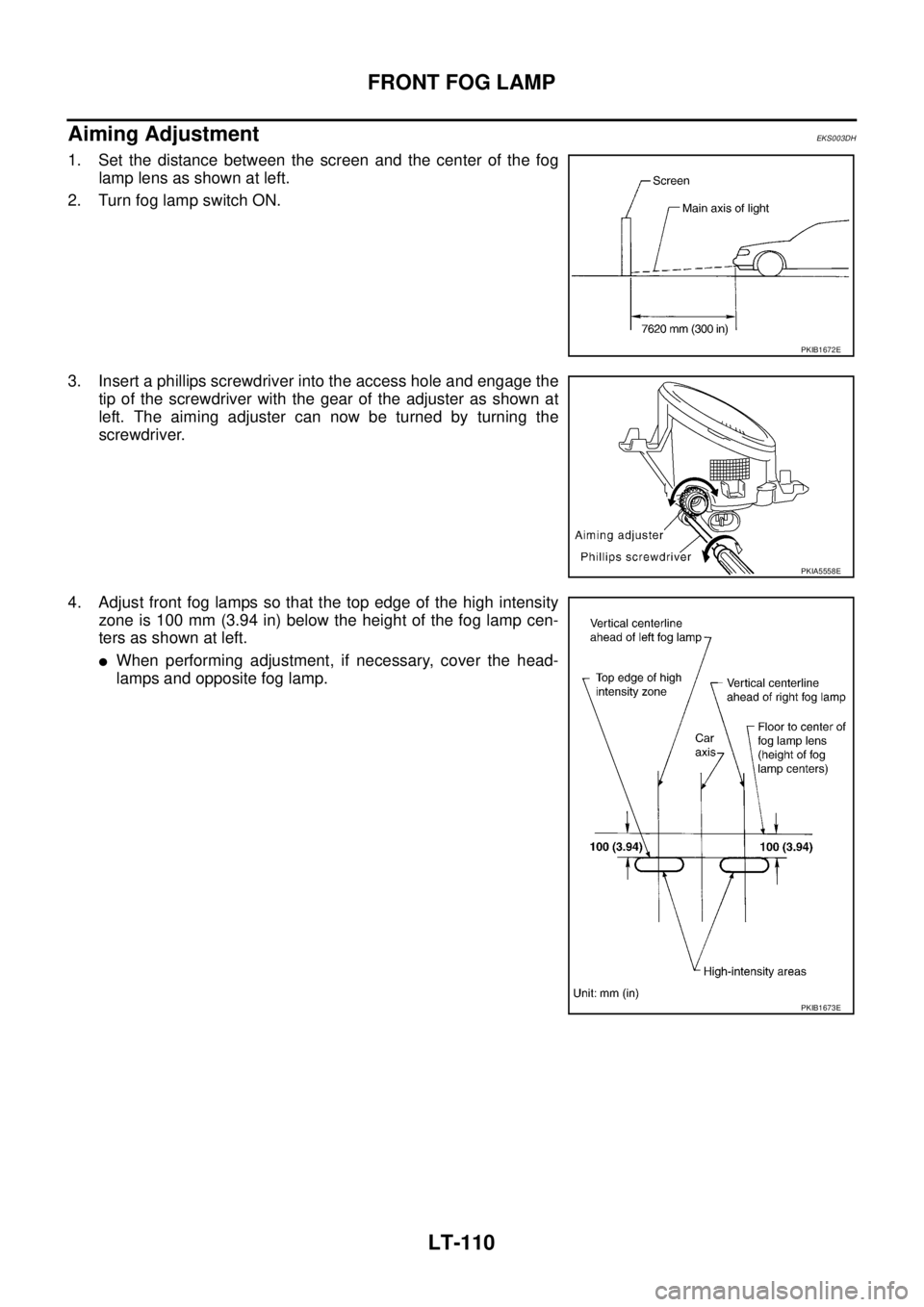

Aiming Adjustment EKS003DH
1. Set the distance between the screen and the center of the fog
lamp lens as shown at left.
2. Turn fog lamp switch ON.
3. Insert a phillips screwdriver into the access hole and engage the
tip of the screwdriver with the gear of the adjuster as shown at
left. The aiming adjuster can now be turned by turning the
screwdriver.
4. Adjust front fog lamps so that the top edge of the high intensity
zone is 100 mm (3.94 in) below the height of the fog lamp cen-
ters as shown at left.

When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
PKIB1672E
PKIA5558E
PKIB1673E
