CYLINDER HEAD

5. Using valve seat cutter set (commercial service tool) or valve
seat grinder, finish valve seat to the specified dimensions. For
dimensions, refer to EM-121, "
Va l v e S e a t" .
CAUTION:
When using valve seat cutter, firmly grip the cutter handle
with both hands. Then, press on the contacting surface all
around the circumference to cut in a single drive. Improper
pressure on with the cutter or cutting many different times
may result in stage valve seat.
6. Using compound, grind to adjust valve fitting.
7. Check again for normal contact. Refer to EM-79, "
VALVE SEAT CONTACT" .
VALVE SPRING SQUARENESS

Set try square along the side of valve spring and rotate the
spring. Measure the maximum clearance between the top of
valve spring and try square.
CAUTION:
Do not remove valve spring seat from valve spring.

If it exceeds the limit, replace valve spring (with valve spring
seat).
VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD

Check valve spring pressure with valve spring seat installed at
the specified spring height.
CAUTION:
Do not remove valve spring seat from valve spring.
Standard:

If the installation load or load with valve open is out of the standard, replace valve spring (with valve spring
seat).
SEM934C
Limit: 1.9 mm (0.075 in)
PBIC0080E
SEM113
Items Intake Exhaust
Free height 44.84 - 45.34 mm (1.7654 - 1.7850 in) 45.28 - 45.78 mm (1.7827 - 1.8024 in)
Installation height 35.30 mm (1.390 in) 35.30 mm (1.390 in)
Installation load 151 - 175 N (15.4 - 17.8 kg, 34 - 39 lb) 151 - 175 N (15.4 - 17.8 kg, 34 - 39 lb)
Height during valve open 24.94 mm (0.9819 in) 26.39 mm (1.0390 in)
Load with valve open 358 - 408 N (36.5 - 41.6 kg, 80 - 92 lb) 325 - 371 N (33.1 - 37.8 kg, 73 - 83 lb)
Identification color Blue Yellow

CYLINDER BLOCK
EM-115
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

MAIN BEARING CRUSH HEIGHT

When lower cylinder block is removed after being tightened to
the specified torque with main bearings installed, the tip end of
bearing must protrude. Refer to EM-94, "
ASSEMBLY" for the
tightening procedure.

If the standard is not met, replace main bearings.
CONNECTING ROD BEARING CRUSH HEIGHT

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to EM-94,
"ASSEMBLY" for the tightening procedure.

If the standard is not met, replace connecting rod bearings.
LOWER CYLINDER BLOCK MOUNTING BOLT OUTER DIAMETER

Perform only with M10 bolts.

Measure the outer diameters (“d1 ”, “d2” ) at two positions as
shown in the figure.

If reduction appears in “A” range, regard it as “d2 ”.

If it exceeds the limit (a large difference in dimensions), replace
lower cylinder block mounting bolt with a new one.
CONNECTING ROD BOLT OUTER DIAMETER

Measure the outer diameter “d” at position as shown in the fig-
ure.

If reduction appears in a position other than “d”, regard it as “d”.

When “d ” exceeds the limit (when it becomes thinner), replace

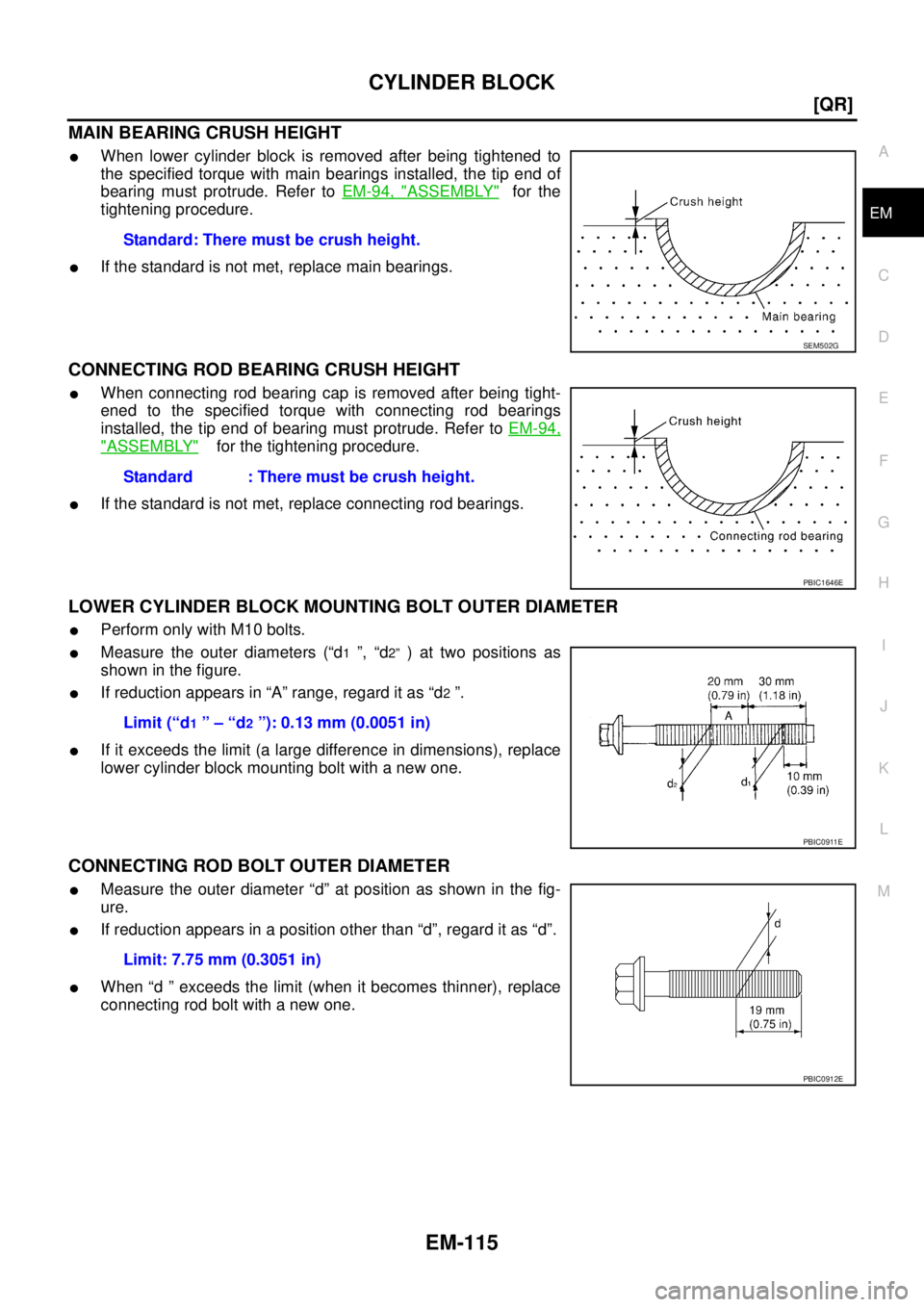

connecting rod bolt with a new one.Standard: There must be crush height.
SEM502G
Standard : There must be crush height.
PBIC1646E
Limit (“d1 ” – “d2 ”): 0.13 mm (0.0051 in)
PBIC0911E
Limit: 7.75 mm (0.3051 in)
PBIC0912E

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-119
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

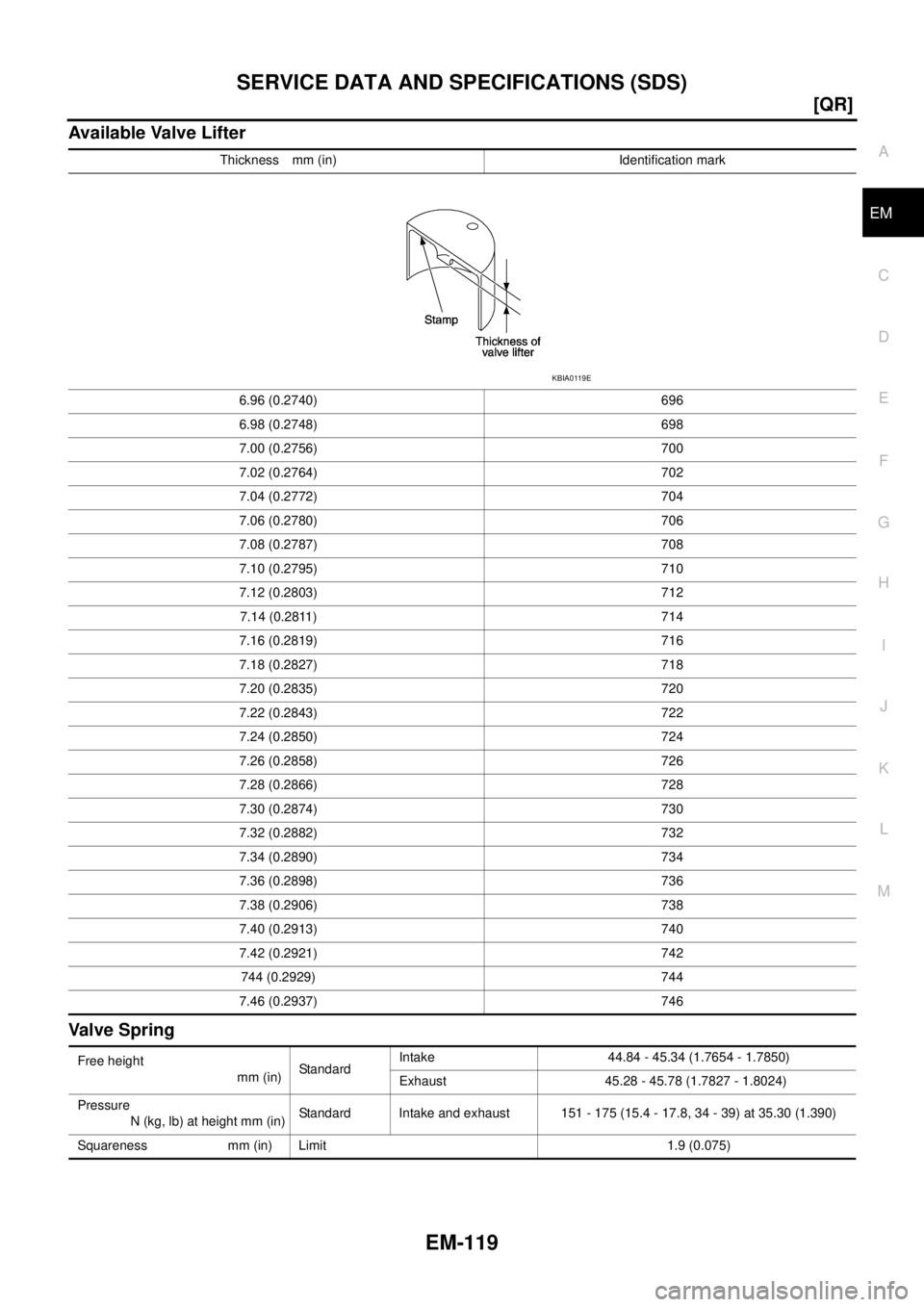

Available Valve Lifter
Valve Spring
Thickness mm (in) Identification mark
6.96 (0.2740) 696
6.98 (0.2748) 698
7.00 (0.2756) 700
7.02 (0.2764) 702
7.04 (0.2772) 704
7.06 (0.2780) 706
7.08 (0.2787) 708
7.10 (0.2795) 710
7.12 (0.2803) 712
7.14 (0.2811) 714
7.16 (0.2819) 716
7.18 (0.2827) 718
7.20 (0.2835) 720
7.22 (0.2843) 722
7.24 (0.2850) 724
7.26 (0.2858) 726
7.28 (0.2866) 728
7.30 (0.2874) 730
7.32 (0.2882) 732
7.34 (0.2890) 734
7.36 (0.2898) 736
7.38 (0.2906) 738
7.40 (0.2913) 740
7.42 (0.2921) 742
744 (0.2929) 744
7.46 (0.2937) 746
KBIA0119E
Free height
mm (in) StandardIntake 44.84 - 45.34 (1.7654 - 1.7850)
Exhaust 45.28 - 45.78 (1.7827 - 1.8024)
Pressure
N (kg, lb) at height mm (in)Standard Intake and exhaust 151 - 175 (15.4 - 17.8, 34 - 39) at 35.30 (1.390)
Squareness mm (in) Limit 1.9 (0.075)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-121
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

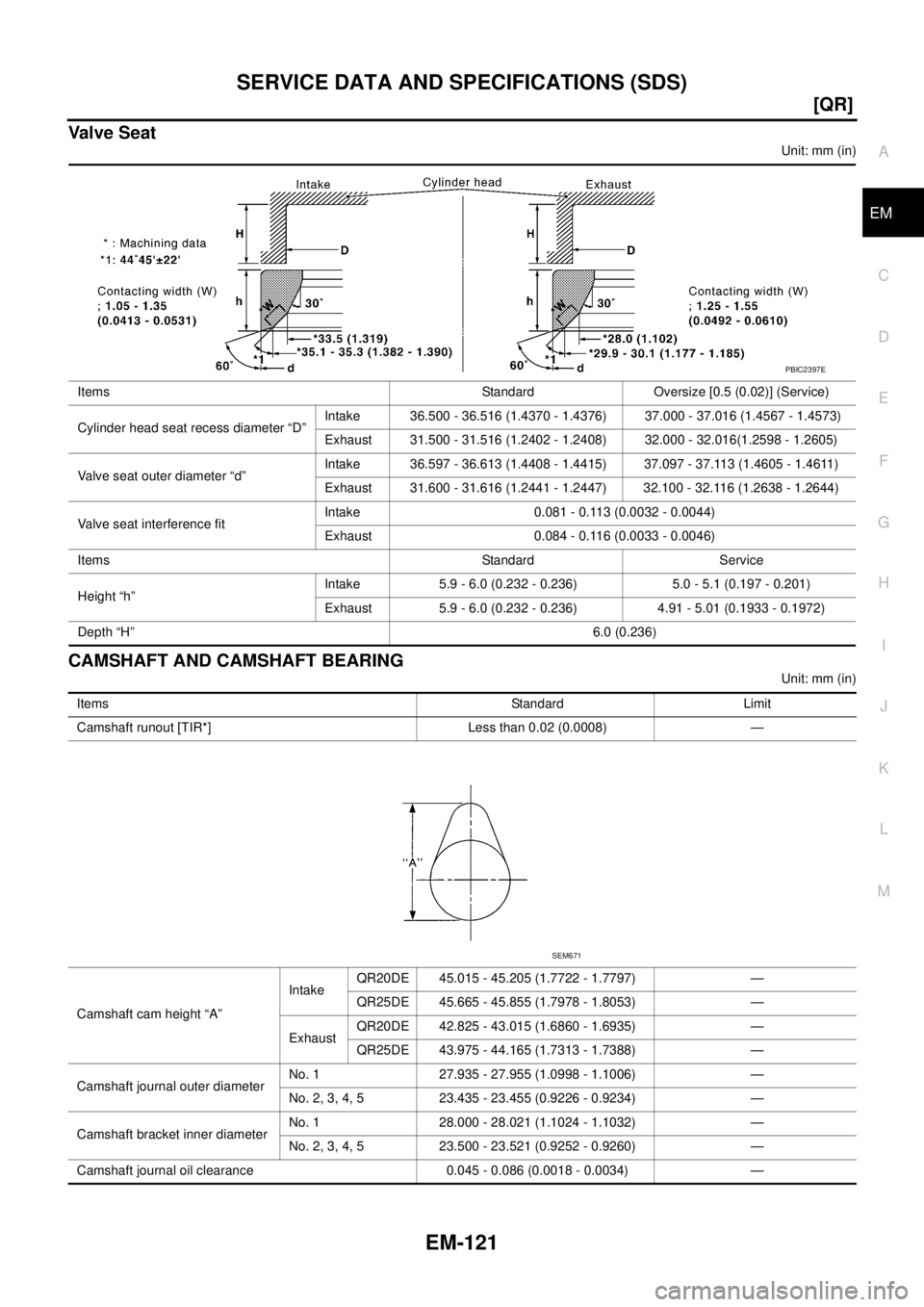

Valve Seat
Unit: mm (in)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in) Items Standard Oversize [0.5 (0.02)] (Service)
Cylinder head seat recess diameter “D”Intake 36.500 - 36.516 (1.4370 - 1.4376) 37.000 - 37.016 (1.4567 - 1.4573)
Exhaust 31.500 - 31.516 (1.2402 - 1.2408) 32.000 - 32.016(1.2598 - 1.2605)
Valve seat outer diameter “d”Intake 36.597 - 36.613 (1.4408 - 1.4415) 37.097 - 37.113 (1.4605 - 1.4611)
Exhaust 31.600 - 31.616 (1.2441 - 1.2447) 32.100 - 32.116 (1.2638 - 1.2644)
Valve seat interference fitIntake 0.081 - 0.113 (0.0032 - 0.0044)
Exhaust 0.084 - 0.116 (0.0033 - 0.0046)
Items Standard Service
Height “h”Intake 5.9 - 6.0 (0.232 - 0.236) 5.0 - 5.1 (0.197 - 0.201)
Exhaust 5.9 - 6.0 (0.232 - 0.236) 4.91 - 5.01 (0.1933 - 0.1972)
Depth “H”6.0 (0.236)
PBIC2397E
Items Standard Limit
Camshaft runout [TIR*] Less than 0.02 (0.0008) —
Camshaft cam height “A”IntakeQR20DE 45.015 - 45.205 (1.7722 - 1.7797) —
QR25DE 45.665 - 45.855 (1.7978 - 1.8053) —
ExhaustQR20DE 42.825 - 43.015 (1.6860 - 1.6935) —
QR25DE 43.975 - 44.165 (1.7313 - 1.7388) —
Camshaft journal outer diameterNo. 1 27.935 - 27.955 (1.0998 - 1.1006) —
No. 2, 3, 4, 5 23.435 - 23.455 (0.9226 - 0.9234) —
Camshaft bracket inner diameterNo. 1 28.000 - 28.021 (1.1024 - 1.1032) —
No. 2, 3, 4, 5 23.500 - 23.521 (0.9252 - 0.9260) —
Camshaft journal oil clearance 0.045 - 0.086 (0.0018 - 0.0034) —
SEM671

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-123
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

PISTON, PISTON RING AND PISTON PIN
Available Piston
Unit: mm (in)
Piston Ring
Unit: mm (in)
Piston Pin
Unit: mm (in) Piston skirt diameter “A” StandardGrade No. 2 88.990 - 89.000 (3.5035 - 3.5039)
Grade No. 3 89.000 - 89.010 (3.5039 - 3.5043)
0.20 (0.008) oversize (Service) 89.180 - 89.210 (3.5110 - 3.5122)
Piston height “H” dimension42.0 (1.654)
Piston pin hole diameterGrade No. 0 19.993 - 19.999 (0.7871 - 0.7874)
Grade No. 1 19.999 - 20.005 (0.7874 - 0.7876)
Piston to cylinder bore clearanceStandard 0.010 - 0.030 (0.0004 - 0.0012)
Limit 0.08 (0.0031)
PBIC0188E
Items Standard Limit
Side clearanceTop 0.045 - 0.080 (0.0018 - 0.0031) 0.11 (0.0043)
2nd 0.030 - 0.070 (0.0012 - 0.0028) 0.10 (0.0039)
Oil ring 0.065 - 0.135 (0.0026 - 0.0053) —
End gapTop 0.21- 0.31 (0.0083 - 0.0122) 0.54 (0.0213)
2nd 0.32 - 0.47 (0.0126 - 0.0185) 0.67 (0.0264)
Oil (rail ring) 0.20 - 0.60 (0.0079 - 0.0236) 0.95 (0.0374)
Piston pin outer diameterGrade No. 0 19.989 - 19.995 (0.7870 - 0.7872)
Grade No. 1 19.995 - 20.001 (0.7872 - 0.7874)
Piston to piston pin oil clearance Standard 0.002 - 0.006 (0.0001 - 0.0002)
Connecting rod bushing oil clearance Standard 0.005 - 0.017 (0.0002 - 0.0007)

EM-162
[YD22DDTi]
GLOW PLUG

GLOW PLUGPFP:22401
Removal and InstallationEBS00LRL
REMOVAL
CAUTION:
Remove glow plug only if necessary. If carbon adheres, it may be stuck and broken.
1. Remove charge air cooler. Refer to EM-144, "
Removal and Installation" .
2. Remove glow harness from glow plate.
3. Remove glow nut to remove glow plate.
4. Remove glow plug.
CAUTION:

When removing or installing, do not use such tools as an air impact wrench.

Handle it carefully without giving any impact, even after removal. [As a guide, if it drops from
height of 10 cm (3.94 in) or higher, always replace it.]
INSTALLATION
1. Remove adhered carbon from glow plug installation hole with a reamer.
2. Install glow plug.
3. Install remaining parts in the reverse order of removal.

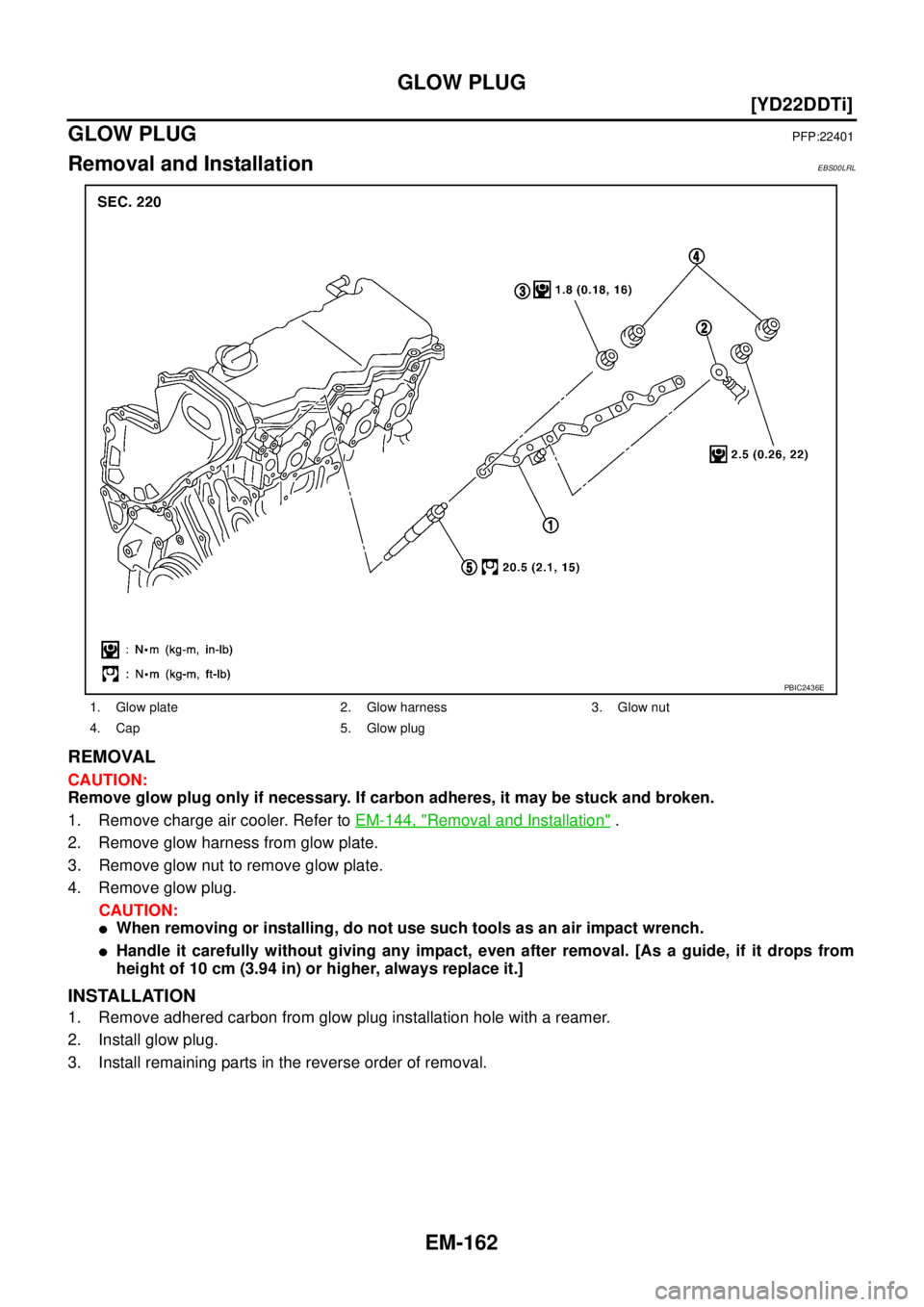

1. Glow plate 2. Glow harness 3. Glow nut
4. Cap 5. Glow plug
PBIC2436E

CAMSHAFT
EM-181
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM


Loosen the camshaft sprocket mounting bolt by fixing the hex-
agonal portion of camshaft.
10.11. Remove camshaft as follows:
a. Loosen and remove the camshaft sprocket bolts in reverse order
shown in the figure.
b. Place distinguishing marks on the right and left sides with paint.
12. Remove adjusting shim and valve lifter.

Remove by taking notice of the installation position, and place outside engine in order to prevent confu-
sion.
INSPECTION AFTER REMOVAL
Visual Check of Camshaft

Check the camshaft for one sided wear or scratches.

Replace the camshaft if there are abnormalities.
Camshaft Runout

Prepare V-block on a flat surface and secure camshaft journals
No. 2 and No. 5.

Set the dial indicator vertically on journal No. 3.

Rotate camshaft in one direction by hand, then read needle
movement on dial indicator (total indicator reading).

If it exceeds the limit, replace camshaft.
Camshaft Cam Height

Measure the height of camshaft cam using the micrometer.

If out of the standard, replace camshaft.
JEM159G
JEM160G
Limit : 0.02 mm (0.0008 in)
PBIC2499E
Standard:
Intake : 39.505 - 39.695 mm (1.5553 - 1.5628 in)
Exhaust : 39.905 - 40.095 mm (1.5711 - 1.5785 in)
SEM549A

CYLINDER HEAD
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM


Remove cylinder head bolts in reverse order as shown in the
figure with the cylinder head bolt wrench (commercial service
tool).

Lift up cylinder head assembly to avoid interference with
dowel pins located between the cylinder block and cylinder
head, and remove cylinder head assembly.
CAUTION:
Remove glow plug in advance to avoid damage as the tip
of the glow plug projects from the bottom of cylinder
head, or, place wood blocks beneath both ends of cylin-
der head to keep the cylinder bottom from any contact.

For glow plug removal, the following shall be noted.
CAUTION:

To avoid breakage, do not remove glow plug unless necessary.

Perform continuity test with glow plug installed.

Keep glow plug from any impact. [Replace if dropped from a height 10 cm (3.94 in) or higher.]

Do not use air impact wrench.
4. Remove cylinder head gasket.
INSPECTION AFTER REMOVAL
Cylinder Head Bolt Deformation

Using micrometer, measure the outer diameters “d1” and “d2” of
bolt thread as shown in the figure.

If the necking point can be identified, set it as measuring point
“d1”.

Calculate the difference between “d1” and “d2”.

If it exceeds the limit, replace cylinder head bolt.
Cylinder Head Distortion
NOTE:
When performing this inspection, cylinder block distortion should be also checked. Refer to EM-249, "
CYLIN-
DER BLOCK TOP SURFACE DISTORTION" .
1. Wipe off oil and remove water scale (like deposit), gasket, sealer, carbon, etc. with scraper.
CAUTION:
Use utmost care not to allow gasket debris to enter passages for oil or water.
2. At each of several locations on bottom surface of cylinder head,
measure distortion in six directions.

If it exceeds the limit, replace cylinder head.
JEM149G
Limit : 0.15 mm (0.0059 in)
JEM171G
Limit : 0.1mm (0.004 in)
SEM496G
