INFINITI QX4 2005 Factory Service Manual EC-138Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to �

Page 1330 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-139
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Generic Scan Tool (GST) FunctionUBS00L0C
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has

TROUBLE DIAGNOSIS
EC-139
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Generic Scan Tool (GST) FunctionUBS00L0C
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.
FUNCTION
SEF 1 39 P
Diagnostic test mode Function
Service $01 READINESS TESTSThis diagnostic service gains access to current emission-related data values, including
analog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA)This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to EC-54, "
FREEZE FRAME DATA AND
1ST TRIP FREEZE FRAME DATA" .
Service $03 DTCsThis diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.
Service $04 CLEAR DIAG INFOThis diagnostic service can clear all emission-related diagnostic information. This
includes:
Clear number of diagnostic trouble codes (Service $01)
Clear diagnostic trouble codes (Service $03)
Clear trouble code for freeze frame data (Service $01)
Clear freeze frame data (Service $02)
Reset status of system monitoring test (Service $01)
Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS)This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS)This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 —This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, the EVAP canister vent control
valve can be closed.
In the following conditions, this diagnostic service cannot function.
Low ambient temperature
Low battery voltage
Engine running
Ignition switch OFF
Low fuel temperature
Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID)This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.

Page 1331 of 3419

INFINITI QX4 2005 Factory Service Manual EC-140Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH
dash panel near the hood ope

Page 1332 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-141
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
CONSULT-II Reference Value in Data MonitorUBS00L0D
Remarks:
Specification data are reference values.
Specificatio

TROUBLE DIAGNOSIS
EC-141
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
CONSULT-II Reference Value in Data MonitorUBS00L0D
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-146, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-146, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2See EC-146, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming upMaintaining engine speed at 2,000
rpmFluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no loadRevving engine from idle to 3,000 rpm
quickly0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)
Warm-up condition
After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.Revving engine from idle to 3,000 rpm
quickly.LEAN ←→ RICH
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.2 - 4.8V
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
Ignition switch: ONSelector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel: Not being turned
(Forward direction)OFF
Steering wheel: Being turned ON
LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.ON
Rear window defogger switch is OFF
and lighting switch is OFF.OFF

Page 1333 of 3419

INFINITI QX4 2005 Factory Service Manual EC-142Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
IGNITION SWIgnition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engineHeater fan: Not opera

EC-142Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
IGNITION SWIgnition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engineHeater fan: Not operating OFF
Heater fan: Operating ON
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 2.0 - 2.8 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 10° - 20° BTDC
2,000 rpm 25° - 45° BTDC
CAL/LD VALUE
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
PURG VOL C/V
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
(Accelerator pedal: Not depressed
even slightly, after engine starting.)0%
2,000 rpm —
AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor: Operates)ON
FUEL PUMP RLY
For 1 second after turning ignition switch ON
Engine running or crankingON
Except above conditions OFF
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant temperature: 99°C
(210°F) or lessOFF
Engine coolant temperature: 100°C
(212°F) or moreHI
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no loadON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as the
tachometer indication
VEHICLE SPEED
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ONVehicle has traveled after MIL has
turned ON.0 - 65,535 km
(0 - 40,723 mile) MONITOR ITEM CONDITION SPECIFICATION

Page 1334 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-143
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally.

Page 1335 of 3419

INFINITI QX4 2005 Factory Service Manual EC-144Revision: October 2005
TROUBLE DIAGNOSIS
2005 QX56
Major Sensor Reference Graph in Data Monitor ModeUBS00L0E

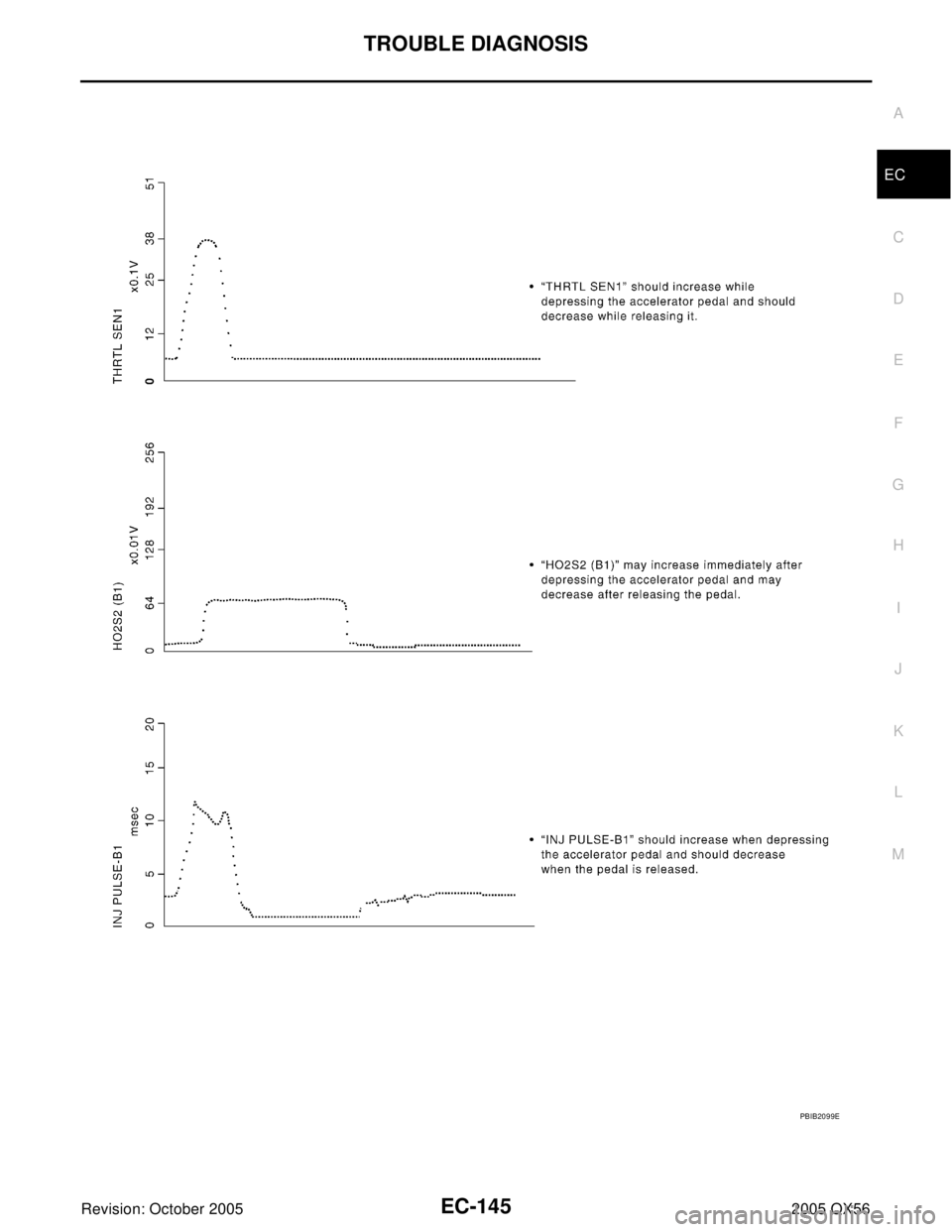

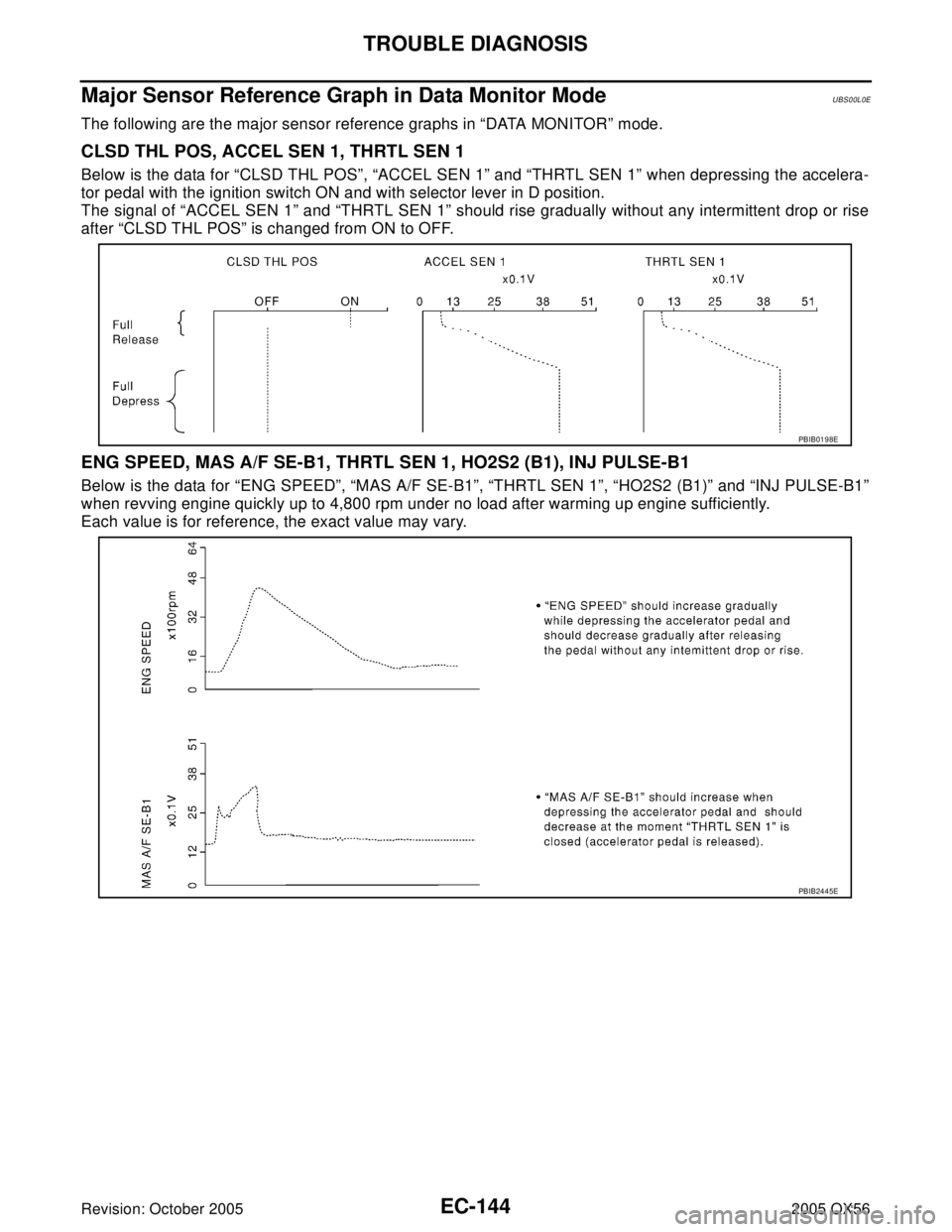

The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD

Page 1336 of 3419

INFINITI QX4 2005 Factory Service Manual TROUBLE DIAGNOSIS
EC-145
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
PBIB2099E
