Page 2721 of 3419

INFINITI QX4 2005 Factory Service Manual PG-46 HARNESS Revision: October 20052005 QX56 ENGINE ROOM HARNESS (RH VIEW) Engine Compartment Refer to PG-43, "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness. WKIA5123E

Page 2722 of 3419

INFINITI QX4 2005 Factory Service Manual HARNESS PG-47 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA5124E

Page 2723 of 3419

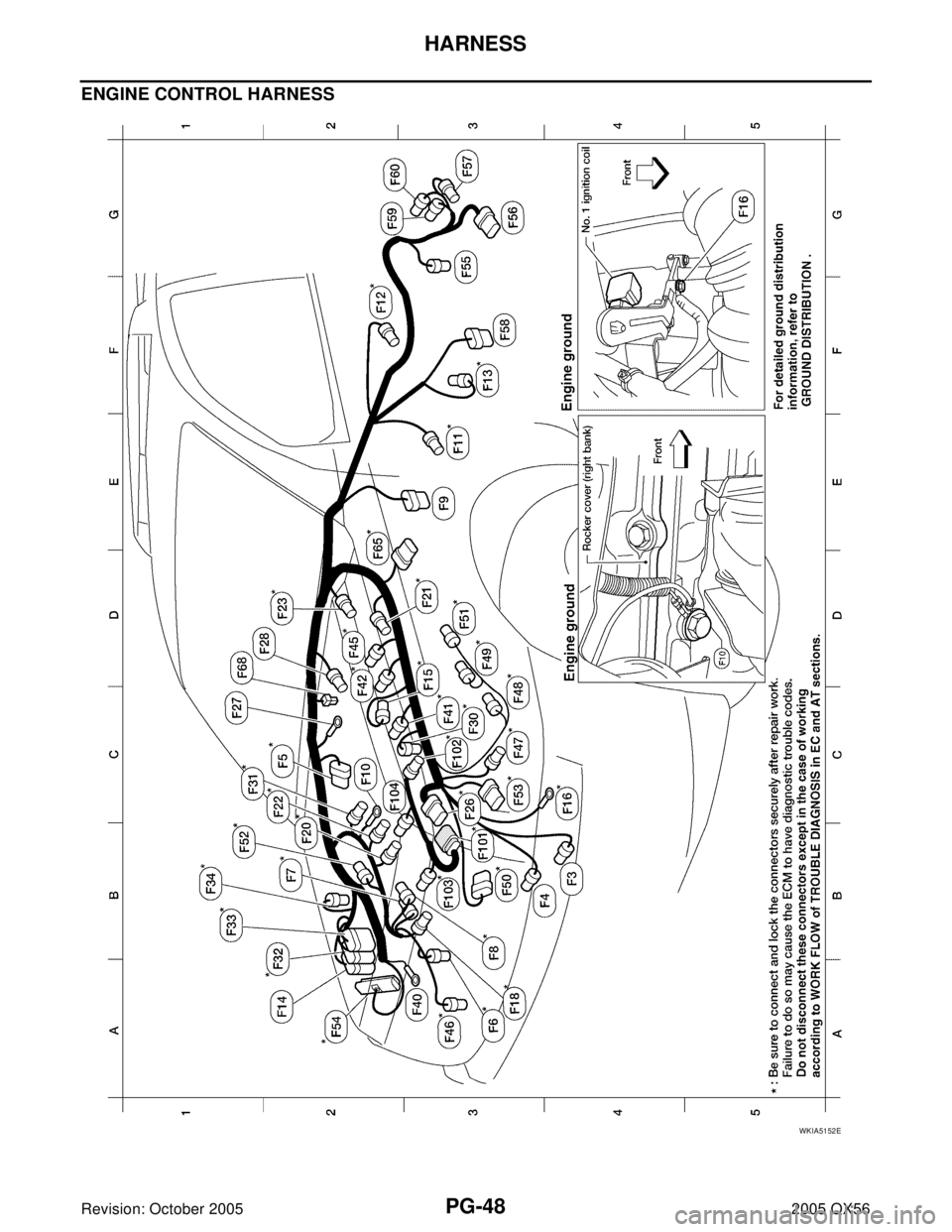

INFINITI QX4 2005 Factory Service Manual PG-48 HARNESS Revision: October 20052005 QX56 ENGINE CONTROL HARNESS WKIA5152E

Page 2724 of 3419

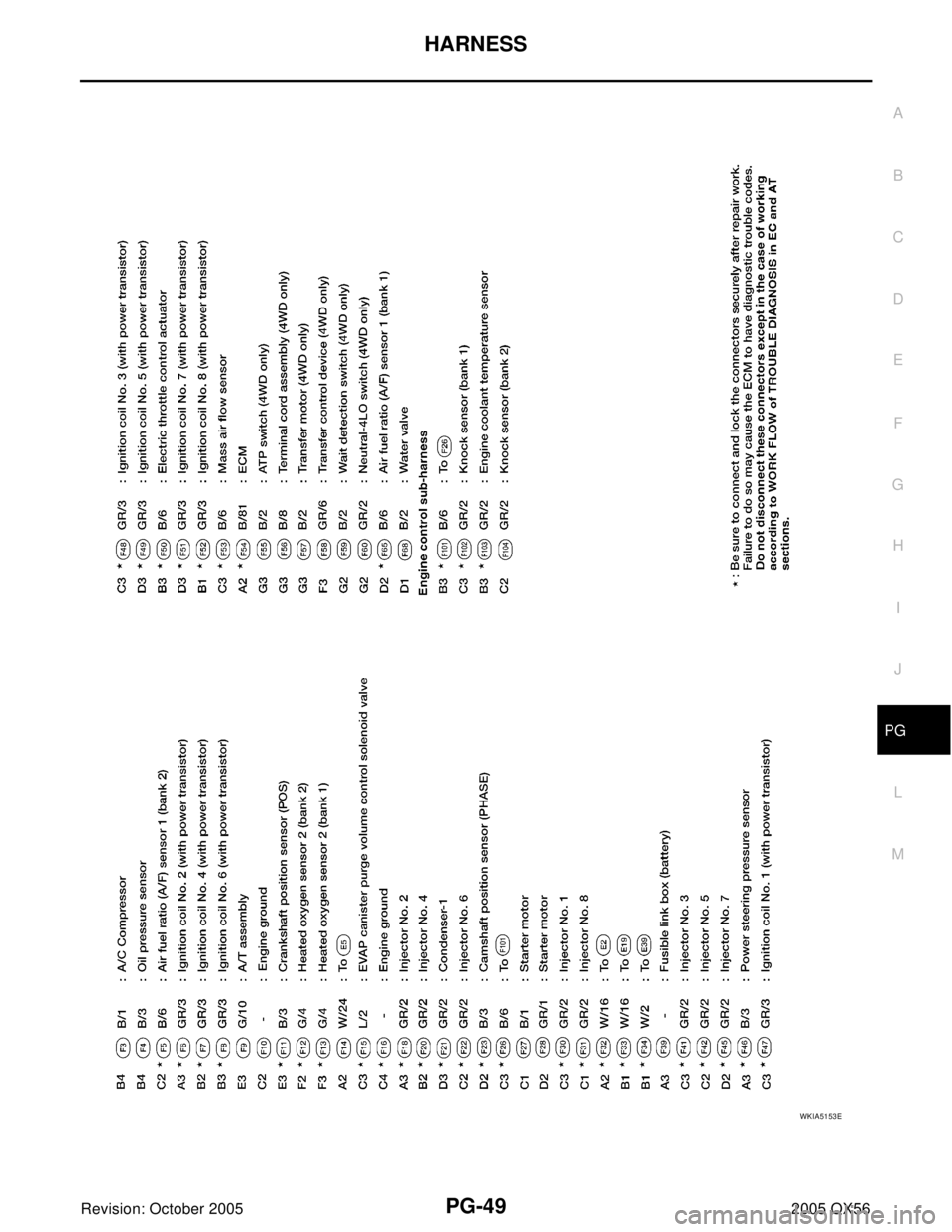

INFINITI QX4 2005 Factory Service Manual HARNESS PG-49 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA5153E

Page 2725 of 3419

INFINITI QX4 2005 Factory Service Manual PG-50 HARNESS Revision: October 20052005 QX56 CHASSIS HARNESS WKIA2710E

Page 2726 of 3419

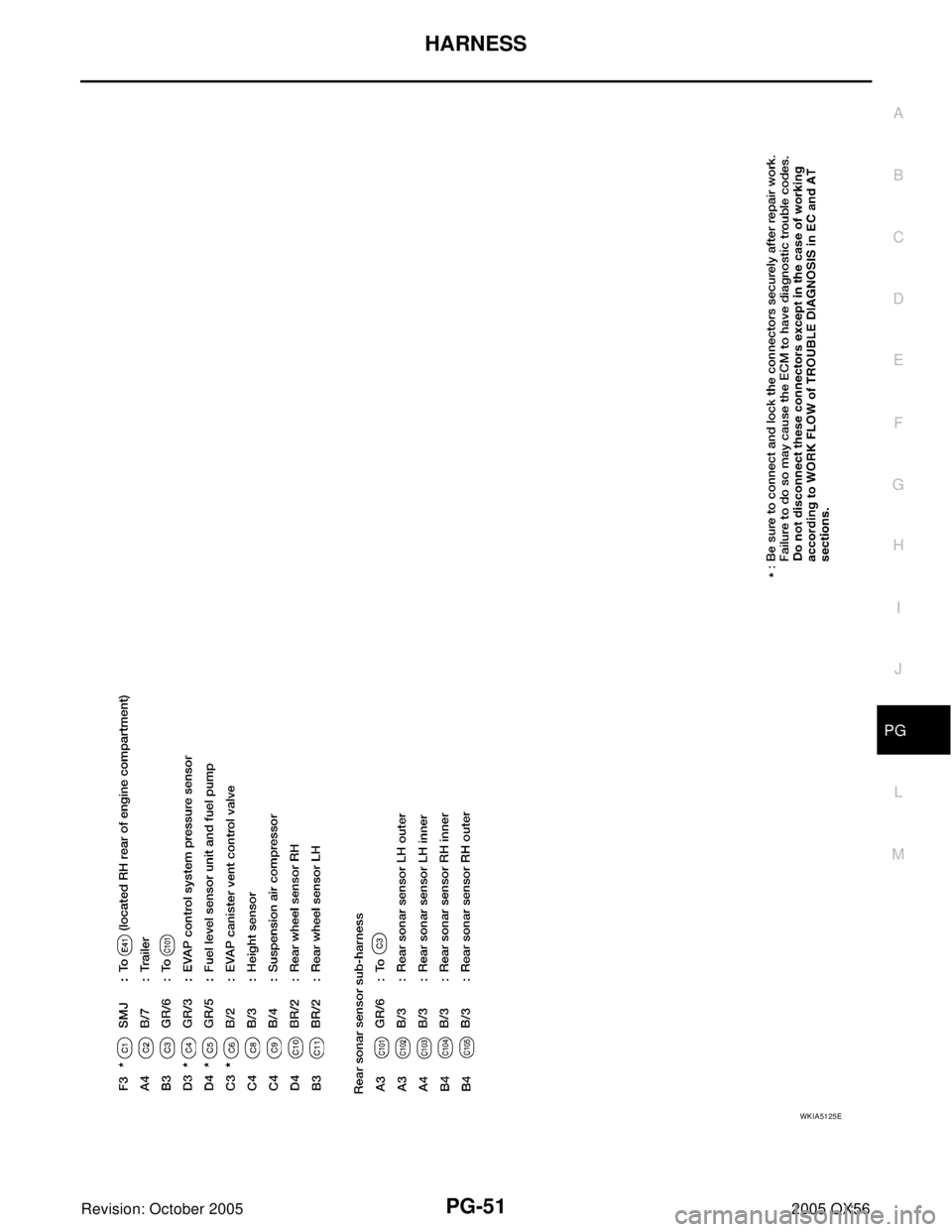

INFINITI QX4 2005 Factory Service Manual HARNESS PG-51 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA5125E

Page 2727 of 3419

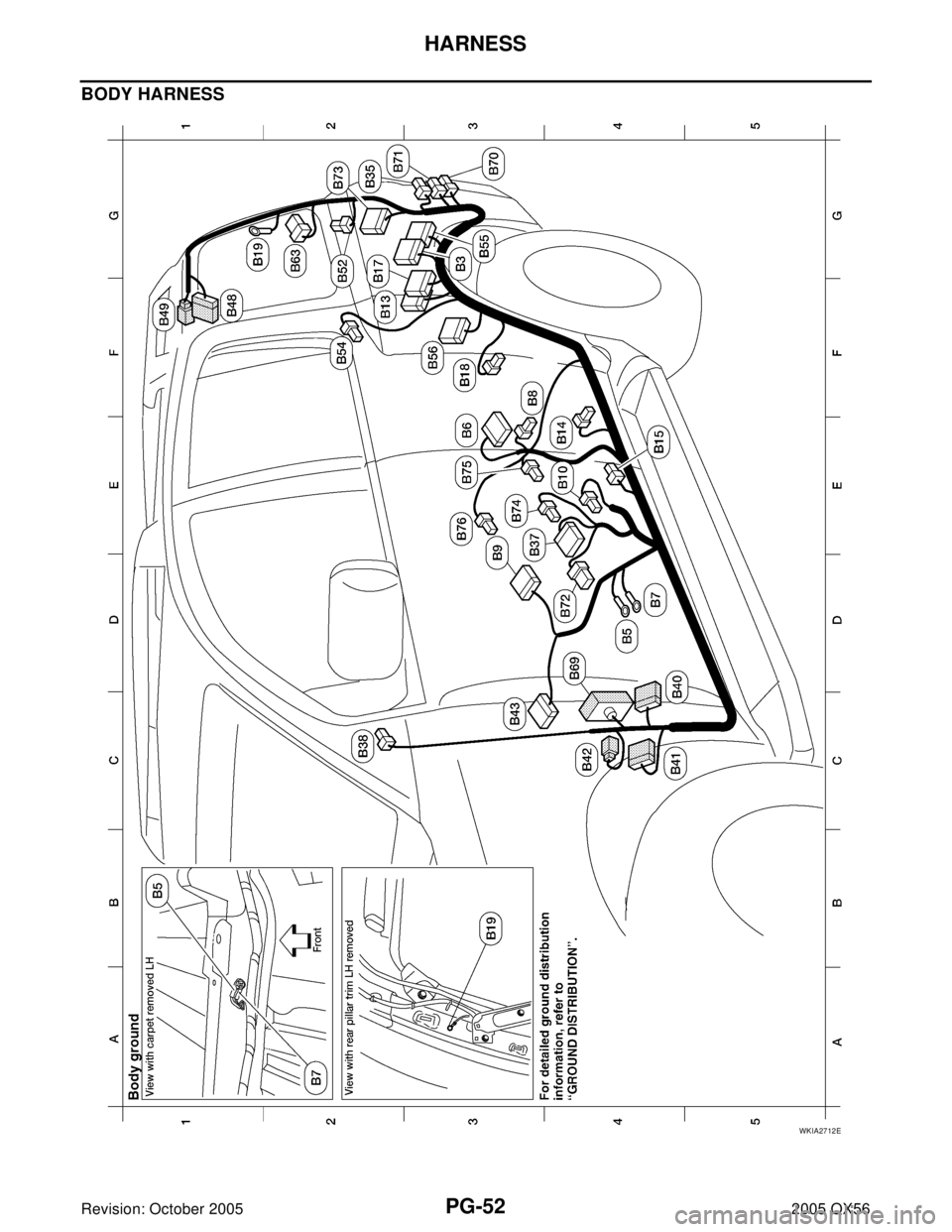

INFINITI QX4 2005 Factory Service Manual PG-52 HARNESS Revision: October 20052005 QX56 BODY HARNESS WKIA2712E

Page 2728 of 3419

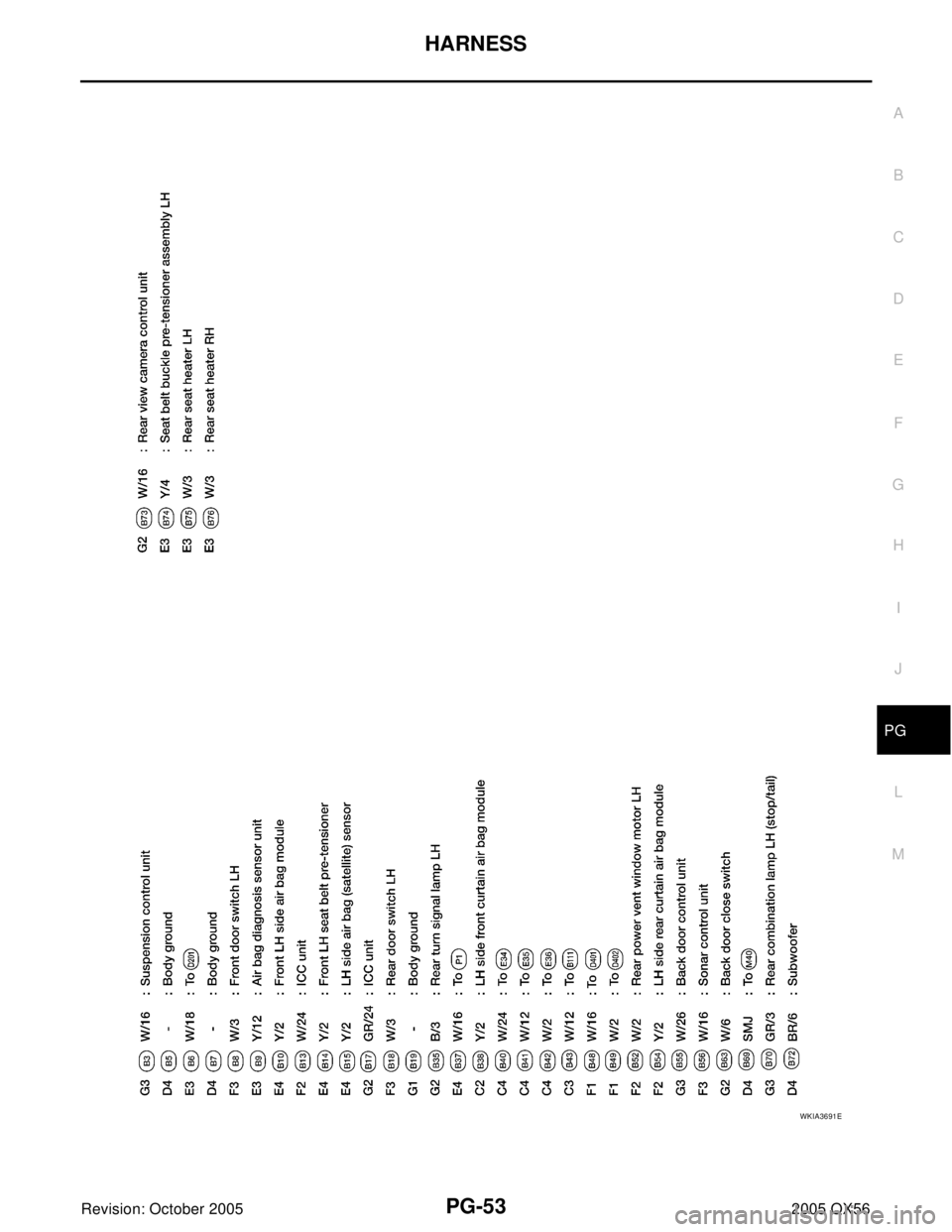

INFINITI QX4 2005 Factory Service Manual HARNESS PG-53 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKIA3691E
