Page 2409 of 3419

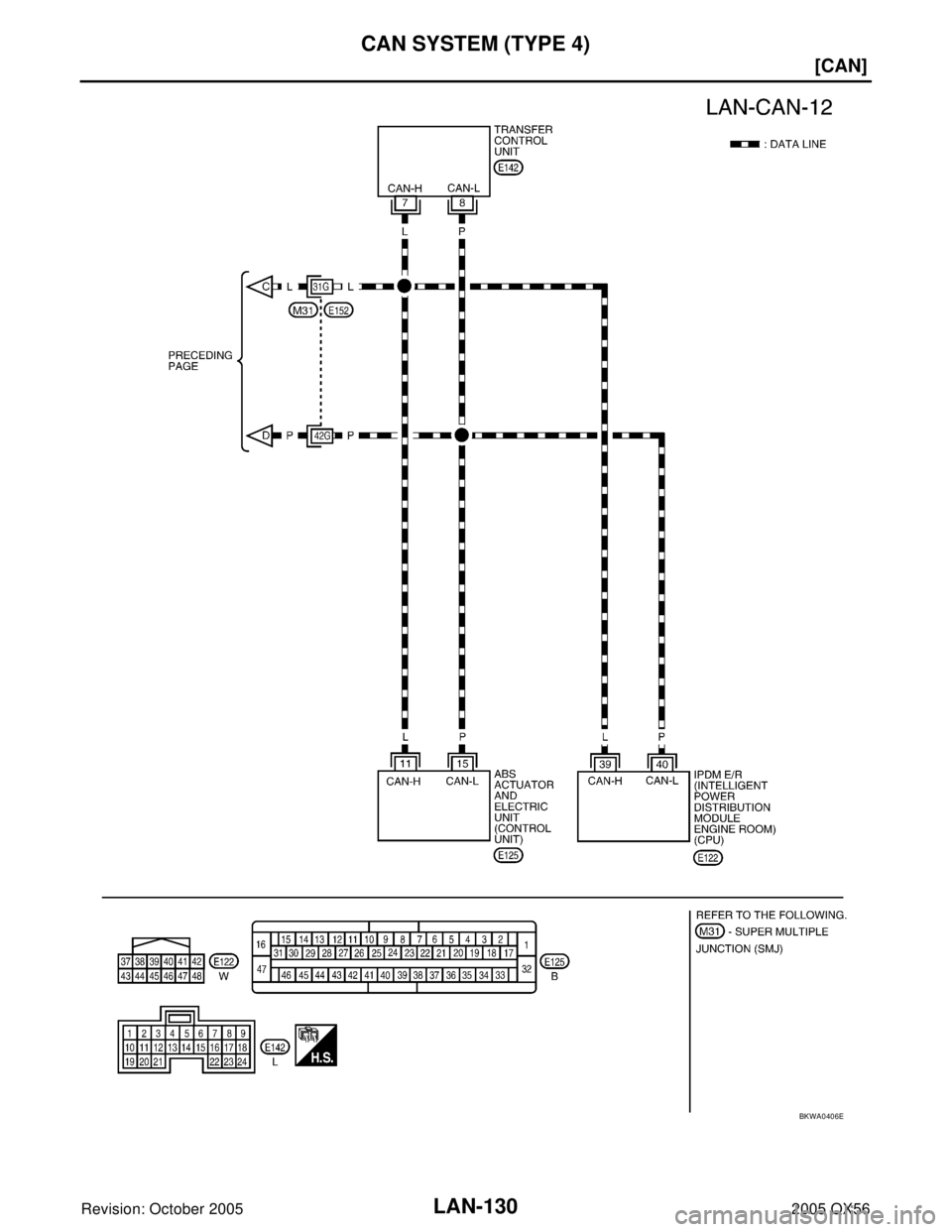

INFINITI QX4 2005 Factory Service Manual LAN-130 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 BKWA0406E

Page 2410 of 3419

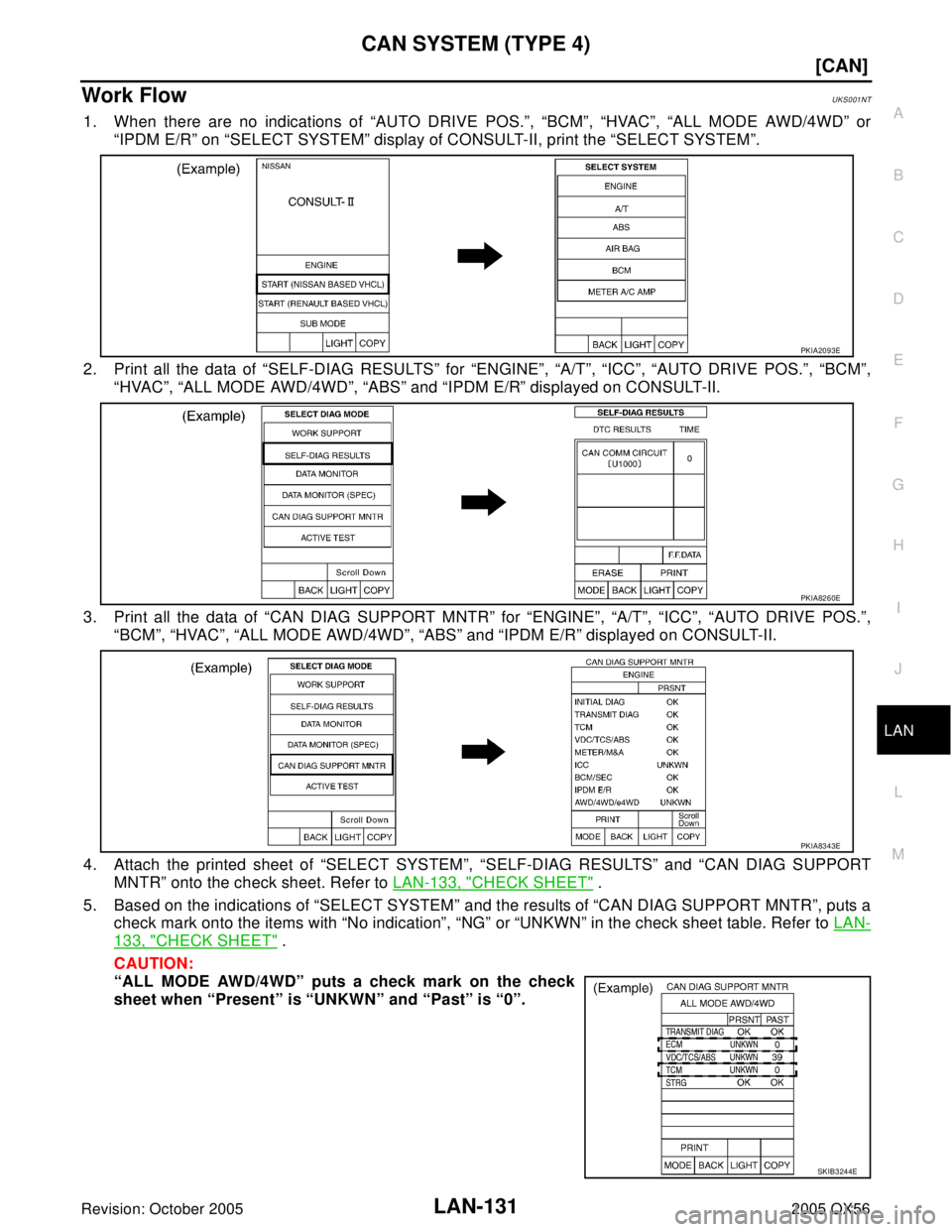

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-131 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Work FlowUKS001NT 1. When there are no indications of “AUTO DRIVE POS.”, “BCM”, “HVAC”, “ALL

Page 2411 of 3419

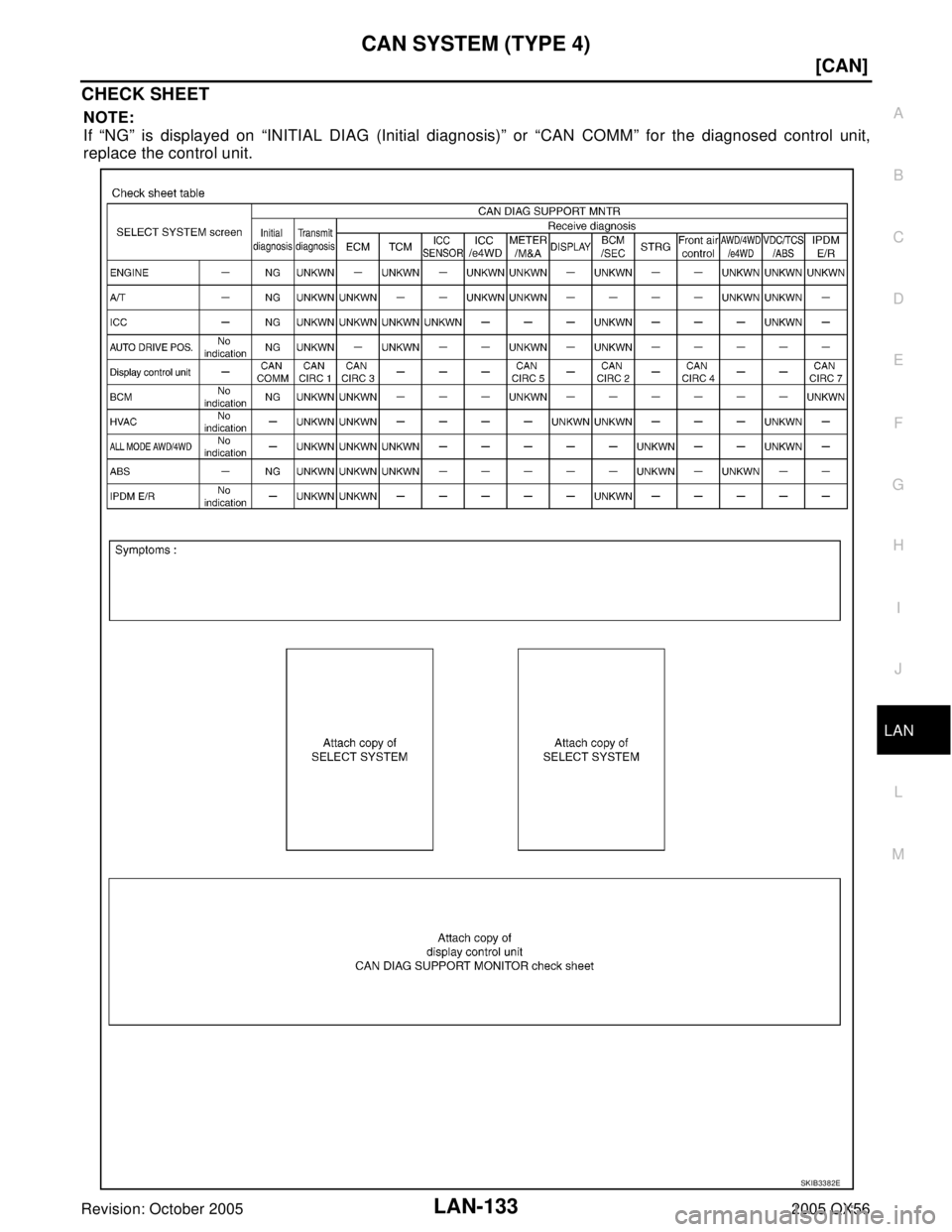

INFINITI QX4 2005 Factory Service Manual LAN-132 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag- nosed control u

Page 2412 of 3419

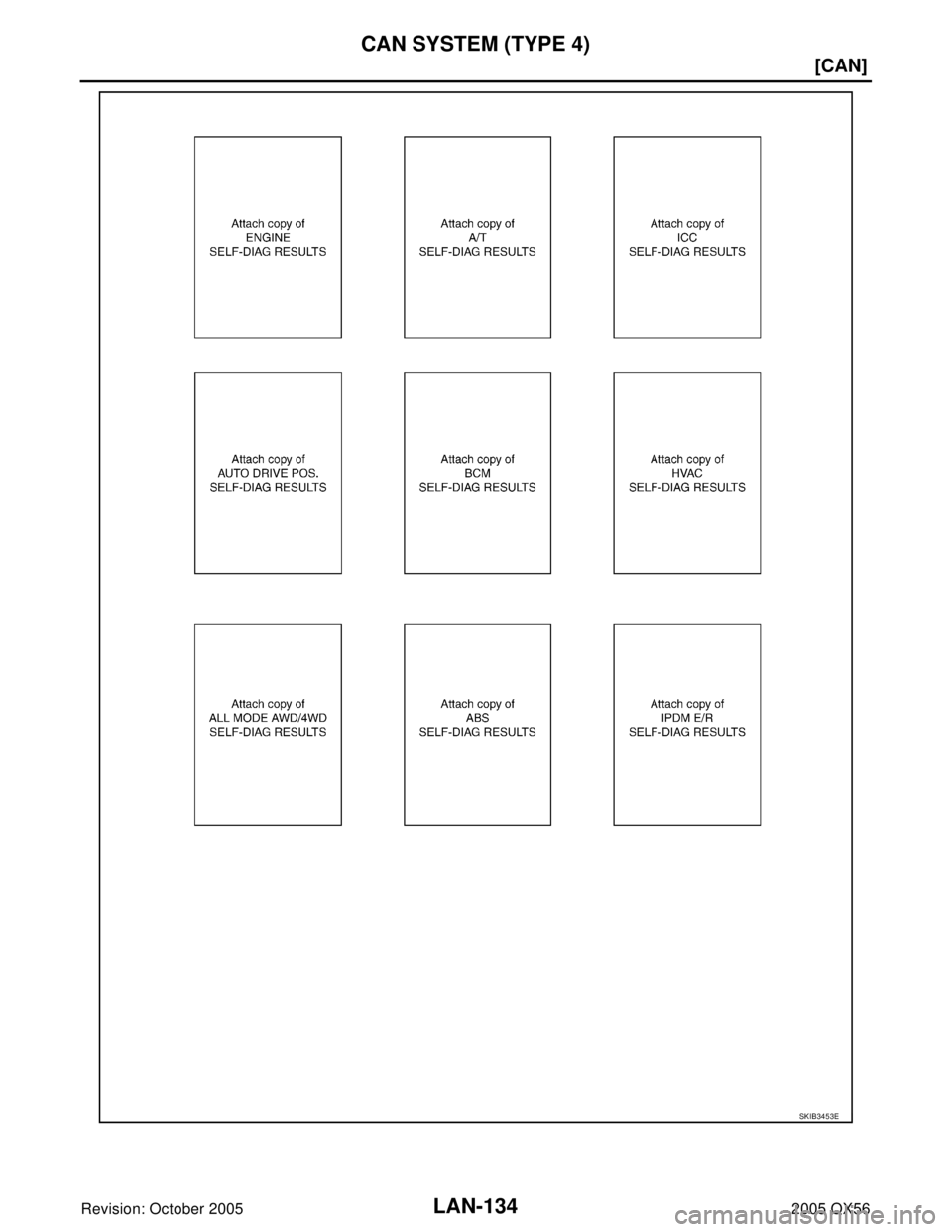

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-133 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 CHECK SHEET NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for

Page 2413 of 3419

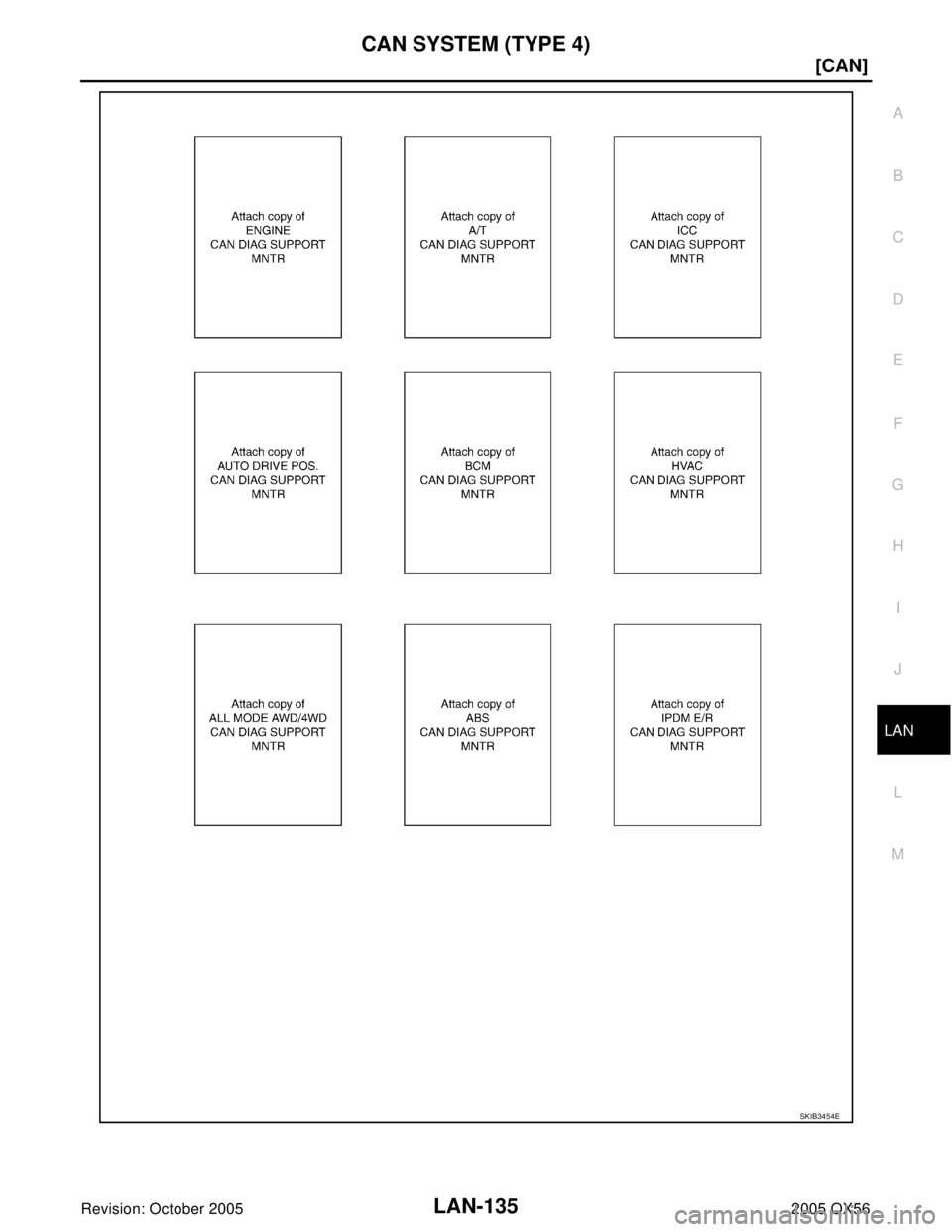

INFINITI QX4 2005 Factory Service Manual LAN-134 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 SKIB3453E

Page 2414 of 3419

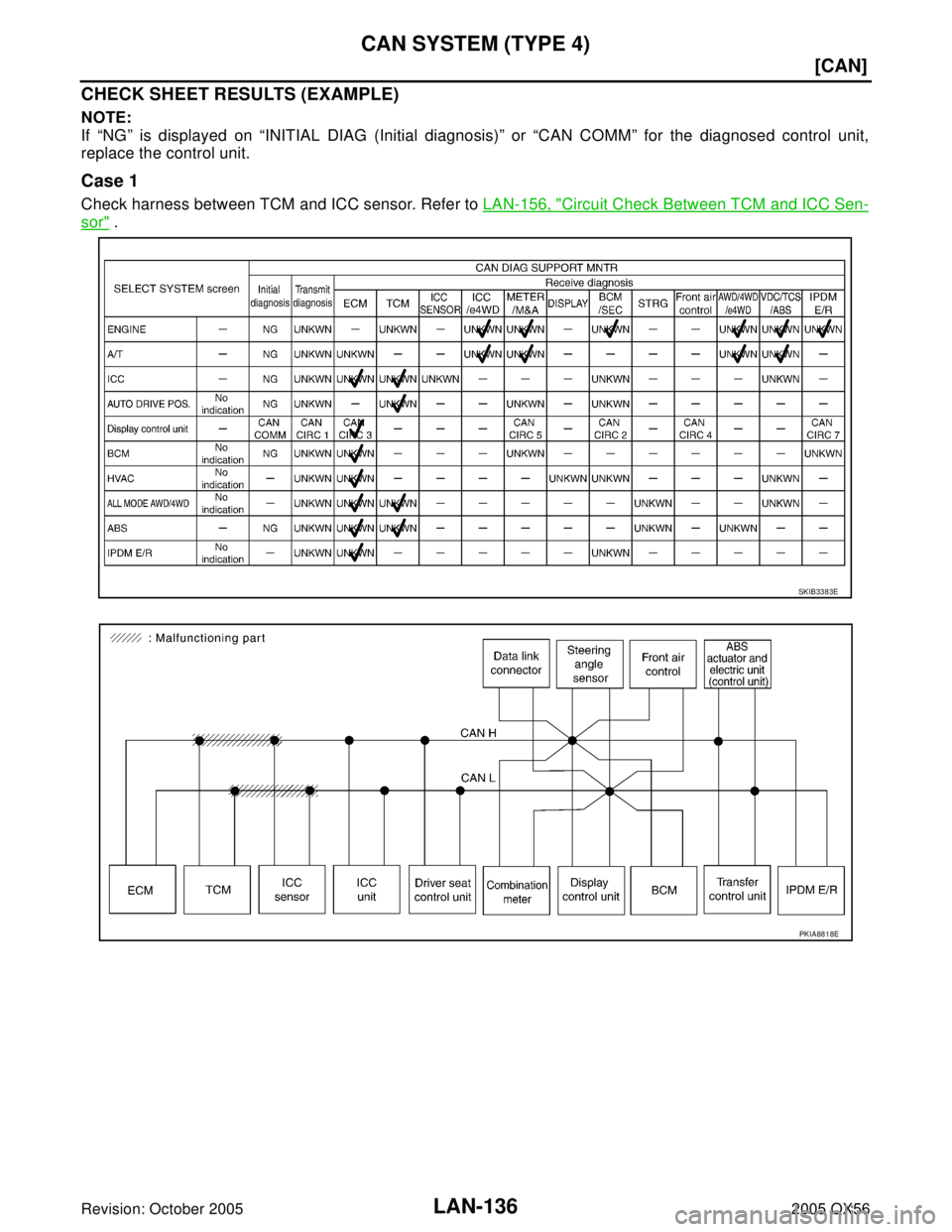

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-135 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 SKIB3454E

Page 2415 of 3419

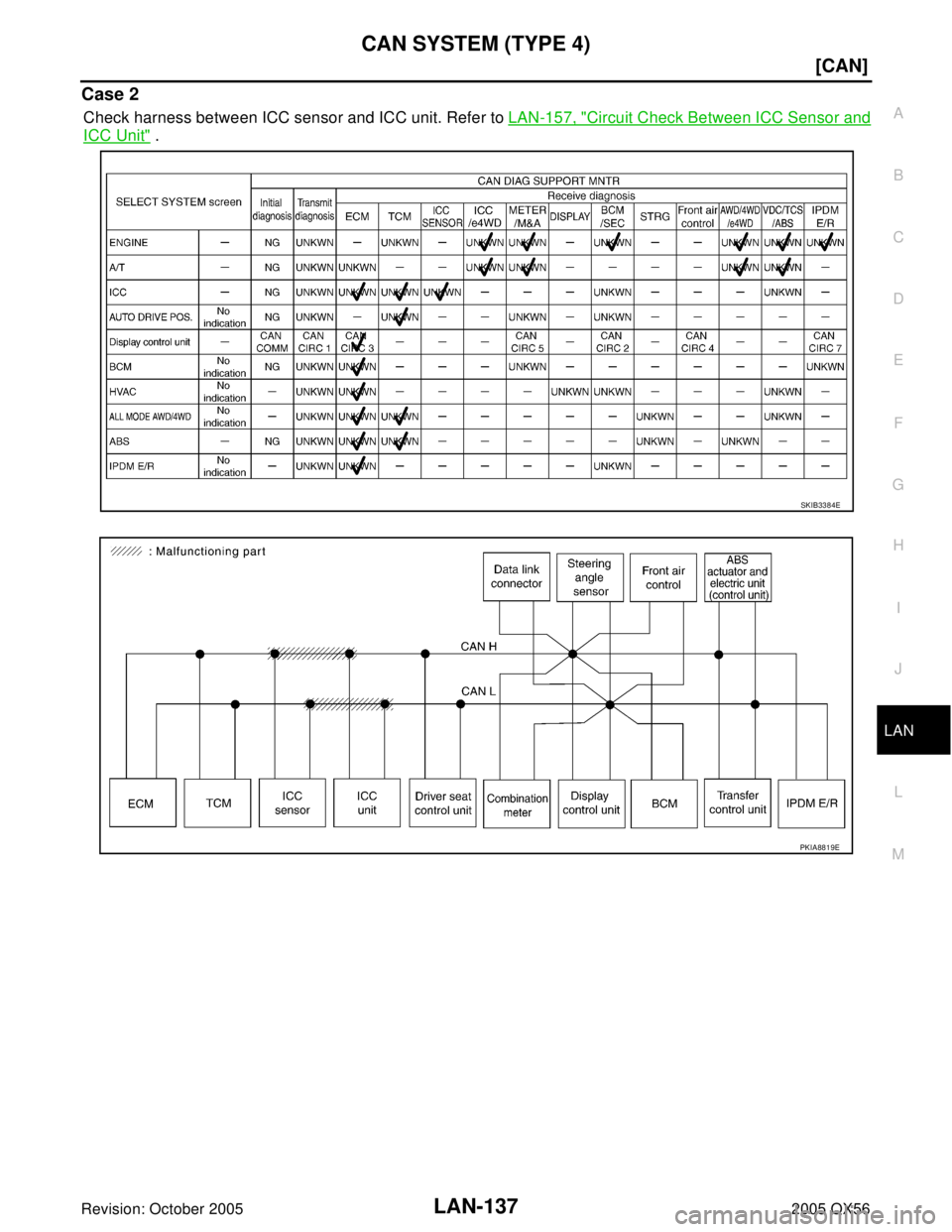

INFINITI QX4 2005 Factory Service Manual LAN-136 [CAN] CAN SYSTEM (TYPE 4) Revision: October 20052005 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagn

Page 2416 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-137 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 2 Check harness between ICC sensor and ICC unit. Refer to LAN-157, "Circuit Check Between ICC Sensor a
