INTAKE MANIFOLD
2005 QX56
5. Install the quick connector cap on the quick connector joint (on
engine side only).
6. Install the fuel hose and tube to hose clamps.
7. Refill the engine coolant. Refer to MA-14, "
REFILLING ENGINE
COOLANT" .
INSPECTION AFTER INSTALLATION
After installing fuel tubes, make sure there is no fuel leakage at connections in the following steps.
–Apply fuel pressure to fuel lines by turning ignition switch ON (with engine stopped). Then check for fuel
leaks at connections.
–Start the engine and rev it up and check for fuel leaks at the connections.
Perform procedures for “Throttle Valve Closed Position Learning” after finishing repairs. Refer to EC-90,
"Throttle Valve Closed Position Learning" .
If electric throttle control actuator is replaced, perform procedures for “Idle Air Volume Learning” after fin-
ishing repairs. Refer to EC-91, "
Idle Air Volume Learning" .
SBIA0354E
Page 1922 of 3419

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-19
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationEBS00LM2
REMOVAL
WA RN ING:
Perform the work when the exhaust and cooling system have cooled sufficiently.
1. Remove the air duct and resonator assembly. Refer to EM-14, "
REMOVAL" .
2. Drain the engine coolant from the radiator. Refer to MA-13, "
DRAINING ENGINE COOLANT" .
3. Remove the engine undercover using power tool.
4. Remove the radiator and radiator hoses. Refer to CO-12, "
RADIATOR" .
5. Remove the drive belts. Refer to EM-12, "
Removal" .
6. Remove the air fuel ratio A/F sensors (right bank, left bank).
Follow steps below to remove each air fuel ratio A/F sensor.
a. Remove the engine room cover using power tool. Refer to EM-11, "
REMOVAL" .
b. Remove the harness connector of each air fuel ratio A/F sensor, and harness from bracket and middle
clamp.

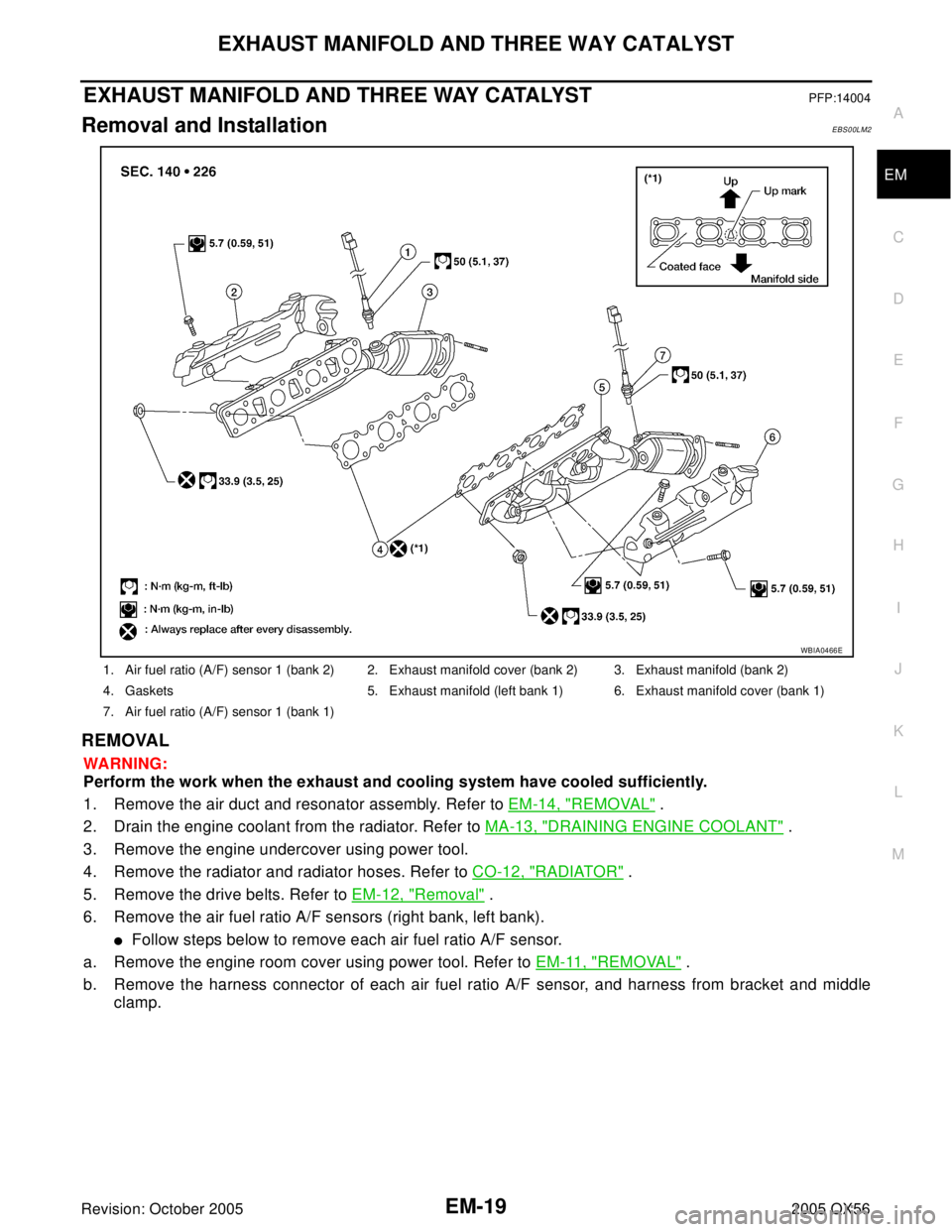

1. Air fuel ratio (A/F) sensor 1 (bank 2) 2. Exhaust manifold cover (bank 2) 3. Exhaust manifold (bank 2)
4. Gaskets 5. Exhaust manifold (left bank 1) 6. Exhaust manifold cover (bank 1)
7. Air fuel ratio (A/F) sensor 1 (bank 1)
WBIA0466E
Page 1923 of 3419

EM-20Revision: October 2005
EXHAUST MANIFOLD AND THREE WAY CATALYST
2005 QX56

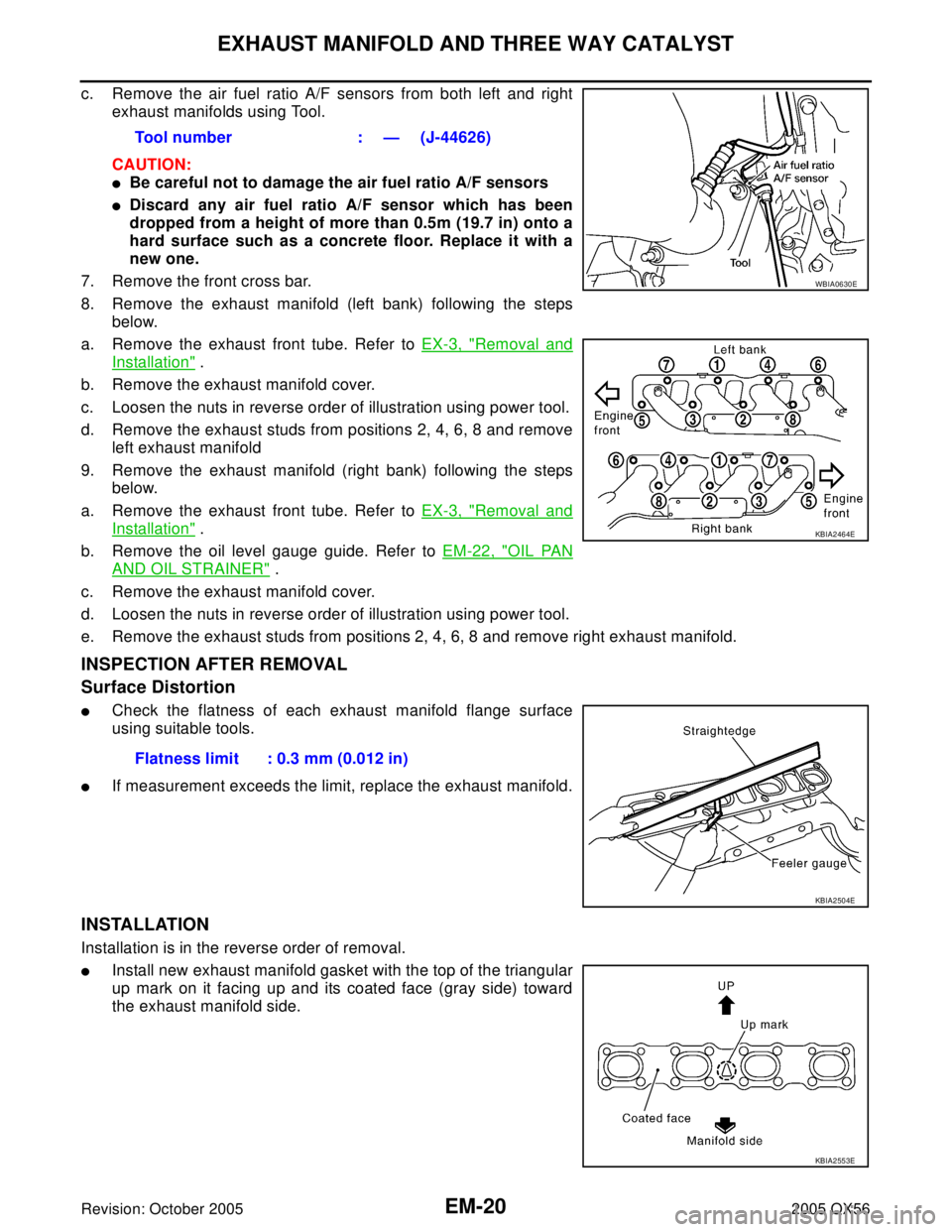

c. Remove the air fuel ratio A/F sensors from both left and right
exhaust manifolds using Tool.
CAUTION:
Be careful not to damage the air fuel ratio A/F sensors
Discard any air fuel ratio A/F sensor which has been
dropped from a height of more than 0.5m (19.7 in) onto a
hard surface such as a concrete floor. Replace it with a
new one.
7. Remove the front cross bar.
8. Remove the exhaust manifold (left bank) following the steps
below.
a. Remove the exhaust front tube. Refer to EX-3, "
Removal and
Installation" .
b. Remove the exhaust manifold cover.
c. Loosen the nuts in reverse order of illustration using power tool.
d. Remove the exhaust studs from positions 2, 4, 6, 8 and remove
left exhaust manifold
9. Remove the exhaust manifold (right bank) following the steps
below.
a. Remove the exhaust front tube. Refer to EX-3, "
Removal and
Installation" .
b. Remove the oil level gauge guide. Refer to EM-22, "
OIL PAN
AND OIL STRAINER" .
c. Remove the exhaust manifold cover.
d. Loosen the nuts in reverse order of illustration using power tool.
e. Remove the exhaust studs from positions 2, 4, 6, 8 and remove right exhaust manifold.
INSPECTION AFTER REMOVAL
Surface Distortion
Check the flatness of each exhaust manifold flange surface
using suitable tools.
If measurement exceeds the limit, replace the exhaust manifold.
INSTALLATION
Installation is in the reverse order of removal.
Install new exhaust manifold gasket with the top of the triangular
up mark on it facing up and its coated face (gray side) toward
the exhaust manifold side.Tool number : — (J-44626)
WBIA0630E
KBIA2464E
Flatness limit : 0.3 mm (0.012 in)
KBIA2504E
KBIA2553E
Page 1924 of 3419
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-21
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56
Tighten the exhaust manifold nuts in the numerical order shown.
Then recheck the torque of the nuts.
Before installing new air fuel ration A/F sensors, clean the exhaust system threads using Tool and apply
anti-seize lubricant.
CAUTION:
Do not over tighten the air fuel ratio A/F sensors. Doing so may cause damage to the sensor,
resulting in the MIL coming on.
KBIA2464E
Tool number : ( — ) J-43879-12
: ( — ) J-43897-18
Page 1925 of 3419
EM-22Revision: October 2005
OIL PAN AND OIL STRAINER
2005 QX56
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00LM3
REMOVAL
WAR NIN G:
To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
1. Remove the engine. Refer to EM-69, "
REMOVAL" .
2. Remove the oil pan (lower).
a. Remove the oil pan (lower) bolts in reverse order shown using
power tool.

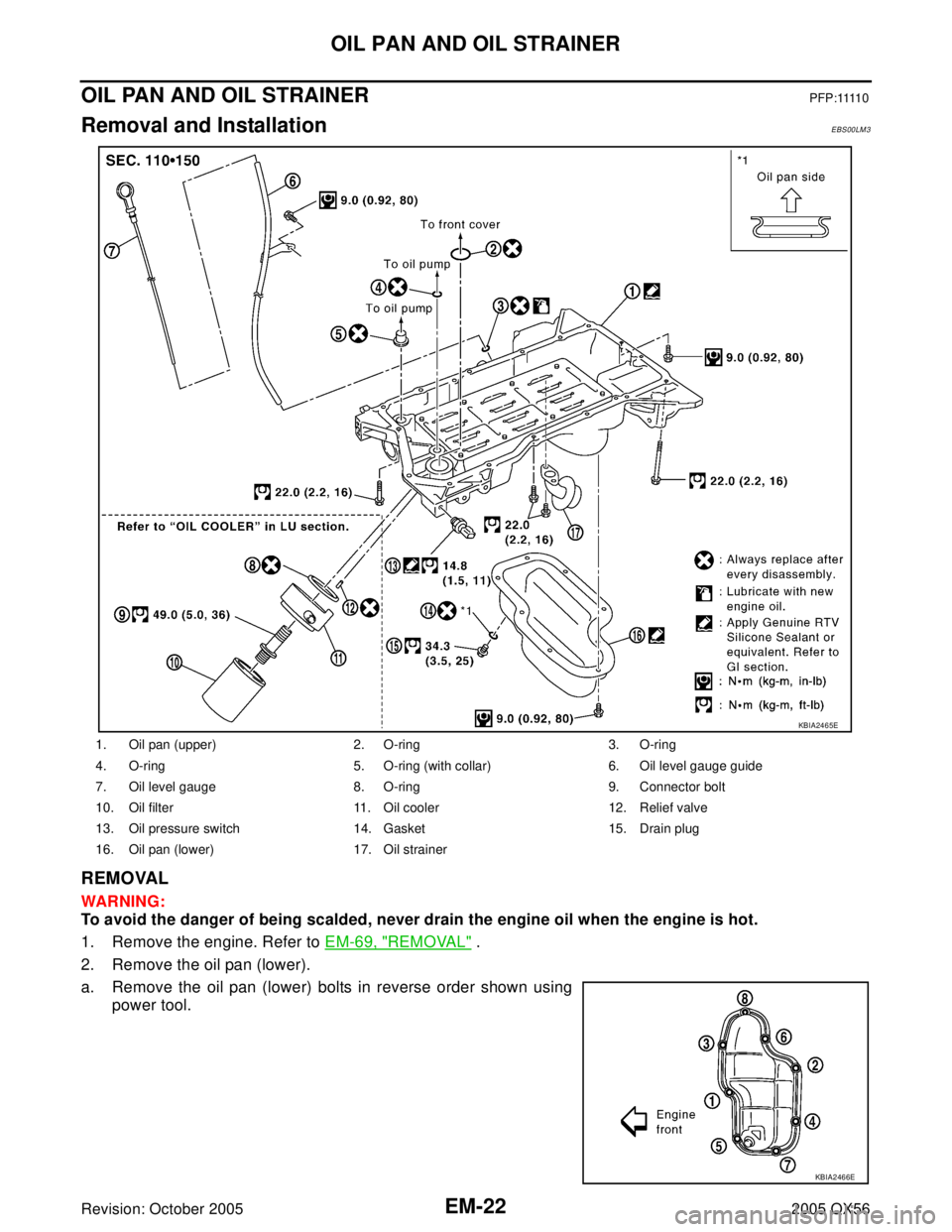

1. Oil pan (upper) 2. O-ring 3. O-ring
4. O-ring 5. O-ring (with collar) 6. Oil level gauge guide
7. Oil level gauge 8. O-ring 9. Connector bolt
10. Oil filter 11. Oil cooler 12. Relief valve
13. Oil pressure switch 14. Gasket 15. Drain plug
16. Oil pan (lower) 17. Oil strainer
KBIA2465E
KBIA2466E
Page 1926 of 3419
OIL PAN AND OIL STRAINER
EM-23
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56

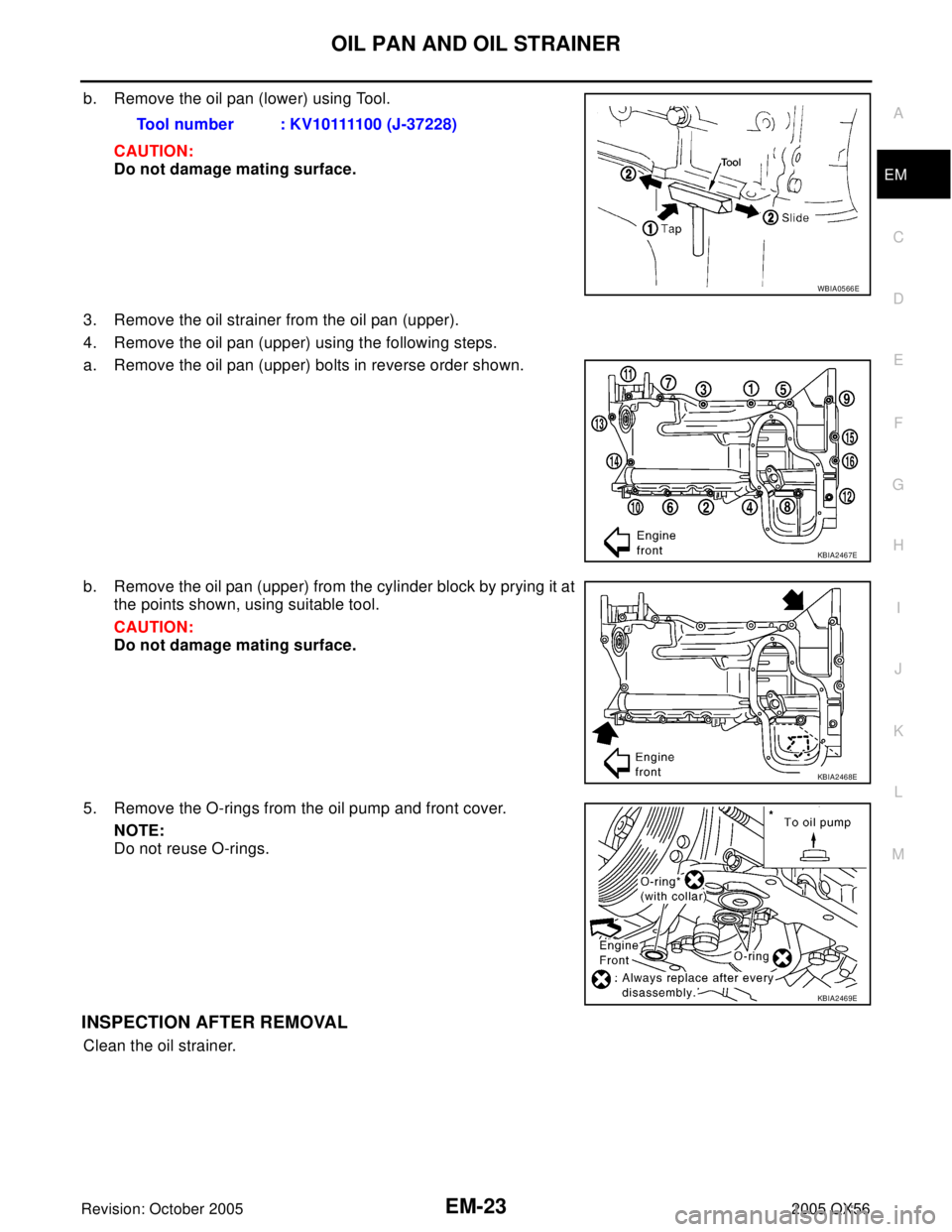

b. Remove the oil pan (lower) using Tool.
CAUTION:
Do not damage mating surface.
3. Remove the oil strainer from the oil pan (upper).
4. Remove the oil pan (upper) using the following steps.
a. Remove the oil pan (upper) bolts in reverse order shown.
b. Remove the oil pan (upper) from the cylinder block by prying it at
the points shown, using suitable tool.
CAUTION:
Do not damage mating surface.
5. Remove the O-rings from the oil pump and front cover.
NOTE:
Do not reuse O-rings.
INSPECTION AFTER REMOVAL
Clean the oil strainer.Tool number : KV10111100 (J-37228)
WBIA0566E
KBIA2467E
KBIA2468E
KBIA2469E
Page 1927 of 3419
EM-24Revision: October 2005
OIL PAN AND OIL STRAINER
2005 QX56
INSTALLATION
1. Install the oil pan (upper) using the following steps.

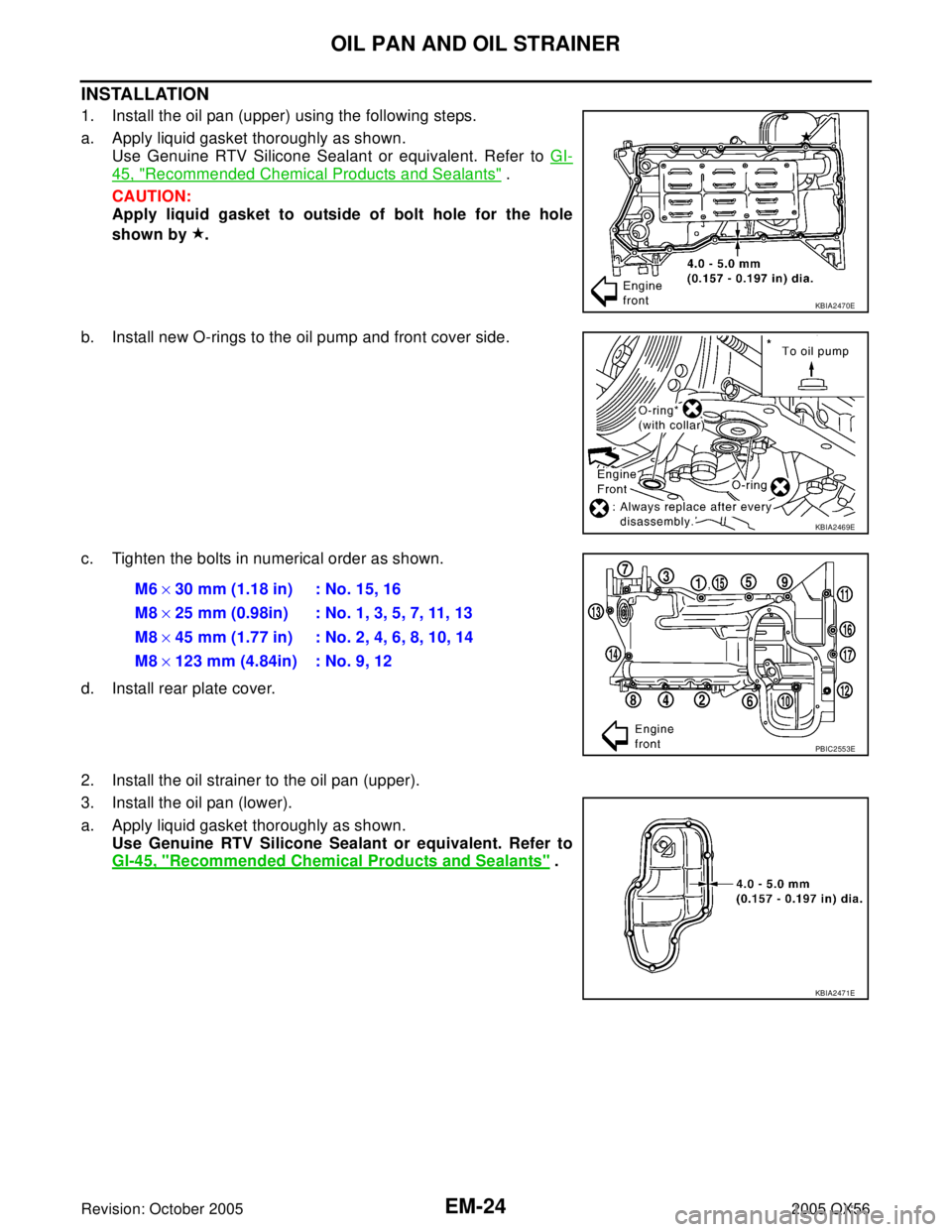

a. Apply liquid gasket thoroughly as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-
45, "Recommended Chemical Products and Sealants" .
CAUTION:
Apply liquid gasket to outside of bolt hole for the hole
shown by .
b. Install new O-rings to the oil pump and front cover side.
c. Tighten the bolts in numerical order as shown.
d. Install rear plate cover.
2. Install the oil strainer to the oil pan (upper).
3. Install the oil pan (lower).
a. Apply liquid gasket thoroughly as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
Recommended Chemical Products and Sealants" .
KBIA2470E
KBIA2469E
M6 × 30 mm (1.18 in) : No. 15, 16
M8 × 25 mm (0.98in) : No. 1, 3, 5, 7, 11, 13
M8 × 45 mm (1.77 in) : No. 2, 4, 6, 8, 10, 14
M8 × 123 mm (4.84in) : No. 9, 12
PBIC2553E
KBIA2471E
Page 1928 of 3419
OIL PAN AND OIL STRAINER
EM-25
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: October 20052005 QX56

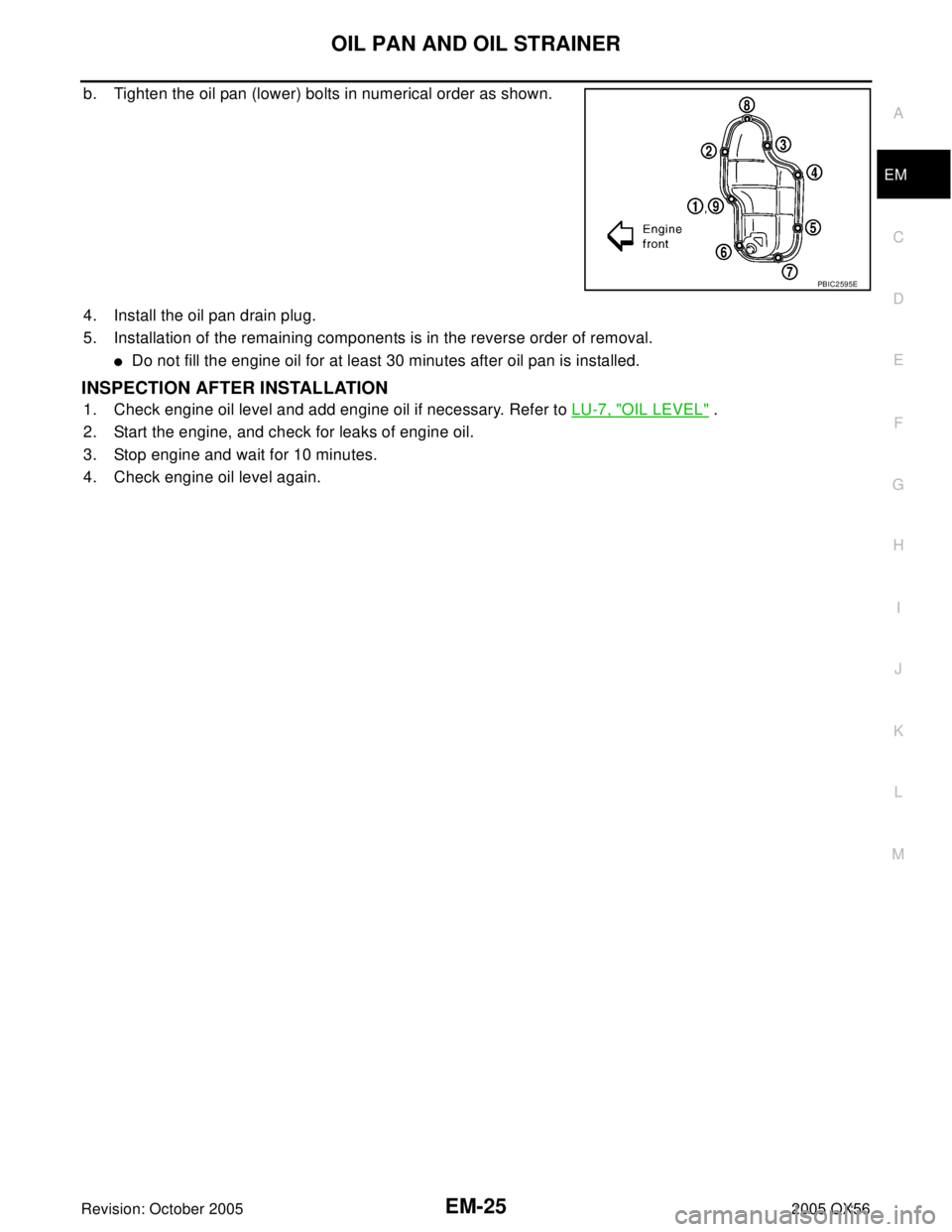

b. Tighten the oil pan (lower) bolts in numerical order as shown.
4. Install the oil pan drain plug.
5. Installation of the remaining components is in the reverse order of removal.
Do not fill the engine oil for at least 30 minutes after oil pan is installed.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and add engine oil if necessary. Refer to LU-7, "OIL LEVEL" .
2. Start the engine, and check for leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again.
PBIC2595E
