Power Supply and Ground Circuit InspectionEKS00BC3
1. CHECK FUSES
Check for blown combination meter fuses.
Refer to DI-10, "Wiring Diagram — METER —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect combination meter connector.
2. Check voltage between combination meter harness connector
terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the harness for open between combination meter and fuse.
3. CHECK GROUND CIRCUIT
Check continuity between combination meter harness connector ter-
minal and ground.
OK or NG
OK >> Inspection End.
NG >> Repair harness or connector.
Unit Power source Fuse No.
Combination meter Battery 19
Ignition switch ON or START 14
Ignition switch ACC or ON 4
Terminals Ignition switch position
(+)
(–) OFF ACC ON
ConnectorTe r m i n a l
(Wire color)
M241 (O)
Ground0VBattery
voltageBattery
voltage
8 (Y/R)Battery
voltageBattery
voltageBattery
voltage
24 (O/L) 0V 0VBattery
voltage
WKIA1815E
Te r m i n a l s
Continuity (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 17 (B) Ground Yes
WKIA1526E
Page 1122 of 3419

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Symptom ChartEKS00BC4
Vehicle Speed Signal InspectionEKS00BC5
1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Refer to BRC-29, "
SELF-DIAGNOSIS" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform the "Diagnostic Procedure" for displayed DTC. Refer to BRC-11, "
TROUBLE DIAGNO-
SIS" .
Engine Oil Pressure Signal Inspection EKS00BC6
1. CHECK OIL PRESSURE SENSOR SIGNAL
1. Turn ignition switch ON.

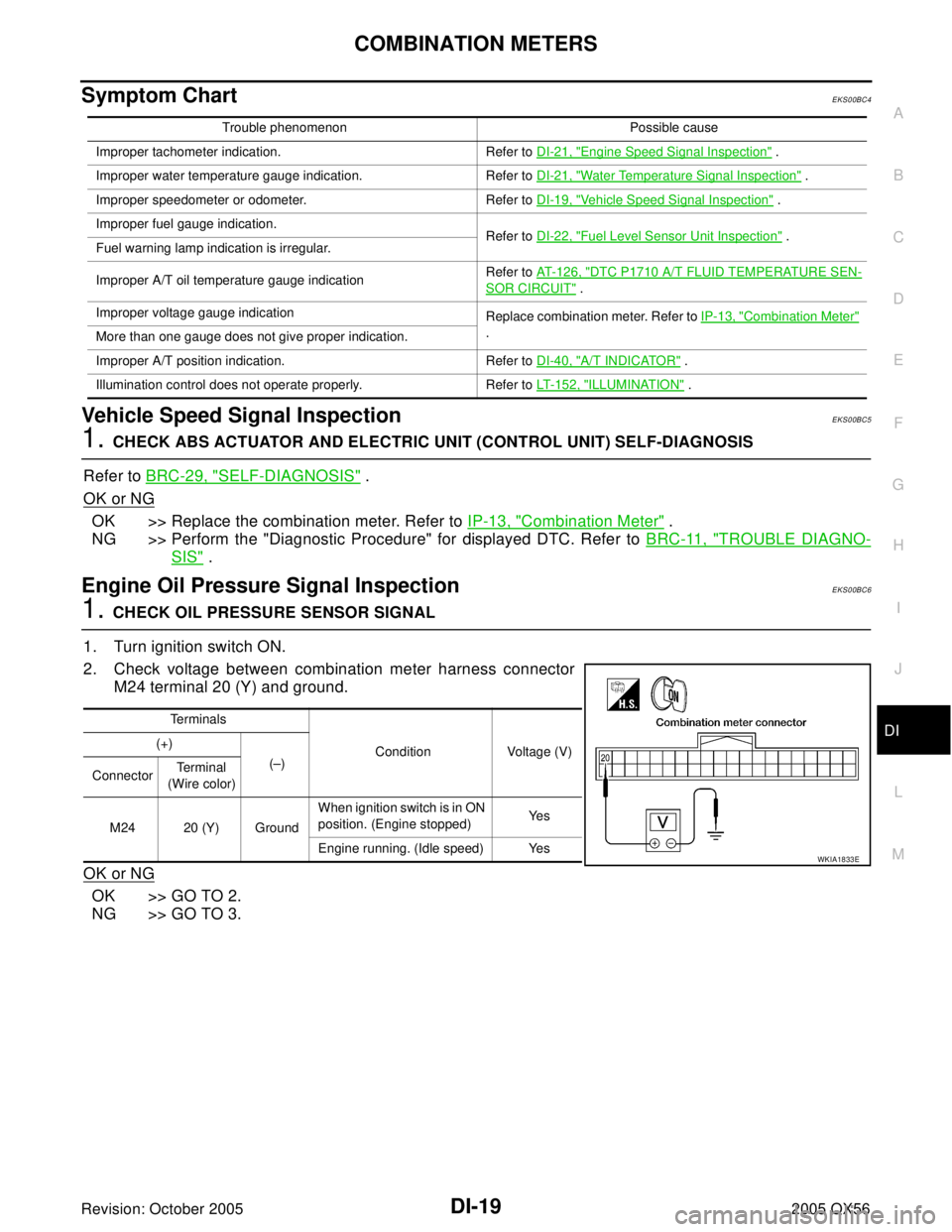

2. Check voltage between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
Trouble phenomenon Possible cause
Improper tachometer indication. Refer to DI-21, "
Engine Speed Signal Inspection" .
Improper water temperature gauge indication. Refer to DI-21, "
Water Temperature Signal Inspection" .
Improper speedometer or odometer. Refer to DI-19, "
Vehicle Speed Signal Inspection" .
Improper fuel gauge indication.
Refer to DI-22, "
Fuel Level Sensor Unit Inspection" .
Fuel warning lamp indication is irregular.
Improper A/T oil temperature gauge indicationRefer to AT-126, "
DTC P1710 A/T FLUID TEMPERATURE SEN-
SOR CIRCUIT" .
Improper voltage gauge indication
Replace combination meter. Refer to IP-13, "
Combination Meter"
.
More than one gauge does not give proper indication.
Improper A/T position indication. Refer to DI-40, "
A/T INDICATOR" .
Illumination control does not operate properly. Refer to LT-152, "
ILLUMINATION" .
Te r m i n a l s
Condition Voltage (V) (+)
(–)
ConnectorTe r m i n a l
(Wire color)
M24 20 (Y) GroundWhen ignition switch is in ON
position. (Engine stopped)Ye s
Engine running. (Idle speed) Yes
WKIA1833E
Page 1123 of 3419

DI-20
COMBINATION METERS
Revision: October 20052005 QX56
2. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.

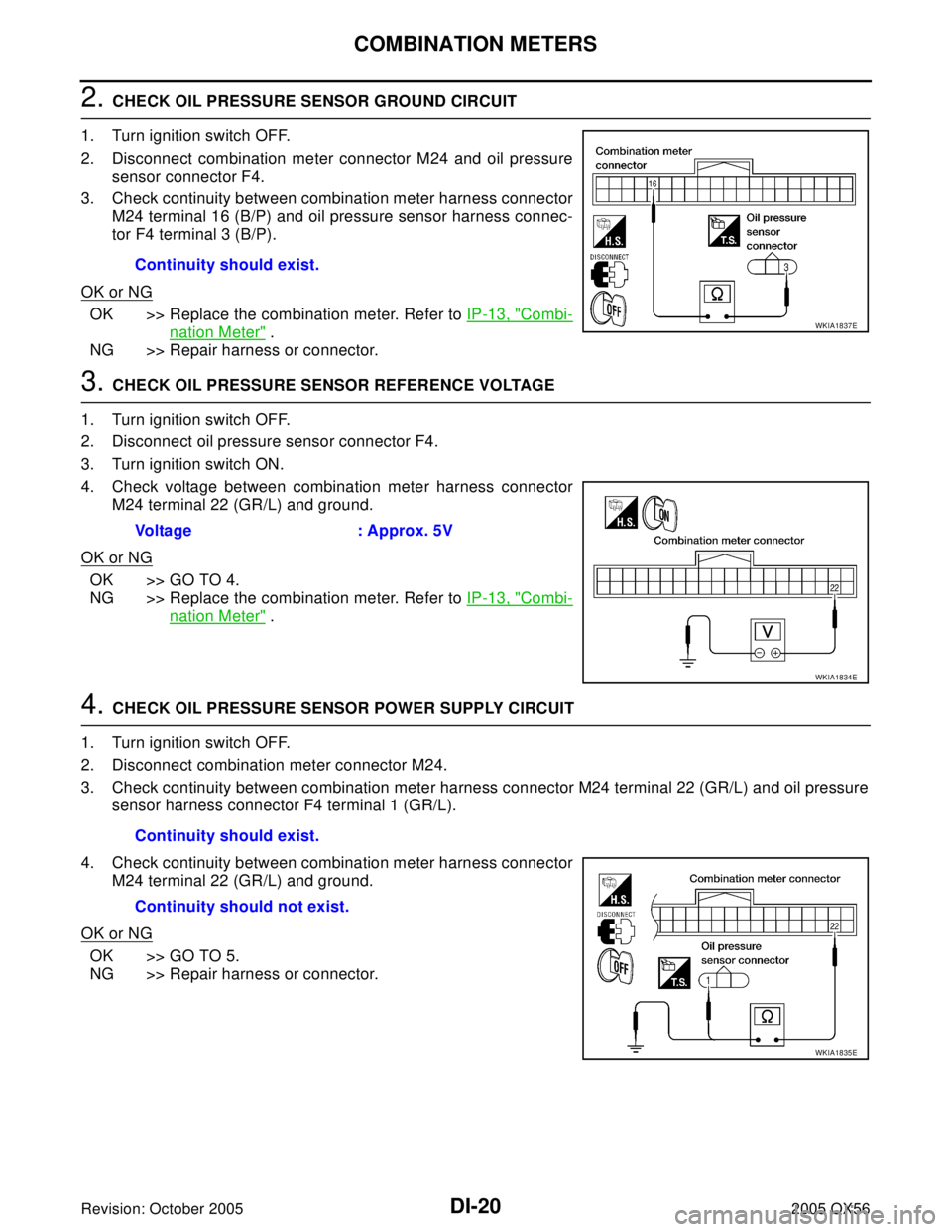

2. Disconnect combination meter connector M24 and oil pressure
sensor connector F4.
3. Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and oil pressure sensor harness connec-
tor F4 terminal 3 (B/P).
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combi-
nation Meter" .
NG >> Repair harness or connector.
3. CHECK OIL PRESSURE SENSOR REFERENCE VOLTAGE
1. Turn ignition switch OFF.
2. Disconnect oil pressure sensor connector F4.
3. Turn ignition switch ON.
4. Check voltage between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .
4. CHECK OIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector M24.
3. Check continuity between combination meter harness connector M24 terminal 22 (GR/L) and oil pressure
sensor harness connector F4 terminal 1 (GR/L).
4. Check continuity between combination meter harness connector
M24 terminal 22 (GR/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.Continuity should exist.
WKIA1837E
Voltage : Approx. 5V
WKIA1834E
Continuity should exist.
Continuity should not exist.
WKIA1835E
Page 1124 of 3419

COMBINATION METERS
DI-21
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
5. CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT

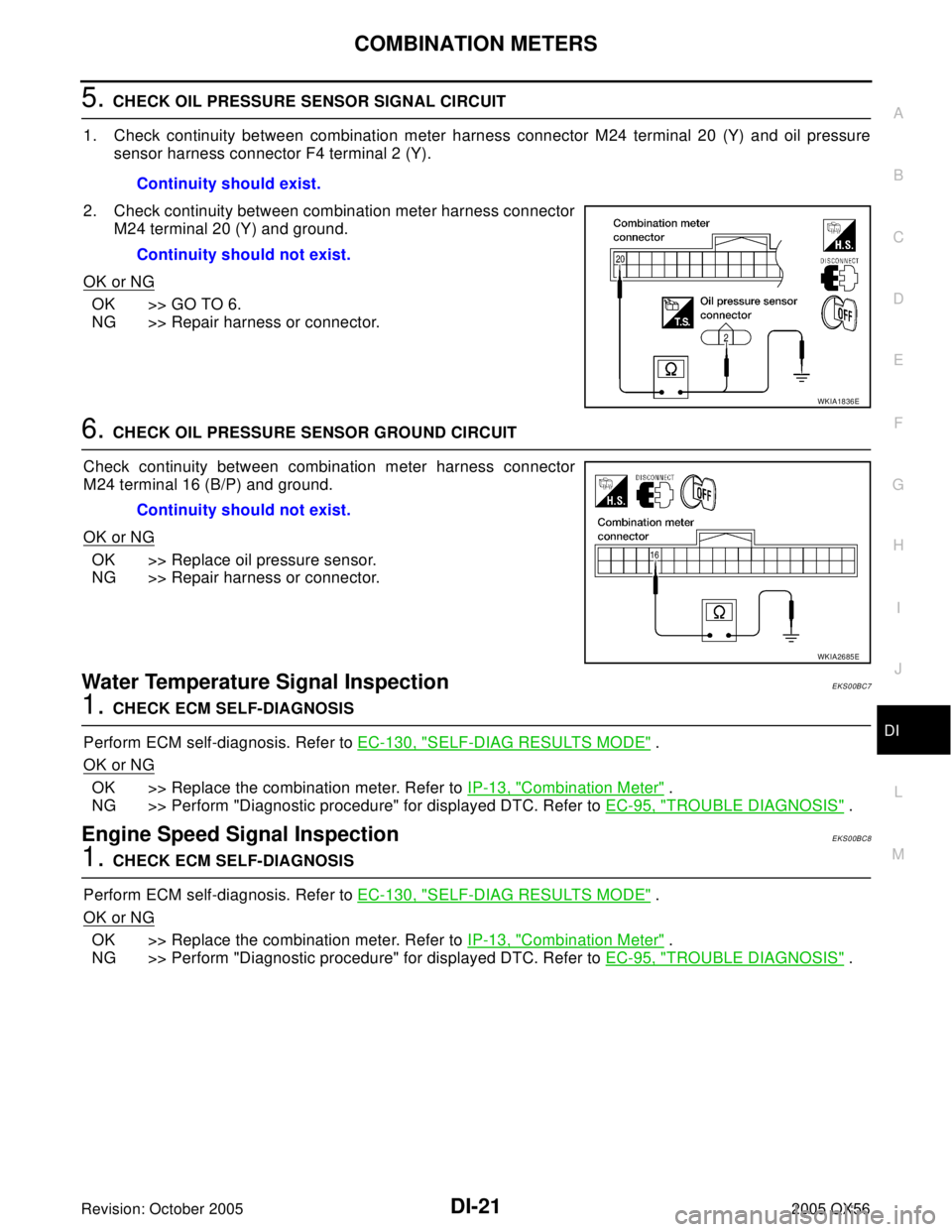

1. Check continuity between combination meter harness connector M24 terminal 20 (Y) and oil pressure
sensor harness connector F4 terminal 2 (Y).
2. Check continuity between combination meter harness connector
M24 terminal 20 (Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SENSOR GROUND CIRCUIT
Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and ground.
OK or NG
OK >> Replace oil pressure sensor.
NG >> Repair harness or connector.
Water Temperature Signal Inspection EKS00BC7
1. CHECK ECM SELF-DIAGNOSIS
Perform ECM self-diagnosis. Refer to EC-130, "
SELF-DIAG RESULTS MODE" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform "Diagnostic procedure" for displayed DTC. Refer to EC-95, "
TROUBLE DIAGNOSIS" .
Engine Speed Signal Inspection EKS00BC8
1. CHECK ECM SELF-DIAGNOSIS
Perform ECM self-diagnosis. Refer to EC-130, "
SELF-DIAG RESULTS MODE" .
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Perform "Diagnostic procedure" for displayed DTC. Refer to EC-95, "
TROUBLE DIAGNOSIS" . Continuity should exist.
Continuity should not exist.
WKIA1836E
Continuity should not exist.
WKIA2685E
Page 1125 of 3419

DI-22
COMBINATION METERS
Revision: October 20052005 QX56
Fuel Level Sensor Unit InspectionEKS00BC9
FUEL LEVEL SENSOR UNIT
The following symptoms do not indicate a malfunction.
Depending on vehicle position or driving circumstance, the fuel in the tank shifts and the indication may
fluctuate.
If the vehicle is fueled with the ignition switch ON, the indication will update slowly.
If the vehicle is tilted when the ignition switch is turned ON, fuel in the tank may flow to one direction
resulting in a change of reading.
LOW-FUEL WARNING LAMP
Depending on vehicle posture or driving circumstances, the fuel level in the tank varies, and the warning lamp
ON timing may be changed.
1. CHECK SELF-DIAGNOSIS
Perform the combination meter self-diagnosis. Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
OK or NG
OK >> GO TO 2.
NG >> Replace the combination meter. Refer to IP-13, "
Combination Meter" .
2. CHECK HARNESS CONNECTOR
1. Turn the ignition switch OFF.
2. Check combination meter and fuel level sensor unit and fuel pump terminals (meter-side, and harness-
side) for poor connection.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace terminals or connectors.
3. CHECK HARNESS CONNECTOR OUTPUT SIGNAL
1. Disconnect fuel level sensor unit and fuel pump connector.
2. Turn ignition switch ON.

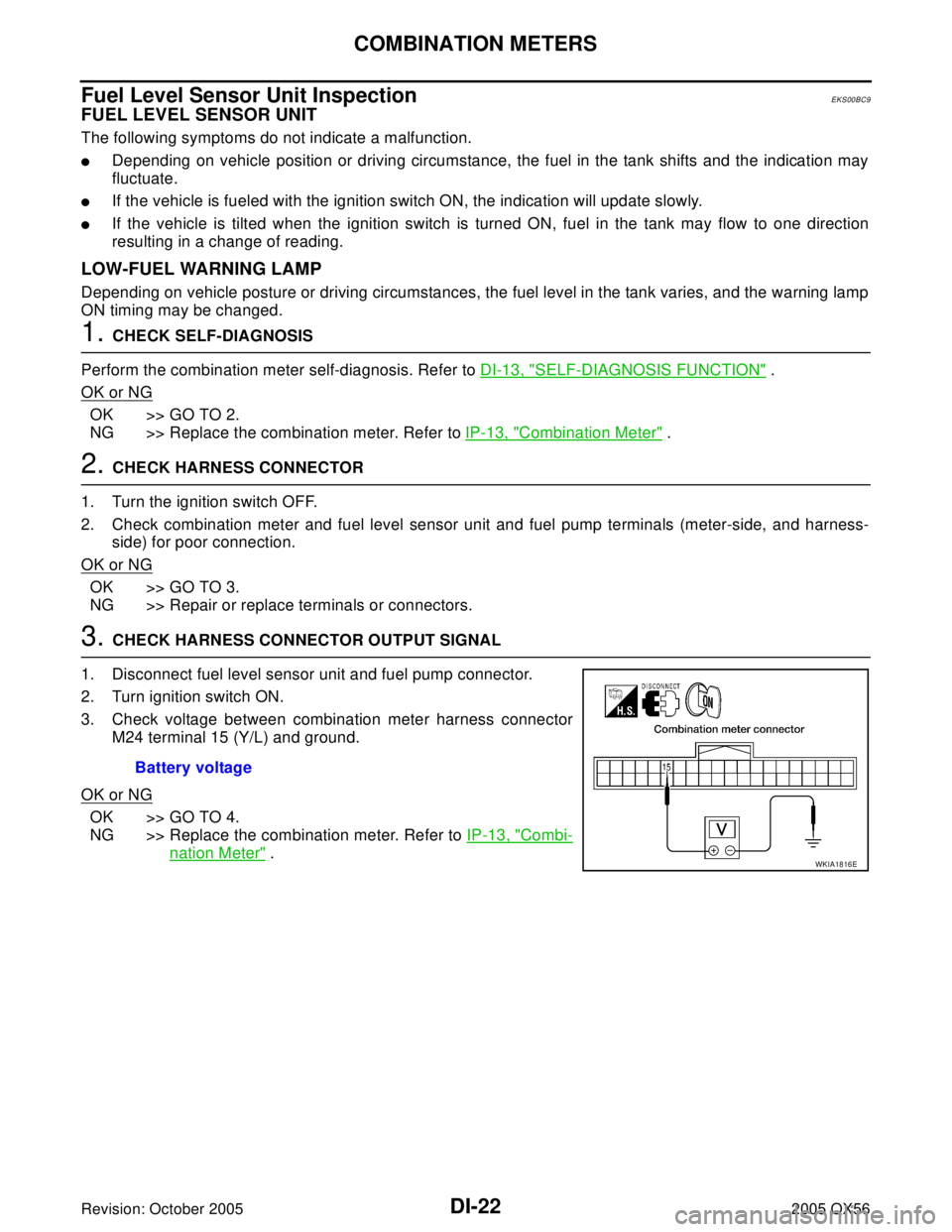

3. Check voltage between combination meter harness connector
M24 terminal 15 (Y/L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" . Battery voltageWKIA1816E
Page 1126 of 3419

COMBINATION METERS
DI-23
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
4. CHECK HARNESS FOR OPEN OR SHORT CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect combination meter connector M24.

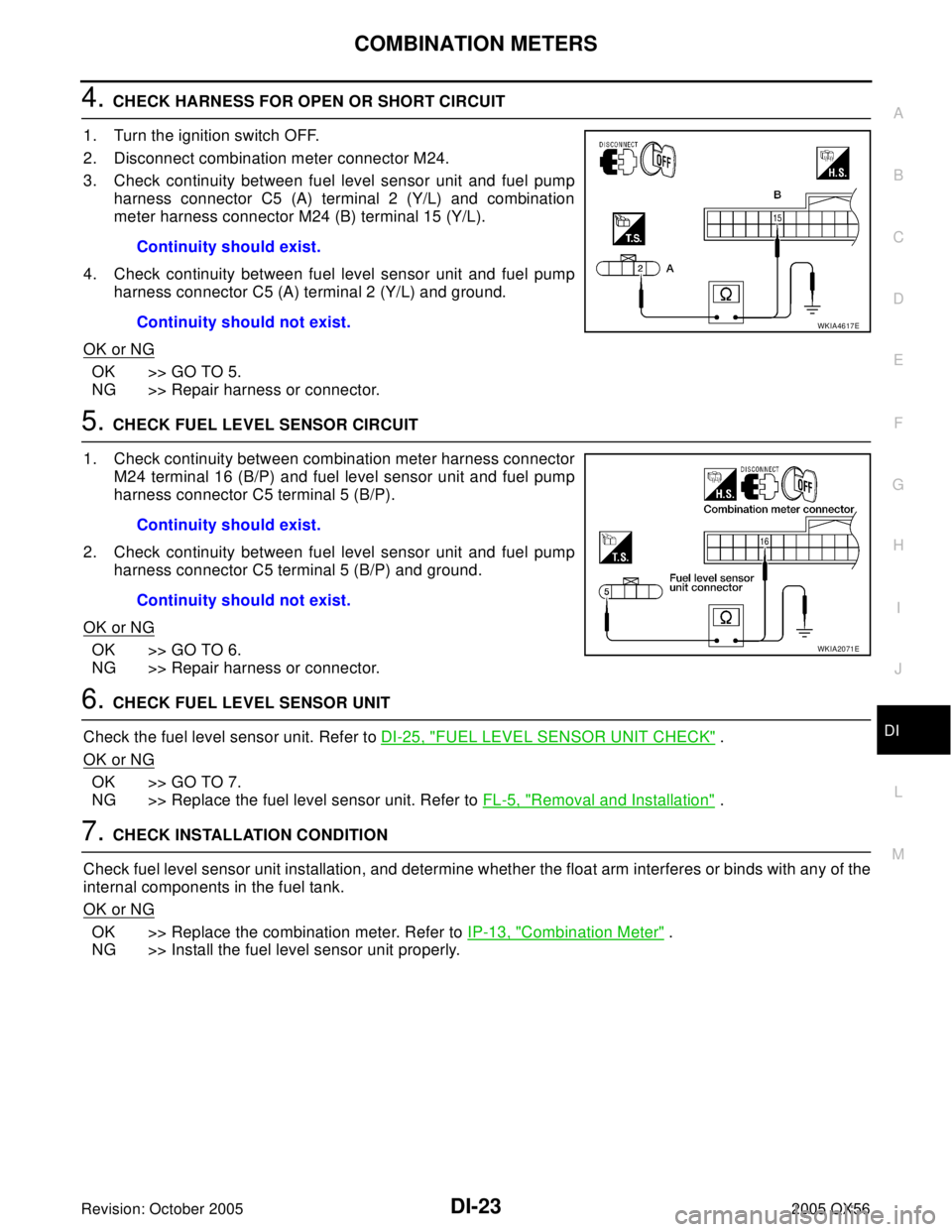

3. Check continuity between fuel level sensor unit and fuel pump
harness connector C5 (A) terminal 2 (Y/L) and combination
meter harness connector M24 (B) terminal 15 (Y/L).
4. Check continuity between fuel level sensor unit and fuel pump
harness connector C5 (A) terminal 2 (Y/L) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FUEL LEVEL SENSOR CIRCUIT
1. Check continuity between combination meter harness connector
M24 terminal 16 (B/P) and fuel level sensor unit and fuel pump
harness connector C5 terminal 5 (B/P).
2. Check continuity between fuel level sensor unit and fuel pump
harness connector C5 terminal 5 (B/P) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK FUEL LEVEL SENSOR UNIT
Check the fuel level sensor unit. Refer to DI-25, "
FUEL LEVEL SENSOR UNIT CHECK" .
OK or NG
OK >> GO TO 7.
NG >> Replace the fuel level sensor unit. Refer to FL-5, "
Removal and Installation" .
7. CHECK INSTALLATION CONDITION
Check fuel level sensor unit installation, and determine whether the float arm interferes or binds with any of the
internal components in the fuel tank.
OK or NG
OK >> Replace the combination meter. Refer to IP-13, "Combination Meter" .
NG >> Install the fuel level sensor unit properly.Continuity should exist.
Continuity should not exist.
WKIA4617E
Continuity should exist.
Continuity should not exist.
WKIA2071E
Page 1127 of 3419

DI-24
COMBINATION METERS
Revision: October 20052005 QX56
Fuel Gauge Fluctuates, Indicates Wrong Value, or VariesEKS00BCA
1. CHECK FUEL GAUGE FLUCTUATION
Test drive vehicle to see if gauge fluctuates only during driving or just before or just after stopping.
Does the indication value vary only during driving or just before or just after stopping?
YES >> The fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.
NO >> Ask the customer about the situation when the symptom occurs in detail, Refer to DI-22, "
Fuel
Level Sensor Unit Inspection" .
Fuel Gauge Does Not Move to Full-positionEKS00BCB
1. CHECK POINTER MOVEMENT TO FULL-POSITION
Does it take a long time for the pointer to move to full-position?
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK IGNITION SWITCH POSITION
Was the vehicle fueled with the ignition switch ON?
YES or NO
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time for the
pointer to move to full-position because of the characteristic of the fuel gauge.
NO >> GO TO 3.
3. OBSERVE VEHICLE POSITION
Is the vehicle parked on an incline?
YES or NO
YES >> Check the fuel level indication with vehicle on a level surface.
NO >> GO TO 4.
4. CHECK POINTER MOVEMENT TO EMPTY-POSITION
During driving, does the fuel gauge move gradually toward empty-position?
YES or NO
YES >> Check the fuel level sensor unit. Refer to DI-25, "FUEL LEVEL SENSOR UNIT CHECK" .
NO >> Check fuel level sensor unit installation, and determine whether the float arm interferes or binds
with any of the internal components in the fuel tank.
Page 1128 of 3419
COMBINATION METERS
DI-25
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Electrical Components InspectionEKS00BCC
FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to FL-5, "Removal and Installation" .
Check Fuel Level Sensor Unit and Fuel Pump

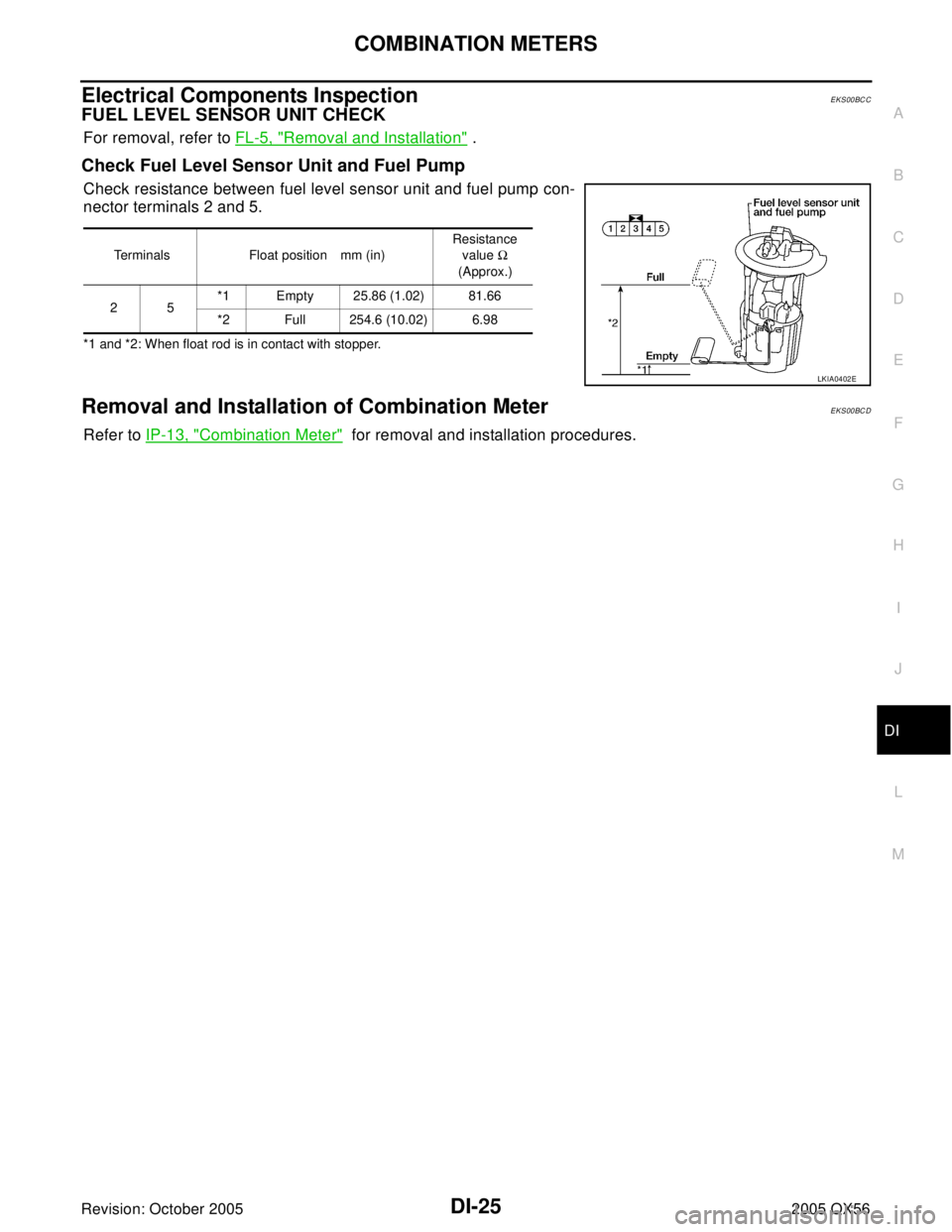

Check resistance between fuel level sensor unit and fuel pump con-
nector terminals 2 and 5.
*1 and *2: When float rod is in contact with stopper.
Removal and Installation of Combination MeterEKS00BCD
Refer to IP-13, "Combination Meter" for removal and installation procedures.
Terminals Float position mm (in)Resistance
value Ω
(Approx.)
25*1 Empty 25.86 (1.02) 81.66
*2 Full 254.6 (10.02) 6.98
LKIA0402E
