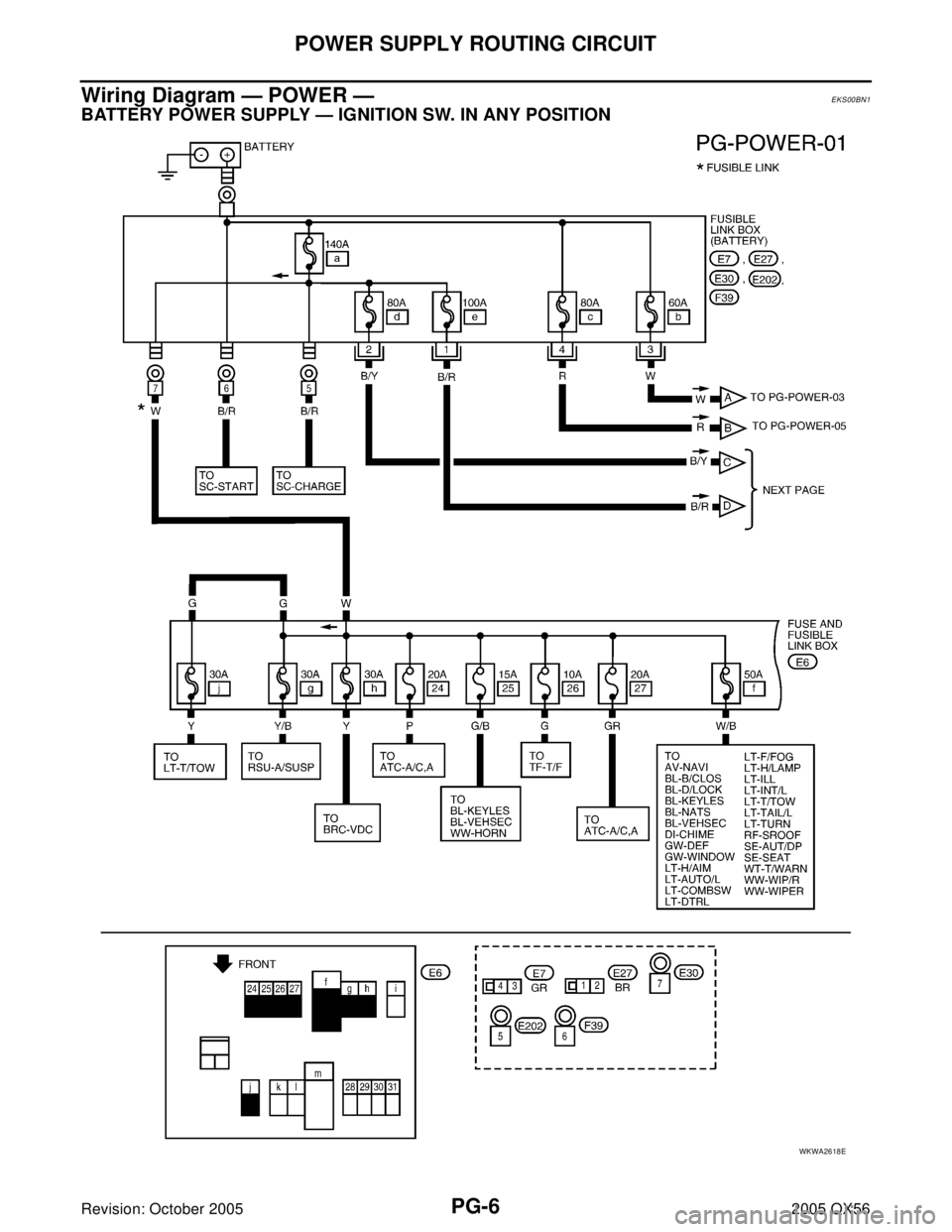

INFINITI QX4 2005 Factory Service Manual PG-6 POWER SUPPLY ROUTING CIRCUIT Revision: October 20052005 QX56 Wiring Diagram — POWER —EKS00BN1 BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION WKWA2618E

Page 2682 of 3419

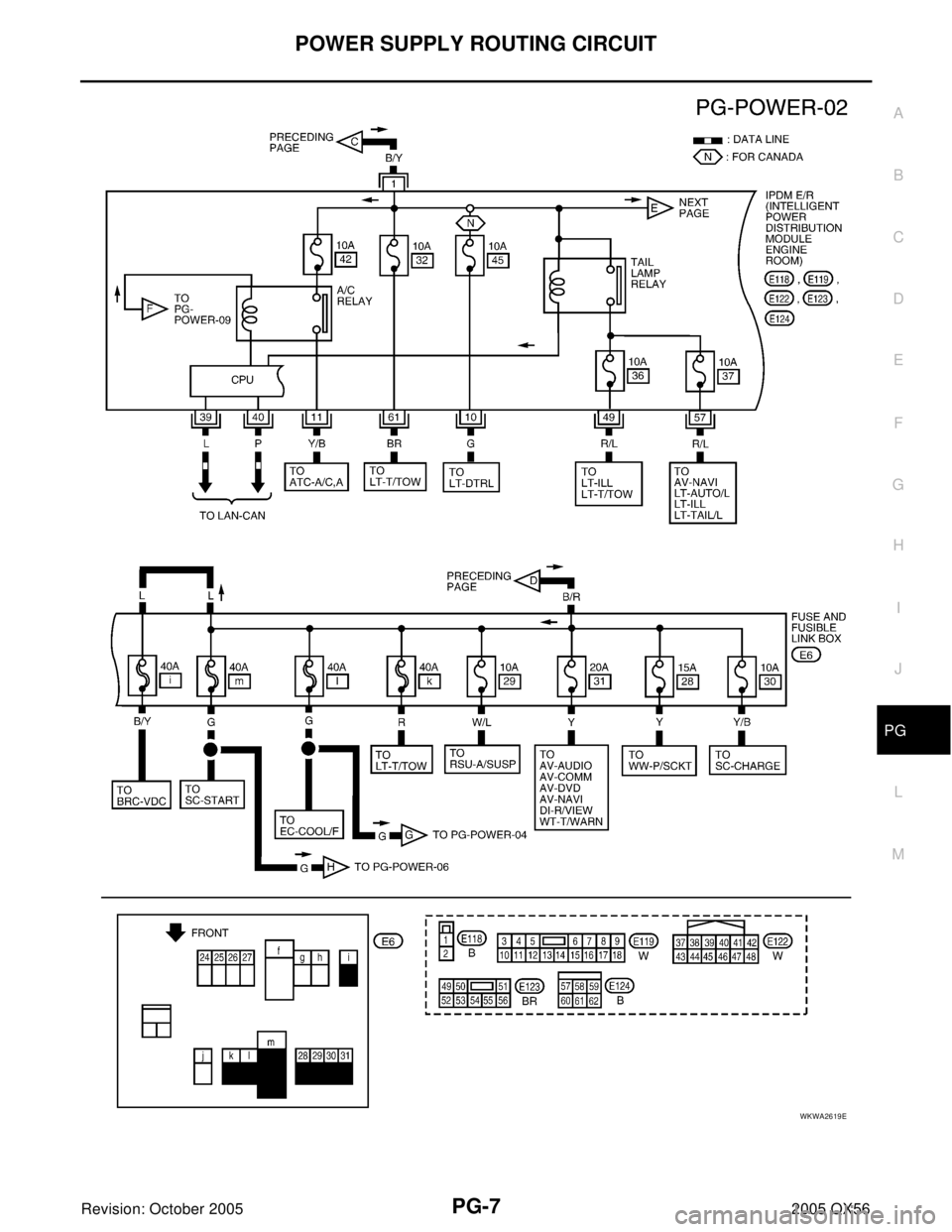

INFINITI QX4 2005 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKWA2619E

Page 2683 of 3419

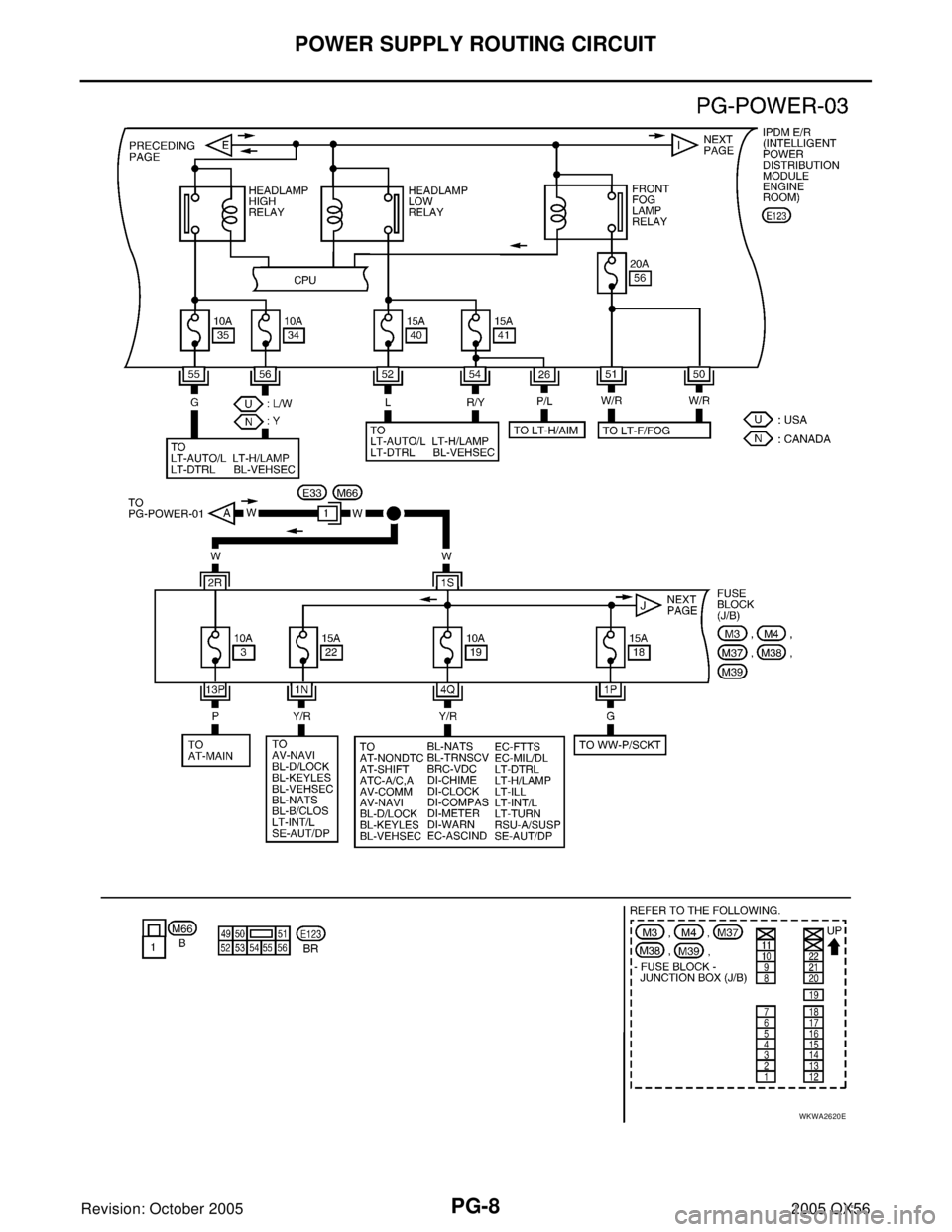

INFINITI QX4 2005 Factory Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: October 20052005 QX56 WKWA2620E

Page 2684 of 3419

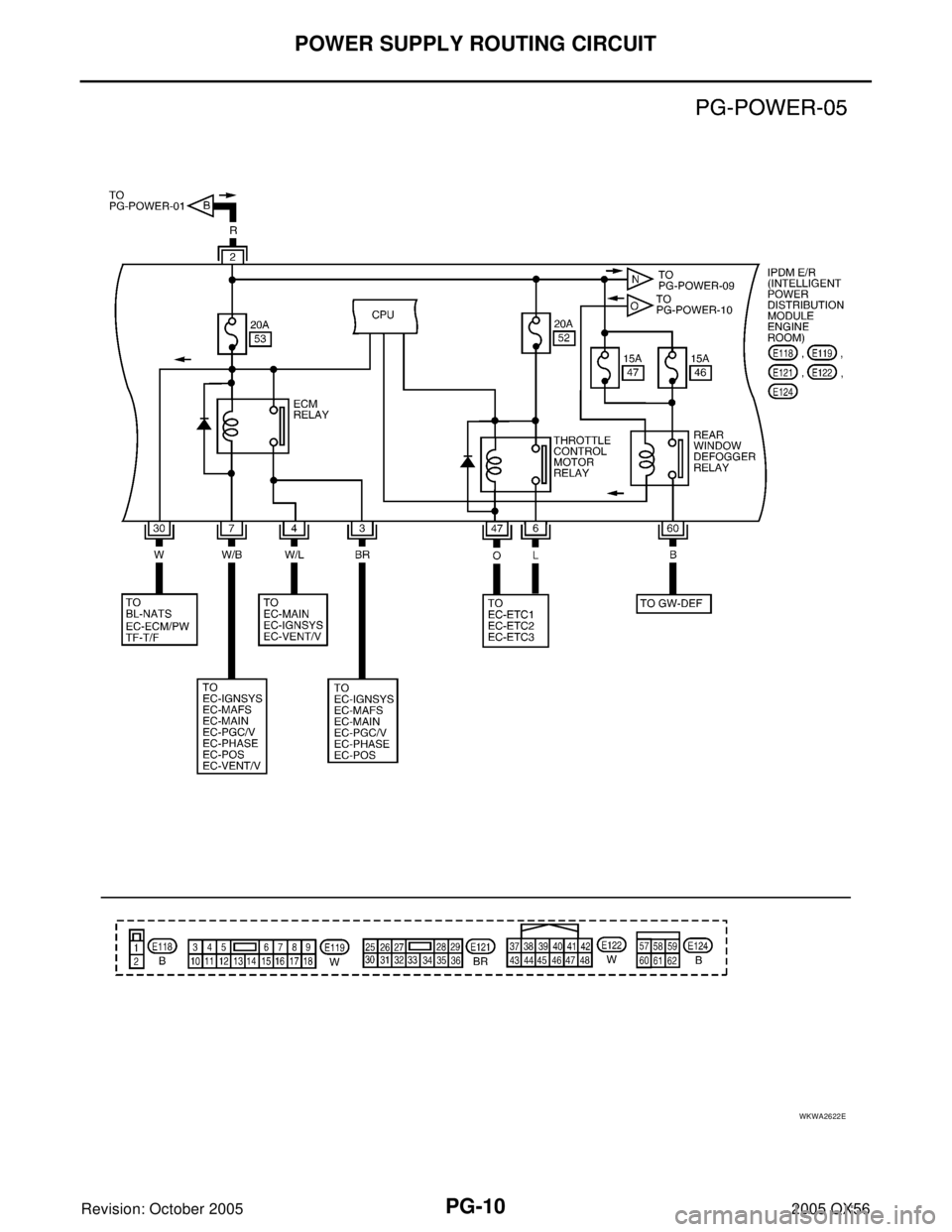

INFINITI QX4 2005 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L MA B PG Revision: October 20052005 QX56 WKWA2621E

Page 2685 of 3419

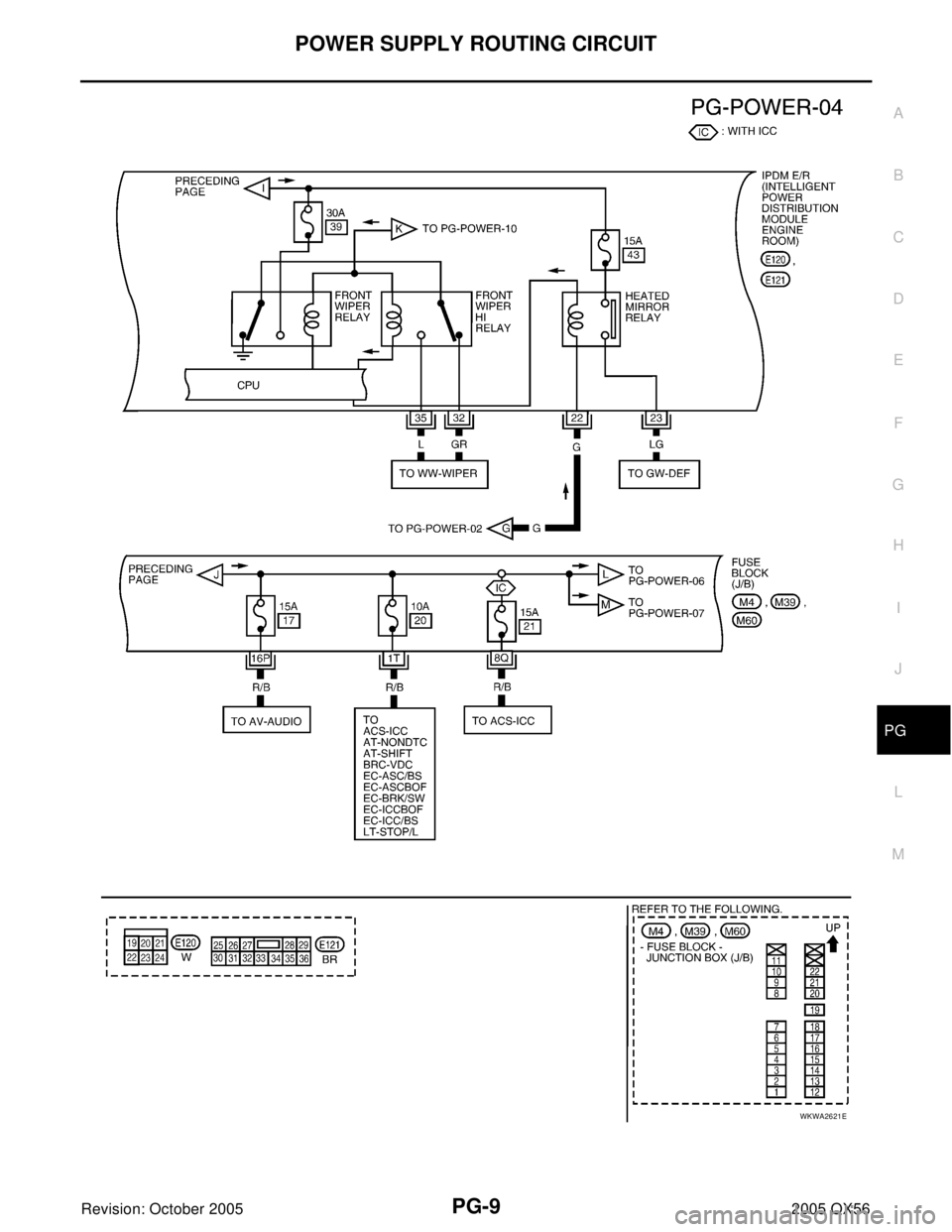

INFINITI QX4 2005 Factory Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: October 20052005 QX56 WKWA2622E

Page 2686 of 3419

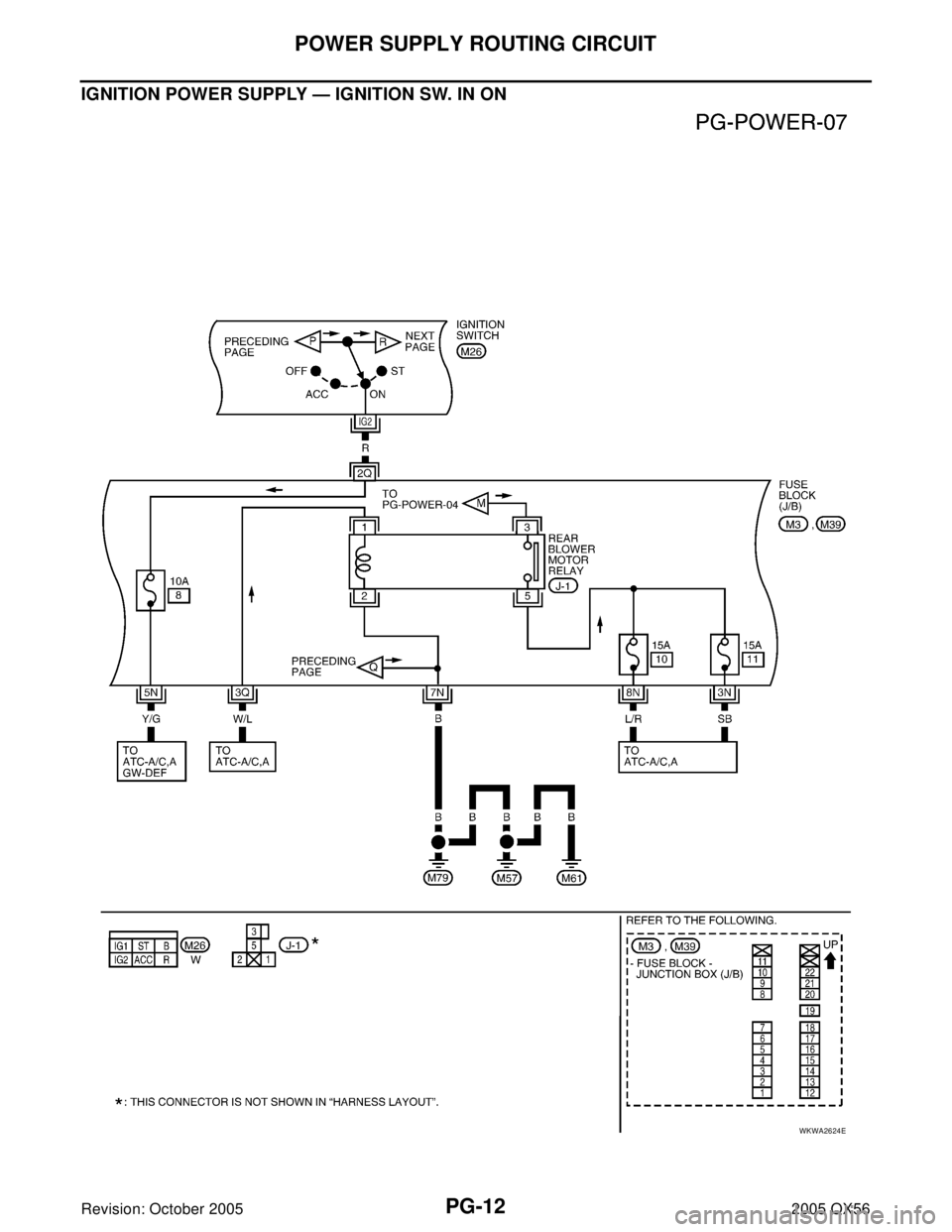

INFINITI QX4 2005 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L MA B PG Revision: October 20052005 QX56 ACCESSORY POWER SUPPLY — IGNITION SW. IN ACC OR ON WKWA2623E

Page 2687 of 3419

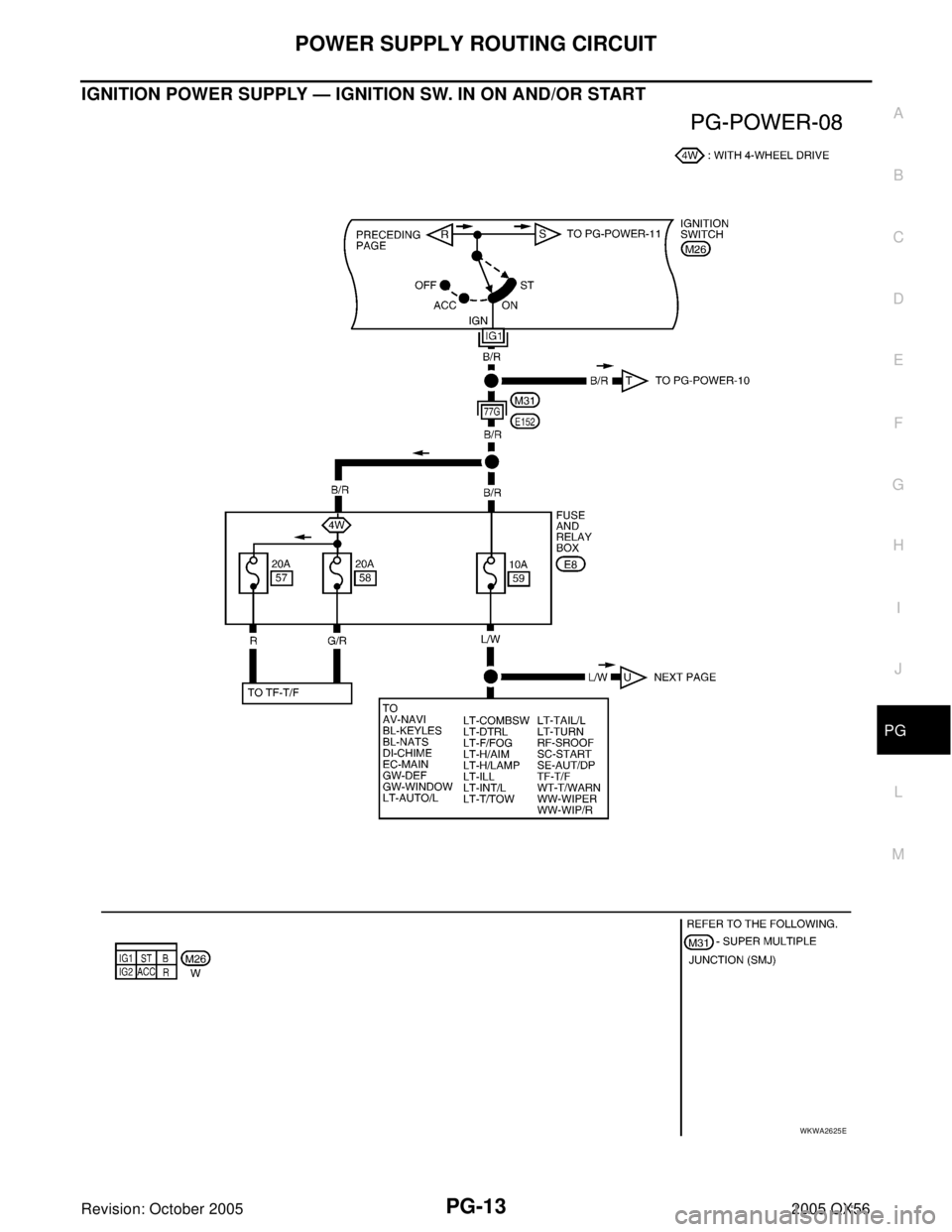

INFINITI QX4 2005 Factory Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: October 20052005 QX56 IGNITION POWER SUPPLY — IGNITION SW. IN ON WKWA2624E

Page 2688 of 3419

INFINITI QX4 2005 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-13 C D E F G H I J L MA B PG Revision: October 20052005 QX56 IGNITION POWER SUPPLY — IGNITION SW. IN ON AND/OR START WKWA2625E
