INFINITI QX4 2005 Factory Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 SKIB3452E

Page 2338 of 3419

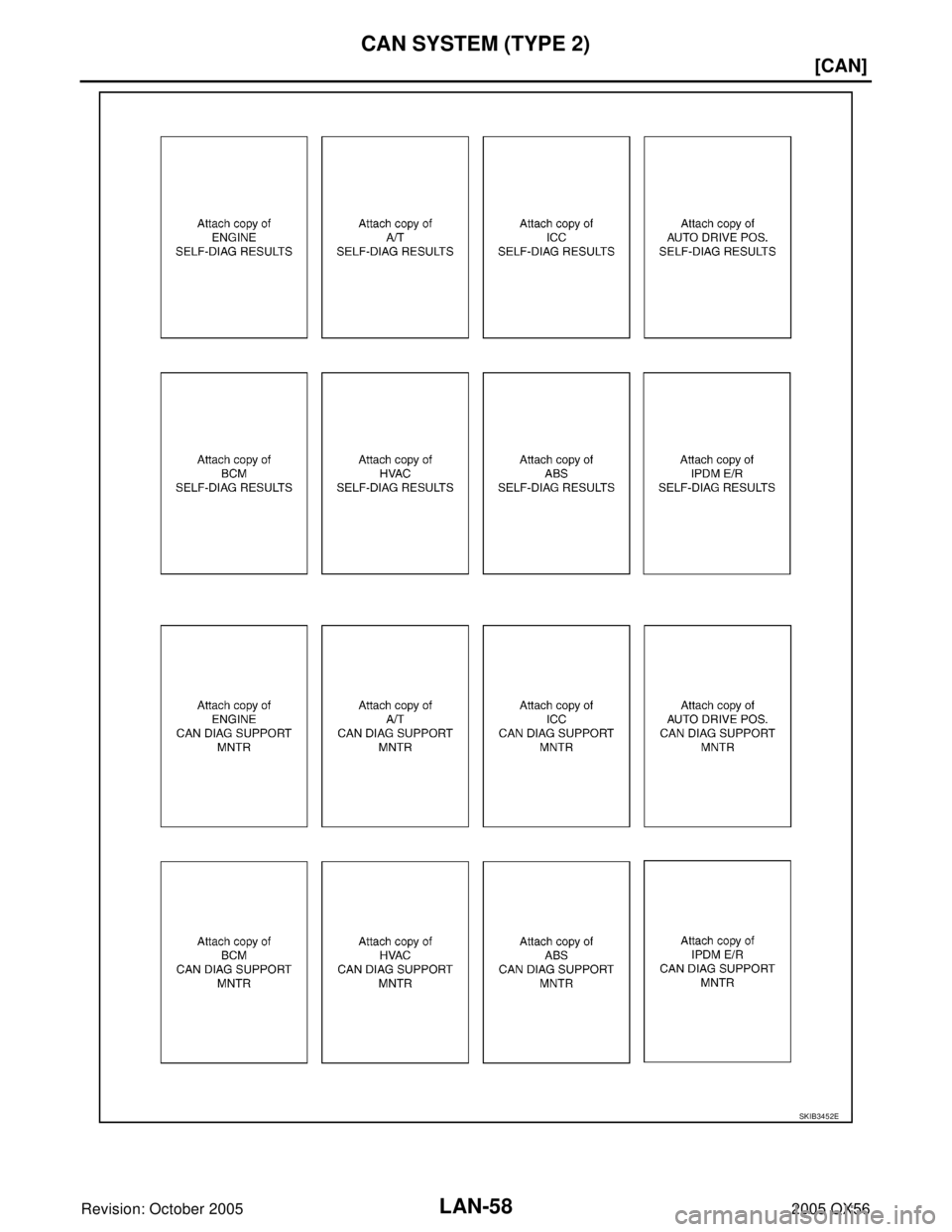

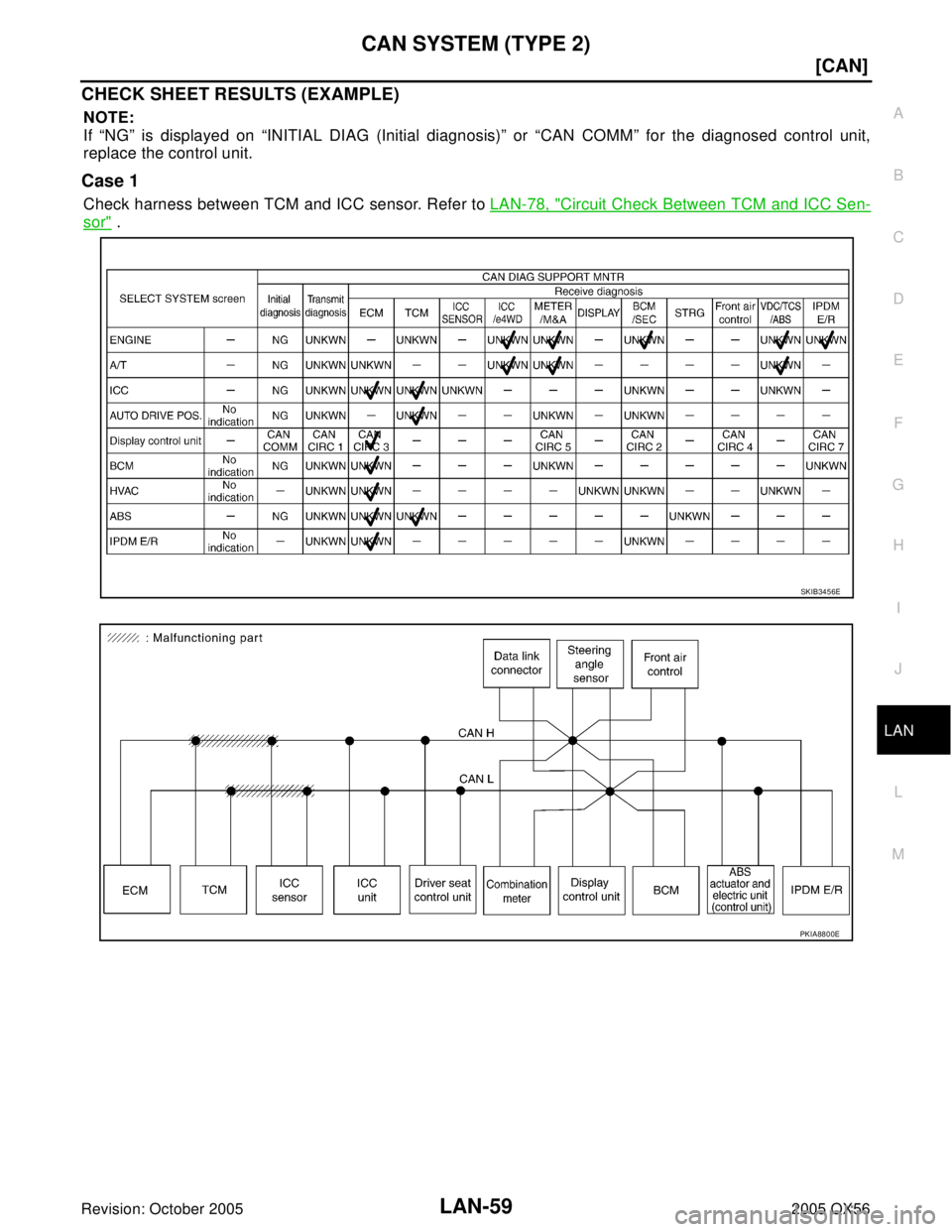

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-59 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or

Page 2339 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 2 Check harness between ICC sensor and ICC unit. Refer to LAN-79, "Circuit Check Between ICC Sensor and ICC Unit" . SKIB3457E PKIA

Page 2340 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-61 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 3 Check harness between ICC unit and driver seat control unit. Refer to LAN-80, "Circuit Check Between

Page 2341 of 3419

INFINITI QX4 2005 Factory Service Manual LAN-62 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 4 Check harness between driver seat control unit and data link connector. Refer to LAN-80, "Circuit Check Between Driver Seat Cont

Page 2342 of 3419

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-63 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 5 Check harness between data link connector and IPDM E/R. Refer to LAN-81, "Circuit Check Between Data

Page 2343 of 3419

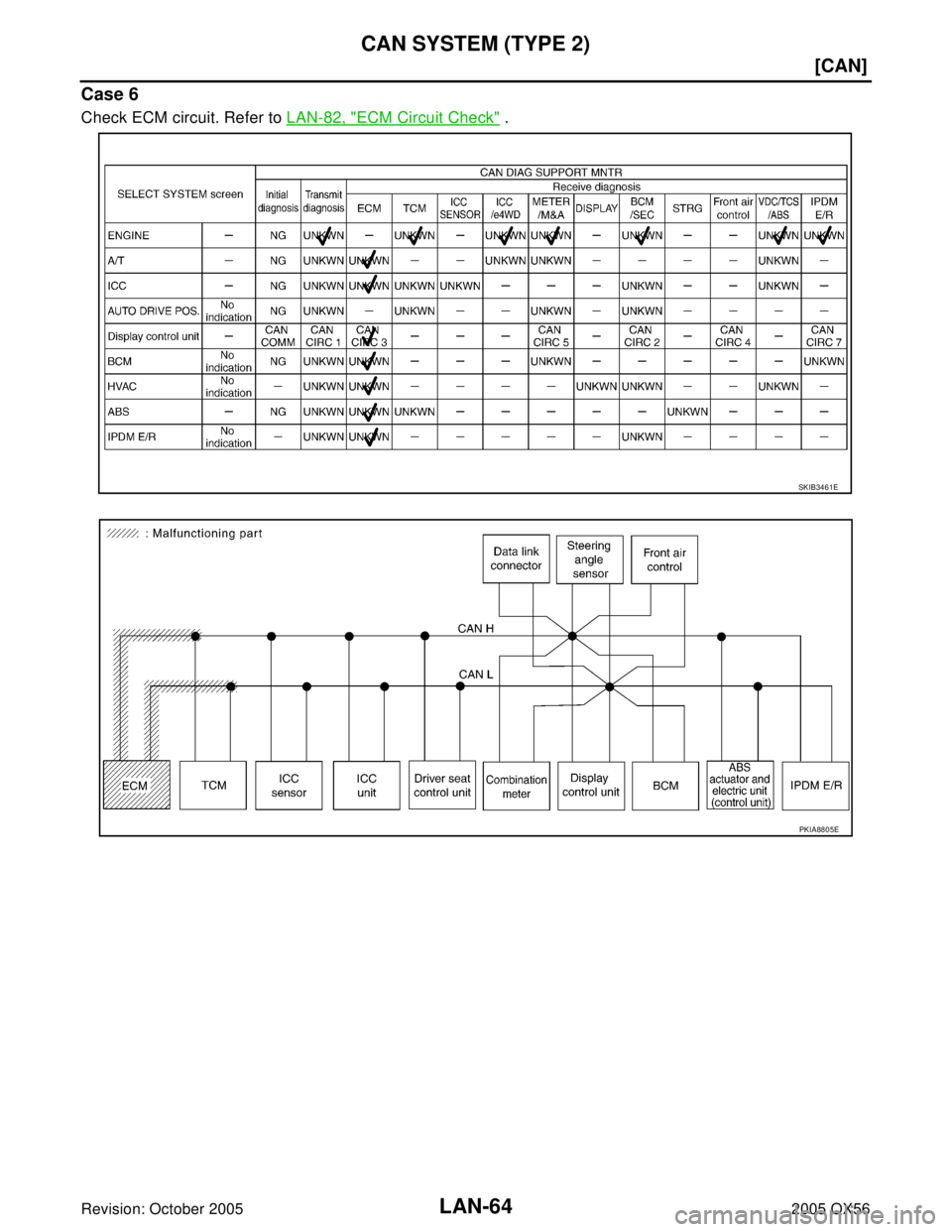

INFINITI QX4 2005 Factory Service Manual LAN-64 [CAN] CAN SYSTEM (TYPE 2) Revision: October 20052005 QX56 Case 6 Check ECM circuit. Refer to LAN-82, "ECM Circuit Check" . SKIB3461E PKIA8805E

Page 2344 of 3419

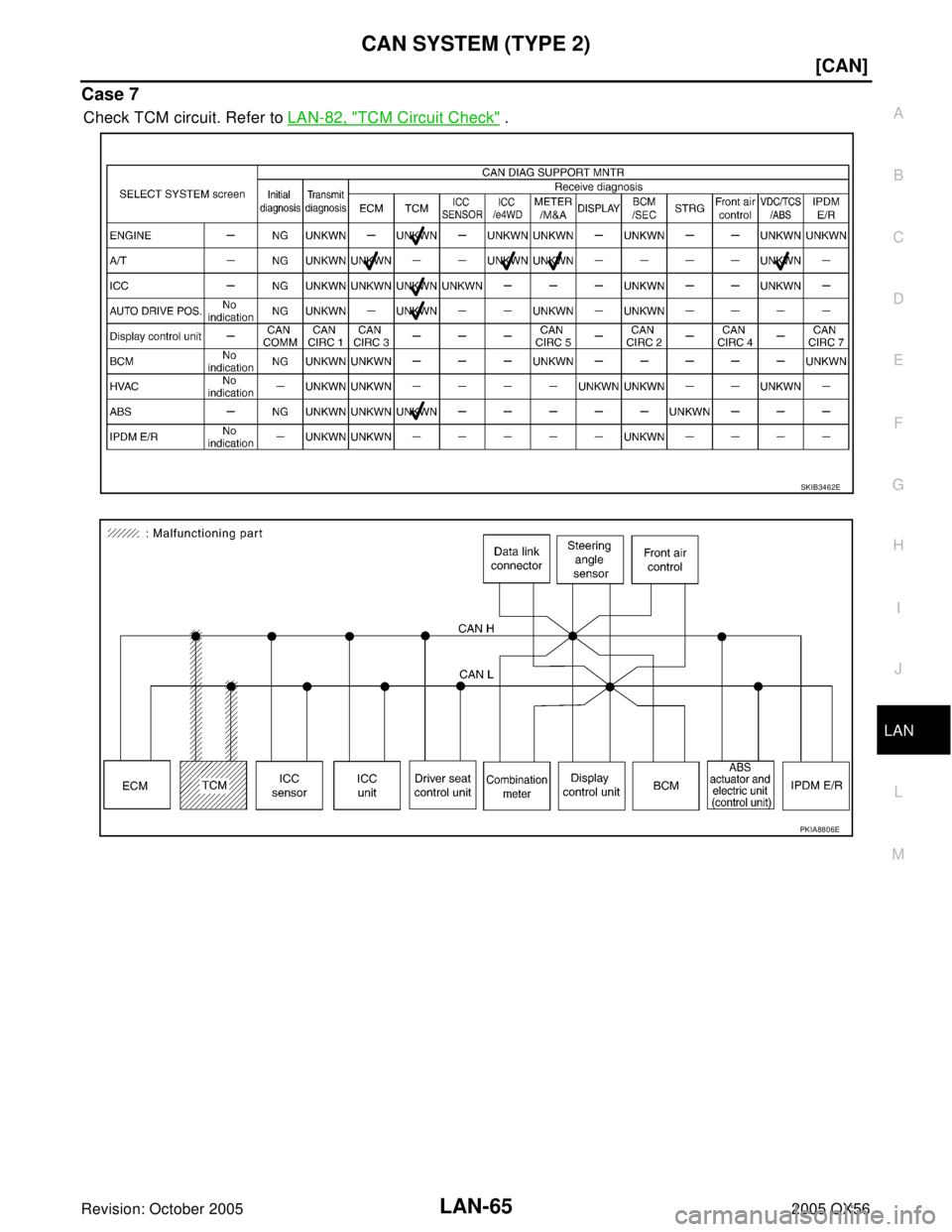

INFINITI QX4 2005 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-65 [CAN] C D E F G H I J L MA B LAN Revision: October 20052005 QX56 Case 7 Check TCM circuit. Refer to LAN-82, "TCM Circuit Check" . SKIB3462E PKIA8806E
