Page 2481 of 3419

INFINITI QX4 2005 Factory Service Manual LT-34
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: October 20052005 QX56
System DescriptionEKS00B8E
Daytime light system turns on daytime light lamps while driving. Daytime light lamps are

LT-34
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: October 20052005 QX56
System DescriptionEKS00B8E
Daytime light system turns on daytime light lamps while driving. Daytime light lamps are not turned on if
engine is activated with parking brake applied. Release parking brake to turn on daytime light lamps. The
lamps turn off when lighting switch is in the 2ND position or AUTO position (Headlamp is "ON") and when light-
ing switch is in the PASSING position. (Daytime light lamps are not turned off only by parking brake itself.)
A parking brake signal and engine run or stop signal are sent to BCM (body control module) by CAN commu-
nication line.
OUTLINE
Power is supplied at all times
to ignition relay, located in the IPDM E/R (intelligent power distribution module engine room), and
through 50A fusible link (letter f , located in the fuse and fusible link box)
to BCM terminal 70, and
through 20A fuse (No. 53, located in the IPDM E/R)
to CPU (central processing unit) of the IPDM E/R, and
through 10A fuse [No. 19, located in the fuse block (J/B)]
to combination meter terminal 8, and
through 10A fuse (No. 45, located in the IPDM E/R)
to daytime light relay terminals 2 and 5.
When the ignition switch is in ON or START position, power is supplied
to ignition relay, located in the IPDM E/R, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38, and
through 10A fuse [No. 14, located in the fuse block (J/B)]
to combination meter terminal 24.
Ground is supplied
to BCM terminal 67 and
to combination meter terminal 17
through grounds M57, M61 and M79.
DAYTIME LIGHT OPERATION
With the engine running, the lighting switch in the OFF or 1ST position and parking brake released, the IPDM
E/R receives input requesting the daytime lights illuminate. This input is communicated across the CAN com-
munication lines. The CPU of the IPDM E/R controls the daytime light relay coil. When energized, this relay
directs power
through daytime light relay terminal 3
to front combination lamp LH terminal 2
through front combination lamp LH terminal 6
to IPDM E/R terminal 55
through 10A fuse (No. 35, located in the IPDM E/R)
through 10A fuse (No. 34, located in the IPDM E/R)
through IPDM E/R terminal 56
to front combination lamp RH terminal 6.
Ground is supplied
to front combination lamp RH terminal 2
through grounds E9, E15 and E24.
With power and ground supplied, the daytime lights illuminate. The high beam headlamps are now wired in
series and illuminate at a reduced intensity.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .

Page 2482 of 3419

INFINITI QX4 2005 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
AUTO LIGHT OPERATION
For auto light operation, refer to LT-4 8, "System Description" in

Page 2483 of 3419

INFINITI QX4 2005 Factory Service Manual LT-36
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: October 20052005 QX56
SchematicEKS00B8G
WKWA2483E

Page 2484 of 3419

INFINITI QX4 2005 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56

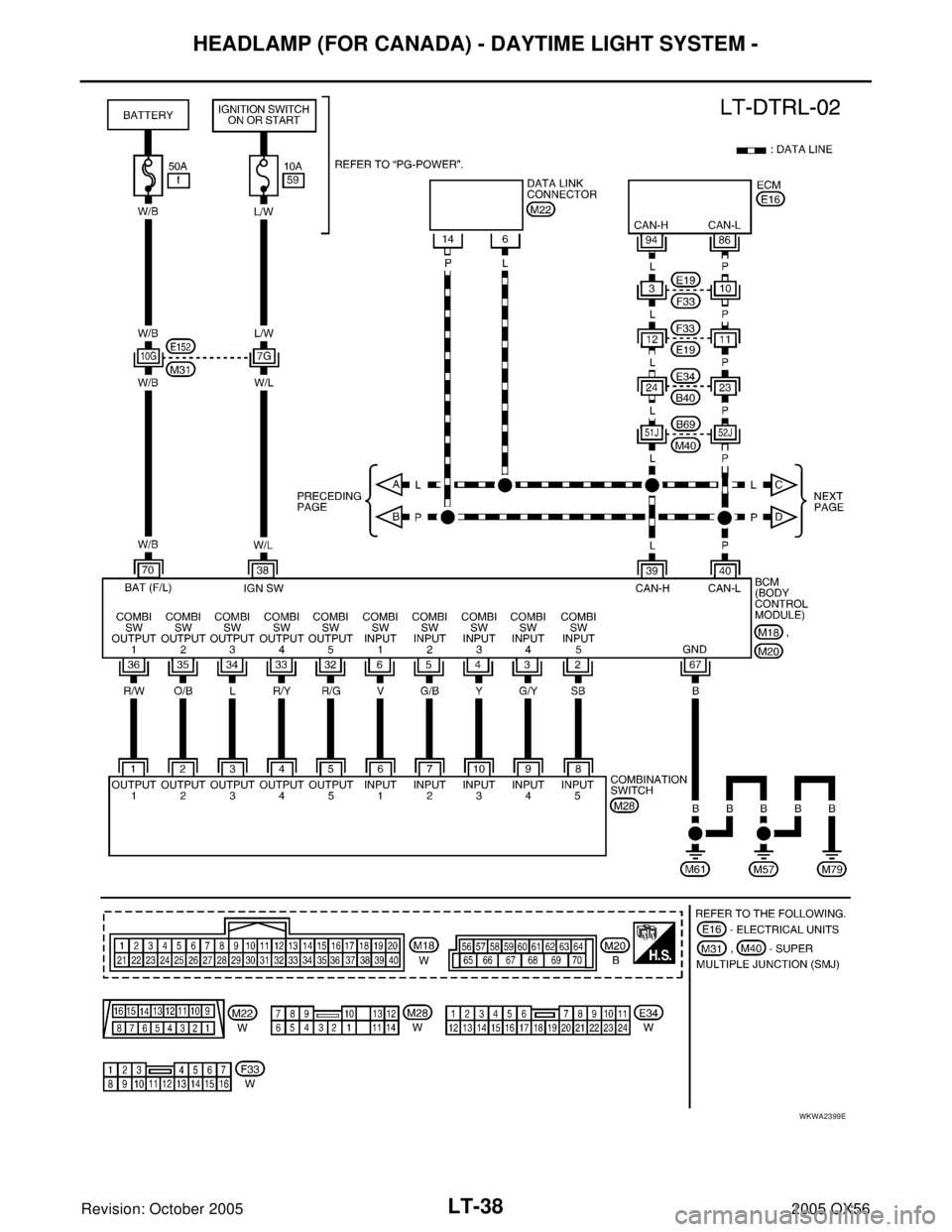

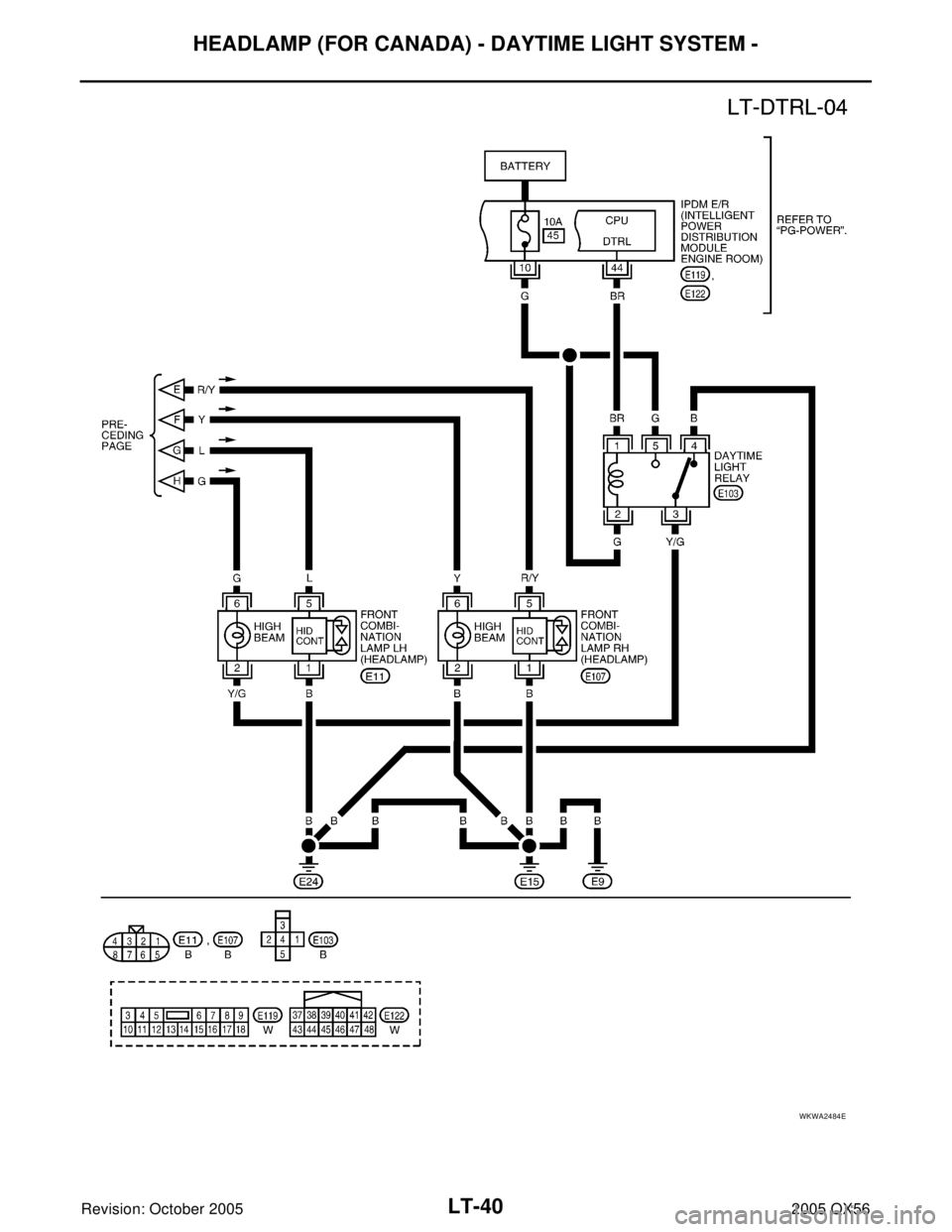

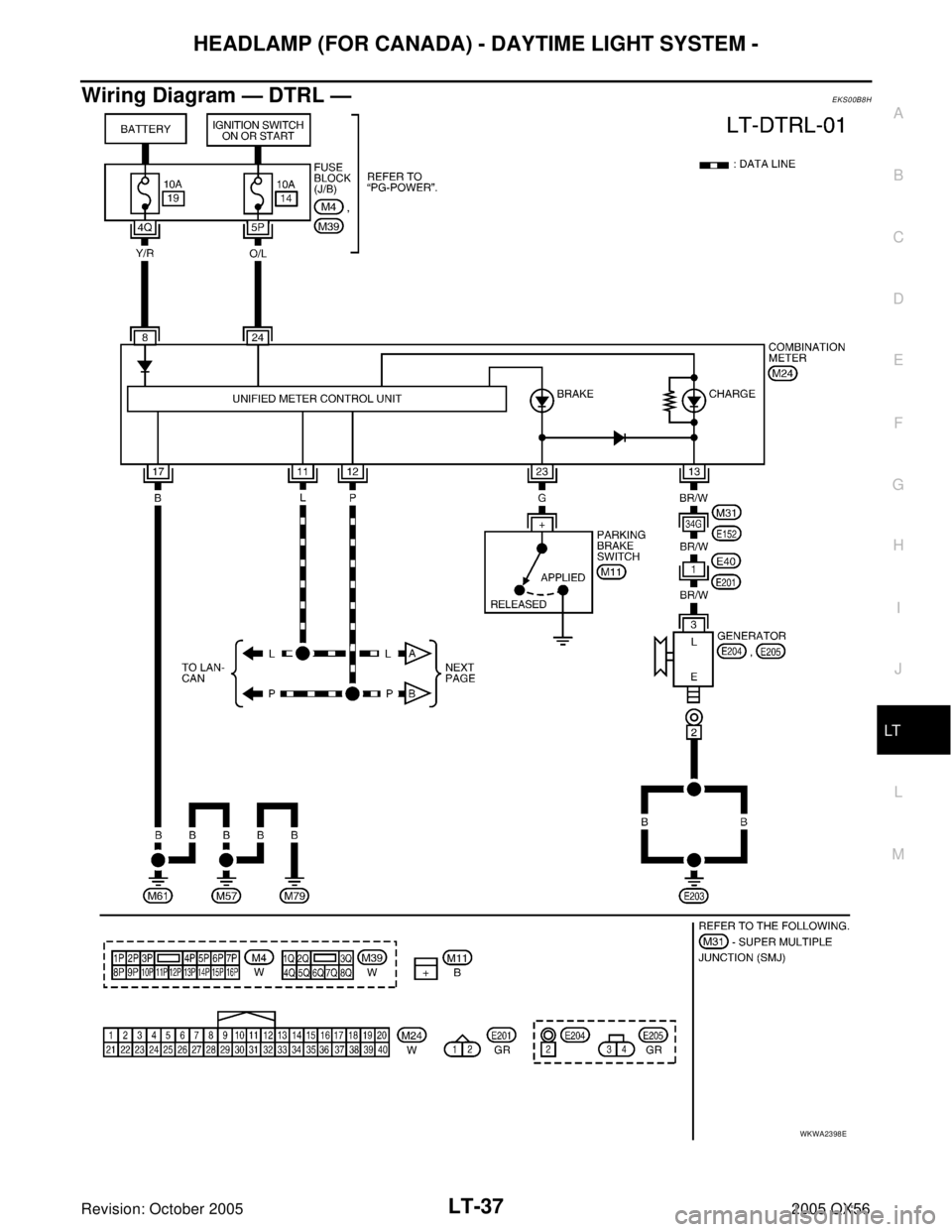

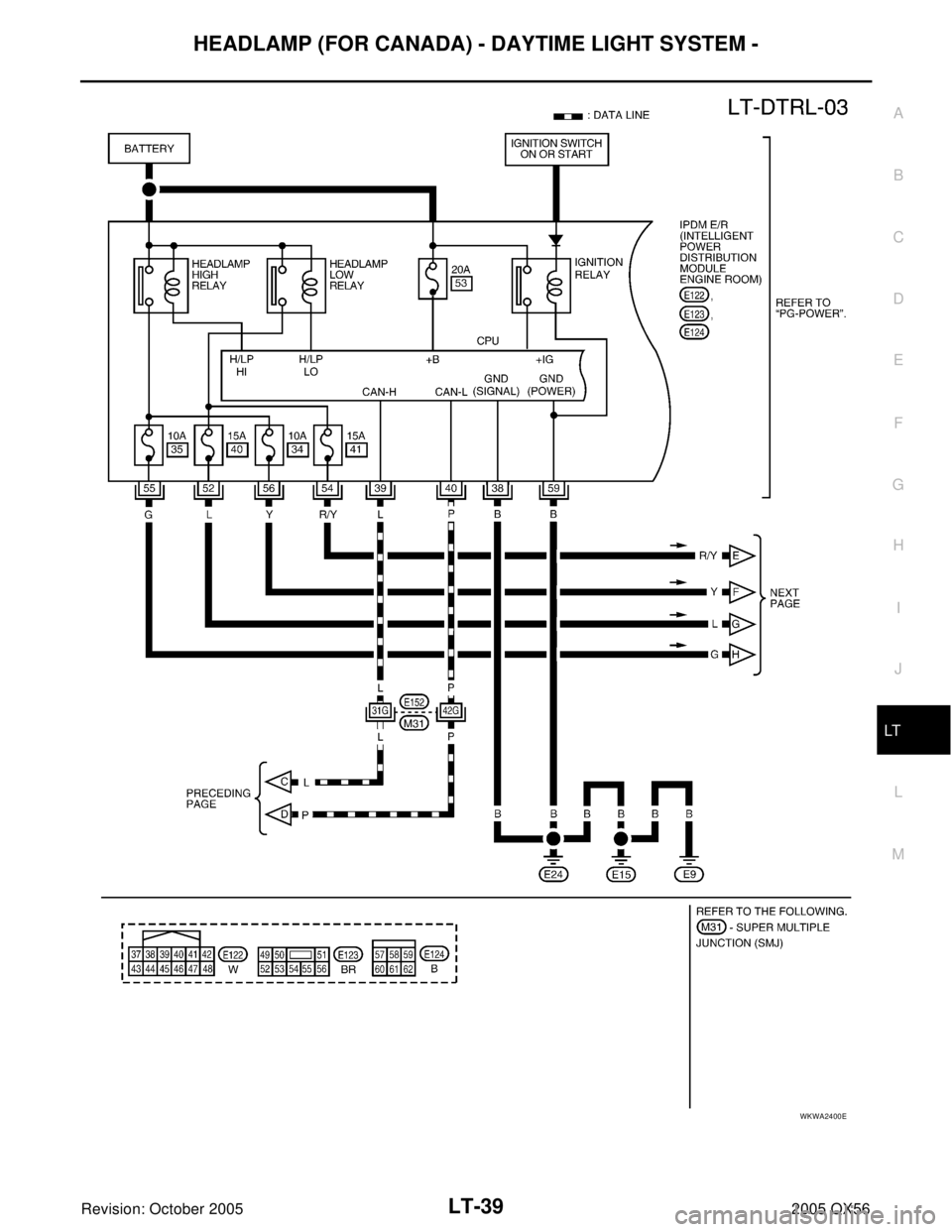

Wiring Diagram — DTRL —EKS00B8H
WKWA2398E

Page 2485 of 3419

INFINITI QX4 2005 Factory Service Manual LT-38
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: October 20052005 QX56
WKWA2399E

Page 2486 of 3419

INFINITI QX4 2005 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-39
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
WKWA2400E

Page 2487 of 3419

INFINITI QX4 2005 Factory Service Manual LT-40
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: October 20052005 QX56
WKWA2484E

Page 2488 of 3419

INFINITI QX4 2005 Factory Service Manual HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
Terminals and Reference Values for BCMEKS00B8I
Te r m i n a l
No.Wire
colorSignal name

Load next 8 pages
