DI-10
COMBINATION METERS
Revision: October 20052005 QX56
Wiring Diagram — METER —EKS00BBY
WKWA2360E
Page 1114 of 3419
COMBINATION METERS
DI-11
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
WKWA4575E
Page 1115 of 3419
DI-12
COMBINATION METERS
Revision: October 20052005 QX56
Terminals and Reference Value for Combination MeterEKS00BBZ
Te r m i n a l
No.Wire
colorItemCondition
Reference value (V)
(Approx.) Ignition
switchOperation or condition
1OIgnition switch ACC or
ONACC — Battery voltage
8 Y/R Battery power supply OFF — Battery voltage
11 L C A N - H — — —
12 P CAN-L — — —
15 Y/L Fuel level sensor signal — —Refer to DI-22, "
Fuel Level Sensor
Unit Inspection" .
16 B/PFuel level sensor and oil
pressure sensor groundON — 0V
17 B Ground OFF — 0V
18 BR Illumination control switch — Lighting switch ONRefer to LT-153, "
ILLUMINATION
OPERATION BY LIGHTING
SWITCH" .
20 YOil pressure sensor sig-
nalON — 0 - 5V
22 GR/LOil pressure sensor refer-
ence voltageON — 5V
24 O/LIgnition switch ON or
STARTON — Battery voltage
Page 1116 of 3419

COMBINATION METERS
DI-13
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Meter/Gauge Operation and Odo/Trip MeterEKS00BC0
SELF-DIAGNOSIS FUNCTION
The following items can be checked during Combination Meter Self-Diagnosis Mode.
Gauge sweep and present gauge values.
Illuminates all odometer, fuel, and engine temperature segments.
Illuminates all micro controlled lamps/LED's regardless of switch configuration.
Displays estimated present battery voltage.
Displays seat belt buckle switch LH status.
HOW TO INITIATE COMBINATION METER SELF- DIAGNOSIS MODE
NOTE:
Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START.
Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF or ACC.
To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.
1. Turn the ignition switch ON, while holding the odometer/trip meter switch for 5 - 8 seconds.
NOTE:
If the diagnosis function is activated the odometer/trip meter will display tESt.
COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS
To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.
Event Odometer Display Description of Test/Data Notes:
Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until
released)tESt Initiating self-diagnosis mode
Odometer/trip meter A/B
switch engaged and
released = next test
requestedrXXXX, FAILReturn to normal opera-
tion of all lamps/LEDs and
displays hex ROM rev. If
a ROM checksum fault
exists, display alternates
between "r XXXX" and
"FAIL".
Next test requested nrXXXXDisplays hex ROM rev as
stored in NVM.
Next test requested GAGEPerforms sweep of all
gauges, then displays
present gauge values.
Performs checksum tests
on ROM and EE.Gauges sweep within 10 sec-
onds
Next test requested (All segments illuminated)Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Initiating self-diagnosis mode
complete
Next test requested bulbIlluminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.
Next test requested EE XX, FAILHex EE level. If EE
checksum fault exists,
display alternates
between "EE XX" and
"FAIL".
Next test requested dtXXXXHex coding of final manu-
facturing test date.
Page 1117 of 3419

DI-14
COMBINATION METERS
Revision: October 20052005 QX56
Next test requested Sc1XXDisplays 8-bit software
configuration value in Hex
format.Bit Coding
7-3 = reserved for future use
2 = TCS/VDC 0 = not present
1 = present
1 = Shift type 0 = Column shift
1 = Floor shift
0 = ICC 0 = not present
1 = present
Next test requested Sc2XXDisplays 8-bit software
configuration value in Hex
format.Bit coding
7-0 = Reserved for future use
Next test requested EprXXDisplays 8-bit software
configuration value in Hex
format.Bit Coding
7-2 = reserved for future use
1 = A/T Oil Temp (gauge)
0 = not present
1 = present
1 = Odo Units 0 = kilometers
1 = miles
Next test requested 1nFXXDisplays 8-bit market info
value in Hex format.$31 = USA
$2A = Canada
$0E = GCC
Next test requested cYLXXDisplays 8-bit engine con-
figuration value in Hex
format.$08 = 8 cylinder
$06 = 6 cylinder
Next test requested FFXXXXDisplays 16-bit fuel flow
constant "Q" in tenths of
cc/min in Hex format.$0000 - $FFFF
Next test requested tFDisplays 16-bit tire factor
"A" in hundredths in Hex
format.$0000 - $FFFF
Next test requested ot1XXDisplays oil pressure tell-
tale "on" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested ot0XXDisplays oil pressure tell-
tale "off" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested XXXXXRaw uncompensated
english speed value in
hundredths of MPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested XXXXXRaw uncompensated
metric speed value in
hundredths of KPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested tXXXXTachometer value in
RPM. Tachometer indi-
cates present RPM.Will display "-----" if message is
not received.
Next test requested F1 XXXXPresent ratioed fuel level
A/D input 1 in decimal for-
mat. Fuel gauge indicates
present filtered level.000-009 = Short circuit
010-254 = Normal range
255 = Open circuit
--- = Missing 5 seconds
Next test requested XXXCLast temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present filtered tem-
perature.Will display "---"C if message is
not received.
Will display "999" if data
received is invalid. Event Odometer Display Description of Test/Data Notes:
Page 1118 of 3419

COMBINATION METERS
DI-15
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
Next test requested BAtXX.XEstimated present bat-
tery voltage.
Next test requested rES -XSeat belt buckle switch
LH status.1= Buckled
0 = Unbuckled
Next test requested PA -XX Hex value port A.
Next test requested Pb -XX Hex value port B.
Next test requested PE -XX Hex value port E.
Next test requested PL -XX Hex value port L.
Next test requested P6 -XX Hex value port K.
Next test requested Pn -XX Hex value port M.
Next test requested PP -XX Hex value port P.
Next test requested PS -XX Hex value port S.
Next test requested Pt -XX Hex value port T.
Next test requested Pu -XX Hex value port U.
Next test requested P4 -XX Hex value port V.
Next test requested Puu -XX Hex value port W.
Next test requested A01XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A02XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A03XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A04XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A05XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A06XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A07XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A08XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A09XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A10XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A11XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A12XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A13XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A14XXXA/D port A/D value (non-
ratioed).0-255
Next test requested A15XXXA/D port A/D value (non-
ratioed).0-255
Next test requested PA0-XXHex value representing
state of A/D ports 0-7.
Next test requested PA1-XXHex value representing
state of A/D ports 0-7. Event Odometer Display Description of Test/Data Notes:
Page 1119 of 3419
DI-16
COMBINATION METERS
Revision: October 20052005 QX56
Next test requested Thr-XXXDecimal value of ther-
mistor A/D reading.0-255
Next test requested D-HI Meter/LCD Illumination.Full daytime brightness all
LCD segments active
Next test requested N-HI Meter/LCD Illumination.Full nighttime brightness all
LCD segments active
Next test requested N-LO Meter/LCD Illumination.Min. nighttime brightness all
LCD segments active
Next test requested GAGEReturn to beginning of self-
diagnosis. Event Odometer Display Description of Test/Data Notes:
Page 1120 of 3419

COMBINATION METERS
DI-17
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: October 20052005 QX56
How to Proceed With Trouble DiagnosisEKS00BC1
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-17, "
Diagnosis Flow" .
3. According to the symptom chart, repair or replace the cause of the symptom.
4. Does the meter operate normally? If so, go to 5. If not, go to 2.
5. Inspection End.
Diagnosis FlowEKS00BC2
1. CHECK WARNING INDICATOR ILLUMINATION
1. Turn ignition switch ON.
2. Make sure warning indicators (such as malfunction indicator lamp and oil pressure low/coolant tempera-
ture high warning indicator) illuminate.
Do warning indicators illuminate?
YES >> GO TO 2.
NO >> Check ignition power supply system of combination meter. Refer to DI-18, "
Power Supply and
Ground Circuit Inspection" .
2. CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-13, "
SELF-DIAGNOSIS FUNCTION" .
Does self-diagnosis function operate?
YES >> GO TO 3.
NO >> Check combination meter power supply and ground circuit. Refer to DI-18, "
Power Supply and
Ground Circuit Inspection" .
3. CHECK ODOMETER OPERATION
Check segment display status of odometer.
Is the display normal?
YES >> GO TO 4.
NO >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .
4. CHECK COMBINATION METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.
OK or NG
OK >> Go to DI-19, "Symptom Chart" .
NG >> Replace the combination meter. Refer to IP-13, "
Combi-
nation Meter" .

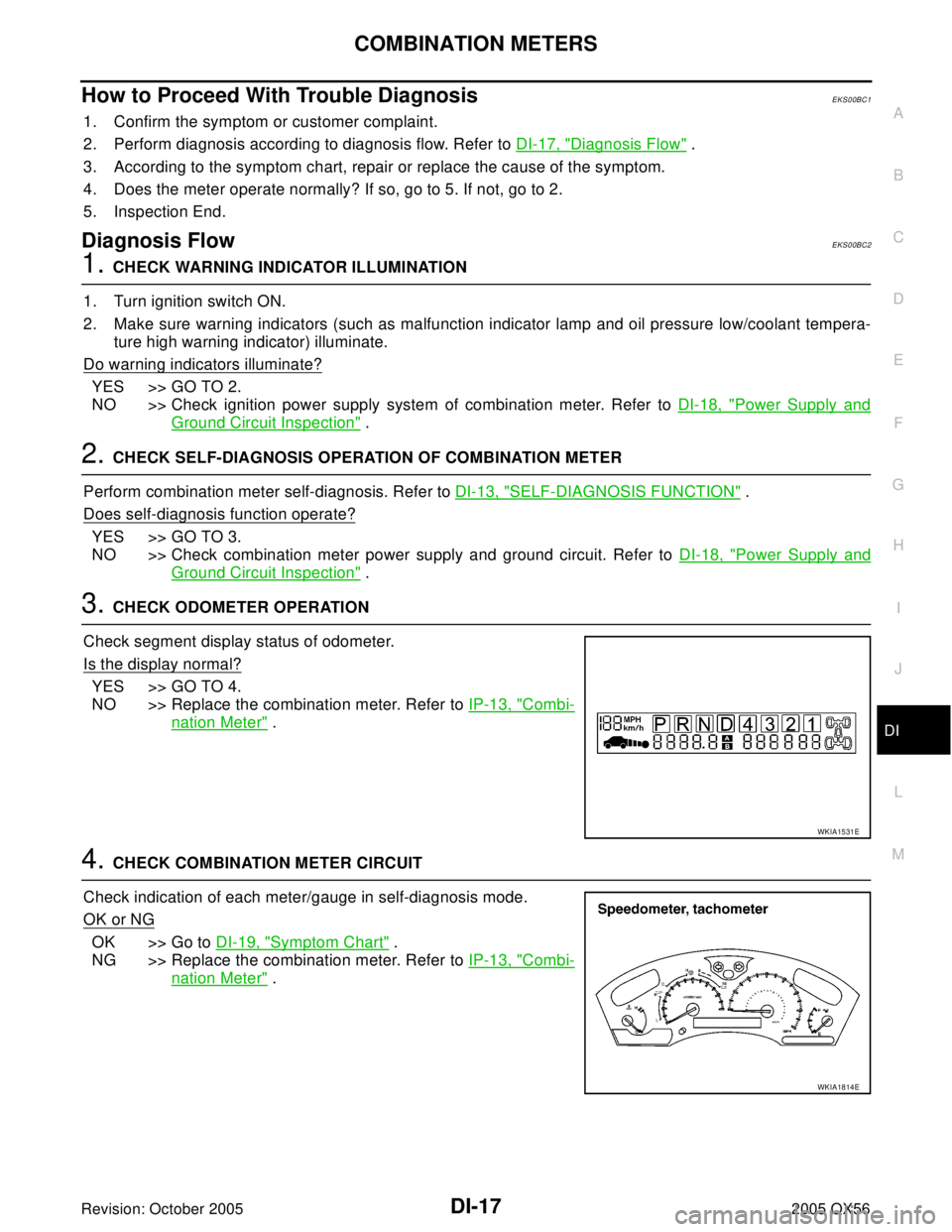

WKIA1531E
WKIA1814E
